Manual
Color Video Door Phone
DP-222Q
• Camera has 6 LEDs for nighttime
operation
•
Remotely and securely talk to visitors
and unlock doors, gates, etc. from
the monitor
• Easily connect a secondary monitor*
• Simple 2-wire connection
• Built-in microphone
•
Adjustable contrast, brightness,
and ringer volume
Camera and monitor turn off
when not in use
*Secondary monitor sold separately.
ENFORCER Color Video Door Phone
2 SECO-LARM U.S.A., Inc.

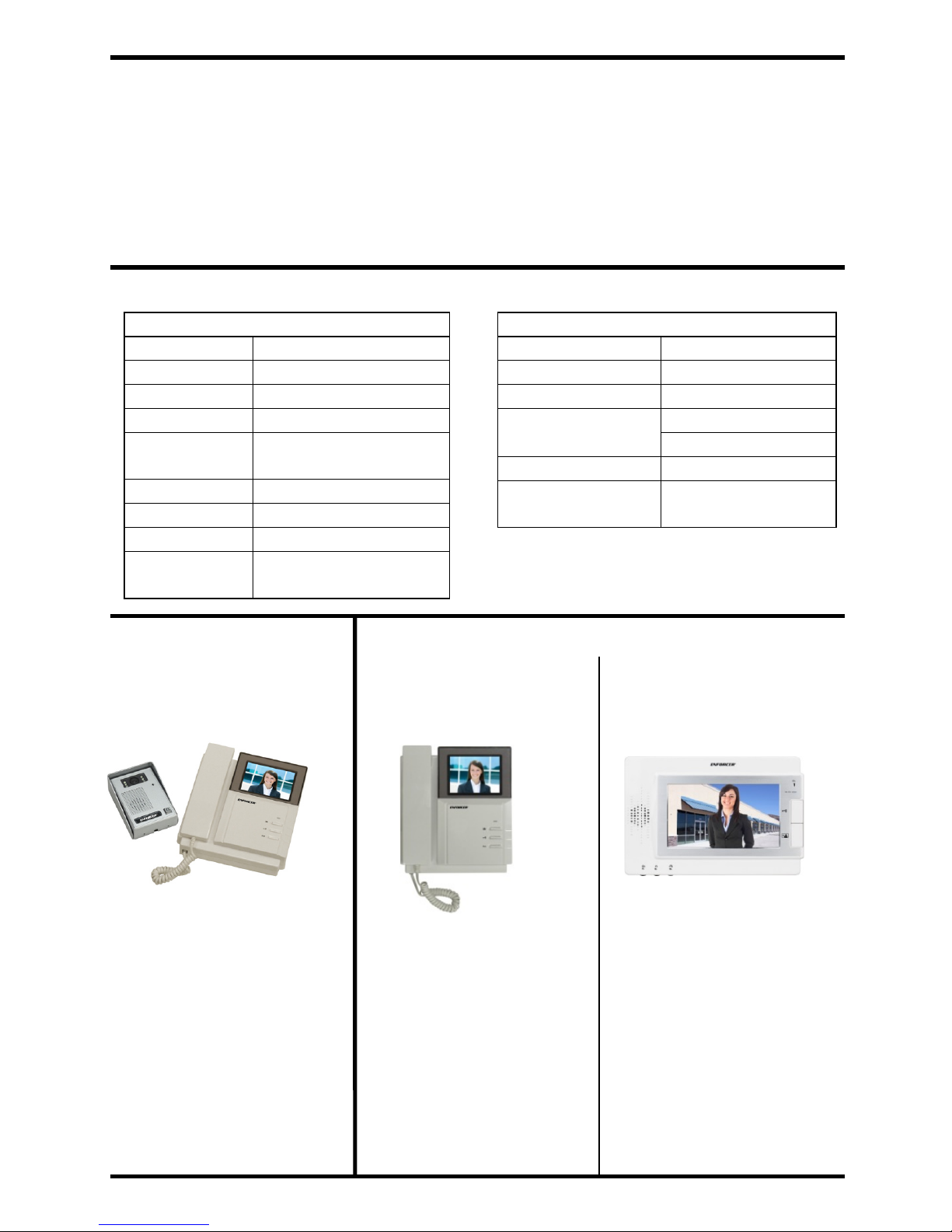

Parts List:
Table of Contents:
Specifications ................................................ 2
Parts List ....................................................... 2
Overview ....................................................... 3
Installation Notes ........................................... 4
Installation – Primary Monitor ........................ 4
Installation – Secondary Monitor ................... 5
Installation – Camera .................................... 5
Operating Instructions ................................... 6
Wiring Diagram ............................................. 7
Troubleshooting ............................................ 8
Specifications:
1x Camera
1x Camera bracket
8x Screws
8x Screw anchors
1x Camera screw
1x Allen wrench
1x Primary monitor
1x Monitor bracket
1x AC Power adapter
2x Wire connectors (2-Wire)
DP-222Q
Complete Kit
1x Handset monitor
1x Monitor bracket
1x AC Power adapter
4x Screws
4x Screw anchors
2x Wire connectors (2-Wire)
DP-222-MQ
Handset
Secondary Monitor Only
Camera
Type
Color camera
CMOS 1/4” CMOS sensor
Resolution
700 TV lines
Lens
3.6mm
Relay output
1A@12VDC max.
dry contact
Current draw
150mA
IP Rating
IP55
Weight
11-oz (312g)
Dimensions
51/4” x 39/16” x 13/8”
(130 x 90 x 33 mm)
Monitor
Display
4” Color TFT
Operating voltage
17VDC
Relock delay
3 seconds
Current draw
Active: 700mA
Standby: 50mA
Weight
1-lb, 7-oz (652g)
Dimensions
75/8”x 81/2” x 113/16”
(194 x 216 x 46 mm)
Also Available:
1x Hands-free monitor
1x Monitor bracket
1x AC Power adapter
4x Screws
4x Screw anchors
2x Wire connectors (2-Wire)
DP-234-MQ
Hands-Free
Secondary Monitor Only
Compatible with DP-222Q / DP-734Q
and DP-234Q
Screen image simulated.
Screen image simulated.
Compatible with DP-222Q / DP-734Q
and DP-234Q
Screen image simulated.
Note: The total wire length between the
camera and the farthest monitor should not
exceed 246ft (75m).
ENFORCER Color Video Door Phone
SECO-LARM U.S.A., Inc. 3
Overview:
Handset
Display
Power LED
Camera button
Door unlock button
(This button is not used)
Handset Volume
Brightness
Contrast
Primary Monitor
Camera
Microphone
Camera
High-intensity LEDs
Request-to-enter button
Speaker
Camera speaker volume
To locking
device
Ring volume
To optional
secondary monitor
(Secondary monitor not included with DP-222Q)
To camera
To
power
To primary
monitor
Front
Rear
Side
Front (with bracket)
Rear
(without bracket)
