Page 1

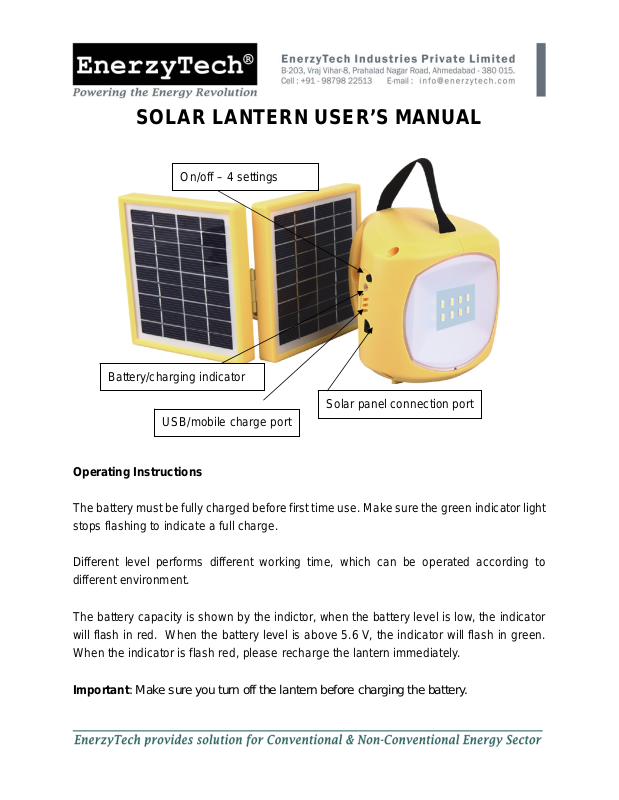

SOLAR LANTERN USER’S MANUAL
On/off – 4 settings
Battery/charging indicator
Solar panel connection port
USB/mobile charge port
Operating Instructions
The battery must be fully charged before first time use. Make sure the green indicator light
stops flashing to indicate a full charge.
Different level performs different working time, which can be operated according to
different environment.
The battery capacity is shown by the indictor, when the battery level is low, the indicator
will flash in red. When the battery level is above 5.6 V, the indicator will flash in green.
When the indicator is flash red, please recharge the lantern immediately.
Important: Make sure you turn off the lantern before charging the battery.
Page 2
Setting Hours on Full Battery Light intensity
Bright 60 h 45 LM
Brighter 30 h 95 LM
Brightest 15 h 160 LM
Bed 500 h 5 LM
Charging Instructions
1. Plug the solar panel cable into the lantern
2. Expose the solar panel to sunlight
3. Or Plug the AC adaptor cable into the lantern
4. Then connect the AC adaptor to the grid
Using solar panel for charging: after exposing 13-14 hours under peak sunshine, the
battery can be fully charged. Please inquire the local weather website for peak sunshine.
For best performance
Place the solar panel direct to sunlight.
Clean the solar panel regularly with a damp cloth, so that dust or dirt does not block
the sun’s rays.
Store the solar panel indoors when not in use, to protect against thef t or damage due
to bad weather.
Keep the lantern shaded from the sun during charging in order to increase charge
rate.
Instruction for Mobile phone charging
Please connect your mobile phone through its charging cable to the USB port for
charging.
WARNING:
THE CHIP IS HIGH INTENSITY LED FILTER, PLEASE KEEP AWAY FROM EYE
CONTACT
Page 3
Instruction for the solar panel
Please keep the surface always clean and avoid scratching
Please place the solar panel at the strongest sunshine area to observe enough
sunshine
Battery Care & Maintenance
The solar lantern uses a 6 volt, 4.5 Ah sealed Lead Acid (SLA) rechargeable battery.
To keep your battery working perfect:-
Immediately charge the battery after complete discharge
Never leave the battery in a fully discharged state
Recharge the battery even if fully charged at least once every 3 months
DO NOT USE THIS BATTERY FOR OTHER PRODUCT OR USE.
When replacing the battery, ONLY USE a 6 volt Sealed Lead Acid rechargeable
battery for replacement
