Enerwave ZW15S Installation Instructions Manual

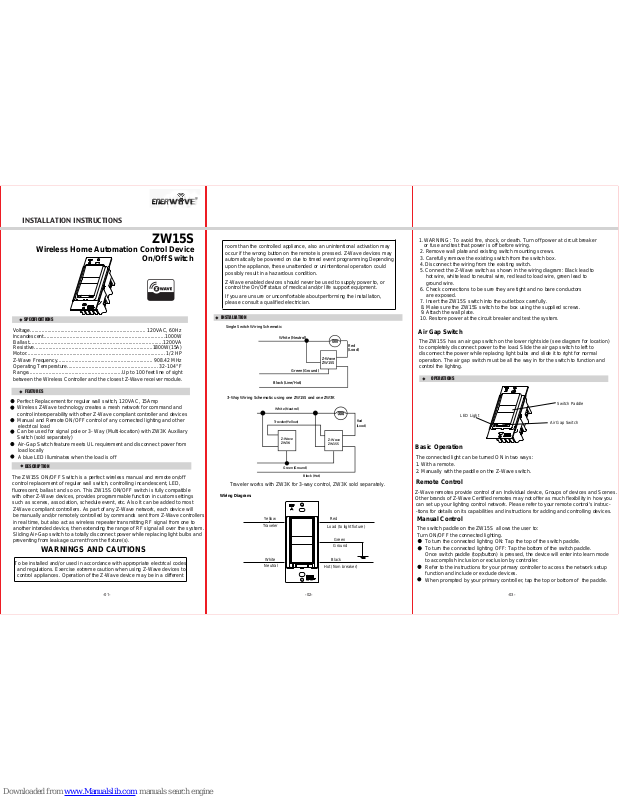

INSTALLATION INSTRUCTIONS
-02- -03--01-
DESCRIPTION
FEATURES
ZW15S
On/Off Switch
Voltage................................................................................ 120VAC, 60Hz
Resistive..................................................................................1800W(15A)
Motor................................................................................................ 1/2 HP
Z-Wave Frequency.................................................................. 908.42 MHz
Operating Temperature............................................................... 32-104° F
Range.................................................................Up to 100 feet line of sight
SPECIFICATIONS
between the Wireless Controller and the closest Z-Wave receiver module.
INSTALLATION
Single Switch Wiring Schematic
Wiring Diagram:
WARNINGS AND CAUTIONS
To be installed and/or used in accordance with appropriate electrical codes
and regulations. Exercise extreme caution when using Z-Wave devices to
control appliances. Operation of the Z-Wave device may be in a different
please consult a qualified electrician.
room than the controlled appliance, also an unintentional activation may
occur if the wrong button on the remote is pressed. Z-Wave devices may
automatically be powered on due to timed event programming.Depending
upon the appliance, these unattended or unintentional operation could
If you are unsure or uncomfortable about performing the installation,
possibly result in a hazardous condition.
Z-Wave enabled devices should never be used to supply power to, or
control the On/Off status of medical and/or life support equipment.
6. Check connections to be sure they are tight and no bare conductors
are exposed.
7. Insert the ZW15S switch into the outlet box carefully.
8. Make sure the ZW15S switch to the box using the supplied screws.
9. Attach the wall plate.
10. Restore power at the circuit breaker and test the system.
Incandescent....................................................................................1000W
Ballast.............................................................................................1200VA
White (Neutral)
Red
(Load)
Z-Wave
ZW15S
Green (Ground)
Black (Line/Hot)
Wireless Home Automation Control Device
Basic Operation
OPERATIONS
Air Gap Switch
The ZW15S has an air gap switch on the lower right side (see diagram for location)
to completely disconnect power to the load. Slide the air gap switch to left to
operation. The air gap switch must be all the way in for the switch to function and
control the lighting.
Refer to the instructions for your primary controller to access the network setup
function and include or exclude devices.
When prompted by your primary controller, tap the top or bottom of the paddle.
Remote Control
Z-Wave remotes provide control of an Individual device, Groups of devices and Scenes.
Other brands of Z-Wave Certified remotes may not offer as much flexibility in how you
can set up your lighting control network. Please refer to your remote control's instruc-
-tions for details on its capabilities and instructions for adding and controlling devices.
Manual Control
The switch paddle on the ZW15S allows the user to:
Turn ON/OFF the connected lighting.
To turn the connected lighting ON: Tap the top of the switch paddle.
To turn the connected lighting OFF: Tap the bottom of the switch paddle.
Once switch paddle (top/button) is pressed, the device will enter into learn mode
to accomplish inclusion or exclusion by controller.
The connected light can be turned ON in two ways:
1. With a remote.
2. Manually with the paddle on the Z-Wave switch.
Perfect Replacement for regular wall switch, 120VAC, 15Amp
Wireless Z-Wave technology creates a mesh network for command and
Manual and Remote ON/OFF control of any connected lighting and other
control interoperability with other Z-Wave compliant controller and devices
electrical load
Can be used for signal pole or 3- Way (Multi-location) with ZW3K Auxiliary
Air-Gap Switch feature meets UL requirement and disconnect power from
A blue LED illuminates when the load is off
Switch (sold separately)
load locally
The ZW15S ON/OFF Switch is a perfect wireless manual and remote on/off
control replacement of regular wall switch, controlling incandescent, LED,
fluorescent, ballast and so on. This ZW15S ON/OFF switch is fully compatible
with other Z-Wave devices, provides programmable function in custom settings
such as scenes, association, schedule event, etc. Also It can be added to most
Z-Wave compliant controllers. As part of any Z-Wave network, each device will
be manually and/or remotely controlled by commands sent from Z-Wave controllers
in real time, but also act as wireless repeater transmitting RF signal from one to
another intended device, then extending the range of RF signal all over the system.
Sliding Air-Gap switch to a totally disconnect power while replacing light bulbs and
preventing from leakage current from the fixture(s).
4. Disconnect the wiring from the existing switch.
5. Connect the Z-Wave switch as shown in the wiring diagram: Black lead to
hot wire, white lead to neutral wire, red lead to load wire, green lead to
ground wire.
1.WARNING : To avoid fire, shock, or death. Turn off power at circuit breaker
or fuse and test that power is off before wiring.
2. Remove wall plate and existing switch mounting screws.
3. Carefully remove the existing switch from the switch box.
Traveler works with ZW3K for 3-way control, ZW3K sold separately.
3-Way Wiring Schematic using one ZW15S and one ZW3K
Black (Hot)
Green (Ground)
Z-Wave
ZW3K
Z-Wave
Red
(Load)
Traveler(Yellow)
White (Neutral)
ZW15S
disconnect the power while replacing light bulbs and slide it to right for normal
Yellow
Ground
Green
Traveler
White
Neutral
Red
Load (to light fixture)
Black
Hot (from breaker)
Air Gap Switch
LED Light
Switch Paddle
INSTALLATION INSTRUCTIONS
-05-
-04-
WARRANTY INFORMATION
Our company warranties its products to be free of defects in materials and workman
-ship for a period of two (2) years. There are no obligations or liabilities on the part
use or performance of this product or other indirect damages with respect to loss
of property, revenue, or profit,
or cost of removal, installation or reinstallation.
of our company for consequential damages arising out of or in connection with the
Restoring Factory Defaults
All Configuration Parameters can all be restored to their factory default settings by
using your primary controller to delete/reset the device.
ADVANCED OPERATION
The following Advanced Operation parameters require that you have an advanced
controller. However, basic remotes do not have this capability.
All-ON and All-OFF
Depending upon your primary controller, the ZW15S switch can be set to respond to
ALL-ON and ALL-OFF commands in up to four different ways.Some controllers may
not be able to change the response from its default setting. Please refer to your
controller’s instructions for information on whether or not it supports the configuration
function and if so, how to change this setting.
The four possible responses are:
- It will respond to ALL-ON and the ALL-OFF command (default).
- It will not respond to ALL-ON or ALL-OFF commands.
- It will respond to the ALL-OFF command but will not respond to the ALL-ON command.
- It will respond to the ALL-ON command but will not respond to the ALL-OFF command.
From the Remote (or repeating Z-Wave module) to
destination device:
Type of
Construction
Wood Frame with
Drywall
Brick, Tile or
Concrete
Plastic
J-Boxes*
Metal
J-Boxes
Plastic
J-Boxes*
Metal
J-Boxes
Number of
Walls or
Obstacles
0** 100’ 80’ 100’ 80’
1 70’ 56’ 60’ 48’
2 49’ 39’ 36’ 29’
3 34’ 27’ 21’ 17’
Z-Wave Enabled Devices.
WIRELESS RANGE
This device complies with the Z-Wave standard of open-air, line of sight transmission
distances of 100 feet. Actual performance in a home depends on the numbers of walls
between the remote controller and the destination device, the type of construction and
the number of Z-Wave enabled devices installed in the control network. Most Z-Wave
enabled devices act as signal repeater and multiple devices result in more possible
transmission routes which helps eliminate " RF dead-spots."
Z-WAVE NETWORK
WAVE NETWOR
Things to consider regarding RF range:
- Each wall or obstacle (i.e.:refrigerator, big screen TV, etc.)between the remote or
Z-Wave device and the destination device will reduce the maximum range of 100
feet by approximately 25-30%.
- Brick, tile or concrete walls block more of the RF signal than walls made of wooden
studs and plasterboard (drywall).
- Wall mounted Z-Wave devices installed in metal junction boxes may suffer a
significant loss of range (approximately 20%) since the metal box blocks a large
part of the RF signal.
Effects of Home Construction on Wireless Range Between
The distances shown in the table below are typical examples. Actual
performance in your home will vary.
Note:
LED Light and Buttons Configuration
By default setting, once press button "up", the load connected to ZW15S will be
turned on,and LED light will turn off. We use Command_Class_Configuration
to configure LED light state and button reverse.
Configuration details
- Parameter 1 (configure LED light state ), default value is 0. Valid values are 0 and
- Parameter 2 (configure button toggle), default value is 0. Valid values are 0 and
1 with 1 byte.
1 with 1 byte.
The equipment has been tested and found to comply with the limits for a Class
B Digital Device, pursuant to part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment uses,generates and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction, may
cause harmful interference to radio communication. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on,the user is
encouraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna
- Increase the separation between the equipment and receiver
- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected
- Consult the dealer or an experienced radio/TV technician for help.
- This device may not cause interference
- This device must accept any interference, including interference that may
Operation is subject to the following two conditions:
cause undesired operation of the device.
FCC COMPLIANCE STATEMENT
After a power failure, the ZW15S on/off switch returns to OFF state.
Please Note:
Nov, 2014
11002A
ZW15S can be turned off and LED light will turn off.
For instance, after configuring, once press button "up", the load connected to
Once the switch is part of the network, the same basic procedure is used to add
the switch to groups & scenes or change advanced functions. Refer to the primary
controller’s instructions for details.
The primary controller should indicate that the action was successful. If the
controller indicates the action was unsuccessful, please repeat the procedure.
Association command class
ZW15S can support single association group with up to 5 target nodes by using
command class COMMAND_CLASS_BASIC. When a destination(target) device
is assigned to ZW15S by association group, it will be activated and deactivated
each time when double press ZW15S's button.
For instance, one short press the ZW15S's button ON/OFF, its load will be
turned ON/OFF. Double short press the ZW15S, the load connected to ZW15S
and target device will be turn ON/OFF almost simultaneously.
