Manual and Configuration
KNXnet/IP Interface
Enertex® Bayern GmbH – Ebermannstädter Straße 8 - 91301 Forchheim - Deutschland - mail@enertex.de
1150-HB-KNXnetIP-Interface-en-1.odt, 2018- 08-06 Seite 2 von 6
Note
The contents of this document may be reproduced without prior written approval by Enertex® Bayern
GmbH in any form, neither in whole nor in parts, copied, transmitted, distributed or stored.
Enertex® is a registered trademark of Enertex® Bayern GmbH. Other product and company names mentioned in this manual may be the marketing or trade names of their respective owners.
This manual may be changed without notification or announcement and makes no claim to completeness
or accuracy.
Table of content
Notices........................................................................................................................................................... 3
Assembly and connection........................................................................................................................... 3
Commissioning............................................................................................................................................ 3
Functional Description................................................................................................................................ 4
Parameterization.......................................................................................................................................... 4
General..................................................................................................................................................... 4
IP settings................................................................................................................................................. 4
Telnetserver.................................................................................................................................................. 5
Reset to factory defaults............................................................................................................................. 6
ETS database................................................................................................................................................ 6
Technical data.............................................................................................................................................. 6
Enertex® Bayern GmbH – Ebermannstädter Straße 8 - 91301 Forchheim - Deutschland - mail@enertex.de
Notices
• Installation and assembly of electrical equipment must be performed by qualified electri-
cians.
• When connecting KNX/EIB interfaces skills are provided by KNX™-Training.
• Ignoring the instructions may damage the device as well as causing fire or other ha-
zards.
• This manual is part of the product and must remain with the end user.
• The manufacturer is not liable for any costs or damages incurred by the user or third
parties through the use of this device, misuse or malfunction of the connection, malfunction of the device or the subscriber equipment.
• Opening the case or other authorized changes or modifications will void the warranty!
• The manufacturer is not liable for improper use.
Assembly and connection
Requirements:
• One of the following power supplies
1150-HB-KNXnetIP-Interface-en-1.odt, 2018- 08-06 Seite 3 von 6
• 10/100 Mbit compatible Ethernet connection
• KNX/EIB bus connection
Commissioning
Boottime is about 2 seconds.
The default network setting ist DHCP.
The default KNX physical address is 15.15.1.
The green LED signalizes LAN activity, the yellow LED signalizes KNX bus activity. If the the red
LED is active, device is in programming mode.
- 20 bis 30 V DC
- 16 bis 24 V AC
- „Power over Ethernet“ (IEEE 802.3af), Class 1
- AUX-Output of the Enertex® KNX PowerSupply 960 if there is no additional KNX choke
connected to it
Enertex® Bayern GmbH – Ebermannstädter Straße 8 - 91301 Forchheim - Deutschland - mail@enertex.de
Functional Description
• Four independent KNXnet/IP tunnel connections
• LED-signaling for KNX communication, Ethernet communication and programming mode
• Standard configuration with ETS
• Configuration of the tunnel addresses via Telnet

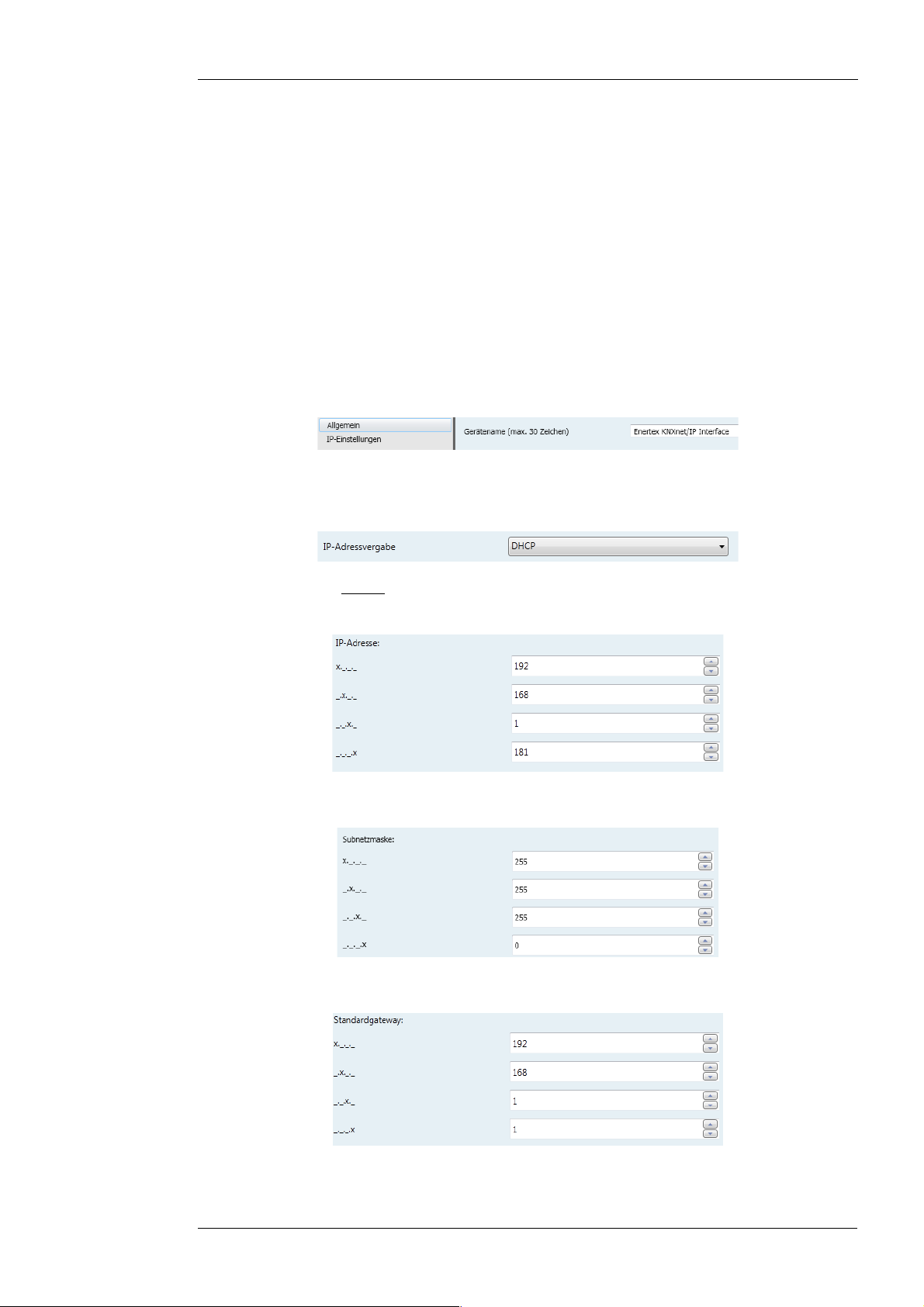

Parameterization
The device can be parameterized with ETS3, ETS4 or ETS5. It supports up to four tunnel
connections.
General
Device name You can assign a user-defined name here (up to 30 characters).
IP settings
1150-HB-KNXnetIP-Interface-en-1.odt, 2018- 08-06 Seite 4 von 6
IP assignment method The IP address can be assigned via DHCP, Manually or Zeroconf.
Parameter: manuell, DHCP, Zeroconf
IP Address (only for manual assignment)
Parameter: valid IP address in your network
Subnet Mask (only for manual assignment)
Parameter: valid subnet mask
Default Gateway (only for manual assignment) (nur bei manueller IP-Adressvergabe)
Parameter: valid IP address in your network
Enertex® Bayern GmbH – Ebermannstädter Straße 8 - 91301 Forchheim - Deutschland - mail@enertex.de

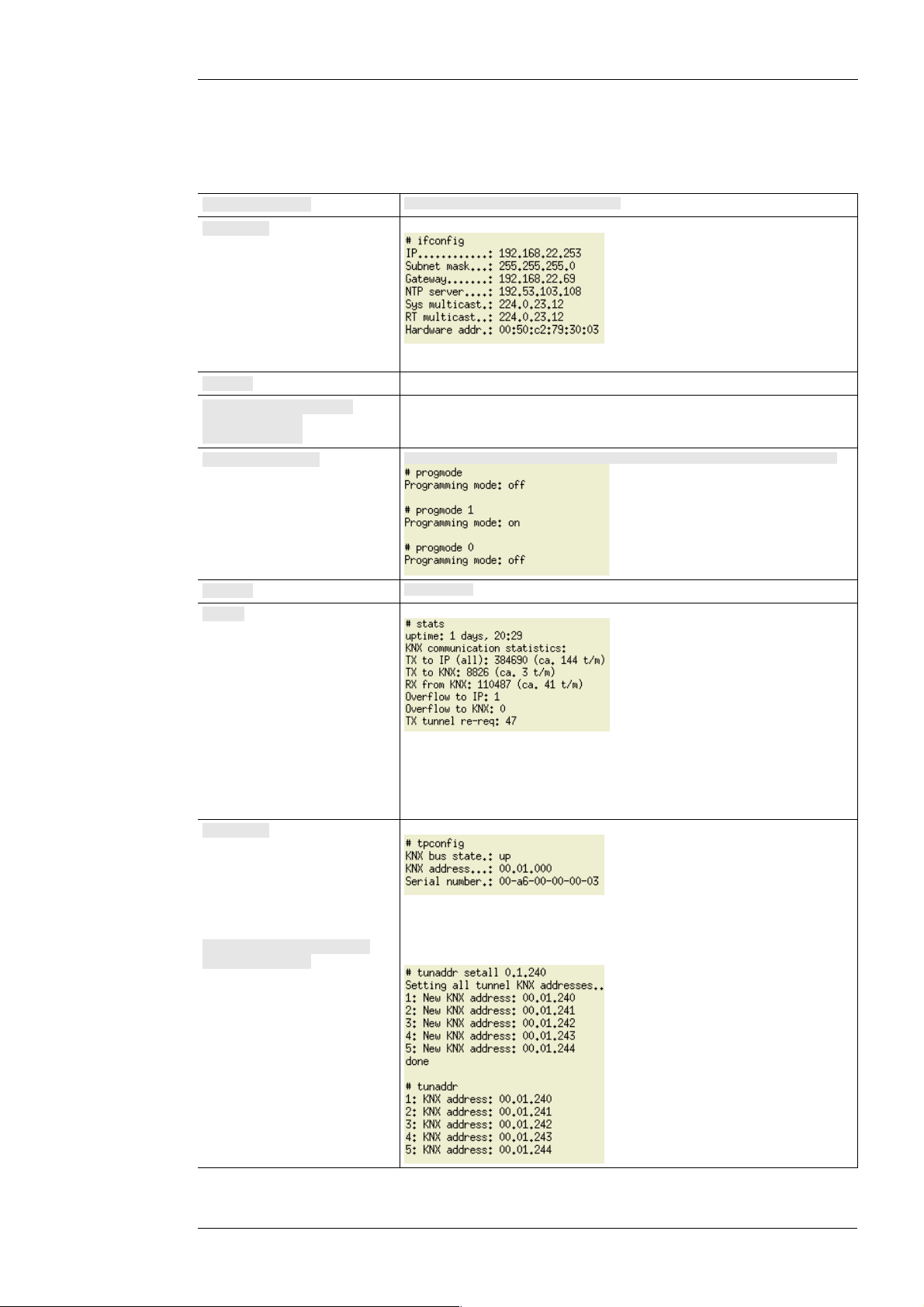

Telnetserver
1150-HB-KNXnetIP-Interface-en-1.odt, 2018- 08-06 Seite 5 von 6
A integrated Telnet server provides additional functionalities. The default password for Telnet access is „knxnetip“.
factory_reset
ifconfig
logout
passwd oldpw newpw
passwd oldpw
passwd newpw
progmode [0|1]
reboot
stats
Reset the device to factory default and restart
Show IP settings
Sys multicast: multicast address for system telegrams
RT multicast: multicast address for routing telegrams
Close Telnet session
Change Telnet passwort (passwd old new),
Delete passwort (passwd old)
Set passwort, if no password is set already (passwd new)
Show programming mode status (without option) or set programming mode (0 = off, 1 = on)
Restart device
Show statistics
tpconfig
tunaddr 1..5 address
tunaddr reset
uptime: uptime since last reboot
TX to IP (all): number of telegrams sent to IP
TX to KNX: number of telegrams sent to KNX bus
RX from KNX: number of telegrams received from KNX bus
Overflow to IP: number of telegrams, that couldn't be sent to IP
Overflow to KNX: number of telegrams, that couldn't be sent to KNX bus
TX tunnel re-req: number of telegrams, that had to be repeated during tunnel access
Show KNX parameters
KNX bus state: KNX bus detected (up) or not detected (down)
KNX address: physical address of the device
Serial number: serial number of the device
Change tunnel address for each tunnel e.g. tunaddr 1 15.15.240 or reset tunnel
addresses to factory default (tunaddr reset)
Enertex® Bayern GmbH – Ebermannstädter Straße 8 - 91301 Forchheim - Deutschland - mail@enertex.de
1150-HB-KNXnetIP-Interface-en-1.odt, 2018- 08-06 Seite 6 von 6
tunnel [1..5]
version
Show tunnel addresses and connection status (without option), or show detailled information
for a specific tunnel (option 1..5)
CCID: connection id of the tunnel connection
KNX address: tunnel address
HPAI control: control-end-point of the receiver
HPAI data: data-end-point of the receiver
Connect. Type: tunnel connection or management connection
TX tun req: number of telegrams sent to this tunnel
TX tun re-req: number of telegrams that had to be repeated for this tunnel connection
RX tun req: number of telegrams received from this tunnel
RX tun re-req: number of telegrams that have been received twice for this tunnel connection
RX tun req (wrong seq.): number of telegrams with wrong sequence number that have been
received for this tunnel
Show firmware version
Reset to factory defaults
To reset the device to factory defaults, press and hold the programming mode button for three
seconds. When the red LED starts blinking release the button. The device shuts down and will
reboot with factory settings automatically.
ETS database
You can download the latest version of the product's ETS database from our homepage:
http://www.enertex.de/e-downloads01.php
Technical data
Stromversorgung 16-24 V AC or 20-30 V DC; IEEE 802.3af („Power over Ethernet“)
Power consumption Max. 1 W
KNX Funktionen KNXnet/IP tunneling
KNXnet/IP Tunnelling Up to 35 telegrams per second, up to five tunnel connections
