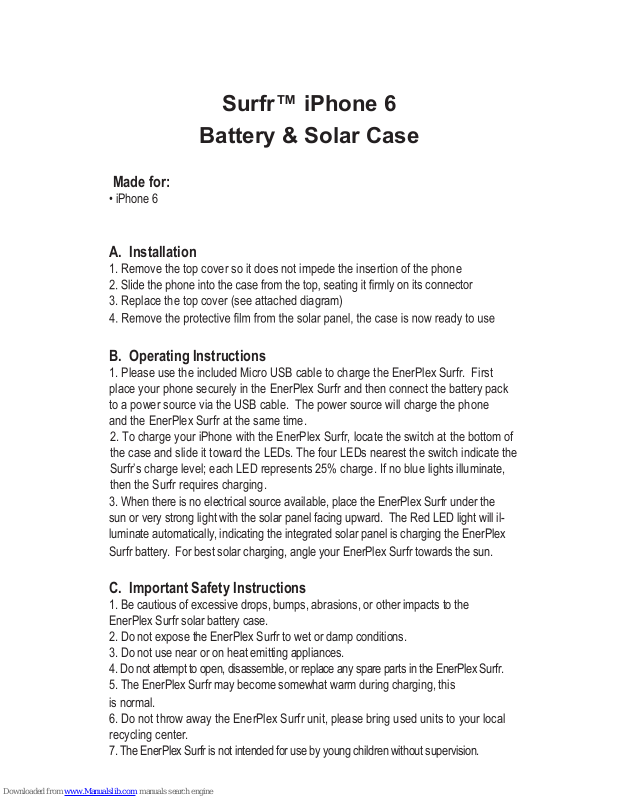

Page 1
Surfr™ iPhone 6
Battery & Solar Case
Made for:
• iPhone 6
B. Operating Instructions
1. Please use the included Micro USB cable to charge the EnerPlex Surfr. First
place your phone securely in the EnerPlex Surfr and then connect the battery pack
to a power source via the USB cable. The power source will charge the phone
and the EnerPlex Surfr at the same time.
2. To charge your iPhone with the EnerPlex Surfr, locate the switch at the bottom of
the case and slide it toward the LEDs. The four LEDs nearest the switch indicate the
Surfr’s charge level; each LED represents 25% charge. If no blue lights illuminate,
then the Surfr requires charging.
3. When there is no electrical source available, place the EnerPlex Surfr under the
sun or very strong light with the solar panel facing upward. The Red LED light will illuminate automatically, indicating the integrated solar panel is charging the EnerPlex
Surfr battery. For best solar charging, angle your EnerPlex Surfr towards the sun.
C. Important Safety Instructions
1. Be cautious of excessive drops, bumps, abrasions, or other impacts to the
EnerPlex Surfr solar battery case.
2. Do not expose the EnerPlex Surfr to wet or damp conditions.
3. Do not use near or on heat emitting appliances.
4. Do not attempt to open, disassemble, or replace any spare parts in the EnerPlex Surfr.
5. The EnerPlex Surfr may become somewhat warm during charging, this
is normal.
6. Do not throw away the EnerPlex Surfr unit, please bring used units to your local
recycling center.
7. The EnerPlex Surfr is not intended for use by young children without supervision.
A. Installation
1. Remove the top cover so it does not impede the insertion of the phone
on its connector
3. Replace the top cover (see attached diagram)
Page 2
D. Warnings
1. Please read the instructions carefully
2. Do not place the EnerPlex Surfr in a hot enclosed area (such as a parked car in
summer time), the heat may cause damage to the phone or case.
3. Do not expose or immerse in water, the moisture may cause permanent
damage to the case and void the warranty.
E. Electrical Characteristics
Battery Capacity: 2,700 mAhr (~90%+ maximum charge)
Battery Type: Li-ion Polymer
Primary Input: 5V DC 1000 mA (min)
• Full charge of Surfr in 3 hours
• Full charge of Surfr and Phone in 6 hours
• Primary charging via included micro USB cable
Secondary Input: CIGS Photovoltaic panel (integrated)
• 0.38 Watts at STC Conditions (STC is Standard Testing Conditions,
25oC, 1000 W/m2, AM1.5)
• Full charge of EnerPlex Surfr under STC in 24 to 34 hours
-
ing on light sources, sun intensity, and temperature.
Output to Phone: 5.0V DC 1000 mA (max) lightning connector
F. Physical Characteristics
Size: 154mm x 74mm x 14.8mm [6.1 x 2.9 x 0.58in]
Weight: 117 g (0.25 lb)
G. Warranty/Standards
“Made for iPhone,” mean that an electronic accessory has been designed to connect
Apple performance standards. Apple is not responsible for the operation of this
device or its compliance with safety and regulatory standards. Please note that the
use of this accessory with iPhone may affect wireless performance.
iPhone is a trademark of Apple Inc., registered in the U.S. and other countries.
Rev. 6-1-15
Warranty: For warranty information, go to www.goenerplex.com
Standards: Certified to CE, FCC and RoHS requirements
