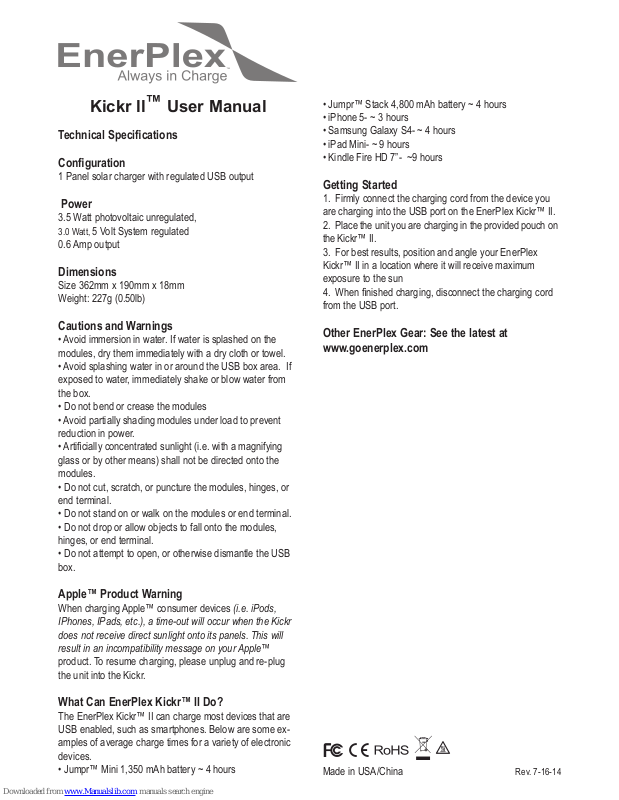

Kickr ll™ User Manual
Technical Specications
Conguration
1 Panel solar charger with regulated USB output
Power
3.5 Watt photovoltaic unregulated,
3.0 Watt, 5 Volt System regulated
0.6 Amp output
Dimensions
Size 362mm x 190mm x 18mm
Weight: 227g (0.50lb)
Cautions and Warnings
• Avoid immersion in water. If water is splashed on the
modules, dry them immediately with a dry cloth or towel.
• Avoid splashing water in or around the USB box area. If
exposed to water, immediately shake or blow water from
the box.
• Do not bend or crease the modules
• Avoid partially shading modules under load to prevent
reduction in power.
• Articially concentrated sunlight (i.e. with a magnifying
glass or by other means) shall not be directed onto the
modules.
• Do not cut, scratch, or puncture the modules, hinges, or
end terminal.
• Do not stand on or walk on the modules or end terminal.
• Do not drop or allow objects to fall onto the modules,
hinges, or end terminal.
• Do not attempt to open, or otherwise dismantle the USB
box.
Apple™ Product Warning
When charging Apple™ consumer devices (i.e. iPods,
IPhones, IPads, etc.), a time-out will occur when the Kickr
does not receive direct sunlight onto its panels. This will
result in an incompatibility message on your Apple™
product. To resume charging, please unplug and re-plug
the unit into the Kickr.
What Can EnerPlex Kickr™ II Do?
The EnerPlex Kickr™ II can charge most devices that are
USB enabled, such as smartphones. Below are some examples of average charge times for a variety of electronic
devices.
• Jumpr™ Mini 1,350 mAh battery ~ 4 hours
• Jumpr™ Stack 4,800 mAh battery ~ 4 hours
• iPhone 5- ~ 3 hours
• Samsung Galaxy S4- ~ 4 hours
• iPad Mini- ~ 9 hours
• Kindle Fire HD 7”- ~9 hours
Getting Started
1. Firmly connect the charging cord from the device you
are charging into the USB port on the EnerPlex Kickr™ II.
2. Place the unit you are charging in the provided pouch on
the Kickr™ II.
3. For best results, position and angle your EnerPlex
Kickr™ II in a location where it will receive maximum
exposure to the sun
4. When nished charging, disconnect the charging cord
from the USB port.
Other EnerPlex Gear: See the latest at
www.goenerplex.com
Made in USA/China Rev. 7-16-14
