BMW i4
BATTERY POWERED RIDE-ON
Owner’s Manual
with Assembly Instructions
Styles and colo(u)rs may vary.
Made in China.
The owner’s manual contains important safety information as well as assembly, use and
maintenance instructions.
The Ride-on Car must be assembled by an adult who has read and understands the
instructions in this manual.
Keep the package away from children and dispose of properly before use.
Keep this manual for future reference.
Page 2
About Your New Ride-On │ 1
On the purchase of your new Ride-On.
This ride-on will provide your child with many miles of riding enjoyment. To
help ensure a safe ride we ask you to please read this manual carefully, and
keep it for future reference.
Please follow the recommendations in this manual, they are designed to
improve the safety and operation of your ride-on car and it’s rider.
BMW i4 Children Battery Powered Ride-On manufactured by Zhejiang
Jiajia Ride-On Co., Ltd. (Add: Xincang Industrial Zone, Pinghu City,
Zhejiang Province, P.R.China). The BMW logo and the BMW word mark
are trademarks of BMW AG and are used under license.
SPECIFICATIONS:
Battery
Charger
Suitable age:
Load Capacity:
Speed:
Size of ride-on car:
Power way:
Charge time:
6V4AH *1 or 6V7AH *1
6V500mA or 6V1000mA
12V4.5AH *1 or 12V7AH
12V500mA or 12V1000mA
37-96 months
Under 30kg
3-5km/h
115 * 67 * 45 CM
Charging type
8-12 hours
VER: SMS-JE1009-EN-20230523
Page 3
User Notice │ 2
WARNING!
• CHOKING HAZARD - Small parts. Not suitable for children under 36 months. The product
contains small parts, keep children away when assembling.
• ADULT ASSEMBLY REQUIRED.
• Always remove protective material and poly bags and dispose before assembly.
• Protective equipment should be worn. Always wear shoes and sit in the seat when operating
the vehicle.
• Only drive on level ground. Never use on the lawn.
• Keep your hands, hair, and clothes away from moving parts.
• Never leave child unattended. Direct adult supervision is required. Always keep child in view
when child is in vehicle.
• To reduce the risk of injury, adult supervision is required. Never use in roadways, near motor
vehicles, on or near steep inclines or steps, swimming pools or other bodies of water, always
wear shoes, and never allow more than 1 rider.
• Never use in unsafe conditions such as snow, rain, loose dirt, mud, sand, or gravel, otherwise
may result in an unexpected accident such as tipping over, and could damage the electrical
system or battery
• Not to be used in traffic.
• This toy should be used with caution since skill is required to avoid falls or collisions causing
injury to the user or third parties.
• This toy is unsuitable for children under 36 months due to its maximum speed; Maximum user
weight is 30kg.
• This toy has no brake.
BATTERY INFORMATION
● Non-rechargeable batteries are not to be recharged.
● Rechargeable batteries are to be removed from the toy before being charged.
● Rechargeable batteries are only to be charged under adult supervision.
● Different types of batteries or new and used batteries are not to be mixed.
● Batteries are to be inserted with the correct polarity.
● Exhausted batteries are to be removed from the toy.
● The supply terminals are not to be short-circuited.
WARNING!
The remote control is not a toy, and is only allowed to be operated by adults.
Page 4

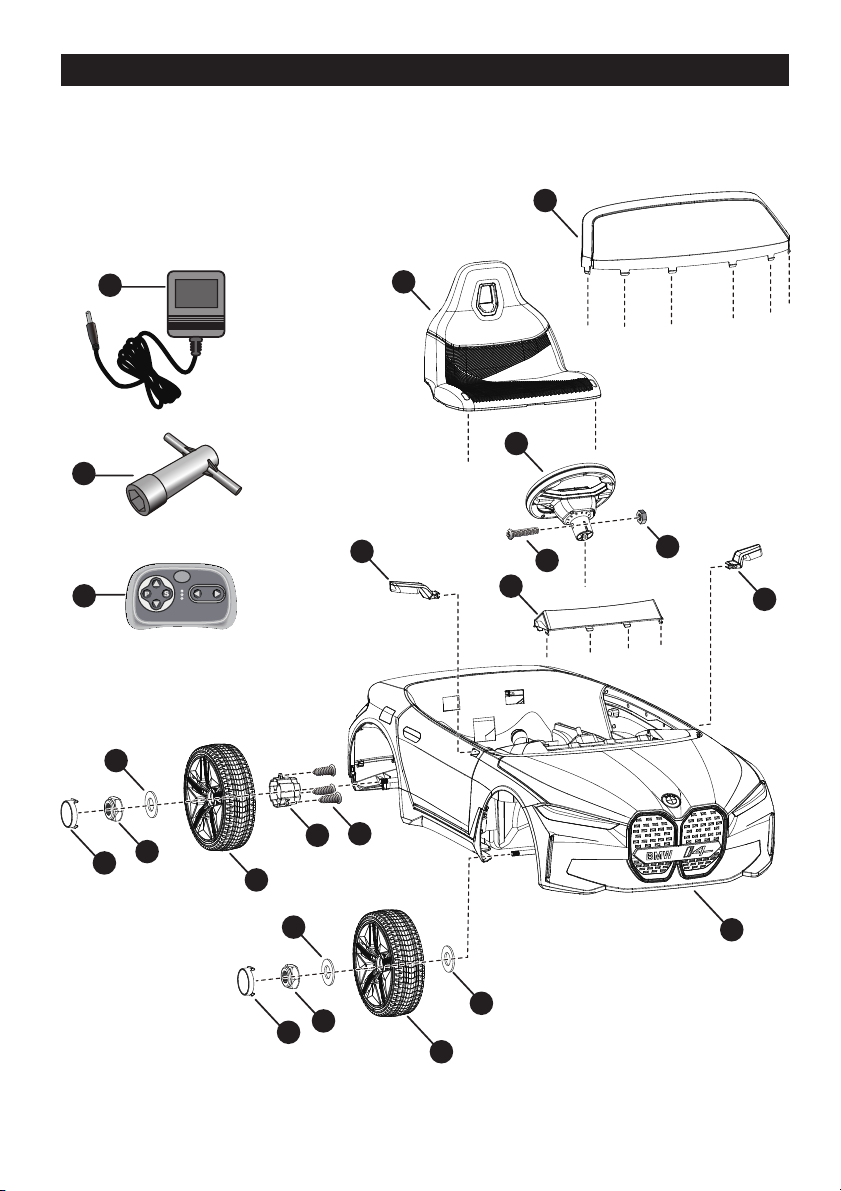

Parts Diagram │ 3
HINT: Some parts shown are assembled on both sides of vehicle
8
15
17
13
12
9
7
10
14
11
7
16
2
5
6
3
4
2
5
6
2
3
1
Page 5
Parts List │ 4
PART
NO.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
PART NAME
Vehicle body
Ø10 washer
Wheel
Wheel driver
Lock nut
Hubcap
Side mirror
Windshield
Steering wheel
M5x35 machine screw
Ø5 nut
Seat
Ø4x16 screw
Dash
Spanner
Charger
Remote controller
Q’ty (pcs)
1WD 2WD 4WD
1
7
4
1
4
4
2
1
1
1
1
1
3
1
2
1
1
1
1
6
4
4
4
2
2
4
4
4
4
2
2
1
1
1
1
1
1
1
1
1
1
6
6
1
1
2
2
1
1
1
1
REMARKS
Placed on the axles
Placed on the axles
Left and right
Placed on the steering wheel
Placed on the steering wheel
Placed in the assembly package
For R/C type only
Assembly tools required (not included):
Screwdriver
Page 6
1
2
Rear gear box
1WD
(Single Wheel Drive)-
HINT: If your product is Dual Wheel Drive or All Wheel Dirve,
please refer to the nex page to attach the rear wheels.
3
4
5

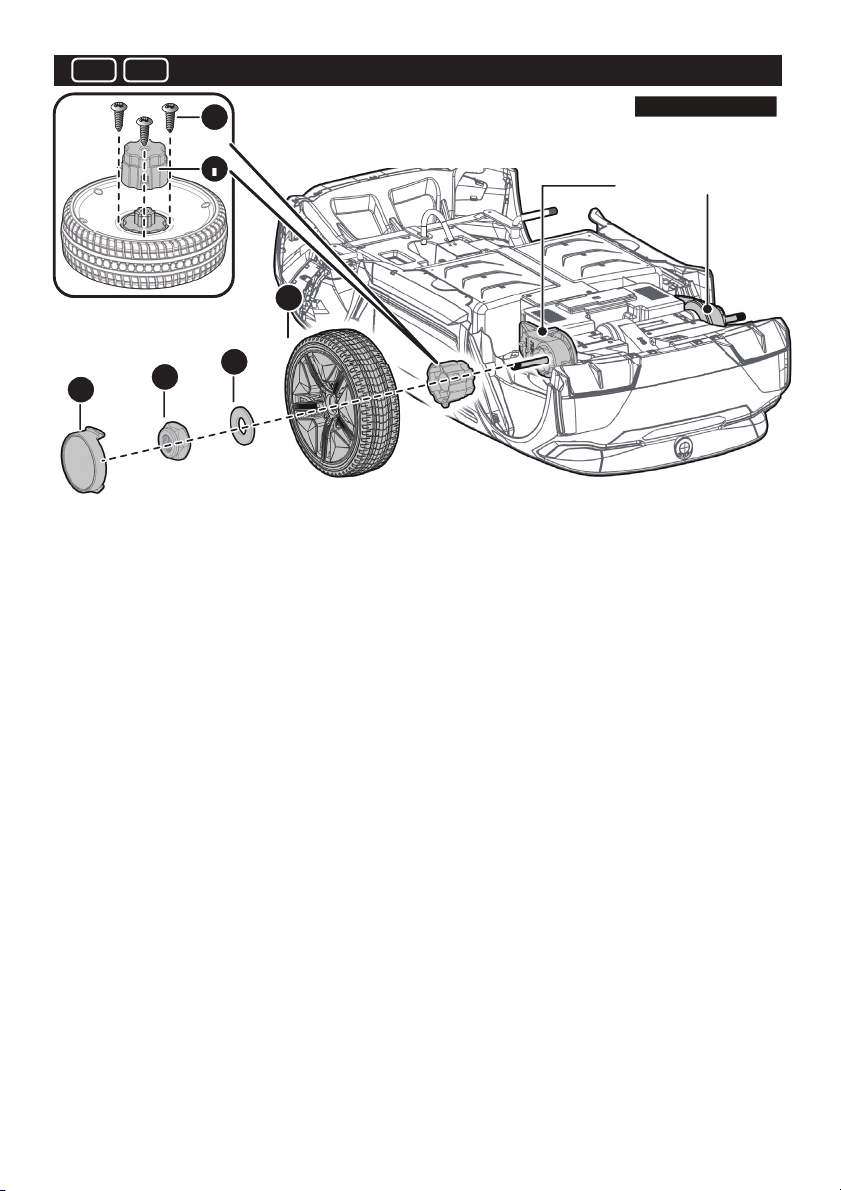

Attach the Rear Wheels │ 5
Rear gear box
10
Remove all the parts from the rear axle.
1-2. Fit the wheel driver to the wheel. Insert and tigthen three Ø4x16 screws to secure the wheel
driver to the wheel.
3. Slide the wheel onto the rear axle (Left Side). Keep the wheel driver match up with the gear
box on the rear axle.
4. Slide a Ø10 washer onto the rear axle.
5. Tighten a lock nut to the end of the rear axle with a spanner.
Rear Bottom View
Rear Bottom View
7
8
9
10
6
6. Slide the Ø10 washer onto the rear axle (Right Side).
7. Slide the wheel onto the rear axle.
8. Slide the Ø10 washer onto the rear axle.
9. Tighten a lock nut to the end of the rear axle with a spanner.
10. Fit the hub caps to the wheels.
Page 7
1
2
2WD 4WD
Rear gear boxes
(Dual Wheel Drive & All Wheel Drive )-

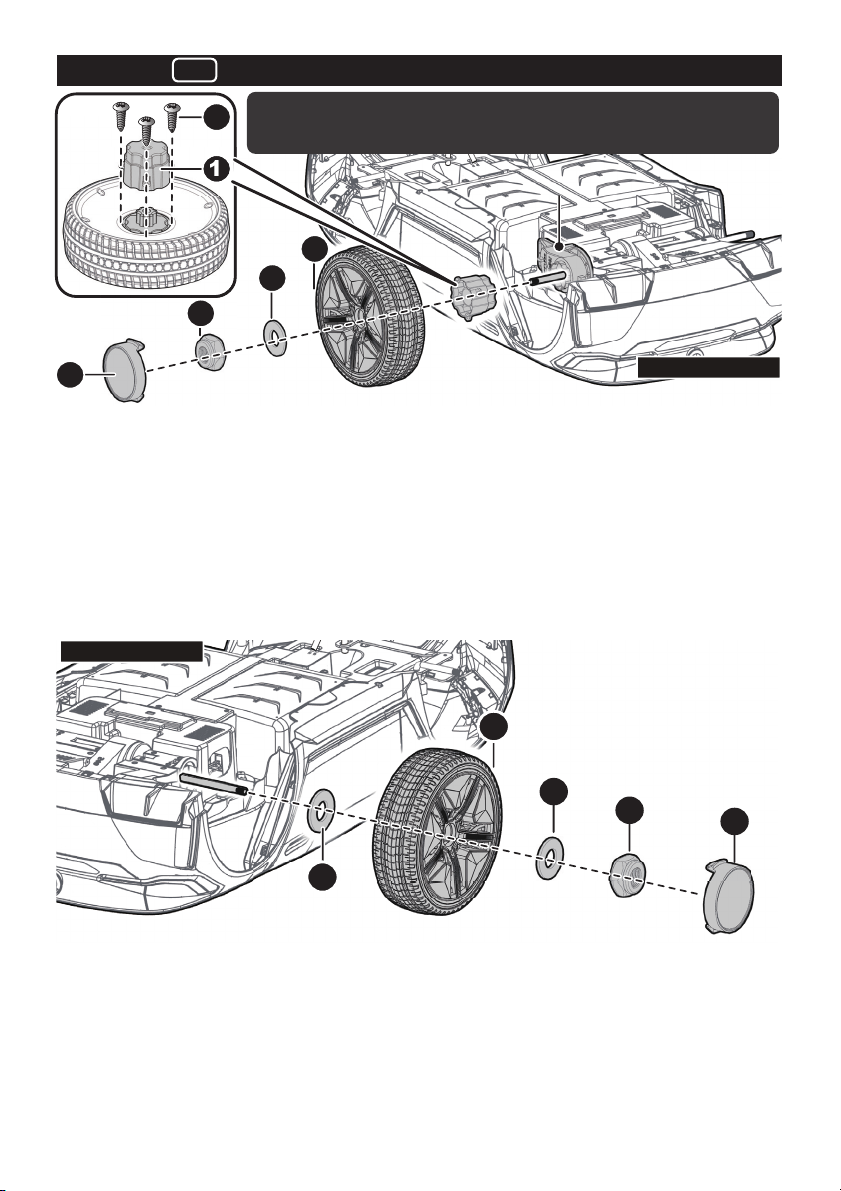

Attach the Rear Wheels │ 6
3
Rear Bottom View
Rear gear boxes
6
5
4
Remove all the parts from the rear axle.
1-2. Fit the wheel driver to the wheel. Insert and tigthen three Ø4x16 screws to secure
the wheel driver to the wheel.
3. Slide the wheel onto the rear axle (Left Side). Keep the wheel driver match up with
the gear box on the rear axle.
4. Slide a Ø10 washer onto the rear axle.
5. Tighten a lock nut to the end of the rear axle with a spanner.
Repeat the above procedure to assemble the other Rear Wheel.
HINT: An extra spanner has been provided to hold the Lock Nut on the other side of the
rear axle while tightening the Lock Nut on the other side.
6. Fit the hub caps to the wheels.
Page 8
Front gear boxes
1WD
2WD

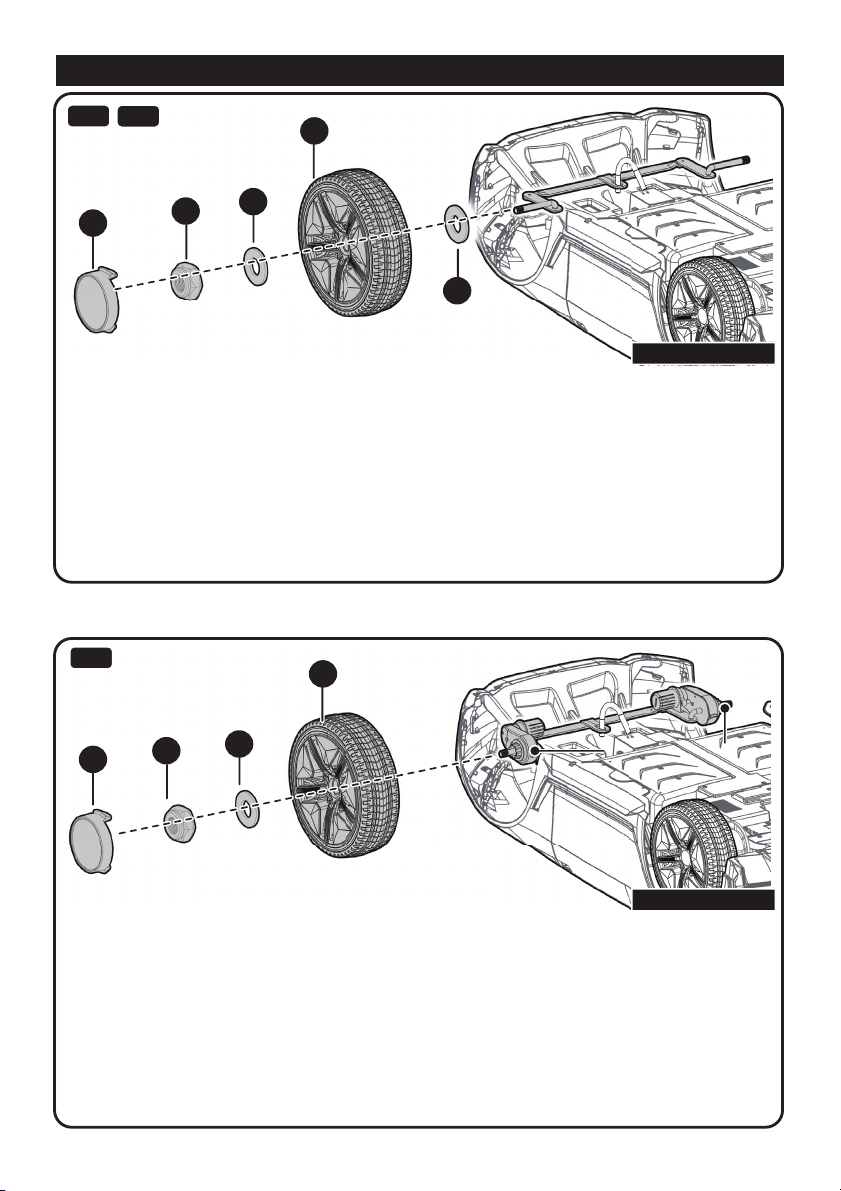

Attach the Front Wheels │ 7
2
5
4
3
1
Remove all the parts from the front axle.
1. Slide a Ø10 washer onto the front axle.
2. Slide a wheel onto the front alxe.
3. Slide a Ø10 washer onto the front axle.
4. Tighten a lock nut to the end of the front axle with a spanner. DO NOT over tighten.
5. “Snap” the hubcap to the wheel.
Repeat the above procedure to assemble the other Front Wheel.
4WD
Front Bottom View
1
4
3
2
Front gear boxes
Remove all the parts from the front axle.
1. Slide a wheel onto the front alxe. Keep the driver on the wheel match up with the gear
box on the rear axle.
2. Slide a Ø10 washer onto the front axle.
3. Tighten a lock nut to the end of the front axle with a spanner. DO NOT over tighten.
4. “Snap” the hubcap to the wheel.
Repeat the above procedure to assemble the other Front Wheel.
Front Bottom View
Page 9
1
Attach the Dash & Steering Wheel │ 8
2

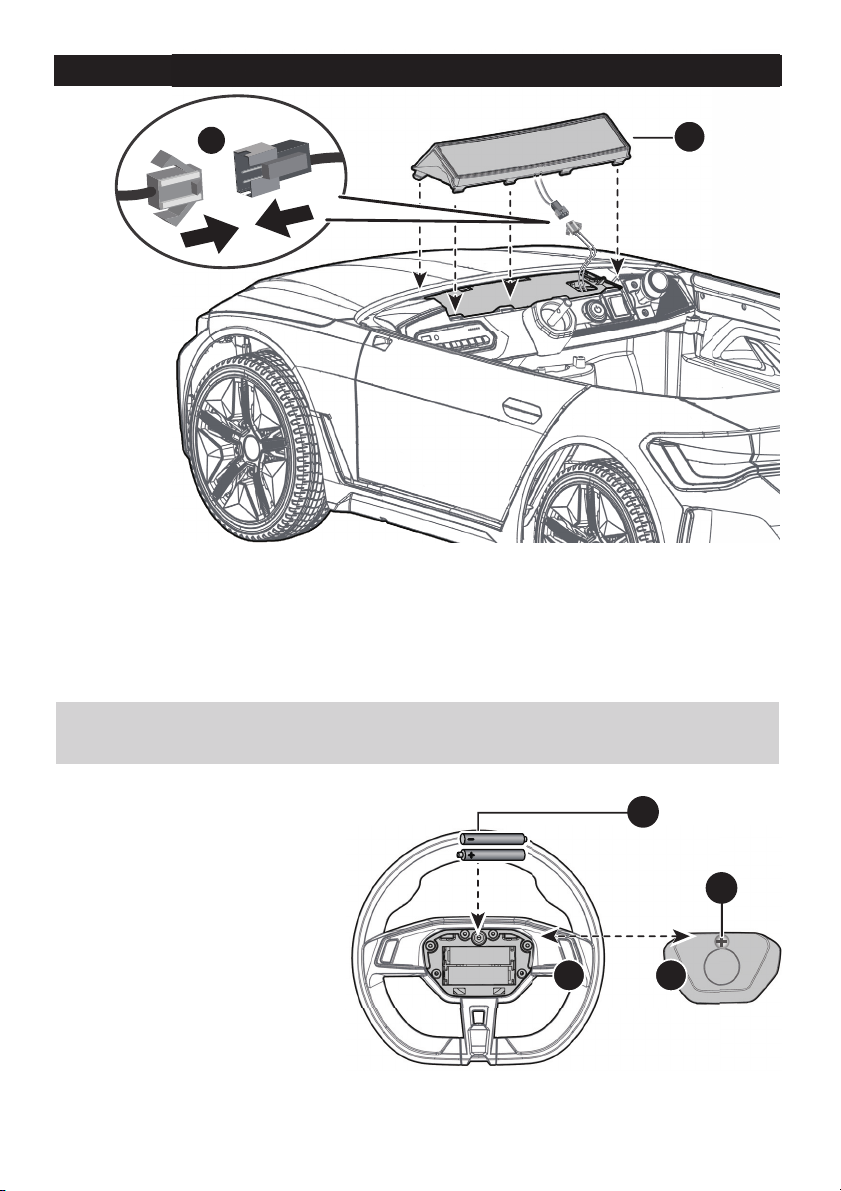

1. Plug the light unit connector on the dash into light connector on the vehicle body. Hide
the pluged connectors into the hole in the vehicle body.
2. Fit the tabs on the dash into the holes in the vehicle body, and push until you hear it
“click” into place.
Please follow the steps 1-4 to add the batteries (Not Included), and refer to the battery
information on page 2.
3. With a screwdriver loosen the
screw on the battery cover located
in the center of the steering wheel.
4. Remove the battery cover from the
top of the battery compartment.
5. Insert 2x1.5 AA batteries in their
correct polarities.
6. Place the battery cover over the
battery compartment and fasten
with the screw you loosened in
step one.
5
6
3
4
Page 10

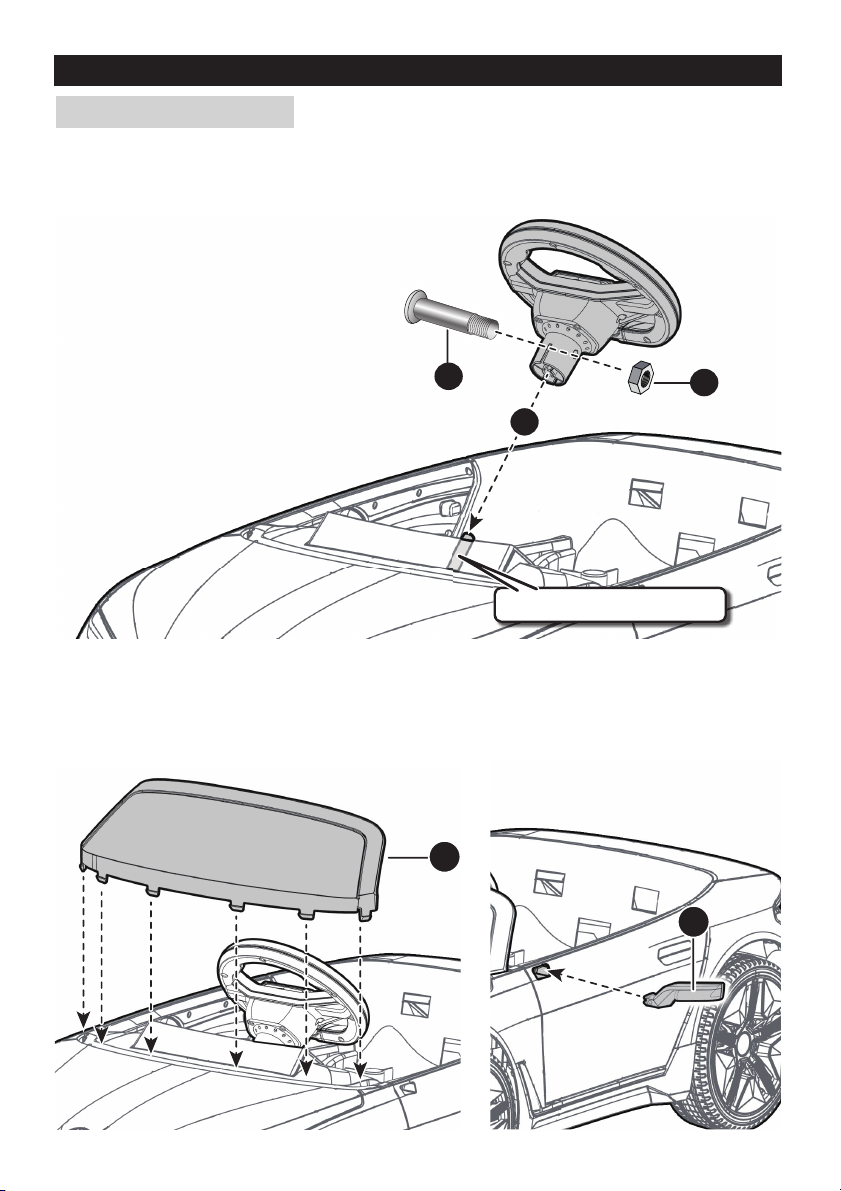

Attach the Steering Wheel, Windshield & Side Mirrors │ 9
Attach the Steering Wheel
Remove the M5x35 machine screw and Ø5 nut from the steering wheel.
Turn the vehicle body upright.
1. Place the steering wheel over the the steering column, protruding from the middle of
the steering wheel base.
2. Align the holes on each side of steering
wheel with the holes at the end of the
steering column.
3. Fasten a nut on the opposite end of the
screw to secure the steering wheel to
the steering column.
2
3
1
End of steering column
4. Fit the tabs windshield into the grooves on the vehicle. Press until you hear it “click”
into place.
5. Fit the side mirrors to the holes on the both doors, push until you hear them “click”
into place.
4
5
Page 11

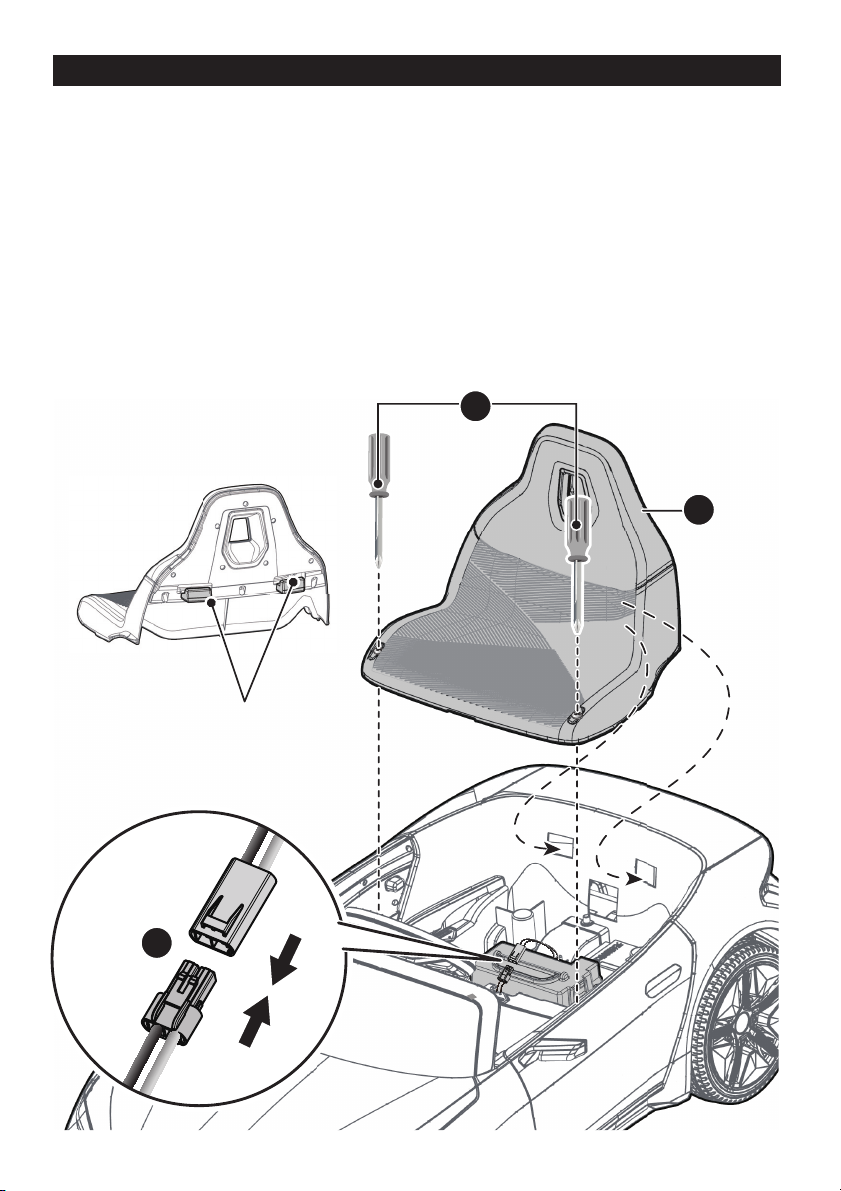

Connect the Power Supply & Attach the Seat │ 10

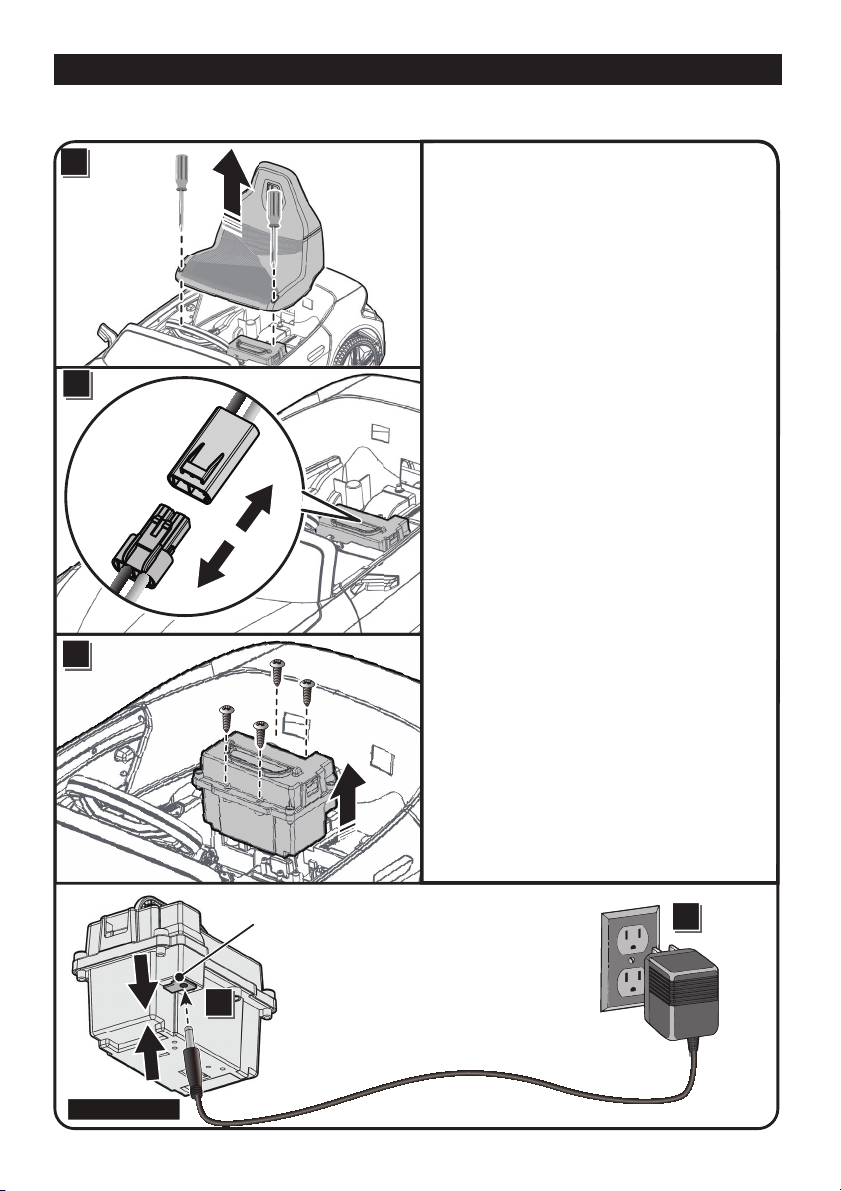

1. Plug the vehicle connector into the connector on the battery.
2. Fit the tabs on the seat back into the grooves on the rear of the vehicle.
3. With a screwdriver tighten the M5x16 screws on the top of the seat into the holes in
the vehicle.
3
2
Tabs on seat back
1
Page 12
Use Your Ride-on │ 11
4
3
6
5
1
2

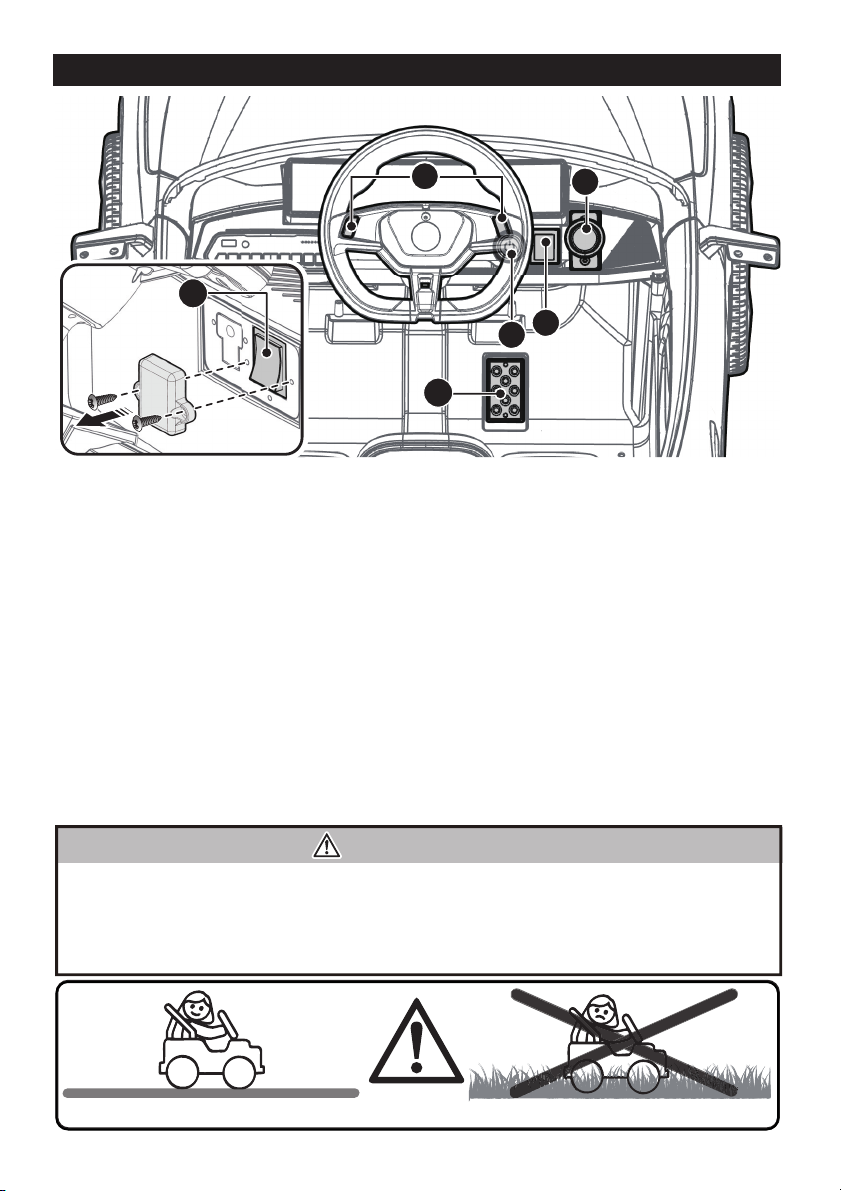

1. Power button: Turns the product on and off.
2. Foot pedal: Applies power (speed) to the product.
● To move the product, press the pedal down.
● To brake or slow down, release pressure from the pedal.
3. Forward/reverse level: Changes the direction that product moves from forward to reverse.
● To move the product forward, shift the lever to top position.
● To move the product backward, shift the lever to down position.
4. Sound buttons: Press for sound playing.
5. High/Low speed switch (if equipped):
Operates the product to move forward in high speed and low speed.
6. R/C - PEDAL Switch: (if equipped. Need to open the protective cover first):
Operates the product control by remote control or foot pedal.
IMPORTANT
● Always stop vehicle when changing the speed or direction to avoid damage the gears
and motor.
● HIGH SPEED (If equipped): Make sure your child knows how to steer, how to start and
stop the product and knows the rules for safe driving.
Use the vehicle on generally level ground ONLY!
DO NOT Use the vehicle on Lawn space!
Page 13
Charging │ 12
WARNING!
• ONLY an adult is allowed charge and recharge the battery!
• This product with Charging Protection: when charging, all functions will be cut off.
• The POWER SWITCH must be turned in OFF position when charging.
• Before the first use, you should charge the battery for 4-6 hours. Do not recharge the battery
for more than 10 hours to avoid overheating the charger.
• When the vehicle begins to run slowly, recharge the battery.
• After each use or once a month minimum recharge time as 8 to 12 hours, less than 20 hours at
most.
• Use only battery(ies) and charger specified by the manufacturer. Using another battery or
charger may cause a fire or explosion. Do not use the battery or charger for any other product.
• If your ride-on with a Digital voltmeter(IF EQUIPPED), the magnitude of voltage will tell you how
much power is remaining in the battery when you must recharge the battery. Make sure the
vehicle is stop!
6V product
12V product
less than 6.2V
The battery needs to be charge.
less than 12.5V
Charging Way I
1

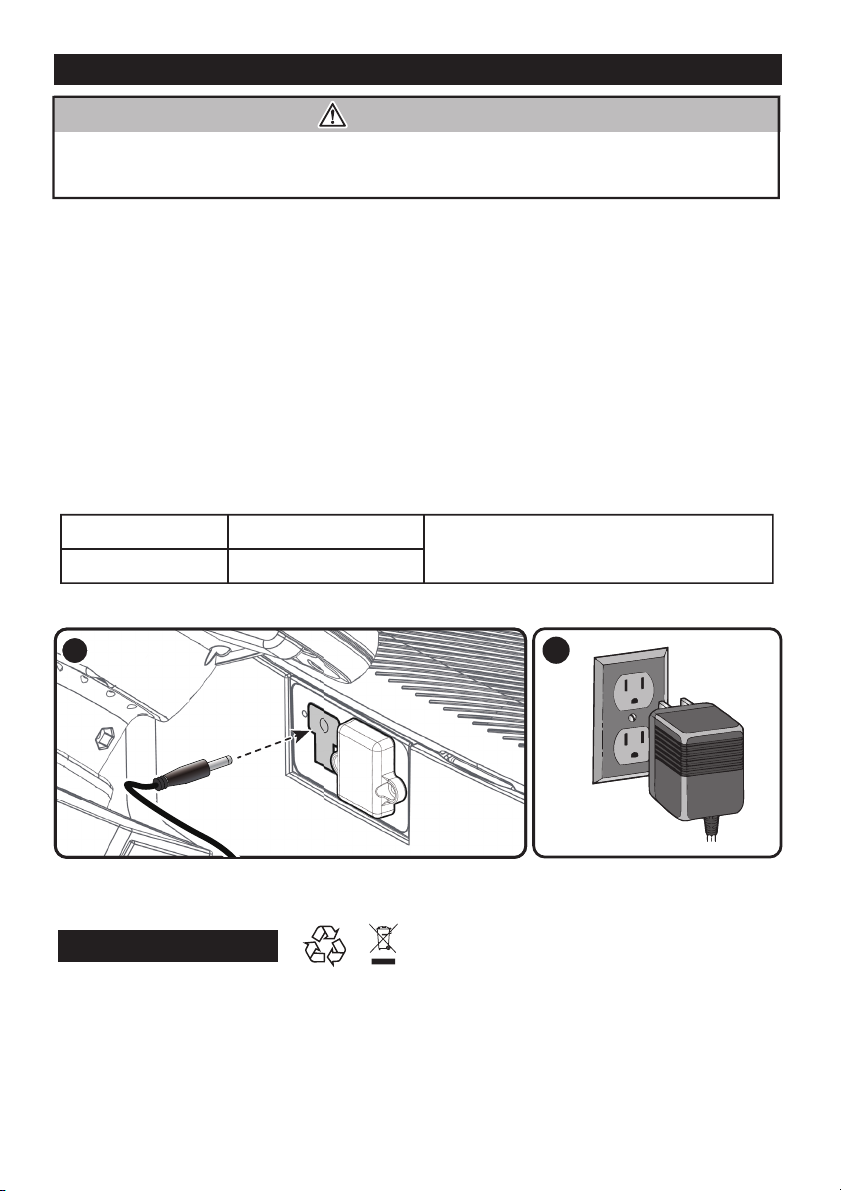

1. Plug the charger port into the input socket (the socket is below the seat ).
2. Plug the charger plug into a wall outlet. The battery will begin charging.
2
Battery Disposal
The battery will eventually lose the ability to hold a charge. Depending on the amount of use, and
varying conditions, the battery should operate for one to three years.
Important! Recycle the dead battery responsibly. The battery contains lead acid (electrolyte) and
must be disposed of properly and legally. It is illegal in most areas to incinerate lead acid batteries
or dispose of them in landfills. Take it to a federal or state-approved lead acid battery recycler,
such as local automotive battery retailer.
Do not throw the battery away with your regular household waste!
Page 14
Charging Way II
Charging │ 13
A
A: Use a screwdriver to loosen the
two screws on the top of the seat
and remove the seat.
B: Unplug the red connectors from
each other.
C. Loosen the four screws around
B
the battery box with a screwdriver
and lift the battery box up.
D. Place the battery box on a flat
ground. Plug the charger port
into the input socket on the
battery box.
E. Plug the charger plug into a wall
outlet. The battery will begin
C
charging.
Bottom View
Input socket on the battery box
D
E
Page 15
Troubleshooting Guide │ 14
Problem Possible Cause Solution
Vehicle does not run
Battery low on power
Recharge battery.
Vehicle does not run
very long
Vehicle runs sluggishly
Vehicle needs a push
to go forward
Difficult shifting from
forward to reverse or
vice-versa
Loud grinding or clicking
noises coming from
motor or gear box
Thermal fuse has tripped
Battery connector or wires
are loose
Battery is dead
Electrical system is damaged
Motor is damaged
Battery is under charged
Battery is old
Battery low on power
Battery is old
Vehicle is overload
Vehicle is being used in harsh
conditions
Poor contact of wires or
connectors
“Dead Spot” on motor
Attempting to shift while the
vehicle is motion
Motor or gears are damaged
Reset fuse, see <Fuse>
Check that the battery connectors are firmly plugged
into each other. If wires are loose around the motor
.
contact your distributor please.
Replace battery, contact your distributor please.
Contact your distributor please.
Contact your distributor please.
Check that the battery connectors are firmly plugged
into each other when recharging
Replace battery, contact your distributor please.
Recharge battery, contact your distributor please.
Replace battery, contact your distributor please.
Reduce weight on vehicle.
Avoid using vehicle in harsh conditions, see <User
Notice>.
Check that the battery connectors are firmly plugged
into each other. If wires are loose around the motor,
contact your distributor please.
A dead spot means the electric power is not being
delivered to the terminal connection and the vehicle
needs repair. Contact your distributor please.
Completely stop the vehicle and shift, see <Use Your
Ride-On>
Contact your distributor please.
Battery will not
recharge
Charger feels warm
when recharging
Battery connector or adapter
connector is loose
Charger not plugged in
Charger is not working
This is normal and not a
cause for concern
Check that the battery connectors are firmly plugged
into each other.
Check that the battery charger is plugged into a
working wall outlet.
Contact your distributor please.
Completely read through this manual and the troubleshooting guide table before calling. If you
still need help resolving the problem Contact your distributor please.
Page 16
Maintaining │ 15
• It is parents' responsibility to check main parts of the toy before using, Must regularly
examine for potential hazard, such as the battery, charge, cable or cord, plug, screws
are fastening enclosure of other parts and that in the event of such damage, the toy
must not be used until that damage had been properly removed.
• Park the vehicle indoors or cover it with a tarp to protect it from wet weather.
• Recharge the battery after each use. Only an adult can handle the battery. Recharge
the battery at least once a month when the vehicle raider is not being used.
• Do not wash the vehicle with a hose. Do not wash the vehicle with soap and water. Do
not drive the vehicle in rainy or snowy weather. Water will damage the motor, electric
system and battery.
• Clean the vehicle with a soft, dry cloth. To restore shine to plastic parts, use a non-
wax furniture polish. Do not use car wax. Do not use abrasive cleaners.
• When not using, all the electrical source should be turn off. Turn off the power switch
and disconnect the battery connection.
Fuse
The battery features a thermal fuse with a rest fuse that will automatically trip and cut all
power to the vehicle if the motor, electric system or battery is overloaded. The fuse will
reset and power will be restored after the unit is turned OFF for 20 seconds and then
turned ON again. If the thermal fuse trips repeatedly during normal use, the vehicle may
need repair. Contact your distributor please.
To avoid losing power, follow these guidelines:
● Do not overload the vehicle.
● Do not tow anything behind the vehicle.
● Do not drive up steep slopes.
● Do not drive into fixed objects, which may cause the wheels to spin, causing the motor to
overheat.
● Do not drive in very hot weather, components may overheat.
● Do not allow water or other liquids to come in contact with the battery or other electric
components.
● Do not tamper with the electric system. Doing so may create a short, causing the fuse to trip.
RISK OF FIRE. Do not bypass. Replace only with a new fuse.
Our products are suitable for
ASTM F963; GB6675; EN71 and EN62115 standard.
Loading...
