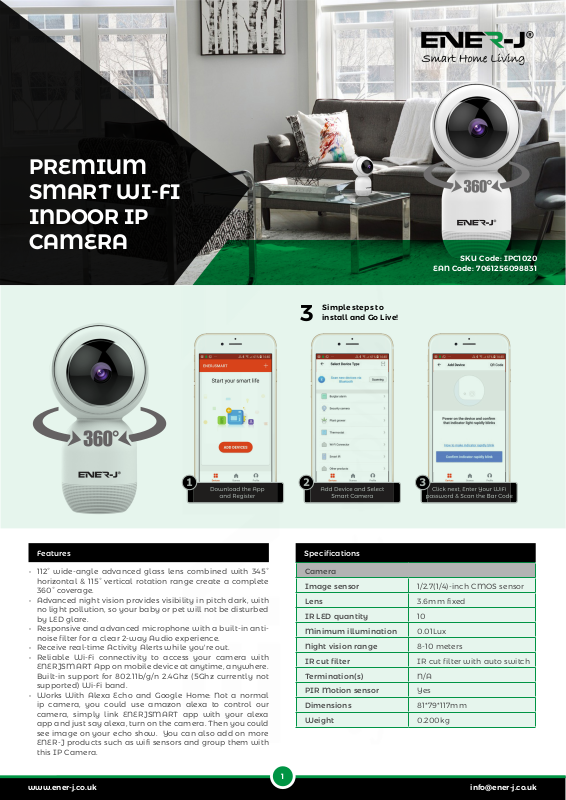

ENER-J IPC1020 Product Data Sheet
PREMIUM
SMART WI-FI
INDOOR IP
CAMERA
Simple steps to
install and Go Live!
3
SKU Code: IPC1020
EAN Code: 7061256098831
Features
• 112° wide-angle advanced glass lens combined with 345°
horizontal & 115° vertical rotation range create a complete
360° coverage.
• Advanced night vision provides visibility in pitch dark, with
no light pollution, so your baby or pet will not be disturbed
by LED glare.
• Responsive and advanced microphone with a built-in antinoise filter for a clear 2-way Audio experience.
• Receive real-time Activity Alerts while you're out.
• Reliable Wi-Fi connectivity to access your camera with
ENERJSMART App on mobile device at anytime, anywhere.
Built-in support for 802.11b/g/n 2.4Ghz (5Ghz currently not
supported) Wi-Fi band.
• Works With Alexa Echo and Google Home: Not a normal
ip camera, you could use amazon alexa to control our
camera, simply link ENERJSMART app with your alexa
app and just say alexa, turn on the camera. Then you could
see image on your echo show. You can also add on more
ENER-J products such as wifi sensors and group them with
this IP Camera.
www.ener-j.co.uk
Specifications
Camera
Image sensor 1/2.7(1/4)-inch CMOS sensor
Lens 3.6mm fixed
IR LED quantity 10
Minimum illumination 0.01Lux
Night vision range 8-10 meters
IR cut filter IR cut filter with auto switch
Termination(s) N/A
PIR Motion sensor Yes
Dimensions 81*79*117mm
Weight 0.200kg
1
info@ener-j.co.uk
Video/Image
Resolution 720P / 1MP
Compression H.264 High profile
Effective number of
1280*720P
pixels
Viewing angle 80 degree
Frame rate 15 FPS
Mirrow/Flip Yes
View mode HD & SD
Audio
Communication Two way audio
Input Built in MIC & Speaker
Output Built in MIC & Speaker
Audio
Interface NO RJ45
Supported protocols IP, TCP, DHCP WPS.
Dynamic DNS Yes
Port forwarding P2P
Steam Dual Stream
DHCP Automatic
Wireless
Standards IEEE 802.11n: 150Mbps
IEEE 802.11g: 54Mbps
IEEE 802.11b: 11Mbps
Frequency 2.4GHz
Antennas One, Omnidirectional
Antenna gain 3dBi
Network security WEP, WPA, WPA2
Pan/Tilt
Range Horizontal: 355 degree
Vertical: 155 degree
Surveillance management
Remote management app remote
Multiple user
N/A
management
Split screen view N/A
Mobile app iOS & Android
Alarm and notifications
Motion detection Yes
Notification method Mobile push
Notification scheduling Time scheduled
Additional information
Warranty and tech
1 Year
support
Certifications FCC ID, UL(option)
Smart APP Enerjsmart
Storage mode Tuya Cloud / TF card(up to
64G)
Power parameters 5V 1A
Charging Cable 2 Meters with UK Adapter
ENERJSMART
www.ener-j.co.uk
2
