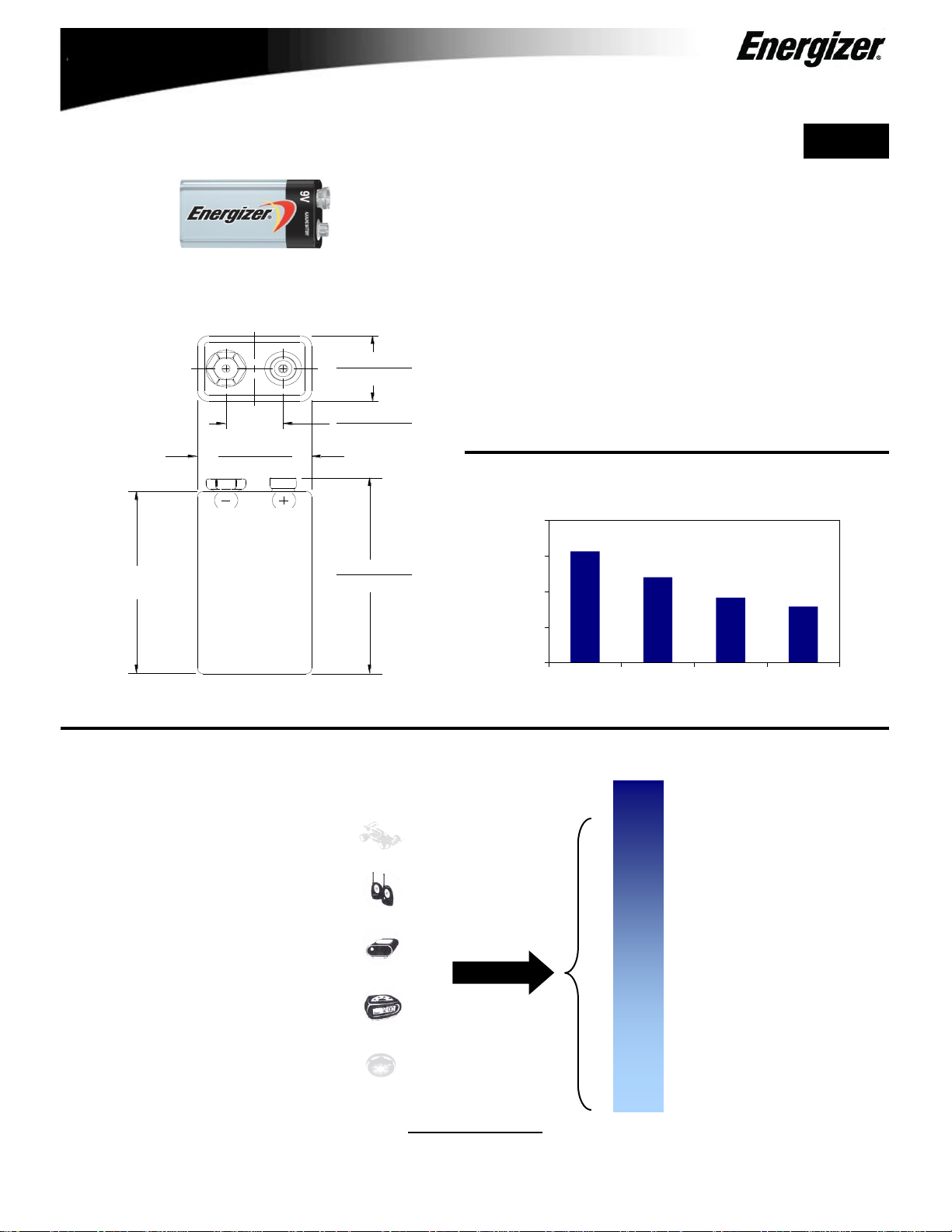

Page 1
9V
Classification: Alkaline
Chemical System:
Zinc-Manganese Dioxide (Zn/MnO2)
Designation: ANSI-1604A, IEC-6LR61
Nominal Voltage: 9.0 volts
Operating Temp: -18°C to 55°C (0°F to 130°F)
Typical Weight: 45.6 grams (1.6 oz.)
Typical Volume: 21.1 cubic centimeters (1.3 cubic inch)
Jacket: Metal
Shelf Life: 5 years at 21°C
Terminal: Miniature Snap
Toy
Baby Monitor
Garage Opener
Clock Radio
Smoke Detector
Device Selection Guide:
Low Drain
Devices
©Energizer Holdings, Inc. - Contents herein do not constitute a warranty.
Important Notice
This datasheet contains typical information specific to products manufactured at the time of its publication.
Milliamp-Hours Capacity
Battery Selection Indicator
High Drain
Devices
Moderate Drain
Devices
Continuous discharge to 4.8 volts at 21°C
ENERGIZER MAX
Specifications
mm (inches)
No added mercury or cadmium
Industry Standard Dimensions
0
200
400
600
800
25 100 300 500
Capacity (mAh)
Discharge (mA)
17.50 (0.689)
15.50 (0.610)
48.50 (1.909)
46.50 (1.831)
12.95 (0.510)
12.45 (0.490)
26.50 (1.043)
24.50 (0.965)
46.40 (1.827)
Maximum
Western European Region
+ 44 1494 556111
www.energizer.eu
Form No. EBC - 1108KEU Page 1 of 2
Page 2
9V
Constant Resistance Performance
Constant Current Performance
ENERGIZER 522
©Energizer Holdings, Inc. - Contents herein do not constitute a warranty.
This datasheet contains typical information specific to products manufactured at the time of its publication.
Typical Characteristics (21°C)
Typical Characteristics (21°C)
Important Notice
Industry Standard Tests (21°C)
1
10
100
10 100 1000
Service (hours)
Discharge (ohms)
6.0 Volts
4.8 Volts
1
10
100
10 100 1000
Service (hours)
Discharge (mA)
6.0 Volts
4.8 Volts
5.0
6.0
7.0
8.0
9.0
10.0
0 10 20 30 40 50 60
Voltage (CCV)
Service (hours)
RADIO
620 ohm 2 hrs/day
5.0
6.0
7.0
8.0
9.0
10.0
0 6 12 18 24
Voltage (CCV)
Service (hours)
TOY
270 ohm 1 hr/day
7.0
8.0
9.0
10.0
0 5 10 15 20 25
Voltage (CCV)
Accelerated Service (days)
ACCELERATED SMOKE DETECTOR
10K/620 ohm 1 sec/hr pulse
1-800-383-7323 USA/CAN
www.energizer.com
Form No. EBC - 1108KEU Page 2 of 2
