Energic Plus RX User Manual
BATTERY CHARGER
BATTERY CHARGER
RX
RX
USER'S MANUAL
USER'S MANUAL
(THIS PAGE WAS INTENTIONALLY LEFT BLANK)
TABLE OF CONTENTS
Table of Contents
· GENERAL.................................................................................................... 4
· 1. Introduction....................................................................................................... 4
· 2. Safety instructions and warnings...................................................................... 5
· RX SINGLEPHASE...................................................................................... 7
· 3. Description........................................................................................................ 7
· 4. Installation........................................................................................................ 8
· 5. Operation........................................................................................................ 11
· RX THREEPHASE..................................................................................... 14
· 6. Description...................................................................................................... 14
· 7. Installation...................................................................................................... 15
· 8. Operation........................................................................................................ 18
· TROUBLE SHOOTING GUIDE.................................................................. 21
· SPARE PARTS LIST................................................................................. 24
Battery Charger RX
User's Manual
GENERAL
1. Introduction
This manual contains instructions and suggestions for the users of Energic plus RX battery
chargers. Before to install, use or repair the charger, it's necessary to read and understand this
manual completely.
It’s recommended to keep the manual in good condition for all the lifetime of the charger. It
should be kept in a dry and clean place, always available to the users.
Throughout this manual, the following special annotations have been used to indicate important
information.
RESPONSIBILITY DISCLAIMER
The manufacturer of the Energic plus RX battery charger will not be responsible for damages
and/or injuries caused by the charger in these situations:
• The charger is not installed properly by a qualified electrician;
• Maintenance operations are not done by a qualified electrician;
• The charger is not used according to the instructions included in this manual;
• The charger is not connected to the correct input supply (see data label on the box);
• The battery is damaged during the charge;
• The charger has been modified without the authorization of the manufacturer;
• Non-original spare parts are used in the charger;
• Wrong spare parts are used in the charger.
OWM-040906-RX Version: 02-AB Page 4 of 25
WARNING !
Gives important information regarding
possible personal injury
CAUTION !
Gives important information regarding
possible equipment damage
NOTE
Gives additional information and tips concerning
important procedures and features of the charger
Battery Charger RX
User's Manual
2. Safety instructions and warnings
GENERAL
Battery chargers can cause injury or death, or damage to other equipment or property, if the user
does not strictly observe all safety rules and take precautionary actions.
Safe practices must be learned through study and training before using this equipment.
Only qualified personnel should install, use, or service this battery charger.
SHOCK PREVENTION
Bare conductors, or terminals in the output circuit, or ungrounded, electrically-live equipments
can fatally shock a person. To protect against shock, have competent electrician verify that the
equipment is adequately grounded and learn what terminals and parts are electrically HOT.
The body’s electrical resistance is decreased when wet, permitting dangerous current to flow
through the body. Do not work in damp area without being extremely careful. Stand on dry
rubber mat or dry wood and use insulating gloves when dampness or sweat cannot be avoided.
Keep clothing dry.
INSTALLATION AND GROUNDING – Electrical equipment must be installed and mantained in
accordance with all the applicable national and local codes.
A power disconnect switch must be located at the equipment. Check the data label for voltage
and phase requirements. If only 3-phase power is available, connect single-phase equipment to
ONLY TWO WIRES of the 3-phase line.
DO NOT CONNECT the equipment grounding conductor to the third live wire of the 3-phase line
as this makes the equipment frame electrically HOT, which can cause a fatal shock.
If a grounding conductor is part of the power supply cable, be sure to connect it to a properly
grounded switch box or building ground. If not part of the supply cable, use a separate
grounding conductor. Don’t remove a ground prong from any plug. Use correct mating
receptacles. Check ground for electrical continuity before using equipment.
The grounding conductor must be of a size equal to or larger than the size recommended by
Code or this manual.
CHARGING LEADS – Inspect leads often for damage to the insulation. Replace or repair cracked
or worn leads immediately. Use leads having sufficient capacity to carry the operating current
without overheating.
Never extend the charging leads without prior approval of the manufacturer. Extending the
charging leads without prior approval of the manufacturer may cause wrong operation of the
charger and voids the warranty.
BATTERY TERMINALS – Do not touch battery terminals while equipment is operating.
SERVICE AND MAINTENANCE – Shut OFF all power at the disconnect switch or line breaker
BEFORE inspecting, adjusting, or servicing the equipment. Lock switch OPEN (or remove line
fuses) so that the power cannot be turned ON accidentally.
Disconnect power to equipment if it is to be left unattended or out of service.
Disconnect battery from charger.
Measure voltage on capacitors and, if there is any voltage reading, wait 5 minutes before to
proceed.
Keep inside parts clean and dry. Dirt and/or moisture can cause insulation failure. This failure
can result in high voltage at the charger output.
OWM-040906-RX Version: 02-AB Page 5 of 25
Battery Charger RX
User's Manual
BURN AND BODILY INJURY PREVENTION
The battery produces very high currents when short circuited, and will burn the skin severely if
in contact with any metal conductor that is carrying this current.
Do not permit rings on fingers to come in contact with battery terminals or the cell connectors
on top of the battery.
Battery acid is very corrosive. Alwais wear correct eye and body protection when near batteries.
FIRE AND EXPLOSION PREVENTION
When batteries are being recharged, they generate hydrogen gas that is explosive in certain
concentrations in air (the flammability or explosive limits are 4.1% to 72% hydrogen in air). The
spark-retarding vents help slow the rate of release of hydrogen, but the escaping hydrogen may
form an explosive atmosphere around the battery if ventilation is poor.
The ventilation system should be designed to provide an adequate amount of fresh air for the
number of batteries being charged. This is essential to prevent an explosion.
Always keep sparks, flames, burning cigarettes, and other sources of ignition away from the
battery recharging area. Do not break "live" circuits at the terminals of batteries. Do not lay tools
or anything that is metallic on top of any battery.
To prevent arcing and burning of the connector contacts, be sure the charger is OFF before
connecting or disconnecting the battery. The digital display must be completely OFF.
MEDICAL AND FIRST AID TREATMENT
First aid facilities and a qualified first aid person should be available for each shift for immediate
treatment of electrical shock victims.
EMERGENCY FIRST AID: Call phisician and ambulance immediately and use First Aid techniques
recommended by the American Red Cross.
In case of acid in the eyes, flush very well with clean water and obtain professional medical
attention immediately.
EQUIPMENT WARNING LABELS
Inspect all precautionary labels on the equipment.
Order and replace all labels that cannot be easily read.
OWM-040906-RX Version: 02-AB Page 6 of 25
DANGER: ELECTRICAL SHOCK CAN BE FATAL.
If person is unconscious and electric shock is suspected, do not touch person if he or she is in
contact with charging equipment, battery, charging leads, or other live electrical parts.
Disconnect power at wall switch and then use First Aid.
Dry wood, wooden broom, and other insulating material can be used to move cables, if
necessary, away from person.
IF BREATHING IS DIFFICULT, give oxygen.
IF NOT BREATHING, BEGIN ARTIFICIAL BREATHING, such as mouth-to-mouth.
IF PULSE IS ABSENT, BEGIN ARTIFICIAL CIRCULATION, such as external heart massage.
Battery Charger RX
User's Manual
RX SINGLEPHASE

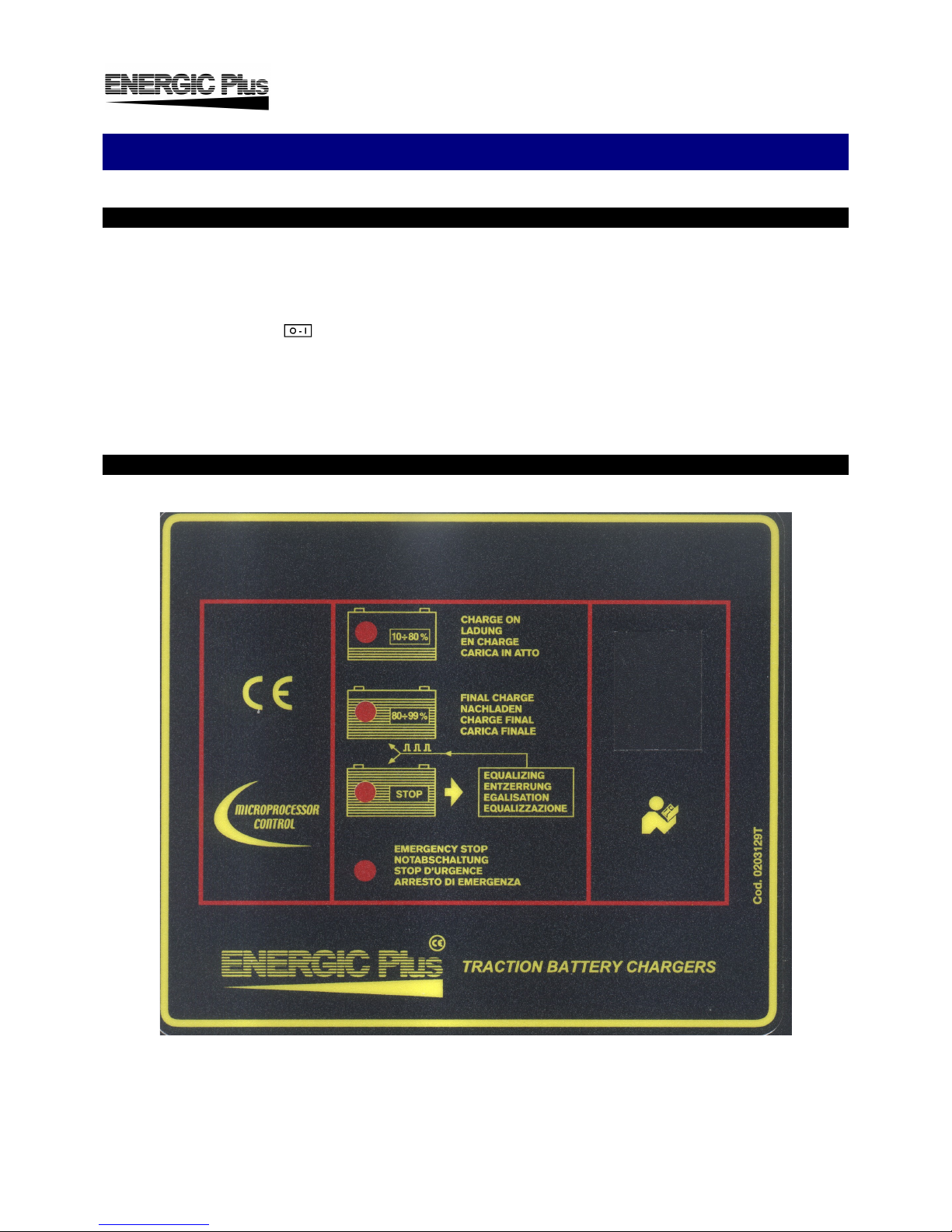

3. Description
Energic plus RX battery chargers have been designed to charge Pb batteries.
These units can convert the AC input voltage to a DC voltage at the correct level, in order to
charge the battery cells.

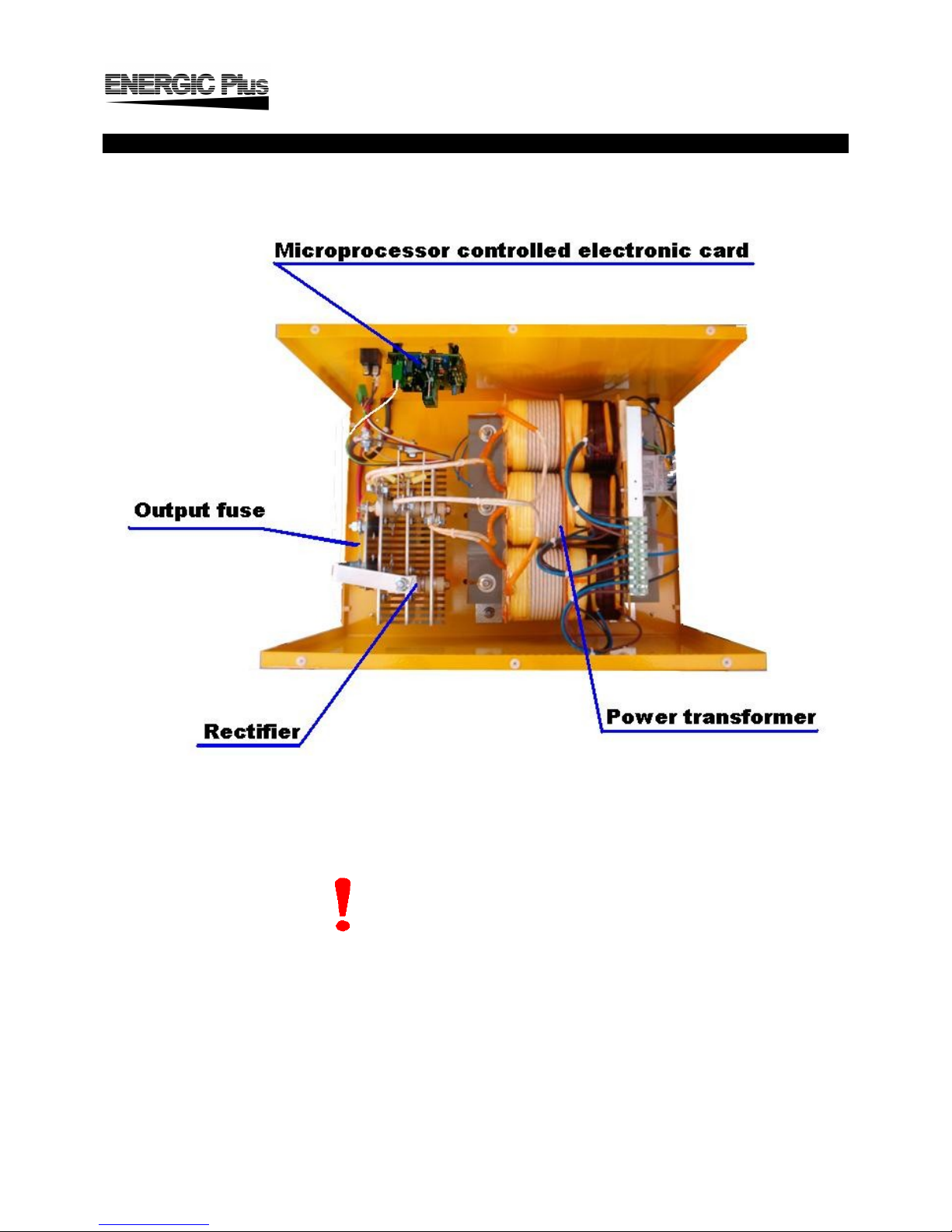

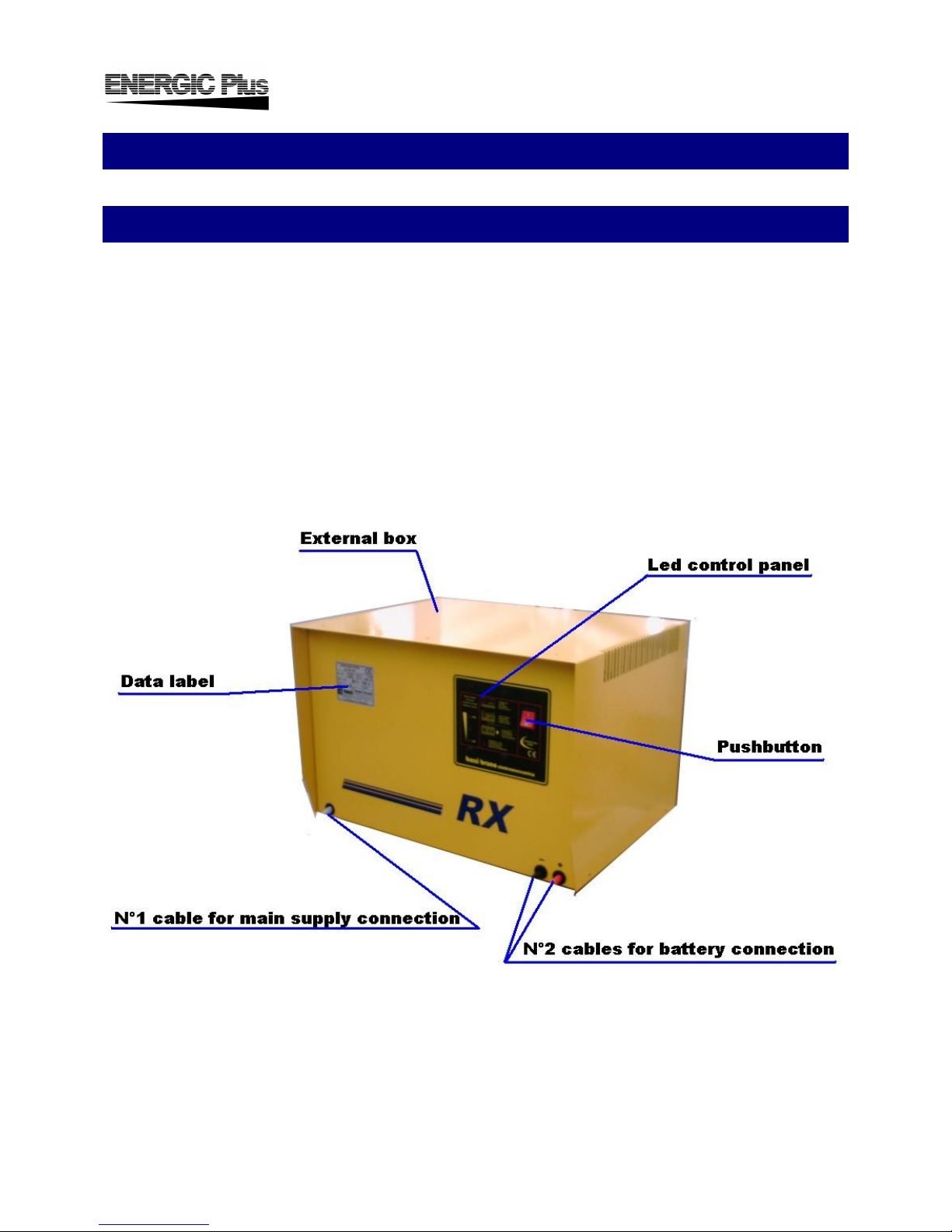

These are the principal devices included in the charger, available to the user:
• External box;

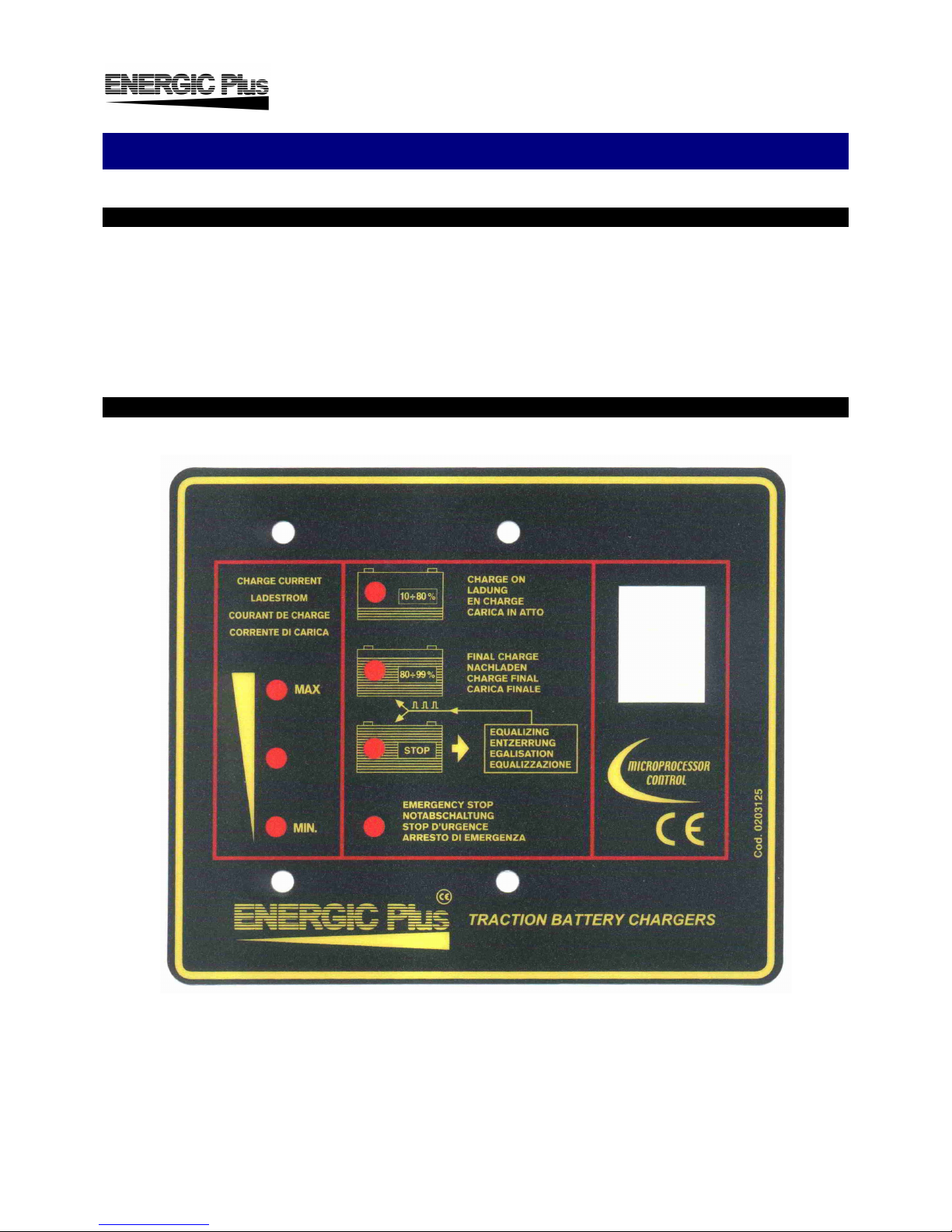

• Led control panel;
• Main switch (0-1);
• No.2 Cables for battery connection;
• No.1 Cable for main supply connection;
OWM-040906-RX Version: 02-AB Page 7 of 25
Battery Charger RX
User's Manual
4. Installation of the charger
Conditions of use:
• Operating temperature: 5°C to 45°C
• Storage temperature: -20°C to 60°C
• Relative humidity: less than 75%
OWM-040906-RX Version: 02-AB Page 8 of 25
CAUTION !
The charger can be installed by qualified personnel only.
NOTE

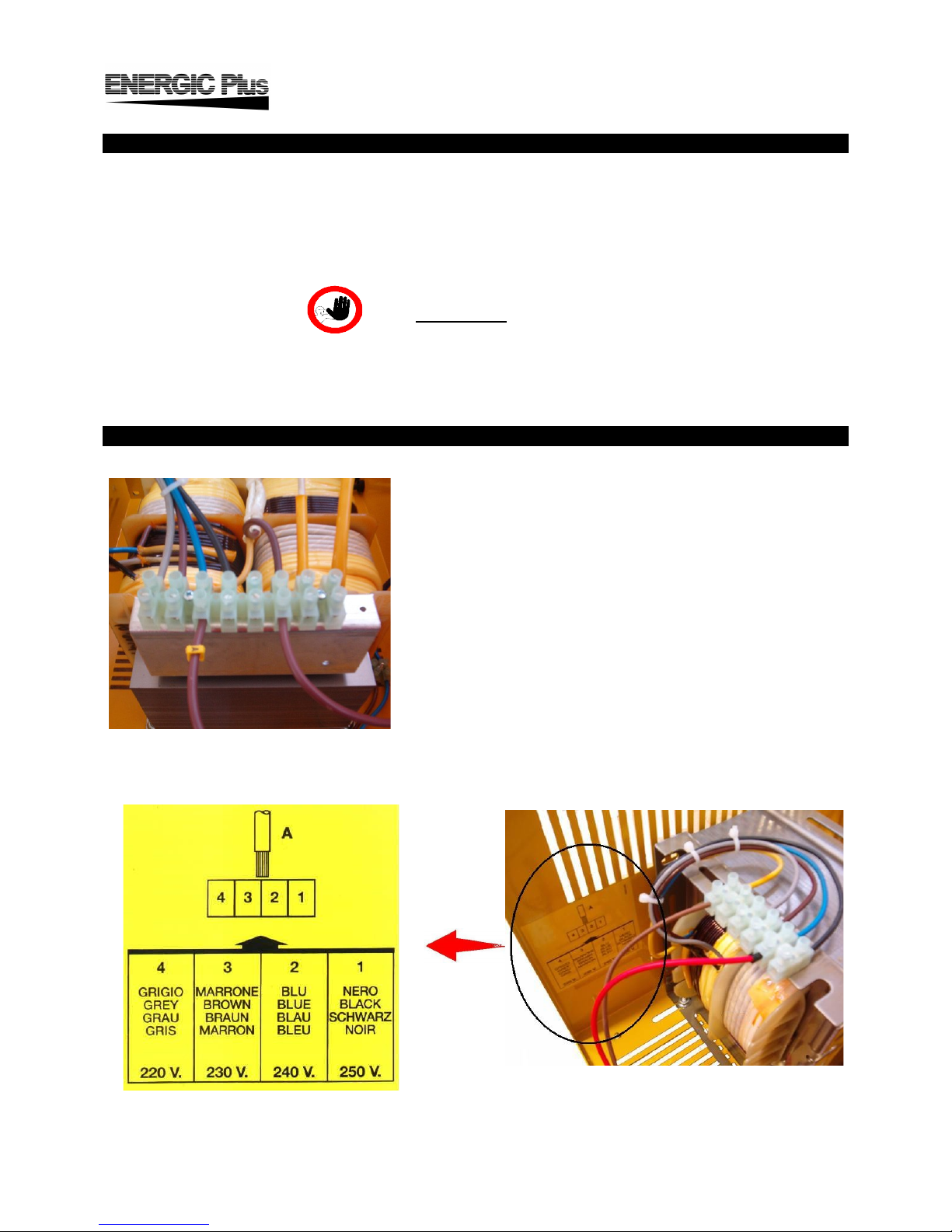

This unit operates on 220-230-240 V AC, 50Hz.
Check that the unit's operating voltage is identical to your local power supply.
Check that the unit's maximum input power is available from your power supply.
CAUTION !
To prevent fire or shock hazard, do not expose the unit to rain or moisture.
Do not use the unit in presence of flammable gas, because it can be generate sparks.
CAUTION !
To avoid electrical shock, do not open the cabinet.
Refer servicing to qualified personnel only.
CAUTION !
Allow adeguate air circolation to prevent internal heat buildup.
Do not place the unit near materials that may block the ventilation slots.
Do not install the unit near heat sources such as radiators or air ducts, or in a place
subject to direct sunlight, excessive dust, mechanical vibration or shock.
