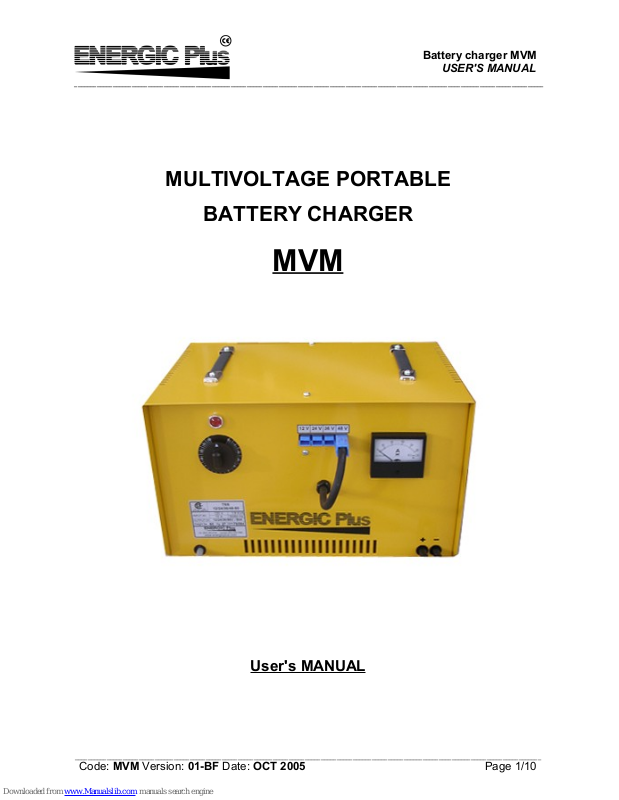

Energic Plus MVM User Manual
Battery charger MVM
USER'S MANUAL
_________________________________ ______________________________ ______________________________ ______________________________ ________________________
M

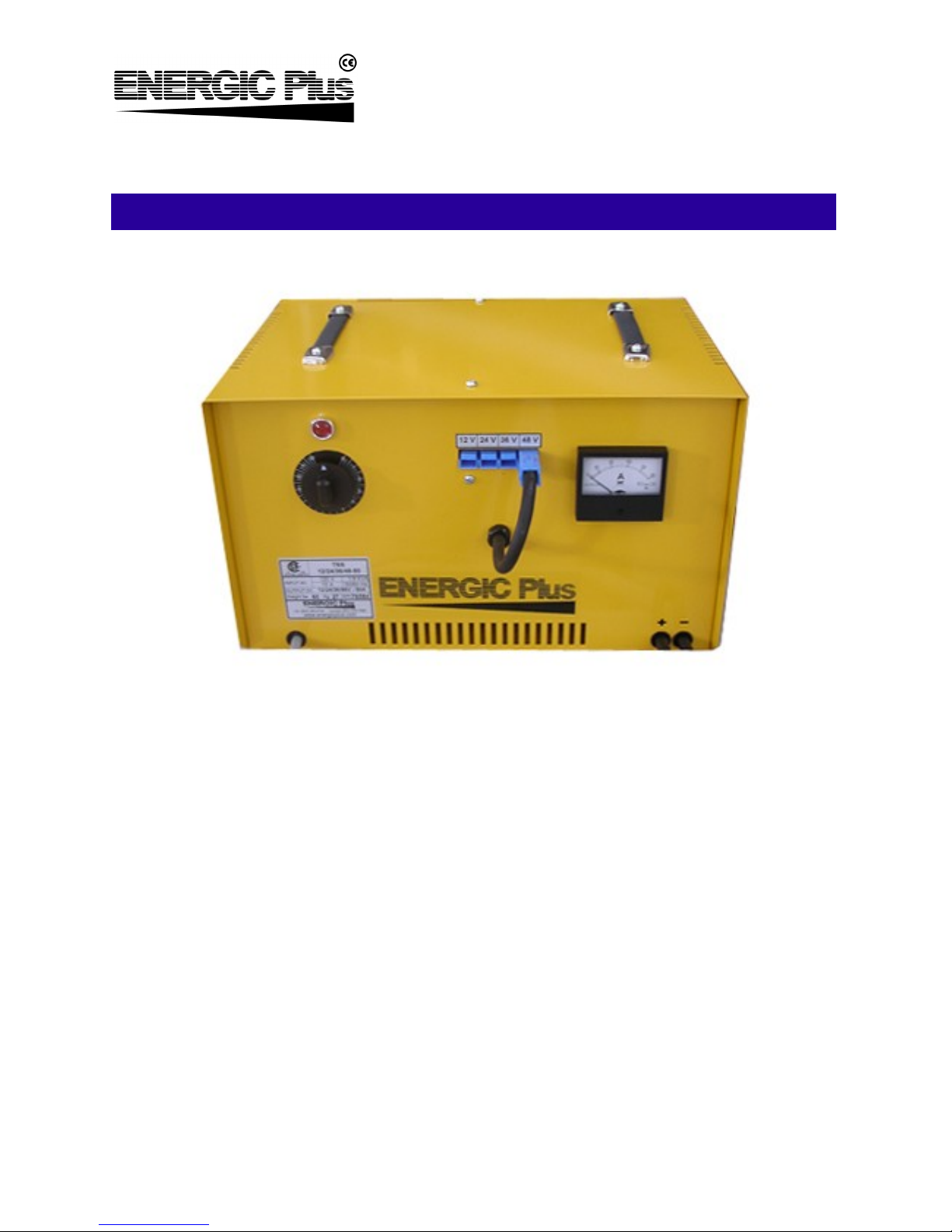

MULTIVOLTAGE PORTABLE
BATTERY CHARGER
MVM
User's MANUAL
_____________________________________ _____________________________ ______________________________ ______________________________ ____________________
Code: MVM Version: 01-BF Date: OCT 2005 Page 1/10
Battery charger MVM
USER'S MANUAL
_________________________________ ______________________________ ______________________________ ______________________________ ________________________
1. INTRODUCTION
Before starting to use your Energic plus MVM battery charger, please take the time to read
these instructions carefully.
The owner’s manual is an important part of the charger. It’s recommended to keep it in good
condition for the lifetime of the charger. It should be kept in a dry and clean place, always
available to the users.
To indicate important instructions, the following pictures are used:
“Caution: ” This operation can be dangerous for the user.
“Attention: ” This operation is important for the good operation of the charger.
Inside the charger, this picture is placed near devices connected to input voltage.
The charger is marked with a technical label, reporting the following data:
• CE mark;
• Model;
• Serial number;
• Weight;
• Input voltage;
• Maximum input current (A);
• Maximum power consumption (KVA);
• Input frequency;
• Voltage of the battery (output voltage);
• Maximum charge current (output current).
RESPONSIBILITY DISCLAIMER
The manufacturer of the MVM battery charger will not be responsible for damages and/or
injuries caused by the charger in these situations:
• The charger is not installed properly by a qualified electrician;
• Maintenance operations are not done by a qualified electrician;
• The charger is not used according to the instructions included in this manual;
• The charger is not connected to the correct input supply (see data label on the box);
• The battery is damaged during the charge;
• The charger has been modified without the authorization of the manufacturer;
• Non-original spare parts are used in the charger;
• Wrong spare parts are used in the charger.
_____________________________________ _____________________________ ______________________________ ______________________________ ____________________
Code: MVM Version: 01-BF Date: OCT 2005 Page 2/10
Battery charger MVM
USER'S MANUAL
_________________________________ ______________________________ ______________________________ ______________________________ ________________________
2. SAFETY INSTRUCTIONS AND WARNINGS
This manual includes instructions and suggestions for the users of Energic Plus MVM battery
chargers.
The code and the version of this manual are written on the bottom of each page. If you need
more copies please specify Code and Version.
Before starting to use your MVM battery charger, please read these instructions carefully.
GENERAL
Battery charging products can cause serious injury or death, or damage to other equipment or
property, if the operator does not strictly observe all safety rules and take precautionary
actions.
Safe practices must be learned through study and training before using this equipment.
Only qualified personnel should install, use, or service this equipment.
SHOCK PREVENTION
Bare conductors, or terminals in the output circuit, or ungrounded, electrically-live
equipments can fatally shock a person. To protect against shock, have competent electrician
verify that the equipment is adequately grounded and learn what terminals and parts are
electrically HOT.
The body’s electrical resistance is decreased when wet, permitting dangerous current to flow
through the body. Do not work in damp area without being extremely careful. Stand on dry
rubber mat or dry wood and use insulating gloves when dampness or sweat cannot be
avoided. Keep clothing dry.
INSTALLATION AND GROUNDING - A power disconnect switch must be located at the
equipment. Check the data label for voltage and phase requirements. If only 3-phase power is
available, connect single-phase equipment to ONLY TWO WIRES of the 3-phase line.
DO NOT CONNECT the equipment grounding conductor to the third live wire of the 3-phase
line as this makes the equipment frame electrically HOT, which can cause a fatal shock.
If a grounding conductor is part of the power supply cable, be sure to connect it to a properly
grounded switch box or building ground. If not part of the supply cable, use a separate
grounding conductor. Don’t remove a ground prong from any plug. Use correct mating
receptacles. Check ground for electrical continuity before using equipment. The grounding
conductor must be of a size equal to or larger than the size of the line conductors.
CHARGING LEADS – Inspect leads often for damage to the insulation. Replace or repair
cracked or worn leads immediately. Use leads having sufficient capacity to carry the operating
current without overheating.
BATTERY TERMINALS – Do not touch battery terminals while equipment is operating.
SERVICE AND MAINTENANCE – Shut OFF all power at the disconnect switch or line breaker
BEFORE inspecting, adjusting, or servicing the equipment. Lock switch OPEN (or remove line
fuses) so that the power cannot be turned ON accidentally.
Disconnect power to equipment if it is to be left unattended or out of service.
Disconnect battery from charger.
Measure voltage on capacitors and, if there is any voltage reading, wait 5 minutes before to
proceed.
_____________________________________ _____________________________ ______________________________ ______________________________ ____________________
Code: MVM Version: 01-BF Date: OCT 2005 Page 3/10
