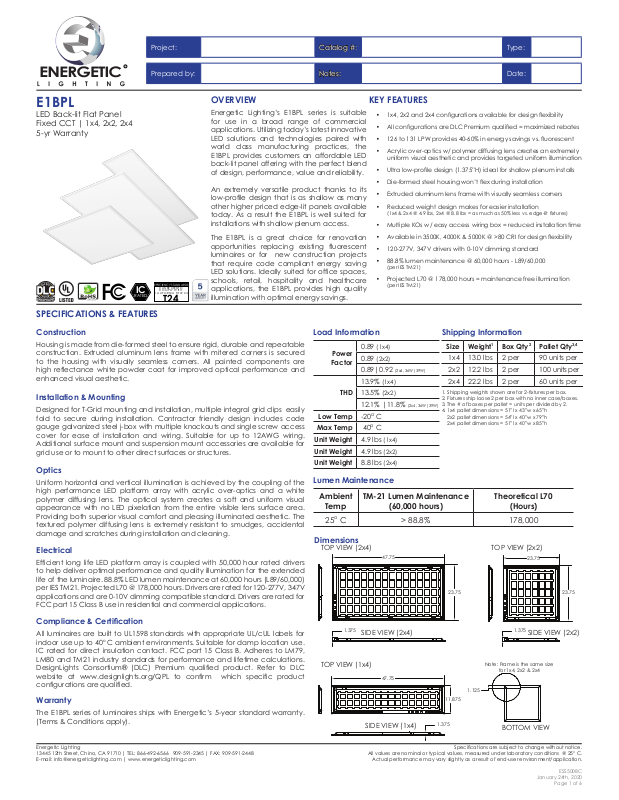

E1BPL
LED Back-lit Flat Panel
Fixed CCT | 1x4, 2x2, 2x4
5-yr Warranty
OVERVIEW
Energetic Lighting’s E1BPL series is suitable
for use in a broad range of commercial
applications. Utilizing today’s latest innovative
LED solutions and technologies paired with
world class manufacturing practices, the
E1BPL provides customers an affordable LED
back-lit panel offering with the perfect blend
of design, performance, value and reliability.
An extremely versatile product thanks to its
low-prole design that is as shallow as many
other higher priced edge-lit panels available
today. As a result the E1BPL is well suited for
installations with shallow plenum access.
The E1BPL is a great choice for renovation
opportunities replacing existing uorescent
luminaires or for new construction projects
that require code compliant energy saving
LED solutions. Ideally suited for ofce spaces,
schools, retail, hospitality and healthcare
applications, the E1BPL provides high quality
illumination with optimal energy savings.
IC
RATED
CAN BE USED TO
COMPLY WITH
T24
SPECIFICATIONS & FEATURES
Construction
Housing is made from die-formed steel to ensure rigid, durable and repeatable
construction. Extruded aluminum lens frame with mitered corners is secured
to the housing with visually seamless corners. All painted components are
high reectance white powder coat for improved optical performance and
enhanced visual aesthetic.
Installation & Mounting
Designed for T-Grid mounting and installation, multiple integral grid clips easily
fold to secure during installation. Contractor friendly design includes code
gauge galvanized steel j-box with multiple knockouts and single screw access
cover for ease of installation and wiring. Suitable for up to 12AWG wiring.
Additional surface mount and suspension mount accessories are available for
grid use or to mount to other direct surfaces or structures.
Optics
Uniform horizontal and vertical illumination is achieved by the coupling of the
high performance LED platform array with acrylic over-optics and a white
polymer diffusing lens. The optical system creates a soft and uniform visual
appearance with no LED pixelation from the entire visible lens surface area.
Providing both superior visual comfort and pleasing illuminated aesthetic. The
textured polymer diffusing lens is extremely resistant to smudges, accidental
damage and scratches during installation and cleaning.
Electrical
Efcient long life LED platform array is coupled with 50,000 hour rated drivers
to help deliver optimal performance and quality illumination for the extended
life of the luminaire. 88.8% LED lumen maintenance at 60,000 hours (L89/60,000)
per IES TM21. Projected L70 @ 178,000 hours. Drivers are rated for 120-277V, 347V
applications and are 0-10V dimming compatible standard. Drivers are rated for
FCC part 15 Class B use in residential and commercial applications.
Compliance & Certication
All luminaires are built to UL1598 standards with appropriate UL/cUL labels for
indoor use up to 40
IC rated for direct insulation contact. FCC part 15 Class B. Adheres to LM79,
LM80 and TM21 industry standards for performance and lifetime calculations.
DesignLights Consortium® (DLC) Premium qualied product. Refer to DLC
website at www.designlights.org/QPL to conrm which specic product
congurations are qualied.
Warranty
The E1BPL series of luminaires ships with Energetic’s 5-year standard warranty.
(Terms & Conditions apply).
o
C ambient environments. Suitable for damp location use.
KEY FEATURES
• 1x4, 2x2 and 2x4 congurations available for design exibility
• All congurations are DLC Premium qualied = maximized rebates
• 126 to 131 LPW provides 40-60% in energy savings vs. uorescent
• Acrylic over-optics w/ polymer diffusing lens creates an extremely
uniform visual aesthetic and provides targeted uniform illumination
• Ultra low-prole design (1.375”H) ideal for shallow plenum installs
• Die-formed steel housing won’t ex during installation
• Extruded aluminum lens frame with visually seamless corners
• Reduced weight design makes for easier installation
(1x4 & 2x4 @ 4.9 lbs, 2x4 @ 8.8 lbs = as much as 50% less vs. edge-lit xtures)
• Multiple KOs w/ easy access wiring box = reduced installation time
• Available in 3500K, 4000K & 5000K @ >80 CRI for design exibility
• 120-277V, 347V drivers with 0-10V dimming standard
• 88.8% lumen maintenance @ 60,000 hours - L89/60,000
(per IES TM21)
• Projected L70 @ 178,000 hours = maintenance free illumination
(per IES TM21)
Load Information
0.89 (1x4)
Power
0.89 (2x2)
Factor
0.89|0.92 (2x4, 36W|39W)
13.9% (1x4)
THD
13.5% (2x2)
12.1% |11.8% (2x4, 36W|39W)
Low Temp -20o C
Max Temp 40o C
Unit Weight 4.9 lbs (1x4)
Unit Weight 4.9 lbs (2x2)
Unit Weight 8.8 lbs (2x4)
Lumen Maintenance
Ambient
Temp
25
Dimensions
TOP VIEW (2x4)
TOP VIEW (1x4)
TM-21 Lumen Maintenance
(60,000 hours)
o
C > 88.8% 178,000
47.75
1.375
SIDE VIEW (2x4)
47.75
SIDE VIEW (1x4)
Shipping Information
Size Weight1Box Qty2Pallet Qty
1x4 13.0 lbs 2 per 90 units per
2x2 12.2 lbs 2 per 100 units per
2x4 22.2 lbs 2 per 60 units per
1. Shipping weights shown are for 2-xtures per box.
2. Fixtures ship loose 2 per box with no inner case/boxes.
3. The # of boxes per pallet = units per divided by 2.
4. 1x4 pallet dimensions = 51”l x 43”w x 65”h
2x2 pallet dimensions = 54”l x 40”w x 79”h
2x4 pallet dimensions = 51”l x 40”w x 85”h
23.75
1.125
11.875
1.375
Theoretical L70
(Hours)
TOP VIEW (2x2)
Note: Frame is the same size
for 1x4, 2x2 & 2x4
23.75
1.375
SIDE VIEW (2x2)
BOTTOM VIEW
23.75
3,4
Energetic Lighting
13445 12th Street, Chino, CA 91710 | TEL: 866-492-6566 909-591-2345 | FAX: 909-591-2448
E-mail: [email protected] | www.energeticlighting.com
All values are nominal or typical values, measured under laboratory conditions @ 25o C.
Actual performance may vary slightly as a result of end-user environment/application.
Specications are subject to change without notice.
ESS5008C
January 24th, 2020
Page 1 of 6
Page 2
Fixed CCT | 1x4, 2x2, 2x4 | 5-yr Warranty
1x4 STOCK ORDERING INFORMATION (base fixture only)
Catalog Logic Order # Size Lumens Wattage LPW Color Temp CRI Voltage Dimming DLC Pallet Qty
E1BPL1-H30D-835 65077 1x4 3689 29.3 126 3500K 83 120-277, 347 0-10V
E1BPL1-H30D-840 65078 1x4 3736 29.3 128 4000K 83 120-277, 347 0-10V
E1BPL1-H30D-850 65079 1x4 3830 29.7 129 5000K 83 120-277, 347 0-10V
2x2 STOCK ORDERING INFORMATION (base fixture only)
Catalog Logic Order # Size Lumens Wattage LPW Color Temp CRI Voltage Dimming DLC Pallet Qty
E1BPL2-H30D-835 65086 2x2 3698 29.3 126 3500K 83 120-277, 347 0-10V
E1BPL2-H30D-840 65087 2x2 3742 29.3 128 4000K 83 120-277, 347 0-10V
E1BPL2-H30D-850 65088 2x2 3830 29.5 130 5000K 83 120-277, 347 0-10V
2x4 STOCK ORDERING INFORMATION (base fixture only)
Catalog Logic Order # Size Lumens Wattage LPW Color Temp CRI Voltage Dimming DLC Pallet Qty
E1BPL4-H36D-835 65104 2x4 4543 35.6 128 3500K 83 120-277, 347 0-10V
E1BPL4-H36D-840 65105 2x4 4588 35.6 129 4000K 83 120-277, 347 0-10V
E1BPL4-H36D-850 65106 2x4 4679 35.7 131 5000K 83 120-277, 347 0-10V
E1BPL4-H40D-835 65113 2x4 4941 39.0 127 3500K 83 120-277, 347 0-10V
E1BPL4-H40D-840 65114 2x4 4993 39.0 128 4000K 83 120-277, 347 0-10V
E1BPL4-H40D-850 65115 2x4 5097 38.9 131 5000K 83 120-277, 347 0-10V
Notes:
1. 0-10V dimming driver standard, leads are capped from the factory, dims to 10%.
LED Back-lit Flat Panel
1
Premium 90
1
Premium 90
1
Premium 90
1
Premium 100
1
Premium 100
1
Premium 100
1
Premium 60
1
Premium 60
1
Premium 60
1
Premium 60
1
Premium 60
1
Premium 60
E1BPL
MOUNTING ACCESSORIES
(must be ordered separately...available to ship Ma rch/April 2020)
Catalog Logic Order # Description
FPSURF14
FPSURF22
FPSURF24
1
1
1
65150 Flat panel surface mount kit 1x4
65151 Flat panel surface mount kit 2x2
65152 Flat panel surface mount kit 2x4
FPSUSP2 65153 Flat panel suspension mount kit (all sizes)
Notes:
1. Surface mount kits ship disassembled for reduced package size and ease of shipping.
(some eld assembly required, see instruction sheets for details)
2. The ‘FPSUSP’ suspension mount kits can be used with a stand alone luminaire or can be
used along with the surface mount kits for a different architectural aesthetic.
(some eld assembly required, see instruction sheets for details)
Surface Mount Kit Dimensions
FPSURF22 FPSURF24
23.9
2.0
23.9
4.8
4.8
47.9
2.0
23.9
9.9
9.9
11.9
9.9
24.0
47.9
9.9
2.0
24.0
Suspension Mount Dimensions
FPSUSP
(2 hangers per kit)
~120.0 (max)
~13.0
Energetic Lighting
13445 12th Street, Chino, CA 91710 | TEL: 866-492-6566 909-591-2345 | FAX: 909-591-2448
E-mail: [email protected] | www.energeticlighting.com
All values are nominal or typical values, measured under laboratory conditions @ 25o C.
Actual performance may vary slightly as a result of end-user environment/application.
Specications are subject to change without notice.
ESS5008C
January 24th, 2020
Page 2 of 6
