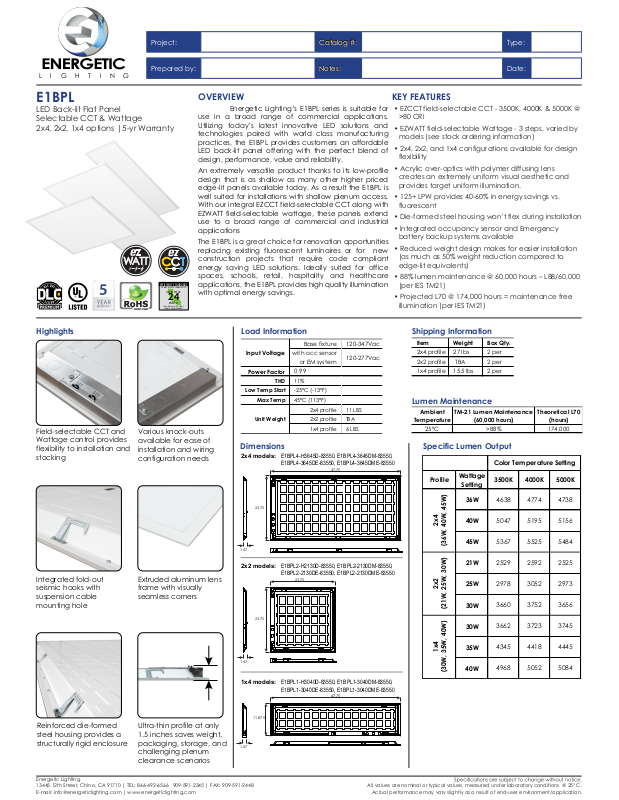

Energetic Lighting W004515511 Specifications

Project: Catalog #: Type:

Wattage

Setting

Base fixture 120-347Vac

wit h occ sensor

Power Factor

0.99

Ambient

TM-21 Lumen Maintenance

Theoretical L70

25°C >88% 174,000

LIGHTING

E1BPL

LED Back-lit Flat Panel
Selectable CCT & Wattage
2x4, 2x2, 1x4 options |5-yr Warranty

Prepared by: Notes: Date:

KEY FEATURES

• EZCCT field-selectable CCT - 3500K, 4000K & 5000K @
>80 CRI

• EZWATT field-selectable Wattage - 3 steps, varied by
models (see stock ordering information)

• 2x4, 2x2, and 1x4 configurations available for design
flexibility

• Acrylic over-optics with polymer diffusing lens
creates an extremely uniform visual aesthetic and
provides target uniform illumination.

• 125+ LPW provides 40-60% in energy savings vs.
fluorescent

• Die-formed steel housing won’t flex during installation

• Integrated occupancy sensor and Emergency
battery backup systems available

• Reduced weight design makes for easier installation
(as much as 50% weight reduction compared to
edge-lit equivalents)

• 88% lumen maintenance @ 60,000 hours – L88/60,000
(per IES TM21)

• Projected L70 @ 174,000 hours = maintenance free
illumination (per IES TM21)

EFFICIENCY STANDARDS

CAN BE USED TO COMPLY WITH

2019 TITLE



PART 6

HIGH EFFICACY LED LIGHT

SOURCE REQUIREMENTS

OVERVIEW

Energetic Lighting’s E1BPL series is suitable for

use in a broad range of commercial applications.
Utilizing today’s latest innovative LED solutions and
technologies paired with world class manufacturing
practices, the E1BPL provides customers an affordable
LED back-lit panel offering with the perfect blend of
design, performance, value and reliability.

An extremely versatile product thanks to its low-profile
design that is as shallow as many other higher priced
edge-lit panels available today. As a result the E1BPL is
well suited for installations with shallow plenum access.
With our integral EZCCT field-selectable CCT along with
EZWATT field-selectable wattage, these panels extend
use to a broad range of commercial and industrial
applications

The E1BPL is a great choice for renovation opportunities
replacing existing fluorescent luminaires or for new
construction projects that require code compliant
energy saving LED solutions. Ideally suited for office
spaces, schools, retail, hospitality and healthcare
applications, the E1BPL provides high quality illumination
with optimal energy savings.

Highlights Load Information Shipping Information

Item Weight Box Qty.

2x4 profile 27 lbs 2 per

2x2 profile TBA 2 per

1x4 profile 15.5 lbs 2 per

Lumen Maintenance

Temperature

Profile

(60,000 hours)

Field-selectable CCT and
Wattage control provides
flexibility to installation and
stocking

Various knock-outs
available for ease of
installation and wiring
configuration needs

Input Voltage

Low Temp Start -25°C (-13°F)

Max Temp 45°C (113°F)

Unit Weight

or EM system

THD 11%

2x4 profile 11 LBS

2x2 profile TBA

1x4 profile 6 LBS

120-277Vac

Dimensions Specific Lumen Output

2x4 models:

E1BPL4-H3645D-83550, E1BPL4-3645DM-83550,
E1BPL4-3645DE-83550, E1BPL4-3645DME-83550

47.75

(hours)

Color Temperature Setting

3500K 4000K 5000K

Integrated fold-out
seismic hooks with
suspension cable
mounting hole

Reinforced die-formed
steel housing provides a
structurally rigid enclosure

Energetic Lighting
13445 12th Street, Chino, CA 91710 | TEL: [phone] | FAX: [phone]
E-mail: [e-mail] | www.energeticlighting.com

Extruded aluminum lens
frame with visually
seamless corners

Ultra-thin profile at only

1.5 inches saves weight,
packaging, storage, and
challenging plenum
clearance scenarios

23.75

1.47

2x2 models:

23.75

1.47

1x4 models:

11.875

1.47

E1BPL2-H2130D-83550, E1BPL2-2130DM-83550,
E1BPL2-2130DE-83550, E1BPL2-2130DME-83550

23.75

E1BPL1-H3040D-83550, E1BPL1-3040DM-83550,
E1BPL1-3040DE-83550, E1BPL1-3040DME-83550

47.75

All values are nominal or typical values, measured under laboratory conditions @ 25o C.

Actual performance may vary slightly as a result of end-user environment/application.

36W

40W

2x4

45W

(36W, 40W, 45W)

21W

25W

2x2

30W

(21W, 25W, 30W)

30W

35W

1x4

40W

(30W, 35W, 40W)

4638 4774 4738

5047 5195 5156

5367 5525 5484

2529 2592 2525

2978 3052 2973

3660 3752 3656

3662 3723 3745

4345 4418 4445

4968 5052 5084

LIGHTING

Catalog Logic Order # Lumens Wattage LPW Color Temp CRI Voltage Dimming DLC Pallet Qty

4630, 5040, 5360

36W, 40W, 45W

3500K, 4000K, 5000K

Catalog Logic Order # Lumens Wattage LPW Color Temp CRI Voltage Dimming DLC Pallet Qty

Catalog Logic Order # Lumens Wattage LPW Color Temp CRI Voltage Dimming DLC Pallet Qty

Catalog Logic Order # Lumens Wattage LPW Color Temp CRI Voltage Dimming DLC Pallet Qty

Catalog Logic Order # Lumens Wattage LPW Color Temp CRI Voltage Dimming DLC Pallet Qty

Catalog Logic Order # Lumens Wattage LPW Color Temp CRI Voltage Dimming DLC Pallet Qty

Catalog Logic Order # Lumens Wattage LPW Color Temp CRI Voltage Dimming DLC Pallet Qty

Catalog Logic Order # Lumens Wattage LPW Color Temp CRI Voltage Dimming DLC Pallet Qty

Catalog Logic Order #

Description

2x4 flat panel surface-mount kit (2-inch drop height)

Cable suspension kit

CCT&W-Select LED Back-lit Flat Panel

E1BPL

60,000 System Lifetime | 5-yr Warranty

STOCK ORDERING INFORMATION

2x4 Profile

E1BPL4-H3645D-83550 65135

(LM) Selectable

Selectable

125

Selectable

82 120-347 0-10v DLC5.0-P 30

2x4 Profile with Integrated Occupancy Sensor

Catalog Logic Order # Lumens Wattage LPW Color Temp CRI Voltage Dimming DLC Pallet Qty

E1BPL4-3645DM-83550 65141

4630, 5040, 5360
(LM) Selectable

36W, 40W, 45W
Selectable

125

3500K, 4000K, 5000K
Selectable

82 120-277 0-10v DLC5.0-P TBA

2x4 Profile with Emergency Battery Backup System

Catalog Logic Order # Lumens Wattage LPW Color Temp CRI Voltage Dimming DLC Pallet Qty

E1BPL4-3645DE-83550 65138

4630, 5040, 5360
(LM) Selectable

36W, 40W, 45W
Selectable

125

3500K, 4000K, 5000K
Selectable

82 120-277 0-10v DLC5.0-P TBA

2x4 Profile with Integrated Occupancy Sensor & Emergency Battery Backup System

E1BPL4-3645DME-83550 65149

4630, 5040, 5360
(LM) Selectable

36W, 40W, 45W
Selectable

125

3500K, 4000K, 5000K
Selectable

82 120-277 0-10v DLC5.0-P TBA

2x2 Profile

E1BPL2-H2130D-83550 65134

2520, 2970, 3660
(LM) Selectable

21W, 25W, 30W
Selectable

125

3500K, 4000K, 5000K
Selectable

82 120-347 0-10v DLC5.0-P TBA

2x2 Profile with Integrated Occupancy Sensor

E1BPL2-2130DM-83550 65140

2520, 2970, 3660
(LM) Selectable

21W, 25W, 30W
Selectable

125

3500K, 4000K, 5000K
Selectable

82 120-277 0-10v DLC5.0-P TBA

2x2 Profile with Emergency Battery Backup System

2x2 Housing Profile 2x4 Housing Profile

E1BPL2-2130DE-83550 65137

2520, 2970, 3660
(LM) Selectable

21W, 25W, 30W
Selectable

125

3500K, 4000K, 5000K
Selectable

82 120-277 0-10v DLC5.0-P TBA

2x2 Profile with Integrated Occupancy Sensor & Emergency Battery Backup System

Catalog Logic Order # Lumens Wattage LPW Color Temp CRI Voltage Dimming DLC Pallet Qty

E1BPL2-2130DME-83550 65148

2520, 2970, 3660
(LM) Selectable

21W, 25W, 30W
Selectable

125

3500K, 4000K, 5000K
Selectable

82 120-277 0-10v DLC5.0-P TBA

1x4 Profile

E1BPL1-H3040D-83550 65133

3660, 4340, 4960
(LM) Selectable

30W, 35W, 40W
Selectable

126

3500K, 4000K, 5000K
Selectable

81 120-347 0-10v DLC5.0-P TBA

1x4 Profile with Integrated Occupancy Sensor

E1BPL1-3040DM-83550 65139

3660, 4340, 4960
(LM) Selectable

30W, 35W, 40W
Selectable

126

3500K, 4000K, 5000K
Selectable

81 120-277 0-10v DLC5.0-P TBA

1x4 Profile with Emergency Battery Backup System

Catalog Logic Order # Lumens Wattage LPW Color Temp CRI Voltage Dimming DLC Pallet Qty

1x4 Housing Profile

E1BPL1-3040DE-83550 65136

3660, 4340, 4960
(LM) Selectable

30W, 35W, 40W
Selectable

126

3500K, 4000K, 5000K
Selectable

81 120-277 0-10v DLC5.0-P TBA

1x4 Profile with Integrated Occupancy Sensor & Emergency Battery Backup System

E1BPL1-3040DME-83550 65147

3660, 4340, 4960
(LM) Selectable

30W, 35W, 40W
Selectable

126

3500K, 4000K, 5000K
Selectable

81 120-277 0-10v DLC5.0-P TBA

Options and Accessories

FPSURF24 65152

FPSURF22 65151

FPSURF14 65150

FPSUSP 65153

Energetic Lighting
13445 12th Street, Chino, CA 91710 | TEL: [phone] | FAX: [phone]
E-mail: [e-mail] | www.energeticlighting.com

2x2 flat panel surface-mount kit (2-inch drop height)

1x4 flat panel surface-mount kit (2-inch drop height)

All values are nominal or typical values, measured under laboratory conditions @ 25o C.

Actual performance may vary slightly as a result of end-user environment/application.

).ies

Models:

50%

30%

10%

Effectiv e Floor Cavity Reflectance 0.20

80%

70%

Cat Logic: E1BPL4-H3645D-83550

T

).ies

C

L

L

I

E

S

A
M

LIGHTING

Mounng

Height

MAX Diameter: 13.1 � 26.8 �

Mounng

Height

5

8

1

1

1

1

MAX Diameter: 11.6 � 30.8 �

Zone Lumens %Luminaire

10%

Effectiv e Floor Cavity Reflectance 0.20

80%

70%

50%

30%

PHOTOMETRIC DATA

*

pplicable

odels:

est Report: E1BPL4-H3645D-83550_(4000K

CT: set at 4000K for test

amp Type: LED

umens: 5525 LM

nput Watts: 41.87 W

fficacy: 132 LM/W

pacing Criteria: [0° : 1.28] [90° : 1.28]

E1BPL4-3645DM-83550

E1BPL4-3645DE-83550

E1BPL4-3645DME-83550

Polar Candela Plot

-100°

-90°

-80°

-70°

-60°

-50°

-40°

464 cd

928 cd

1392 cd

1855 cd

0° 45° 90°Vertical Planes:

CCT&W-Select LED Back-lit Flat Panel

E1BPL

60,000 System Lifetime | 5-yr Warranty

120°-120° 110°-110°

30°20°10°-10°-20°-30° 0°

Zonal Lumen Summary

100°

90°

80°

70°

60°

50°

40°

0-20 680.68 12.3

0-30 1451.16 26.3

0-40 2387.87 43.2

0-60 4263.59 77.2

0-80 5390.84 97.6

0-90 5519.87 99.9

0-180 5525.46 100

Coefficients of Utilization

rc 0%

rw 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

RCR

0 119 119 119 119 116 116 116 116 111 111 111 106 106 106 102 102 102 100
1 108 103 99 95 106 101 97 93 97 93 90 93 90 88 89 87 85 83
2 98 90 83 77 96 88 81 76 84 79 74 81 76 72 78 74 71 68
3 89 79 70 63 87 77 69 63 74 67 62 71 65 61 69 64 60 57
4 82 69 60 54 79 68 60 53 66 58 52 63 57 52 61 55 51 49
5 75 62 53 46 73 61 52 46 59 51 45 57 50 45 55 49 44 42
6 69 56 47 40 67 55 46 40 53 45 39 51 44 39 50 43 39 37
7 64 50 42 35 62 50 41 35 48 40 35 47 40 35 45 39 34 32
8 60 46 37 31 58 45 37 31 44 36 31 43 36 31 41 35 31 29

56 42 34 28 54 42 34 28 40 33 28 39 33 28 38 32 28 26

9

10 52 39 31 26 51 38 31 25 37 30 25 36 30 25 35 29 25 23

NOTE: Data produced from 4000K CCT setting where:

- 3500K values can be estimated by reduction of 0.972 factor from 4000K

*

- 5000K values can be estimated by increasing by a factor of 0.992 from 4000K
Data produced from highest wattage setting where lower wattage data values may be estimated by an equivalent
proportional reduction as the wattage reduction factor (example: 45W to 35W use 0.778 reduction factor)

PHOTOMETRIC DATA

Cat Logic: E1BPL2-H2130D-83550

Applicable

E1BPL2-2130DM-83550

*

E1BPL2-2130DE-83550

E1BPL2-2130DME-83550

Test Report: E1BPL2-H2130D-83550_(4000K

CCT: set at 4000K for test

Lamp Type: LED

Lumens: 3752 LM

Input Watts: 27.51 W

Efficacy: 136 LM/W

Spacing Criteria: [0° : 1.26] [90° : 1.28]

Polar Candela Plot

-100°

-90°

-80°

-70°

-60°

-50°

-40°

Vertical Planes:

321 cd

641 cd

962 cd

1282 cd

0° 45° 90°

120°-120° 110°-110°

100°

90°

80°

70°

60°

50°

40°

30°20°10°-10°-20°-30° 0°

Isofootcandle Sampling

Zonal Lumen Summary

Zone Lumens %Luminaire

0-20 469.34 12.5

0-30 998.05 26.6

0-40 1637.57 43.6

0-60 2910.12 77.6

0-80 3666.56 97.7

0-90 3748.49 99.9

0-180 3752.06 100

5  57.1 fc Iso-fc: 30 fc 10 fc

8  23.3 fc Iso-fc: 15 fc 5 fc

10  15 fc Iso-fc: 10 fc 5 fc

12  8 fc Iso-fc: 7.5 fc 2.5 fc

14  6.1 fc Iso-fc: 6 fc 2.5 fc

16  4.8 fc Iso-fc: 4 fc 2 fc

MAX Diameter: 6.3 � 11 �

MAX Diameter: 7.2 � 18 �

MAX Diameter: 8.3 � 17.3 �

MAX Diameter: 9.2 � 24.3 �

MAX Diameter: 8.5 � 24.2 �

Narrow Wide

Coefficients of Utilization

rc 0%

rw 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

RCR

0 119 119 119 119 116 116 116 116 111 111 111 106 106 106 102 102 102 100
1 108 103 99 95 106 101 97 94 97 94 91 93 90 88 89 87 85 83
2 98 90 83 77 96 88 82 76 84 79 74 81 77 73 78 74 71 69
3 90 79 70 64 87 77 69 63 74 68 62 71 66 61 69 64 60 58
4 82 70 61 54 80 68 60 53 66 58 53 63 57 52 61 56 51 49
5 75 62 53 46 73 61 52 46 59 51 45 57 50 45 55 49 44 42
6 69 56 47 40 67 55 46 40 53 45 40 51 45 39 50 44 39 37
7 64 51 42 36 63 50 41 35 48 41 35 47 40 35 45 39 35 33
8 60 46 38 32 58 45 37 32 44 37 31 43 36 31 42 36 31 29

56 42 34 28 54 42 34 28 41 33 28 40 33 28 38 32 28 26

9

10 52 39 31 26 51 39 31 26 38 30 26 37 30 25 36 30 25 24

NOTE: Data produced from 4000K CCT setting where:

- 3500K values can be estimated by reduction of 0.976 factor from 4000K

*

- 5000K values can be estimated by increasing by a factor of 0.974 from 4000K
Data produced from highest wattage setting where lower wattage data values may be estimated by an equivalent
proportional reduction as the wattage reduction factor (example: 30W to 20W use 0.667 reduction factor)

Energetic Lighting
13445 12th Street, Chino, CA 91710 | TEL: [phone] | FAX: [phone]
E-mail: [e-mail] | www.energeticlighting.com

Isofootcandle Sampling

 42.5 fc Iso-fc: 30 fc 10 fc

MAX Diameter: 4.5 � 9.5 �

 16.6 fc Iso-fc: 10 fc 5 fc

MAX Diameter: 7.5 � 15.4 �

0  10.6 fc Iso-fc: 7.5 fc 2.5 fc

MAX Diameter: 7.3 � 20.7 �

2  5.5 fc Iso-fc: 5 fc 1 fc

MAX Diameter: 9.8 � 29 �

4  4.2 fc Iso-fc: 4 fc 1 fc

MAX Diameter: 9.5 � 29.8 �

6  3.3 fc Iso-fc: 3 fc 1 fc

Narrow Wide

All values are nominal or typical values, measured under laboratory conditions @ 25o C.

Actual performance may vary slightly as a result of end-user environment/application.

Cat Logic: E1BPL1-H3040D-83550

).ies

Models:

LIGHTING

Mounng

Height

Effectiv e Floor Cavity Reflectance 0.20

80%

70%

50%

30%

10%

PHOTOMETRIC DATA

*

Applicable

Test Report: E1BPL1-H3040D-83550_(4000K

CCT: set at 4000K for test

Lamp Type: LED

Lumens: 5052 LM

Input Watts: 37.37 W

Efficacy: 135 LM/W

Spacing Criteria: [0° : 1.26] [90° : 1.30]

E1BPL1-3040DM-83550

E1BPL1-3040DE-83550

E1BPL1-3040DME-83550

Polar Candela Plot

-100°

-90°

-80°

-70°

-60°

-50°

-40°

Vertical Planes:

426 cd

852 cd

1278 cd

1704 cd

0° 45° 90°

CCT&W-Select LED Back-lit Flat Panel

E1BPL

60,000 System Lifetime | 5-yr Warranty

120°-120° 110°-110°

30°20°10°-10°-20°-30° 0°

Zonal Lumen Summary

100°

90°

80°

70°

60°

50°

40°

Zone Lumens %Luminaire

0-20 624.13 12.4

0-30 1329.27 26.3

0-40 2184.79 43.2

0-60 3895.16 77.1

0-80 4922.21 97.4

0-90 5044.34 99.8

0-180 5052.21 100

Coefficients of Utilization

rc 0%

rw 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

RCR

0 119 119 119 119 116 116 116 116 111 111 111 106 106 106 102 102 102 100
1 108 103 99 95 106 101 97 93 97 93 90 93 90 87 89 87 85 83
2 98 90 83 77 96 88 81 76 84 79 74 81 76 72 78 74 71 68
3 89 79 70 63 87 77 69 63 74 67 62 71 65 61 68 64 60 57
4 82 69 60 54 79 68 60 53 66 58 52 63 57 52 61 55 51 49
5 75 62 53 46 73 61 52 46 59 51 45 57 50 45 55 49 44 42
6 69 56 47 40 67 55 46 40 53 45 39 51 44 39 50 43 39 37
7 64 50 42 35 62 50 41 35 48 40 35 47 40 35 45 39 34 32
8 60 46 37 31 58 45 37 31 44 36 31 43 36 31 41 35 31 29

56 42 34 28 54 42 34 28 40 33 28 39 33 28 38 32 28 26

9

10 52 39 31 26 51 38 31 26 37 30 25 36 30 25 35 29 25 23

NOTE: Data produced from 4000K CCT setting where:

*

- 3500K values can be estimated by reduction of 0.984 factor from 4000K

- 5000K values can be estimated by increasing by a factor of 1.01 from 4000K
Data produced from highest wattage setting where lower wattage data values may be estimated by an equivalent
proportional reduction as the wattage reduction factor (example: 40W to 30W use 0.75 reduction factor)

Isofootcandle Sampling

5  53.3 fc Iso-fc: 30 fc 10 fc

8  21.5 fc Iso-fc: 15 fc 5 fc

10  13.8 fc Iso-fc: 10 fc 5 fc

12  7.4 fc Iso-fc: 6 fc 2 fc

14  5.7 fc Iso-fc: 5 fc 2 fc

16  4.5 fc Iso-fc: 4 fc 1.5 fc

Narrow Wide

MAX Diameter: 6 � 10.5 �

MAX Diameter: 6.2 � 17.3 �

MAX Diameter: 7.2 � 17.3 �

MAX Diameter: 11.4 � 25.6 �

MAX Diameter: 11.3 � 25.7 �

MAX Diameter: 11.8 � 29 �

Energetic Lighting
13445 12th Street, Chino, CA 91710 | TEL: [phone] | FAX: [phone]
E-mail: [e-mail] | www.energeticlighting.com

All values are nominal or typical values, measured under laboratory conditions @ 25o C.

Actual performance may vary slightly as a result of end-user environment/application.

LIGHTING

NOTES:

CCT&W-Select LED Back-lit Flat Panel

E1BPL

60,000 System Lifetime | 5-yr Warranty

Energetic Lighting
13445 12th Street, Chino, CA 91710 | TEL: [phone] | FAX: [phone]
E-mail: [e-mail] | www.energeticlighting.com

All values are nominal or typical values, measured under laboratory conditions @ 25o C.

Actual performance may vary slightly as a result of end-user environment/application.

LIGHTING

NOTES:

CCT&W-Select LED Back-lit Flat Panel

E1BPL

60,000 System Lifetime | 5-yr Warranty

Energetic Lighting
13445 12th Street, Chino, CA 91710 | TEL: [phone] | FAX: [phone]
E-mail: [e-mail] | www.energeticlighting.com

All values are nominal or typical values, measured under laboratory conditions @ 25o C.

Actual performance may vary slightly as a result of end-user environment/application.
