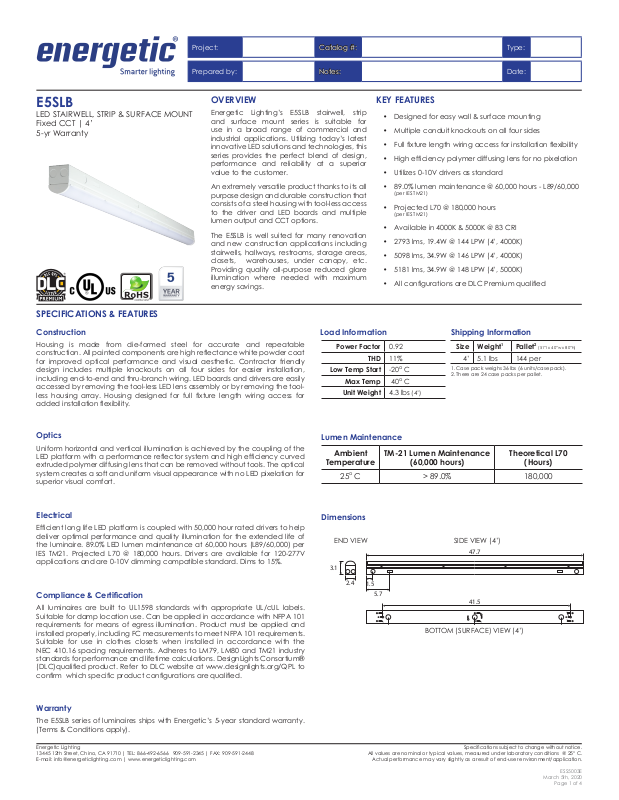

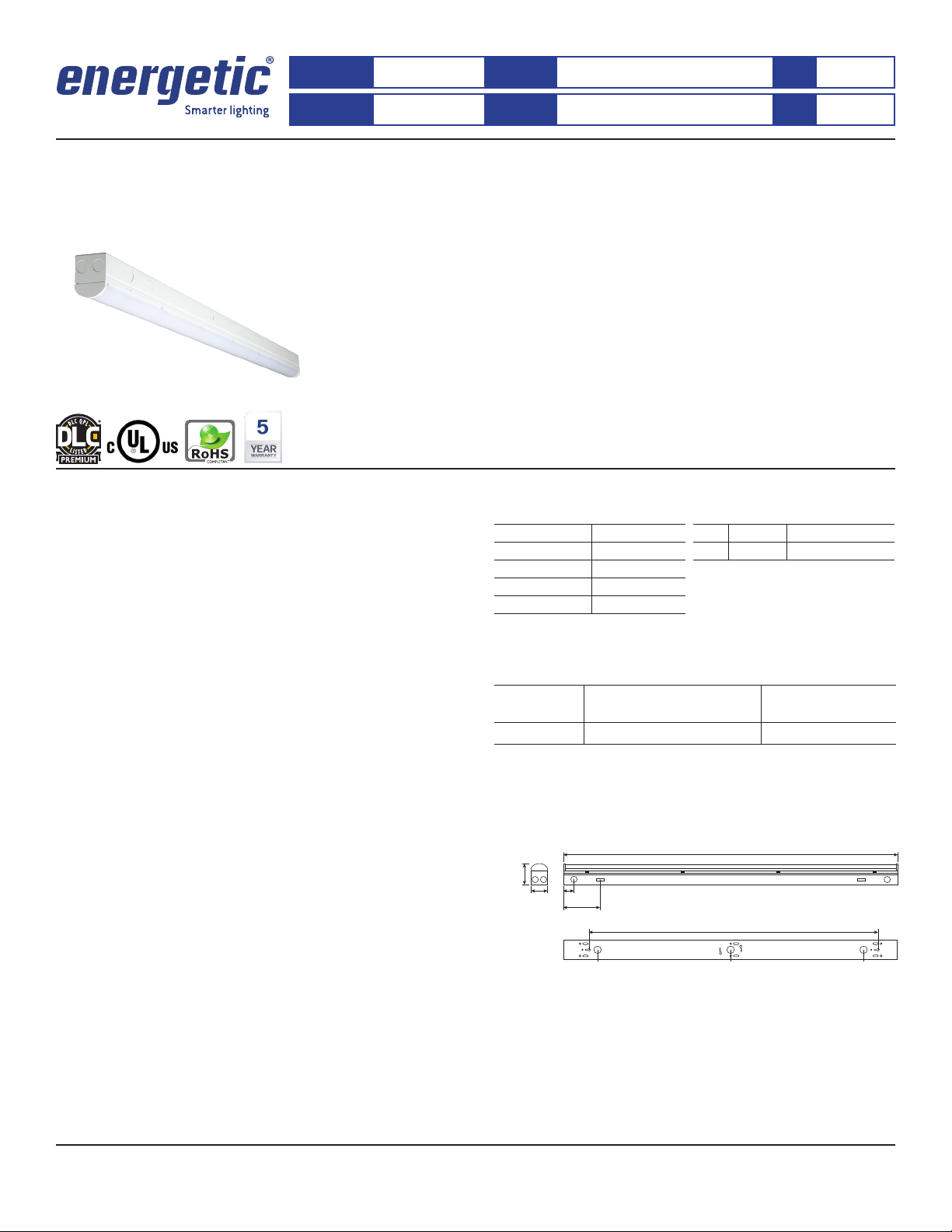

Energetic Lighting EGT10056 Specifications

Project: Catalog #:Catalog #: Type:

Prepared by: Notes:Notes: Date:

E5SLB

LED STAIRWELL, STRIP & SURFACE MOUNT
Fixed CCT | 4’
5-yr Warranty

OVERVIEW

Energetic Lighting’s E5SLB stairwell, strip
and surface mount series is suitable for
use in a broad range of commercial and

industrial applications. Utilizing today’s latest

innovative LED solutions and technologies, this
series provides the perfect blend of design,
performance and reliability at a superior
value to the customer.

An extremely versatile product thanks to its all
purpose design and durable construction that
consists of a steel housing with tool-less access
to the driver and LED boards and multiple

lumen output and CCT options.

The E5SLB is well suited for many renovation

and new construction applications including

stairwells, hallways, restrooms, storage areas,
closets, warehouses, under canopy, etc.
Providing quality all-purpose reduced glare
illumination where needed with maximum

energy savings.

SPECIFICATIONS & FEATURES

Construction

Housing is made from die-formed steel for accurate and repeatable
construction. All painted components are high reectance white powder coat
for improved optical performance and visual aesthetic. Contractor friendly

design includes multiple knockouts on all four sides for easier installation,

including end-to-end and thru-branch wiring. LED boards and drivers are easily
accessed by removing the tool-less LED lens assembly or by removing the tool­less housing array. Housing designed for full xture length wiring access for
added installation exibility.

KEY FEATURES

Load Information

Power Factor 0.92

THD 11%

Low Temp Start -20

Max Temp 40

Unit Weight 4.3 lbs

• Designed for easy wall & surface mounting

• Multiple conduit knockouts on all four sides

• Full xture length wiring access for installation exibility

• High efciency polymer diffusing lens for no pixelation

• Utilizes 0-10V drivers as standard

• 89.0% lumen maintenance @ 60,000 hours - L89/60,000

(per IES TM21)

• Projected L70 @ 180,000 hours

(per IES TM21)

• Available in 4000K & 5000K @ 83 CRI

• 2793 lms, 19.4W @ 144 LPW (4’, 4000K)

• 5098 lms, 34.9W @ 146 LPW (4’, 4000K)

• 5181 lms, 34.9W @ 148 LPW (4’, 5000K)

• All congurations are DLC Premium qualied

Shipping Information

Size Weight1Pallet2 (51”l x 40”w x 80”h)

o

C

o

C

(4’)

4’ 5.1 lbs 144 per

1. Case pack weighs 36 lbs (6 units/case pack).

2. There are 24 case packs per pallet.

Optics

Uniform horizontal and vertical illumination is achieved by the coupling of the
LED platform with a performance reector system and high efciency curved
extruded polymer diffusing lens that can be removed without tools. The optical
system creates a soft and uniform visual appearance with no LED pixelation for

superior visual comfort.

Electrical

Efcient long life LED platform is coupled with 50,000 hour rated drivers to help
deliver optimal performance and quality illumination for the extended life of
the luminaire. 89.0% LED lumen maintenance at 60,000 hours (L89/60,000) per
IES TM21. Projected L70 @ 180,000 hours. Drivers are available for 120-277V
applications and are 0-10V dimming compatible standard. Dims to 15%.

Compliance & Certication

All luminaires are built to UL1598 standards with appropriate UL/cUL labels.
Suitable for damp location use. Can be applied in accordance with NFPA 101
requirements for means of egress illumination. Product must be applied and
installed properly, including FC measurements to meet NFPA 101 requirements.
Suitable for use in clothes closets when installed in accordance with the
NEC 410.16 spacing requirements. Adheres to LM79, LM80 and TM21 industry
standards for performance and lifetime calculations. DesignLights Consortium®
(DLC)qualied product. Refer to DLC website at www.designlights.org/QPL to
conrm which specic product congurations are qualied.

Warranty

The E5SLB series of luminaires ships with Energetic’s 5-year standard warranty.
(Terms & Conditions apply).

Lumen Maintenance

Ambient

TM-21 Lumen Maintenance

Temperature

o

25

C > 89.0% 180,000

Dimensions

END VIEW

3.1

2.4

1.5

5.7

(60,000 hours)

SIDE VIEW (4’)

47.7

41.5

BOTTOM (SURFACE) VIEW (4’)

Theoretical L70

(Hours)

Energetic Lighting
13445 12th Street, Chino, CA 91710 | TEL: [phone] | FAX: [phone]
E-mail: [email protected] | www.energeticlighting.com

All values are nominal or typical values, measured under laboratory conditions @ 25o C.

Actual performance may vary slightly as a result of end-user environment/application.

Specications subject to change without notice.

ESS5003E

March 5th, 2020

Page 1 of 4

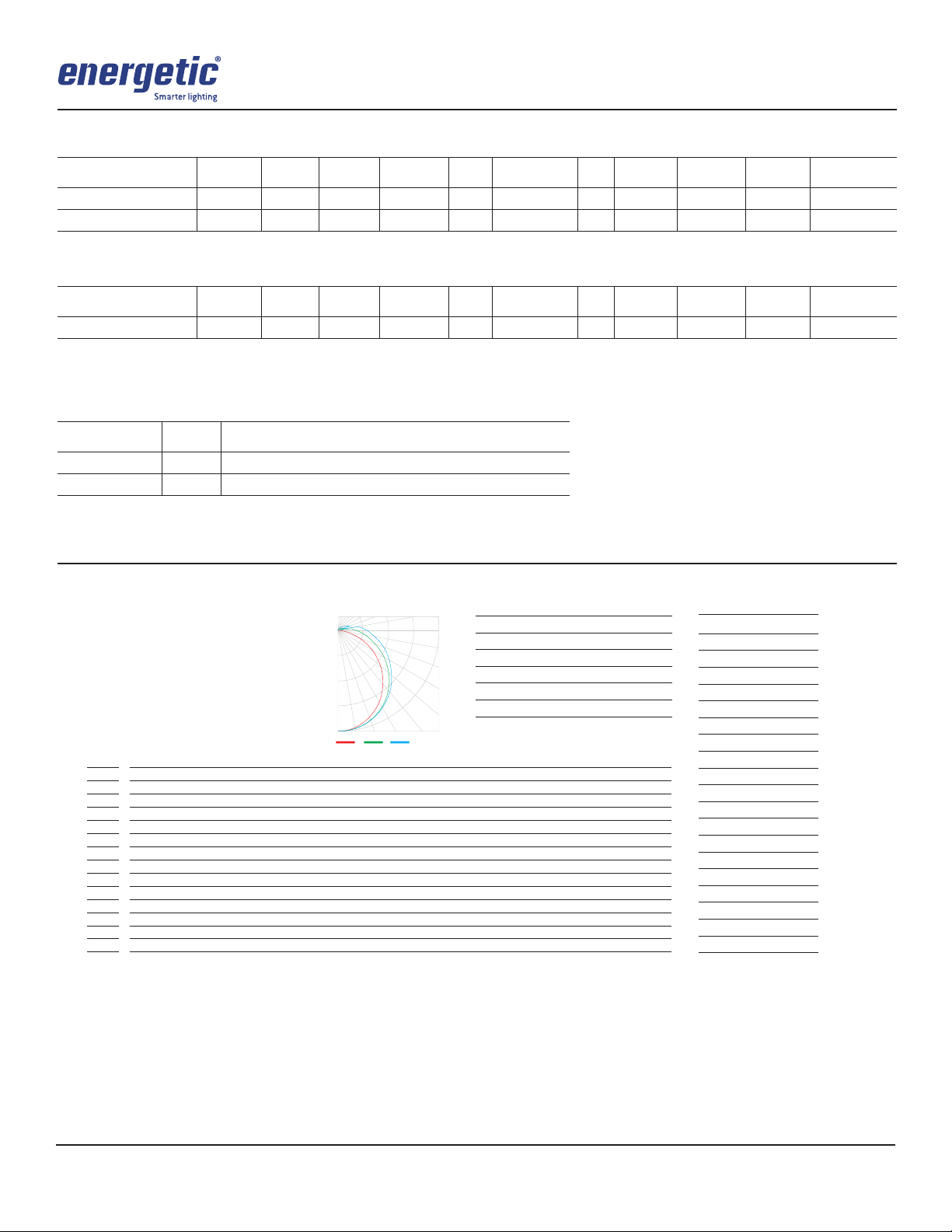

LED STAIRWELL, STRIP & SURFACE MOUNT

E5SLB20D4-840

STOCK ORDERING INFORMATION (40 00K, base fixture on ly)

Catalog Logic Order # Size Lumens Wattage LPW Color Temp CRI Voltage Dimming DLC Pallet Qty

E5SLB20D4-840 30095 4’ 2793 19.4 144 4000K 83 120-277 0-10V

E5SLB35D4-840 30096 4’ 5098 34.9 146 4000K 83 120-277 0-10V

STOCK ORDERING INFORMATION (50 00K, base fixture on ly)

Catalog Logic Order # Size Lumens Wattage LPW Color Temp CRI Voltage Dimming DLC Pallet Qty

E5SLB35D4-850 30097 4’ 5181 34.9 148 5000K 83 120-277 0-10V

Notes:

1. 0-10V dimming driver standard, leads are capped from the factory, dims to 15%.

ACCESSORIES (must be ordered separately)

Catalog Logic Order # Description

E5SL-JKIT

JBCP 30037 Decorative round J-Box cover plate

Notes:

1. Can be used for end-to-end connection for both surface & suspension mounting.

2. Suspension mounting hardware supplied by others.

1,2

30100 Joining bracket kit - plate & knockout connectors

Fixed CCT | 4’ | 5-yr Warranty

1

Premium 144

1

Premium 144

1

Premium 144

E5SLB

4000K, 20W PHOTOMETRIC DATA

Luminaire Data

Cat Logic: E5SLB20D4-840
Test Report: E5SLB20D4-840.IES

CCT: 4000
Lamp Type: LED

Lumens: 2793

Input Watts: 19.4

Efcacy: 144

Spacing: 0o = 1.24 90o = 1.32

Photometric values based on tests
performed in compliance with LM-79.

Coefcients of Utilization

rc 80% 70% 50% 30% 10% 0%

rw 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

RCR

0 117 117 117 117 114 114 114 114 107 107 107 101 101 101 95 95 95 92

1 105 99 94 89 101 96 91 87 90 86 83 85 82 79 80 78 75 73

2 94 85 78 71 91 83 76 70 78 72 67 73 68 64 69 65 62 59

3 86 74 65 58 82 72 64 57 68 61 55 64 58 53 61 56 51 49

4 78 65 56 49 75 64 55 48 60 53 47 57 50 45 54 48 44 41

5 72 58 49 42 69 57 48 41 54 46 40 51 44 39 48 42 38 35

6 66 52 43 36 64 51 42 36 48 41 35 46 39 34 44 38 33 31

7 61 47 38 32 59 46 38 31 44 36 31 42 35 30 40 34 29 27

8 57 43 34 28 55 42 34 28 40 33 27 38 32 27 36 31 26 24

9 53 39 31 25 51 39 31 25 37 30 25 35 29 24 34 28 23 22

10 50 36 28 23 48 36 28 23 34 27 22 33 26 22 31 25 21 19

Indoor Candela Plot

195 cd

390 cd

585 cd

780 cd

0° 10° 20° 30° 40°

0° 45° 90°

Effective Floor Cavity Reectance 20%

100°110°120°130°

Zonal Lumen Summary

90°

80°

70°

60°

50°

Zone Lumens % Luminaire

0-30 609 21.8

0-40 1003 35.9

0-60 1817 65.0

0-90 2582 92.4

0-180 2793 100.0

Candlepower

Angle 0o90

0 779 779

5 774 777

10 762 771

15 742 757

20 714 739

25 679 716

30 639 688

35 593 656

40 543 621

45 490 583

50 432 542

55 373 500

60 311 457

65 248 414

70 184 372

75 122 330

80 64 290

85 19 252

90 0.3 217

o

Energetic Lighting
13445 12th Street, Chino, CA 91710 | TEL: [phone] | FAX: [phone]
E-mail: [email protected] | www.energeticlighting.com

All values are nominal or typical values, measured under laboratory conditions @ 25o C.

Actual performance may vary slightly as a result of end-user environment/application.

Specications subject to change without notice.

ESS5003E

March 5th, 2020

Page 2 of 4

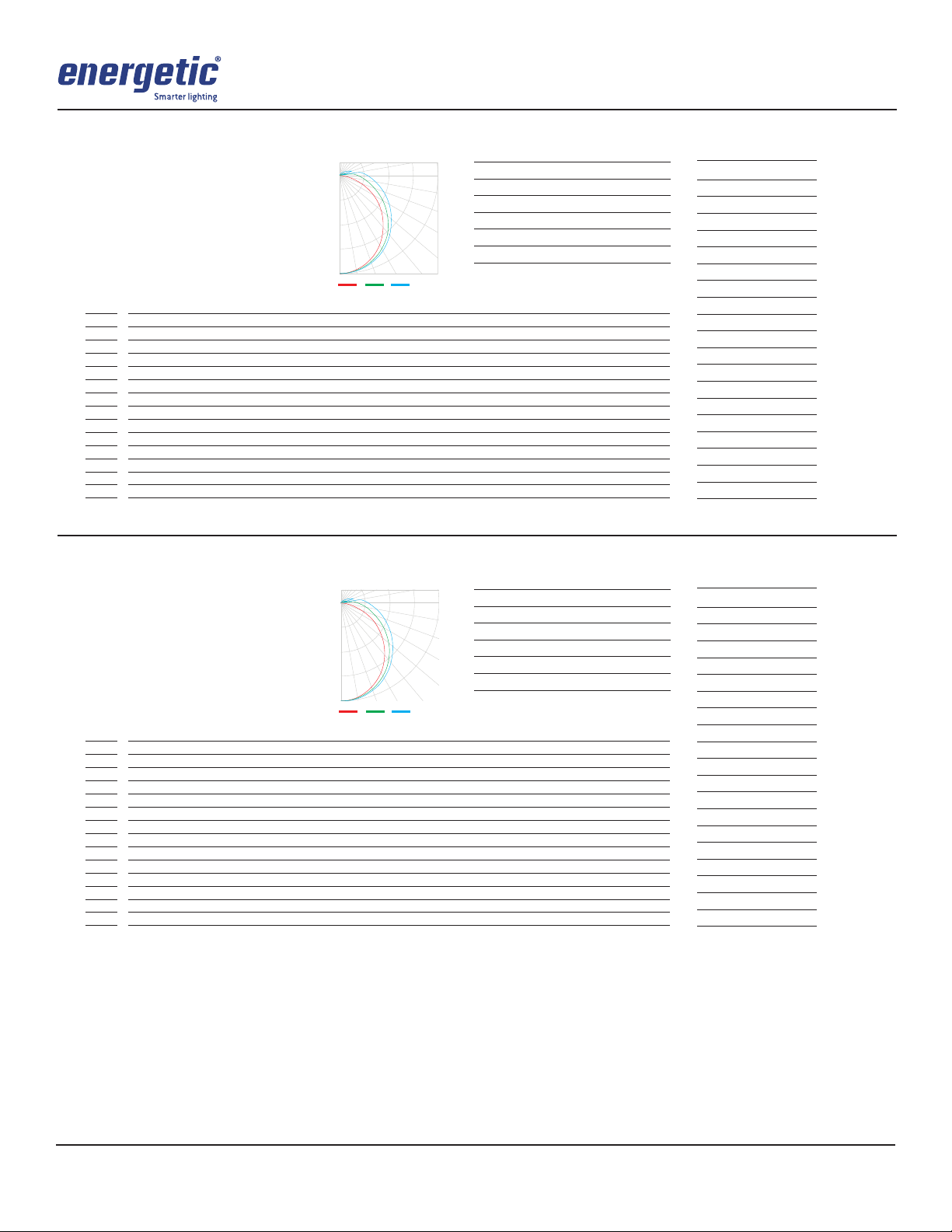

LED STAIRWELL, STRIP & SURFACE MOUNT

E5SLB35D4-840

100°110°120°130°

0° 45° 90°

E5SLB35D4-850

100°110°120°130°

Fixed CCT | 4’ | 5-yr Warranty

E5SLB

4000K, 35W PHOTOMETRIC DATA

Luminaire Data

Cat Logic: E5SLB35D4-840
Test Report: E5SLB35D4-840.IES

CCT: 4000
Lamp Type: LED
Lumens: 5098

Input Watts: 34.9
Efcacy: 146

Spacing: 0o = 1.22 90o = 1.32

Photometric values based on tests
performed in compliance with LM-79.

Coefcients of Utilization

rc 80% 70% 50% 30% 10% 0%

rw 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

RCR

0 117 117 117 117 114 114 114 114 107 107 107 101 101 101 95 95 95 92

1 105 99 94 89 101 96 91 87 90 86 83 85 82 79 80 78 75 73

2 94 85 77 71 91 83 76 70 78 72 67 73 68 64 69 65 62 59

3 86 74 65 58 82 72 64 57 68 61 55 64 58 53 60 56 51 49

4 78 65 56 49 75 63 55 48 60 52 47 57 50 45 54 48 44 41

5 72 58 49 42 69 57 48 41 53 46

6 66 52 43 36 64 51 42 36 48 40 35 46 39 34 43 38 33 31

7 61 47 38 32 59 46 37 31 44 36 31 42 35 30 40 34 29 27

8 57 43 34 28 55 42 34 28 40 33 27 38 31 27 36 30 26 24

9 53 39 31 25 51 38 30 25 37 30 24 35 29 24 34 28 23 21

10 50 36 28 23 48 35 28 23 34 27 22 32 26 22 31 25 21 19

5000K, 35W PHOTOMETRIC DATA

Luminaire Data

Cat Logic: E5SLB35D4-850
Test Report: E5SLB35D4-850.IES

CCT: 5000
Lamp Type: LED
Lumens: 5181

Input Watts: 34.9
Efcacy: 148

Spacing: 0o = 1.22 90o = 1.32

Photometric values based on tests
performed in compliance with LM-79.

Coefcients of Utilization

rc 80% 70% 50% 30% 10% 0%

rw 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0

RCR

0 117 117 117 117 114 114 114 114 107 107 107 101 101 101 95 95 95 92

1 105 99 94 89 101 96 91 87 90 86 83 85 82 79 80 78 75 73

2 94 85 78 71 91 83 76 70 78 72 67 73 68 64 69 65 62 59

3 86 74 65 58 82 72 64 57 68 61 55 64 58 53 60 56 51 49

4 78 65 56 49 75 63 55 48 60 52 47 57 50 45 54 48 44 41

5 72 58 49 42 69 57 48 41 54 46

6 66 52 43 36 64 51 42 36 48 40 35 46 39 34 43 38 33 31

7 61 47 38 32 59 46 37 31 44 36 31 42 35 30 40 34 29 27

8 57 43 34 28 55 42 34 28 40 33 27 38 31 27 36 30 26 24

9 53 39 31 25 51 38 30 25 37 30 24 35 29 24 34 28 23 21

10 50 36 28 23 48 35 28 23 34 27 22 32 26 22 31 25 21 19

Indoor Candela Plot

354 cd

708 cd

1062 cd

1416 cd

0° 10° 20° 30° 40°

Effective Floor Cavity Reectance 20%

40 51 44 39 48 42 38 35

Indoor Candela Plot

360 cd

720 cd

1080 cd

1439 cd

0° 10° 20° 30° 40°

0° 45° 90°

Effective Floor Cavity Reectance 20%

40 51 44 39 48 42 38 35

Zonal Lumen Summary

90°

80°

70°

60°

50°

Zone Lumens % Luminaire

0-30 1107 21.7

0-40 1824 35.8

0-60 3309 64.9

0-90 4709 92.4

0-180 5098 100.0

Zonal Lumen Summary

90°

80°

70°

60°

50°

Zone Lumens % Luminaire

0-30 527 21.7

0-40 1854 35.8

0-60 3363 64.9

0-90 4786 92.4

0-180 5181 100.0

Candlepower

Angle 0o90

0 1414 1414

5 1404 1411

10 1379 1399

15 1342 1375

20 1291 1341

25 1226 1299

30 1155 1249

35 1073 1188

40 982 1123

45 886 1053

50 783 978

55 675 902

60 563 825

65 449 748

70 333 672

75 219 598

80 115 527

85 34 460

90 0.7 398

Candlepower

Angle 0o90

0 1437 1437

5 1427 1434

10 1402 1422

15 1364 1397

20 1312 1363

25 1246 1321

30 1174 1269

35 1091 1208

40 998 1142

45 900 1070

50 795 994

55 686 917

60 572 838

65 457 760

70 338 683

75 223 608

80 117 536

85 34 468

90 0.8 404

o

o

Energetic Lighting
13445 12th Street, Chino, CA 91710 | TEL: [phone] | FAX: [phone]
E-mail: [email protected] | www.energeticlighting.com

All values are nominal or typical values, measured under laboratory conditions @ 25o C.

Actual performance may vary slightly as a result of end-user environment/application.

Specications subject to change without notice.

ESS5003E

March 5th, 2020

Page 3 of 4

NOTES:

LED STAIRWELL, STRIP & SURFACE MOUNT

E5SLB

Fixed CCT | 4’ | 5-yr Warranty

Energetic Lighting
13445 12th Street, Chino, CA 91710 | TEL: [phone] | FAX: [phone]
E-mail: [email protected] | www.energeticlighting.com

All values are nominal or typical values, measured under laboratory conditions @ 25o C.

Actual performance may vary slightly as a result of end-user environment/application.

Specications subject to change without notice.

ESS5003E

March 5th, 2020

Page 4 of 4
