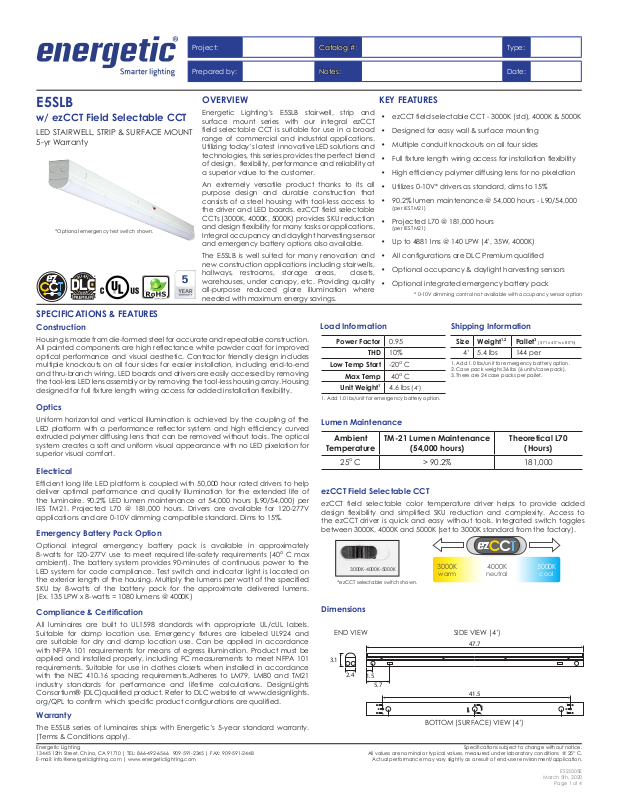

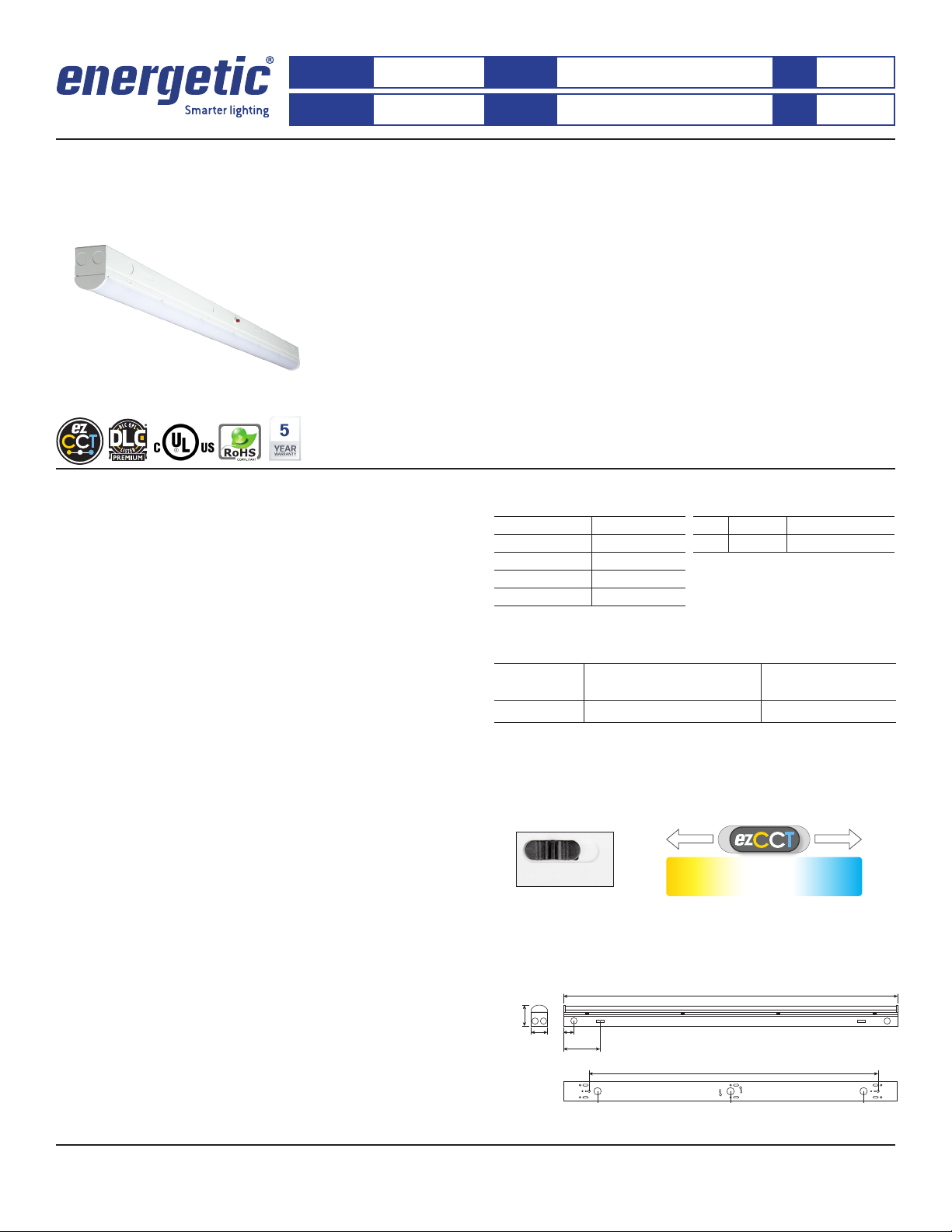

Page 1
Project: Catalog #:Catalog #: Type:
Prepared by: Notes:Notes: Date:
E5SLB
w/ ezCCT Field Selectable CCT
LED STAIRWELL, STRIP & SURFACE MOUNT
5-yr Warranty
OVERVIEW
Energetic Lighting’s E5SLB stairwell, strip and
surface mount series with our integral ezCCT
eld selectable CCT is suitable for use in a broad
range of commercial and industrial applications.
Utilizing today’s latest innovative LED solutions and
technologies, this series provides the perfect blend
of design, exibility, performance and reliability at
a superior value to the customer.
An extremely versatile product thanks to its all
purpose design and durable construction that
consists of a steel housing with tool-less access to
the driver and LED boards. ezCCT eld selectable
CCTs (3000K, 4000K, 5000K) provides SKU reduction
*Optional emergency test switch shown.
and design exibility for many tasks or applications.
Integral occupancy and daylight harvesting sensor
and emergency battery options also available.
The E5SLB is well suited for many renovation and
new construction applications including stairwells,
hallways, restrooms, storage areas, closets,
warehouses, under canopy, etc. Providing quality
all-purpose reduced glare illumination where
needed with maximum energy savings.
SPECIFICATIONS & FEATURES
Construction
Housing is made from die-formed steel for accurate and repeatable construction.
All painted components are high reectance white powder coat for improved
optical performance and visual aesthetic. Contractor friendly design includes
multiple knockouts on all four sides for easier installation, including end-to-end
and thru-branch wiring. LED boards and drivers are easily accessed by removing
the tool-less LED lens assembly or by removing the tool-less housing array. Housing
designed for full xture length wiring access for added installation exibility.
Optics
Uniform horizontal and vertical illumination is achieved by the coupling of the
LED platform with a performance reector system and high efciency curved
extruded polymer diffusing lens that can be removed without tools. The optical
system creates a soft and uniform visual appearance with no LED pixelation for
superior visual comfort.
Electrical
Efcient long life LED platform is coupled with 50,000 hour rated drivers to help
deliver optimal performance and quality illumination for the extended life of
the luminaire. 90.2% LED lumen maintenance at 54,000 hours (L90/54,000) per
IES TM21. Projected L70 @ 181,000 hours. Drivers are available for 120-277V
applications and are 0-10V dimming compatible standard. Dims to 15%.
Emergency Battery Pack Option
Optional integral emergency battery pack is available in approximately
8-watts for 120-277V use to meet required life-safety requirements (40o C max
ambient). The battery system provides 90-minutes of continuous power to the
LED system for code compliance. Test switch and indicator light is located on
the exterior length of the housing. Multiply the lumens per watt of the specied
SKU by 8-watts of the battery pack for the approximate delivered lumens.
(Ex. 135 LPW x 8-watts = 1080 lumens @ 4000K)
Compliance & Certication
All luminaires are built to UL1598 standards with appropriate UL/cUL labels.
Suitable for damp location use. Emergency xtures are labeled UL924 and
are suitable for dry and damp location use. Can be applied in accordance
with NFPA 101 requirements for means of egress illumination. Product must be
applied and installed properly, including FC measurements to meet NFPA 101
requirements. Suitable for use in clothes closets when installed in accordance
with the NEC 410.16 spacing requirements.Adheres to LM79, LM80 and TM21
industry standards for performance and lifetime calculations. DesignLights
Consortium® (DLC)qualied product. Refer to DLC website at www.designlights.
org/QPL to conrm which specic product congurations are qualied.
Warranty
The E5SLB series of luminaires ships with Energetic’s 5-year standard warranty.
(Terms & Conditions apply).
Energetic Lighting
13445 12th Street, Chino, CA 91710 | TEL: 866-492-6566 909-591-2345 | FAX: 909-591-2448
E-mail: [email protected] | www.energeticlighting.com
KEY FEATURES
• ezCCT eld selectable CCT - 3000K (std), 4000K & 5000K
• Designed for easy wall & surface mounting
• Multiple conduit knockouts on all four sides
• Full xture length wiring access for installation exibility
• High efciency polymer diffusing lens for no pixelation
• Utilizes 0-10V* drivers as standard, dims to 15%
• 90.2% lumen maintenance @ 54,000 hours - L90/54,000
(per IES TM21)
• Projected L70 @ 181,000 hours
(per IES TM21)
• Up to 4881 lms @ 140 LPW (4’, 35W, 4000K)
• All congurations are DLC Premium qualied
• Optional occupancy & daylight harvesting sensors
• Optional integrated emergency battery pack
Load Information
Power Factor 0.95
THD 10%
Low Temp Start -20
Max Temp 40
Unit Weight
1. Add 1.0 lbs/unit for emergency battery option.
1
Lumen Maintenance
Ambient
Temperature
o
25
C > 90.2% 181,000
ezCCT Field Selectable CCT
ezCCT eld selectable color temperature driver helps to provide added
design exibility and simplied SKU reduction and complexity. Access to
the ezCCT driver is quick and easy without tools. Integrated switch toggles
between 3000K, 4000K and 5000K (set to 3000K standard from the factory).
3000K-4000K-5000K
*ezCCT selectable switch shown.
Dimensions
END VIEW
3.1
2.4
1.5
5.7
All values are nominal or typical values, measured under laboratory conditions @ 25o C.
Actual performance may vary slightly as a result of end-user environment/application.
* 0-10V dimming control not available with occupancy sensor option
Shipping Information
Size Weight
4’ 5.4 lbs 144 per
o
C
o
C
1. Add 1.0 lbs/unit for emergency battery option.
2. Case pack weighs 36 lbs (6 units/case pack).
3. There are 24 case packs per pallet.
4.6 lbs (4’)
TM-21 Lumen Maintenance
1,2
Theoretical L70
(54,000 hours)
3000K 4000K 5000K
warm neutral c ool
SIDE VIEW (4’)
47.7
41.5
BOTTOM (SURFACE) VIEW (4’)
Specications subject to change without notice.
Pallet3 (51”l x 40”w x 80”h)
(Hours)
ESS5005E
March 5th, 2020
Page 1 of 4
Page 2
ezCCT Field Selectable CCT | 4’ | 5-yr Warranty
STOCK ORDERING INFORMATION (ezCCT fiel d selectab le 30 00K|4000 K|5000K CCT, base f ixture on ly)
Catalog Logic Order # Size Lumens Wattage LPW ezCCT CRI Voltage Dimming DLC Pallet Qty
E5SLB35D4-83050
1
30116 4’ 4502 34.9 129 3000K (standard) 85 120-277 0-10V
4716 135 4000K
4881 140 5000K
Notes:
1. Installing contractor responsible for ensuring desired CCT is selected during installation.
2. 0-10V dimming driver standard, leads are capped from the factory, dims to 15%.
STOCK ORDERING INFORMATION (ezCCT fiel d selectab le 30 00K|4000 K|5000K CCT, w/ occupan cy sensor opt ion)
Catalog Logic Order # Size Lumens Wattage LPW ezCCT CRI Voltage Dimming DLC Pallet Qty
E5SLB35D4M-83050
Notes:
1. Installing contractor responsible for ensuring desired CCT is selected and required occupancy sensor settings are set during installation.
2. Factory occupancy sensor settings are set via dip switches located internally on the sensor module (can be eld adjusted, see instruction sheet for details).
3. Occupancy sensor factory defaults: 100% high & 30% low (60 minutes to off), standby time @ 10 seconds (no motion detected, dim to low), daylight sensor @ 30 lux (2.8 FC).
4. Max occupancy sensor height is 20’ with a max detection radius of 26’.
5. ZUV700A001 (RC-100) hand-held remote accessory can reprogram factory settings from a max distance of 50’ (must be ordered separately, see remote spec sheet for details).
6. Occupancy sensor is not compatible with 0-10V dimming.
7. Occupancy sensor lowest dim setting is 30% as limited by the driver (dip switches include a 10% setting which will dim to off if selected).
1,2,3,4,5
30098 4’ 4502 34.9 129 3000K (standard) 85 120-277 Sensor Only
4716 135 4000K
4881 140 5000K
LED STAIRWELL, STRIP & SURFACE MOUNT
2
Premium 144
6,7
Premium 144
E5SLB (w/ ezCCT)
STOCK ORDERING INFORMATION (ezCCT fiel d selectab le 30 00K|4000 K|5000K CCT, w/ occupan cy sensor & eme rgency battery pack option)
Catalog Logic Order # Size Lumens Wattage LPW ezCCT CRI Voltage Dimming DLC Pallet Qty
E5SLB35D4ME-83050
Notes:
1. Installing contractor responsible for ensuring desired CCT is selected and required occupancy sensor settings are set during installation.
2. Factory occupancy sensor settings are set via dip switches located internally on the sensor module (can be eld adjusted, see instruction sheet for details).
3. Occupancy sensor factory defaults: 100% high & 30% low (60 minutes to off), standby time @ 10 seconds (no motion detected, dim to low), daylight sensor @ 30 lux (2.8 FC).
4. Max occupancy sensor height is 20’ with a max detection radius of 26’.
5. ZUV700A001 (RC-100) hand-held remote accessory can reprogram factory settings from a max distance of 50’ (must be ordered separately, see remote spec sheet for details).
6. The emergency battery system provides approximately 8-watts of continuous power to the LED system for code compliance (40o C max ambient).
7. Approximate delivered lumens in emergency mode: 8-watts x 135 LPW = 1080 lumens (4000K).
8. Occupancy sensor is not compatible with 0-10V dimming.
9. Occupancy sensor lowest dim setting is 30% as limited by the driver (dip switches include a 10% setting which will dim to off if selected).
1,2,3,4,5,6
30099 4’ 4502
4716
4881
7
34.9 129 3000K (standard) 85 120-277 Sensor Only
7
7
135 4000K
140 5000K
8,9
Premium 144
ACCESSORIES (must be ordered separately)
Catalog Logic Order # Description
E5SL-JKIT
JBCP 30037 Decorative round J-Box cover plate
Notes:
1. Can be used for end-to-end connection for both surface & suspension mounting.
2. Suspension mounting hardware supplied by others.
1,2
30100 Joining bracket kit - plate & knockout connectors
Energetic Lighting
13445 12th Street, Chino, CA 91710 | TEL: 866-492-6566 909-591-2345 | FAX: 909-591-2448
E-mail: [email protected] | www.energeticlighting.com
All values are nominal or typical values, measured under laboratory conditions @ 25o C.
Actual performance may vary slightly as a result of end-user environment/application.
Specications subject to change without notice.
ESS5005E
March 5th, 2020
Page 2 of 4
Page 3
ezCCT Field Selectable CCT | 4’ | 5-yr Warranty
E5SLB35D4-83050 (4000K)
0° 10° 20° 30° 40°
50°
60°
70°
80°
90°
328 cd
656 cd
984 cd
1313 cd
100°110°120°130°
0° 45° 90°
E5SLB35D4-83050 (3000K)
0° 10° 20° 30° 40°
50°
60°
70°
80°
90°
313 cd
627 cd
940 cd
1253 cd
100°110°120°130°
0° 45° 90°
LED STAIRWELL, STRIP & SURFACE MOUNT
E5SLB (w/ ezCCT)

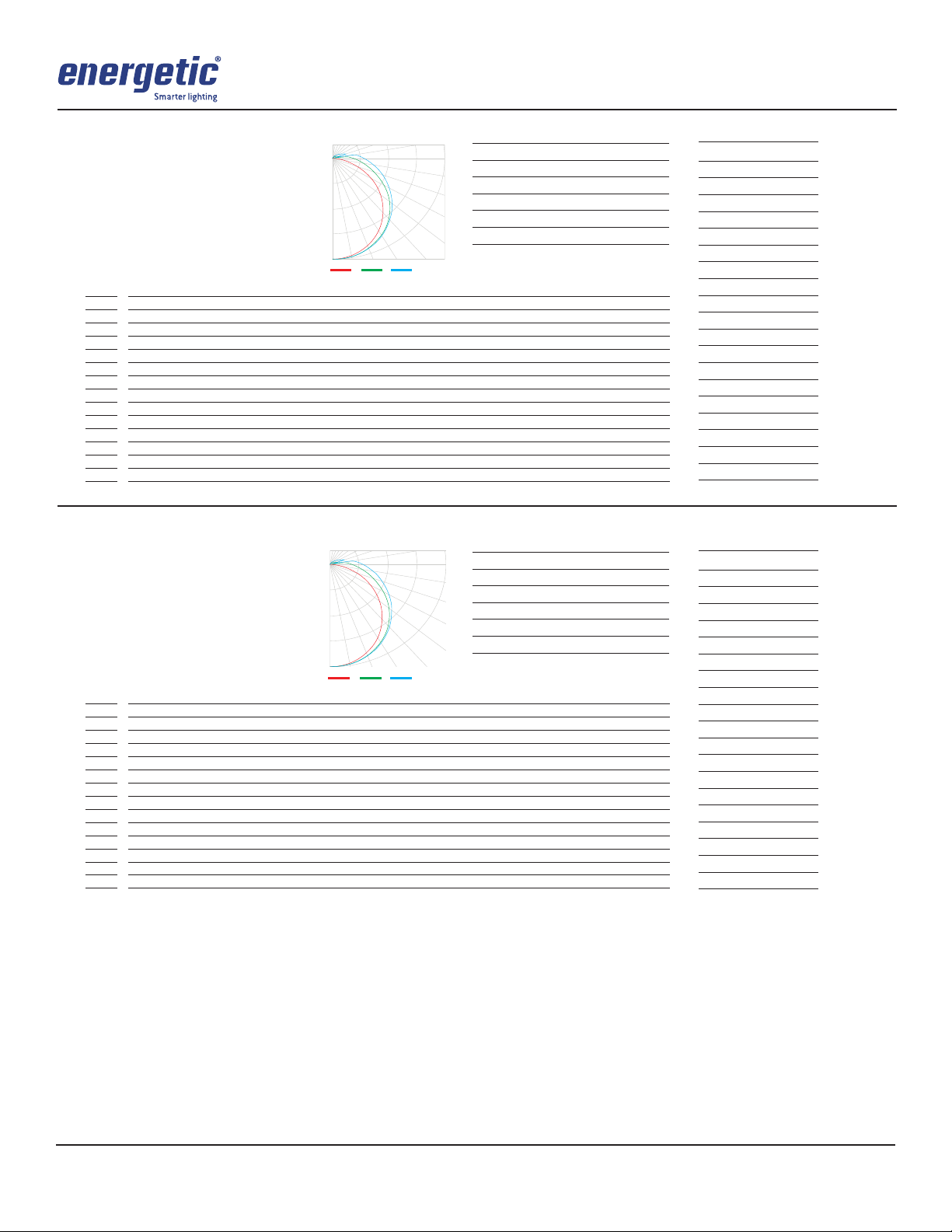

3000K, 35W PHOTOMETRIC DATA
Luminaire Data
Cat Logic: E5SLB35D4-83050
Test Report: E5SLB35D4-83050-3K.IES
CCT: 3000K (selectable)
Lamp Type: LED
Lumens: 4502
Input Watts: 34.9
Efcacy: 129
Spacing: 0o = 1.24 90o = 1.32
Photometric values based on tests
performed in compliance with LM-79.
Coefcients of Utilization
rc 80% 70% 50% 30% 10% 0%
rw 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0
RCR
0 117 117 117 117 114 114 114 114 107 107 107 101 101 101 95 95 95 92
1 105 99 94 89 101 96 91 87 90 86 83 85 82 79 80 78 75 73
2 94 85 78 71 91 83 76 70 78 72 67 73 68 64 69 65 62 59
3 86 74 65 58 82 72 64 57 68 61 55 64 58 53 60 56 51 49
4 78 65 56 49 75 63 55 48 60 52 47 57 50 45 54 48 44 41
5 72 58 49 42 69 57 48 41 54 46 40 51 44 39 48 42 38 35
6 66 52 43 36 64 51 42 36 48 41 35 46 39 34 43 38 33 31
7 61 47 38 32 59 46 37 31 44 36 31 42 35 30 40 34 29 27
8 57 43 34 28 55 42 34 28 40 33 27 38 31 27 36 30 26 24
9 53 39 31 25 51 38 30 25 37 30 24 35 29 24 34 28 23 21
10 50 36 28 23 48 35 28 23 34 27 22 33 26 22 31 25 21 19
4000K, 35W PHOTOMETRIC DATA
Luminaire Data
Cat Logic: E5SLB35D4-83050
Test Report: E5SLB35D4-83050-4K.IES
CCT: 4000 (selectable)
Lamp Type: LED
Lumens: 4716
Input Watts: 34.9
Efcacy: 135
Spacing: 0o = 1.24 90o = 1.32
Photometric values based on tests
performed in compliance with LM-79.
Coefcients of Utilization
rc 80% 70% 50% 30% 10% 0%
rw 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0
RCR
0 117 117 117 117 114 114 114 114 107 107 107 101 101 101 95 95 95 92
1 105 99 94 89 101 96 91 87 90 86 83 85 82 79 80 78 75 73
2 94 85 78 71 91 83 76 70 78 72 67 73 68 64 69 65 62 59
3 86 74 65 58 82 72 64 57 68 61 55 64 58 53 60 56 51 49
4 78 65 56 49 75 63 55 48 60 52 47 57 50 45 54 48 44 41
5 72 58 49 42 69 57 48 41 54 46 40 51 44 39 48 42 38 35
6 66 52 43 36 64 51 42 36 48 41 35 46 39 34 43 38 33 31
7 61 47 38 32 59 46 37 31 44 36 31 42 35 30 40 34 29 27
8 57 43 34 28 55 42 34 28 40 33 27 38 31 27 36 30 26 24
9 53 39 31 25 51 38 30 25 37 30 24 35 29 24 34 28 23 21
10 50 36 28 23 48 35 28 23 34 27 22 33 26 22 31 25 21 19

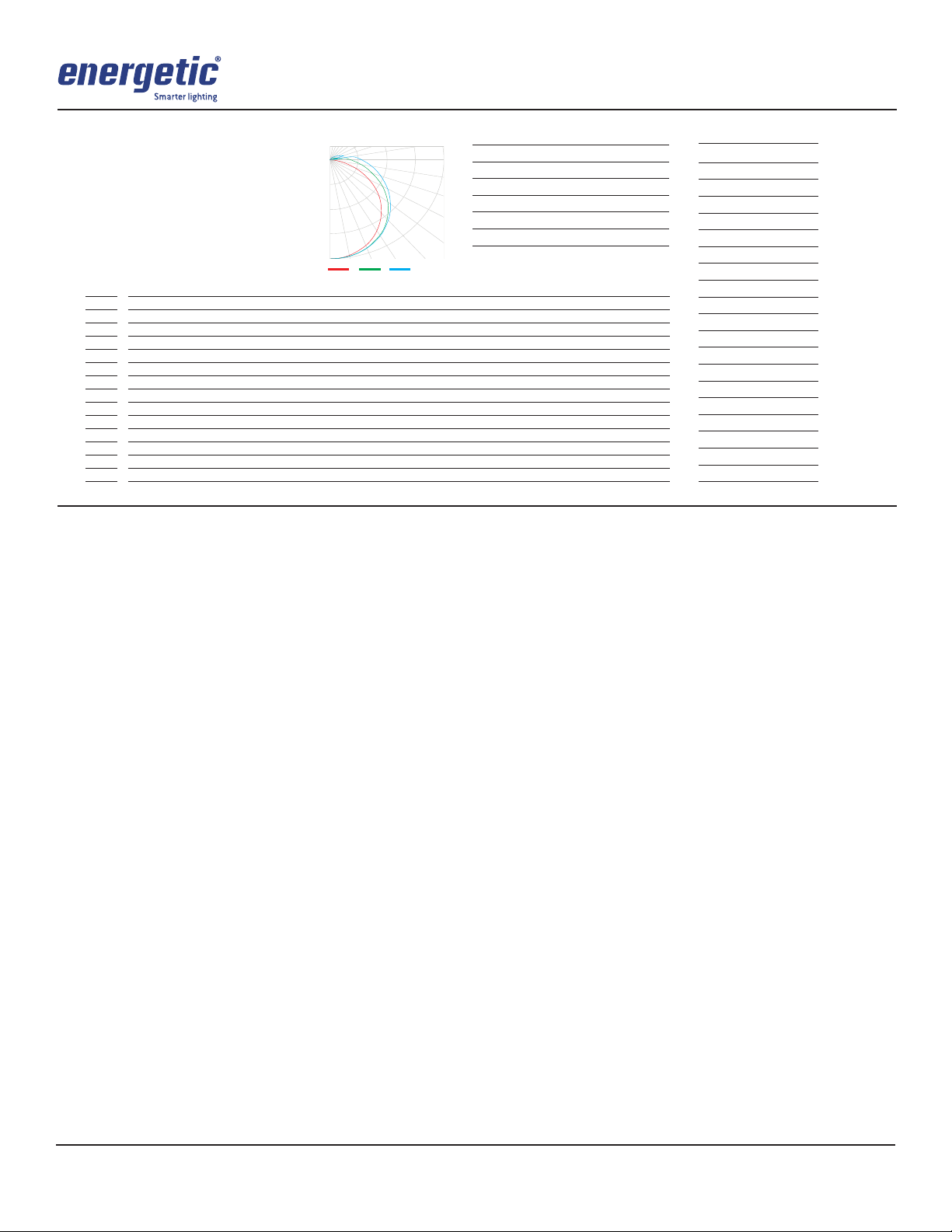

Indoor Candela Plot
Effective Floor Cavity Reectance 20%
Indoor Candela Plot
Effective Floor Cavity Reectance 20%
Zonal Lumen Summary
Zone Lumens % Luminaire
0-30 979 21.8
0-40 1613 35.8
0-60 2925 65.0
0-90 4160 92.4
0-180 4502 100.0
Zonal Lumen Summary
Zone Lumens % Luminaire
0-30 1026 21.8
0-40 1690 35.8
0-60 3064 65.0
0-90 4357 92.4
0-180 4716 100.0
Candlepower
Angle 0o90
0 1252 1252
5 1245 1249
10 1226 1238
15 1195 1215
20 1150 1187
25 1094 1150
30 1029 1105
35 960 1054
40 876 997
45 859 935
50 698 870
55 600 803
60 502 734
65 399 665
70 296 598
75 194 532
80 101 469
85 28 409
90 0.6 353
Candlepower
Angle 0o90
0 1312 1312
5 1304 1309
10 1284 1297
15 1251 1273
20 1205 1243
25 1146 1205
30 1078 1158
35 1006 1104
40 918 1044
45 826 979
50 731 911
55 629 841
60 527 769
65 418 698
70 310 627
75 203 557
80 106 491
85 30 428
90 0.6 369
o
o
Energetic Lighting
13445 12th Street, Chino, CA 91710 | TEL: 866-492-6566 909-591-2345 | FAX: 909-591-2448
E-mail: [email protected] | www.energeticlighting.com
All values are nominal or typical values, measured under laboratory conditions @ 25o C.
Actual performance may vary slightly as a result of end-user environment/application.
Specications subject to change without notice.
ESS5005E
March 5th, 2020
Page 3 of 4
Page 4
E5SLB35D4-83050 (5000K)
0° 10° 20° 30° 40°
50°
60°
70°
80°
90°
340 cd
679 cd
1019 cd
1356 cd
100°110°120°130°
0° 45° 90°
ezCCT Field Selectable CCT | 4’ | 5-yr Warranty
LED STAIRWELL, STRIP & SURFACE MOUNT
E5SLB (w/ ezCCT)
5000K, 35W PHOTOMETRIC DATA
Luminaire Data
Cat Logic: E5SLB35D4-83050
Test Report: E5SLB35D4-83050-5K.IES
CCT: 5000 (selectable)
Lamp Type: LED
Lumens: 4881
Input Watts: 34.9
Efcacy: 140
Spacing: 0o = 1.24 90o = 1.32
Photometric values based on tests
performed in compliance with LM-79.
Coefcients of Utilization
rc 80% 70% 50% 30% 10% 0%
rw 70 50 30 10 70 50 30 10 50 30 10 50 30 10 50 30 10 0
RCR
0 117 117 117 117 114 114 114 114 107 107 107 101 101 101 95 95 95 92
1 105 99 94 89 101 96 91 87 90 86 83 85 82 79 80 78 75 73
2 94 85 78 71 91 83 76 70 78 72 67 73 68 64 69 65 62 59
3 86 74 65 58 82 72 64 57 68 61 55 64 58 53 60 56 51 49
4 78 65 56 49 75 63 55 48 60 52 47 57 50 45 54 48 44 41
5 72 58 49 42 69 57 48 41 54 46
6 66 52 43 36 64 51 42 36 48 41 35 46 39 34 43 38 33 31
7 61 47 38 32 59 46 37 31 44 36 31 42 35 30 40 34 29 27
8 57 43 34 28 55 42 34 28 40 33 27 38 31 27 36 30 26 24
9 53 39 31 25 51 38 30 25 37 30 24 35 29 24 34 28 23 21
10 50 36 28 23 48 35 28 23 34 27 22 33 26 22 31 25 21 19
Indoor Candela Plot
Effective Floor Cavity Reectance 20%
Zonal Lumen Summary
Zone Lumens % Luminaire
0-30 1062 21.8
0-40 1749 35.8
0-60 3172 65.0
0-90 4510 92.4
0-180 4881 100.0
40 51 44 39 48 42 38 35
NOTES:
Candlepower
Angle 0o90
0 1358 1358
5 1350 1355
10 1329 1342
15 1295 1318
20 1247 1287
25 1186 1247
30 1116 1198
35 1041 1143
40 950 1081
45 855 1014
50 757 943
55 651 870
60 545 796
65 433 721
70 321 649
75 211 576
80 110 508
85 31 443
90 0.6 382
o
Energetic Lighting
13445 12th Street, Chino, CA 91710 | TEL: 866-492-6566 909-591-2345 | FAX: 909-591-2448
E-mail: [email protected] | www.energeticlighting.com
All values are nominal or typical values, measured under laboratory conditions @ 25o C.
Actual performance may vary slightly as a result of end-user environment/application.
Specications subject to change without notice.
ESS5005E
March 5th, 2020
Page 4 of 4
Loading...
