DSP-HDMI-21, DSP-HDMI-41
HDMI interface splitter
USER MANUAL
2
HDMI interface splitter
USER MANUAL
Disclaimer
We spared no efforts to make sure that the information in this manual is
correct and complete. However no liability is accepted for any errors or
omissions. Gembird Electronics reserves the right to change the
specifications of the hardware and software described in this manual without
prior notice.
No part of this manual may be reproduced, transmitted or translated in
any language in any form, by any means, without the prior written permission
of Gembird Electronics Ltd.
Gembird Electronics makes no warranties for damages resulting from
corrupted or lost data due to a mistaken operation or malfunction of the
product, the software, personal computers or peripheral devices.
Energenie® is a registered trademark of Gembird Europe bv.
Other names or products not mentioned above may be registered
trademarks or trademarks of their respective owners.
Copyright © 2009 Gembird Electronics Ltd. All rights reserved
3
HDMI interface splitter
USER MANUAL
Features
Sends the digital HDMI signal to 2 (4)* monitors, TV sets or plasma
screens
The digital 4.95 GHz bandwidth amplifier not only increases the
transmission distance with about 10 meters but also improves quality of
the signal
Specifications
Ports: one input receptacle, 2 (4)* output HDMI output receptacles, 19
pin
Interface standard: HDMI + HDCP v.1.3 backward compatible with
versions 1.0/1.1/1.2/1.2a
Video formats: VGA (640x480, 800x600, 1024x768, 1280x1024,
1920x1200 pixels); DTV/HDTV (480i, 576i, 480p, 576p, 720p, 1080i, 1080p)
Maximal single-link range: 1920x1200 pixels, 1080p
Vertical refresh rate: 60 / 85 Hz
Video amplifier: 0.5...1.0 Vp-p, up to 4.95 GHz bandwidth, DDC signal
5 Vp-p
Audio: 7.1 channel lossless audio with supporting DTS, Dolby
Power adapter: 100-240 VAC to 5 VDC, 2A
Dimensions: 180 x 65 x 25 mm
Note: * – for DSP-HDMI-41 model
4
HDMI interface splitter
USER MANUAL
Dear Customer
Thank you for purchasing our DSP-HDMI-21 or DSP-HDMI-41 HDMI
interface splitter! For optimum performance and safety, please read these
instructions carefully before connecting, operating or adjusting this product.
Please keep this manual for future reference.
Installation
1. Please make sure that all the devices to be connected to the splitter
are powered off before the installation.
2. Connect the HDMI input source with the HDMI splitter (cable is not
enclosed).
3. Connect the HDMI output devices with the HDMI splitter (cables are
not enclosed).
4. Connect power supply unit with the HDMI splitter and then plug it into
the wall outlet.
5. Power your HDMI source and output devices on.
5
HDMI interface splitter
USER MANUAL

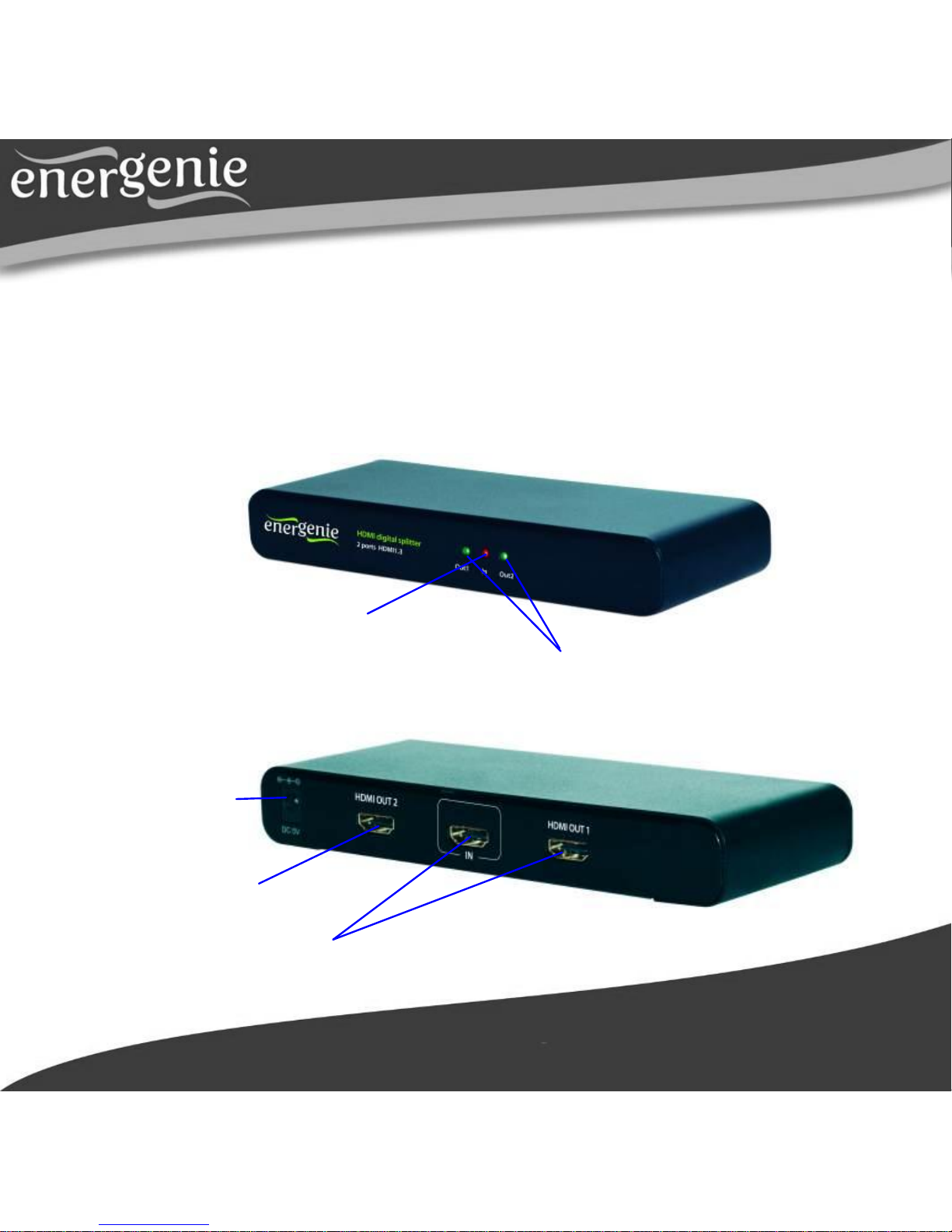

Product overview
DSP-HDMI-21
Front side:
Back side:
Power LED
Power socket
HDMI input port
2 HDMI output ports
Active output port LED
6
HDMI interface splitter
USER MANUAL
DSP-HDMI-41
Front side:
Back side:
HDMI input port
Power socket
4 HDMI output ports
Power LED
Active output port LED
7
HDMI interface splitter
USER MANUAL
Precautions:
AC 220V-240V only
Clean the splitter with a dry cloth only
Do not expose to lightning.
Do not put anything inside the splitter.
If the product is broken turn the power off
Avoid water and humidity
8
HDMI interface splitter
USER MANUAL
Do not touch the plug with wet hands
Do not break the power cable or plug
Do not open or disassemble the
product yourself
Do not expose to strong sunlight or
any other heat source
