Energate LC2200 User Manual
Description
The LC2200 is a Load Control Switch, featuring up to 2 high-voltage (HV) and 2 low-voltage (LV) switched circuit, in its maximum
conguration.
The high-voltage circuits can be used with typical wired 120VAC, 208VAC and 240VAC loads up to 30A or 1½HP. Compatible loads
include pool pumps, electric water heaters, electric vehicle charging station, baseboard heaters and HVAC compressors.
The low-voltage circuits can be used with typical wired 24V HVAC control circuits up to 3A.
The LC2200 uses ZigBee Smart Energy Prole networks for communication.
The LC2200 also features remote load running and call for load detection.

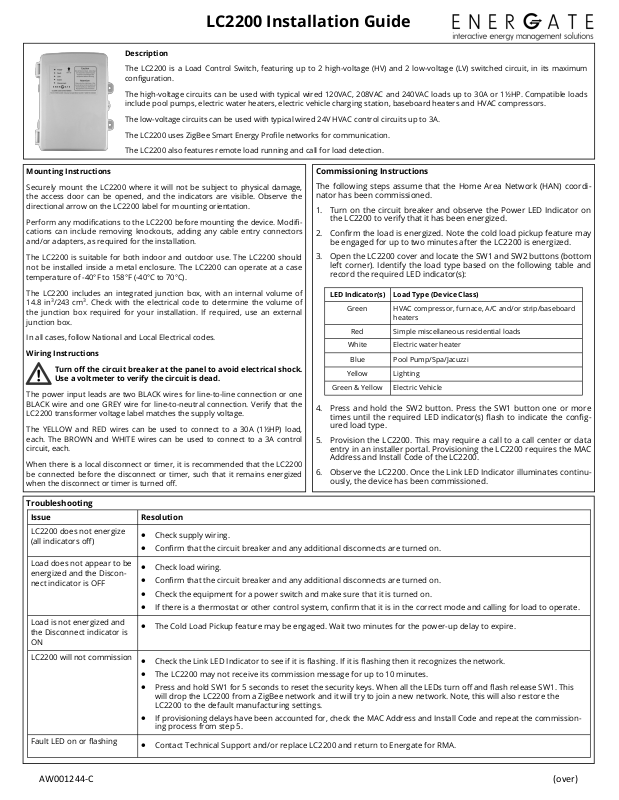

LC2200 Installation Guide
Mounting Instructions
Securely mount the LC2200 where it will not be subject to physical damage,
the access door can be opened, and the indicators are visible. Observe the
directional arrow on the LC2200 label for mounting orientation.
Perform any modications to the LC2200 before mounting the device. Modications can include removing knockouts, adding any cable entry connectors
and/or adapters, as required for the installation.
The LC2200 is suitable for both indoor and outdoor use. The LC2200 should
not be installed inside a metal enclosure. The LC2200 can operate at a case
temperature of -40°F to 158°F (-40°C to 70°C).
The LC2200 includes an integrated junction box, with an internal volume of
14.8 in3/243 cm3. Check with the electrical code to determine the volume of
the junction box required for your installation. If required, use an external
junction box.
In all cases, follow National and Local Electrical codes.
Wiring Instructions
Turn o the circuit breaker at the panel to avoid electrical shock.
Use a voltmeter to verify the circuit is dead.
The power input leads are two BLACK wires for line-to-line connection or one
BLACK wire and one GREY wire for line-to-neutral connection. Verify that the
LC2200 transformer voltage label matches the supply voltage.
The YELLOW and RED wires can be used to connect to a 30A (1½HP) load,
each. The BROWN and WHITE wires can be used to connect to a 3A control
circuit, each.
When there is a local disconnect or timer, it is recommended that the LC2200
be connected before the disconnect or timer, such that it remains energized
when the disconnect or timer is turned o.
Commissioning Instructions
The following steps assume that the Home Area Network (HAN) coordinator has been commissioned.
1. Turn on the circuit breaker and observe the Power LED Indicator on
the LC2200 to verify that it has been energized.
2. Conrm the load is energized. Note the cold load pickup feature may
be engaged for up to two minutes after the LC2200 is energized.
3. Open the LC2200 cover and locate the SW1 and SW2 buttons (bottom
left corner). Identify the load type based on the following table and
record the required LED indicator(s):
LED Indicator(s) Load Type (Device Class)
Green HVAC compressor, furnace, A/C and/or strip/baseboard
heaters
Red Simple miscellaneous residential loads
White Electric water heater
Blue Pool Pump/Spa/Jacuzzi
Yellow Lighting
Green & Yellow Electric Vehicle
4. Press and hold the SW2 button. Press the SW1 button one or more
times until the required LED indicator(s) ash to indicate the congured load type.
5. Provision the LC2200. This may require a call to a call center or data
entry in an installer portal. Provisioning the LC2200 requires the MAC
Address and Install Code of the LC2200.
6. Observe the LC2200. Once the Link LED Indicator illuminates continu-
ously, the device has been commissioned.
Troubleshooting
Issue Resolution
LC2200 does not energize
(all indicators o)
Load does not appear to be
energized and the Disconnect indicator is OFF
Check supply wiring.
Conrm that the circuit breaker and any additional disconnects are turned on.
Check load wiring.
Conrm that the circuit breaker and any additional disconnects are turned on.
Check the equipment for a power switch and make sure that it is turned on.
If there is a thermostat or other control system, conrm that it is in the correct mode and calling for load to operate.
Load is not energized and
the Disconnect indicator is
ON
LC2200 will not commission
The Cold Load Pickup feature may be engaged. Wait two minutes for the power-up delay to expire.
Check the Link LED Indicator to see if it is ashing. If it is ashing then it recognizes the network.
The LC2200 may not receive its commission message for up to 10 minutes.
Press and hold SW1 for 5 seconds to reset the security keys. When all the LEDs turn o and ash release SW1. This
will drop the LC2200 from a ZigBee network and it will try to join a new network. Note, this will also restore the
LC2200 to the default manufacturing settings.
If provisioning delays have been accounted for, check the MAC Address and Install Code and repeat the commission-
ing process from step 5.
Fault LED on or ashing
Contact Technical Support and/or replace LC2200 and return to Energate for RMA.
AW001244-C (over)
HV Load 1
HV Load 2
LV Load 1
LV Load 2
LC2200
Supply HV Load 1 HV Load 2 LV Load 1 LV Load 2
(black) (yellow) (red) (brown) (white)
120 or 208/240 VAC
120 or 208/240 VAC
24VAC (Control Circuit 1)
24VAC (Control Circuit 2)
Typical Installation
LED Indicator Key
Colour LED Indicator Mode Light
O On Flashing
Power Green Power O Power On Idenfy mode acvated
Fault Red No fault detected Fault detected Crical fault detected
Link White Not commissioned Commissioned Device was commissioned
and is searching for network
Event Blue No event in progress Event in progress User opt-out of event
The LC2200 must be installed consistent with local codes and by a
trained professional such as a
licensed electrician. Local building codes
vary and it is the responsibility of the installer to ensure that this device is installed
prudently on circuits not exceeding 30A
(HV circuit) or 3A (LV circuit) and consistent
with local codes using appropriate tools
and goods for a safe installation. Exercise
particular care in joining stranded and
solid conductors together using a properlysized connector listed by UL specically for
this purpose.
Disconnect Yellow All provided Relays
closed
Specications
Electrical Ratings:
Supply Input: 120, 208/240Vac, 5W maximum
Relay (High Voltage) Output: 30A Resistive @ 85-240Vac, or 1.5HP @ 250Vac
Relay (Low Voltage) Output: 3A Resistive/General Use @ 30Vac max
Rating temperature: 40°C
Product Conformity
This equipment is RoHS compliant.
This equipment conforms to UL916.
This device complies with FCC Part 15 and Industry Canada license exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must
accept any interference, including interference that may cause undesired
operation of the device.
Changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
This Class B digital apparatus complies with Canadian ICES-003.
This device complies with Health Canada’s Safety Code 6.
To comply with FCC and Industry Canada RF exposure compliance requirements a separation distance of at least 20 cm must be maintained
between the antenna of this device and all nearby persons. This device
must not be co-located or operating in conjunction with any other antenna or transmitter.
Note: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will
All provided Relays
open
N/A
Communications:
Frequency: 2405 to 2480MHz
Transmitter Power: +20 dBm (100 mW)
Receiver Sensitivity: -102 dBm
not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment o and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit dierent from
that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables
aux appareils radio exempts de licence. L'exploitation est autorisée aux
deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.
Les changements ou modications non expressément approuvés par la
partie responsable de la conformité pourraient annuler l'autorité de l'utilisateur à utiliser cet équipement.
Cet appareil numérique de la classe B est conforme à la norme NMB-003
du Canada.
Cet appareil est conforme avec Santé Canada Code de Sécurité 6.
Pour se conformer aux exigences de conformité de l'exposition aux radiofréquences de la FCC et d'Industrie Canada, une distance de séparation
d'au moins 20 cm doit être maintenue entre l'antenne de cet appareil et
toutes personnes à proximité. Ce dispositif ne doit pas être co-localisé ou
opérer en conjonction avec tout autre antenne ou transmetteur.
