User Manual
Professional Monitor 19”
(48cm) LCD/TFT, 1280x1024,
12V, Protection Glass, HDMI,
Desktop
VMC-19LEDMD
Page 2
1. SAFETY INSTRUCTION
Follow this safety instruction to use the monitor properly and prevent the damage.
Keep this user’s guide book for later use.
This safety instruction has “Warning” & “Caution” as below
Warning -
If the user does not follow this instruction,
it may cause the serious damage to the user.
Caution -
If the user does not follow this instruction, it may cause the slight
damage to the user or cause some damages to the monitor.
Warning
Keep away the monitor from the
direct sunlight and a heating appliance.
Never put objects of any kind into
this product as they may result in
a risk of fire or electric shock.
Connect the power cord to the wall
outlet tightly. If the power cord or plug
are defective and the wall outlet is not
tight, please do not use them.
Never remove the back cover and
touch the inside of the monitor.
If you need a service, please
contact the service center.
2
Installation and User's Guide
Page 3
Warning
Do not install this monitor on the outside
and near water. It may cause damage to
the product, electric shock and fire.
For cleaning do not use liquid cleaners.
Never touch the power plug with wet-hands.
When lightning and thundering, unplug the
monitor from the wall outlet and never touch
it.
When smoking and noising from the monitor,
unplug the product from the wall outlet and
contact a service center.
Unplug this product from the wall outlet, when
it does not operate for a long time.
W
W
A
A
R
RNN
IIN
N
G
G
:
:
How to fix
Do not open this product as it contains high voltage inside.
It may create an electric shock.
If the user disassembles and remove the back cover, it does not make sure
to make up for the damage and do a service and exchange the monitor.
Installation and User's Guide
3
Page 4
Cautions
Install this monitor some distance
from the wall and do not install unless
proper ventilation is provided.
Place this product on a stable place.
If not, it may fall, causing serious
damages to the monitor and people.
The openings must not be blocked by
curtain, rug or other similar surface.
Before carrying the monitor, turn it off and
unplug the signal cables and the power cord
from the wall outlet.
When carrying this monitor, be careful
not to damage the panel and drop it.
It may cause some trouble.
Take the power plug out from the wall
outlet.
Do not pull the cable. It may snap the innerwires and cause overheating and fire.
Installation and User's Guide
4
Page 5
Cautions
Install this monitor about 50cm far from
the eyes and an angle of 0~15 degrees
below eyes. Too close installation may
cause having weak sight.
Do not press the LCD panel with hands or
the sharpened material hardly.
Do not use the chemical liquid for cleaning.
It may cause fading and breakage.
For cleaning, unplug the monitor from the
wall outlet. Do net use the liquid cloth.
Use the soft cloth.
Installation and User's Guide
5
Page 6
2. FCC RF INTERFERENCE STATEMENT
NOTE
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures.
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
● Consult the dealer or an experienced radio, TV technician for help.
● Only shielded interface cable should be used.
Finally, any changes or modifications to the equipment by the user not expressly approved by the grantee or manufacturer could void
the users authority to operate such equipment.
DOC COMPLIANCE NOTICE
This digital apparatus does not exceed the Class A limits for radio noise emissions from digital apparatus set out in the radio
interference regulation of Canadian Department of communications.
6
Installation and User's Guide
Page 7
7
Installation and User's Guide
2
1. SAFETY INSTRUCTION
1-1 Warning
1-2 Caution
6
2. FCC STATEMENT
3-1 Parts
3-2 How to Install
32
6. TROUBLESHOOTING
8
3. INSTALLATION
4-1 Mode Setting
4-2 Menu Setting (VIDEO, S-VIDEO Mode)
4-3 Menu Setting (VGA Mode)
4-4 Menu Setting (DVI, HDMI Mode)
12
4. OSD MENU SETTING
33
5. FEATURES
TABLE OF CONTENTS
Page 8
8
Installation and User's Guide
3. INSTALLATION
3-1 Parts
LCD Monitor
VGA Cable Trigger Cable Power Cable
Remote Controller
Battery User Manual
Adapter
* Adapter is attached to the back of product
Page 9
9
Installation and User's Guide
3-2 How to Install
SHORT KEY FUNCTION
KEY BUTTON
OSD Key Function
Activates and exit the OSD
Select input source, and select the OSD menu
Move the OSD menu and auto adjustment of RGB source
Decrease the level of volume and move the previous menu
Increase the level of volume and select rhe OSD menu
Turns the power ON or OFF. There will be a few seconds
delay before the display appears.The power LED (next to the
power switch) lights with green when the power is turned ON.
The power is turned off by pressing the power switch again
and the power LED goes red.
Page 10
10
Installation and User's Guide
CONNECTION
DC12V
1
VIDEO-2 IN / OUT
DC adapter input VIDEO-2 signal input / looping out
6
AUDIO (PC)
2
VIDEO-1 IN / OUT
Stereo audio input for VGA VIDEO-1 signal input / looping out
7
3
TRIGGER
TRIGGER signal input
8
AUDIO (VIDEO-2)
4
HDMI
Stereo audio input for VIDEO-2
HDMI signal 1 / 2 input
9
AUDIO (VIDEO-1 / S-VIDEO)
5
DVI
Stereo audio input for VIDEO-1 or S-VIDEO
DVI signal input
10
S-VIDEO IN / OUT
VGA
S-VIDEO signal input / looping out
VGA (PC RGB) signal input
11
9
10
11
1 2 3 4 5 6 7 8
Page 11
11
Installation and User's Guide
REMOTE CONTROLLER
MODE SELECT MENU
VIDEO1
Select VIDEO1 mode
VIDEO2
Select VIDEO2 mode
S-VIDEO
Select S-VIDEO mode
VGA (RGB)
Select VGA mode
DVI
Select DVI mode
HDMI1
Select HDMI1 mode
HDMI2
Select HDMI2 mode
POWER
Turn ON / OFF the monitor
MUTE
Turn ON / OFF the sound
AUTO
Auto adjust position of the screen (in VGA mode)
COLOR TEMPERATURE
Select color temperature of the screen
SCAN MODE
Select the scan mode of the screen
VOL- / VOL+
Increase / Decrease the volume level
MENU / EXIT
Activate and exit the OSD menu
STILL
Freeze the current image
KEY LOCK
Locking the button (Prevent operation)
S. SET
Select between main and PIP audio input
PIP
Activates PIP/PBP mode
P. INPUT
Select an input source for PIP mode
P. LOCATION
Select a location for PIP mode
P. SIZE
Select a size for PIP mode
P. SWAP
Swap between main and PIP input
POWER MUTE
VIDEO1 VIDEO2 S-VIDEO
VGA AUTO COLOR TEMP
DVI HDMI1
HDMI2 S.SET
SCAN MODE PIP
MENU/EXIT
P.INPUT P.LOCATION
P.SWAP STILL
P.SIZE
KEY LOCK
VOL- VOL+
A
B
C
A
OSD CONTROL MENU
B
PIP CONTROL MENU
C
Page 12
12
Installation and User's Guide
4. OSD MENU SETTING
4-1 Mode Setting
VIDEO1
Select VIDEO1 mode
VIDEO2
Select VIDEO2 mode
S-VIDEO
Select S-VIDEO mode
RGB PC
Select VGA mode
DVI
Select DVI mode
HDMI1
Select HDMI1 mode
HDMI2
Select HDMI2 mode
VIDEO1
VIDEO2
S-VIDEO
√
RGB PC
DVI
HDMI 1
HDMI 2
▼/▲:MOVE ▶:ENTER

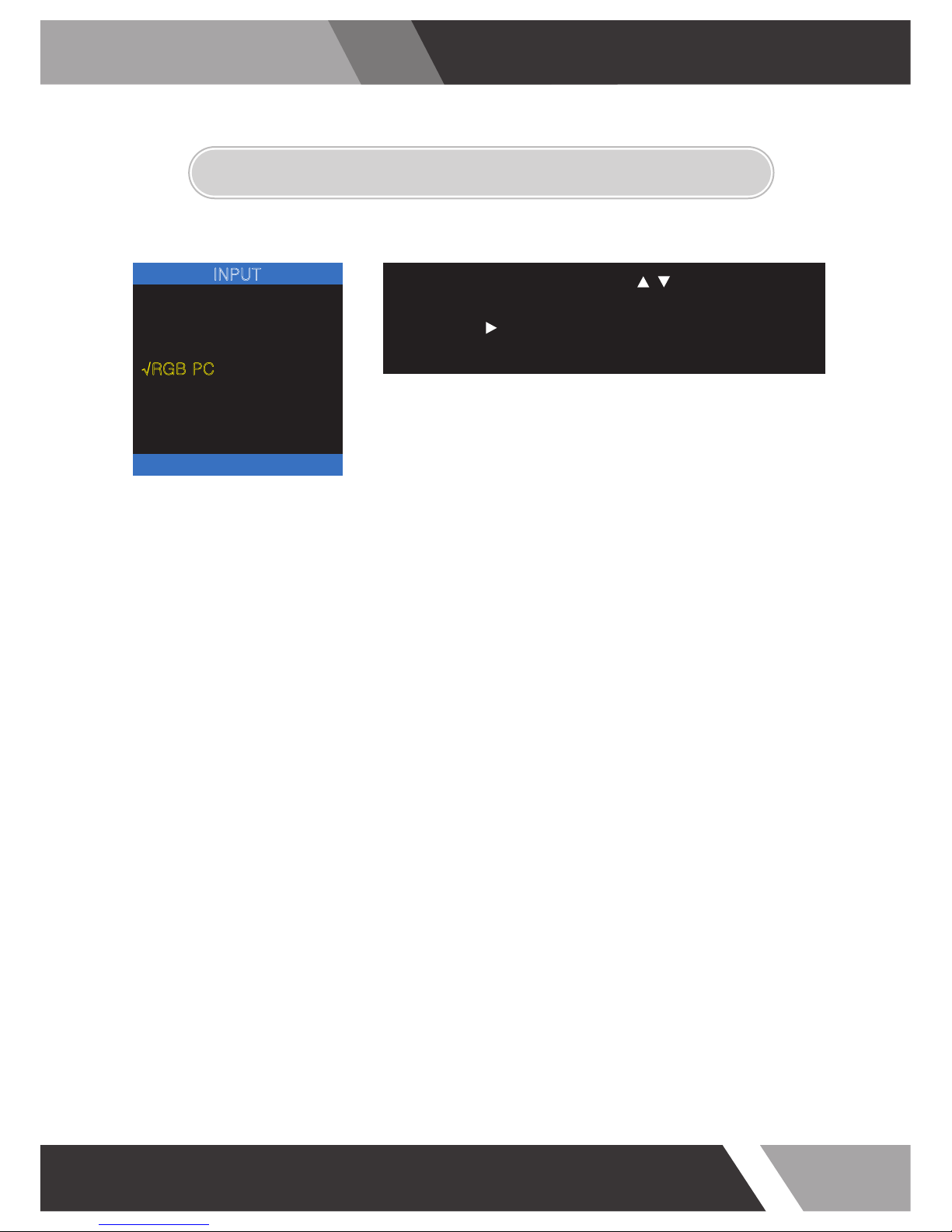

INPUT
Use SOURCE button and then / button to move the
source.
1.
Press the button to select the source.
2.
Press the MENU/EXIT button to exit the INPUT menu.
3.
Inputs can be set to VIDEO1, VIDEO2, S-VIDEO, RGB PC, DVI, HDMI1, HDMI2 mode
Page 13
13
Installation and User's Guide
4-2 Menu Setting (VIDEO, S-VIDEO Mode)
Default setting is 60% and adjustable from range of 0 to 100% Default setting is 50% and adjustable from range of 0 to 100%
Press the MENU/EXIT key to access menu.
1.
Use the & arrow to highlight a selection.
2.
Press the /SELECT to choose an item.
3.
4.
Use the & arrow to highlight a selection.
5.
Use the & arrow to adjust the setting on a
selected item.

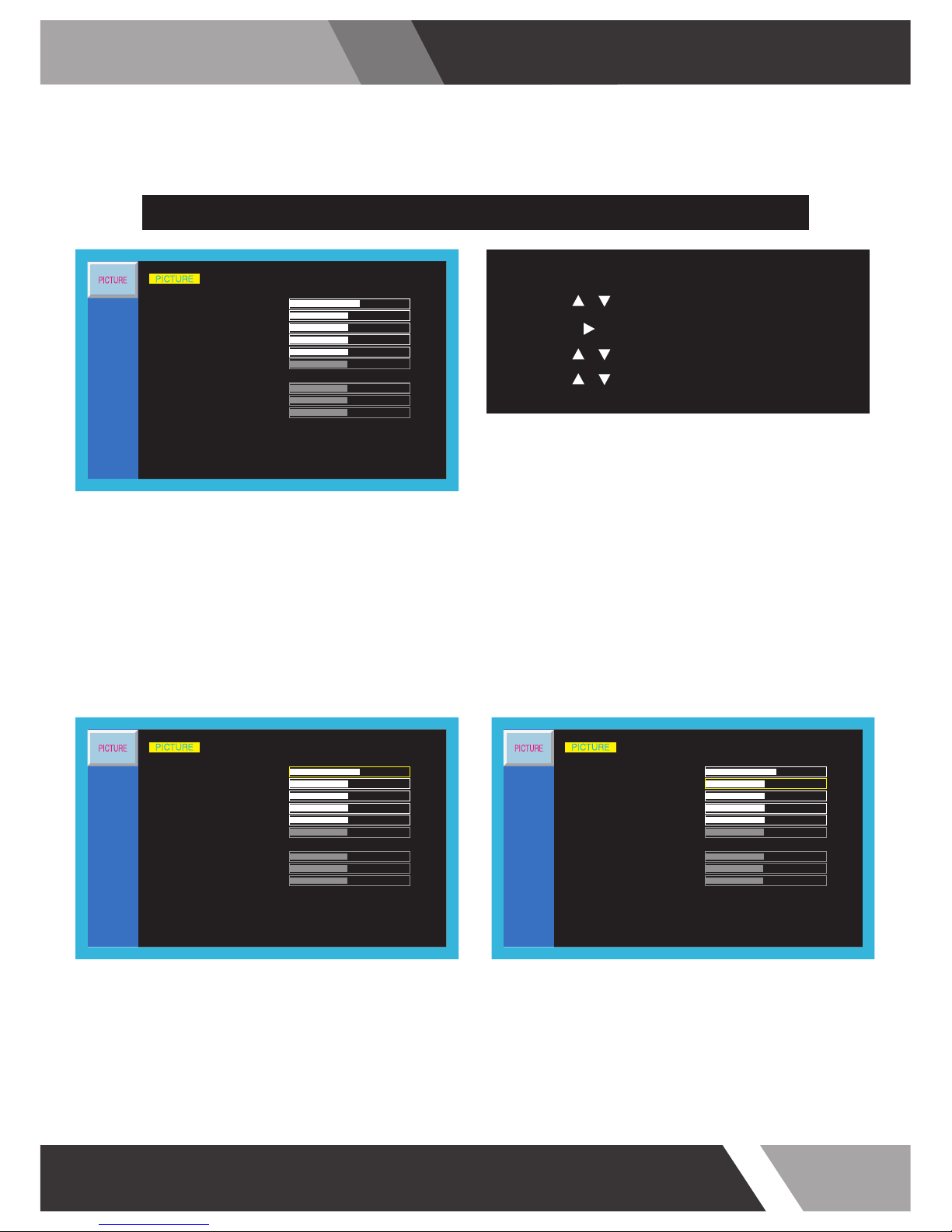

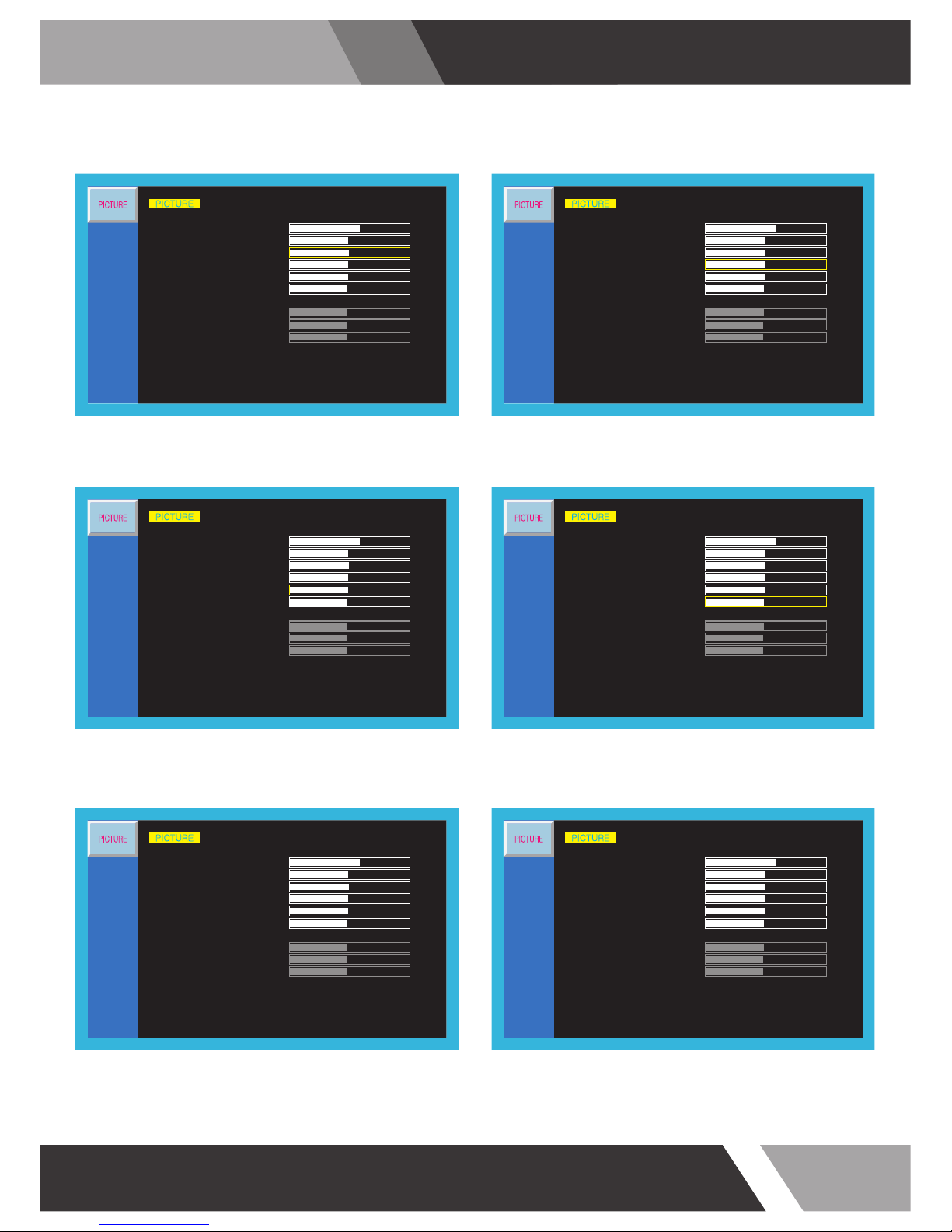

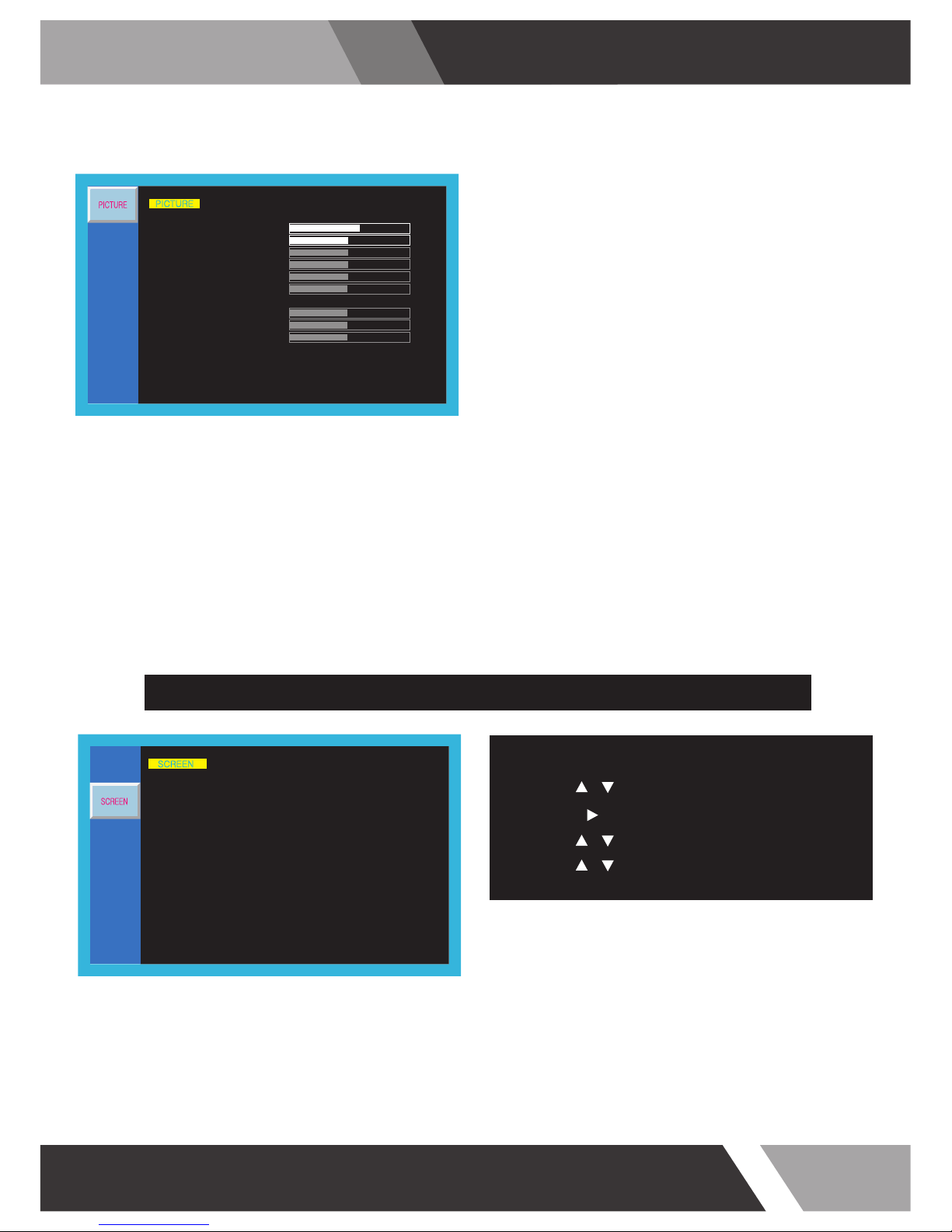

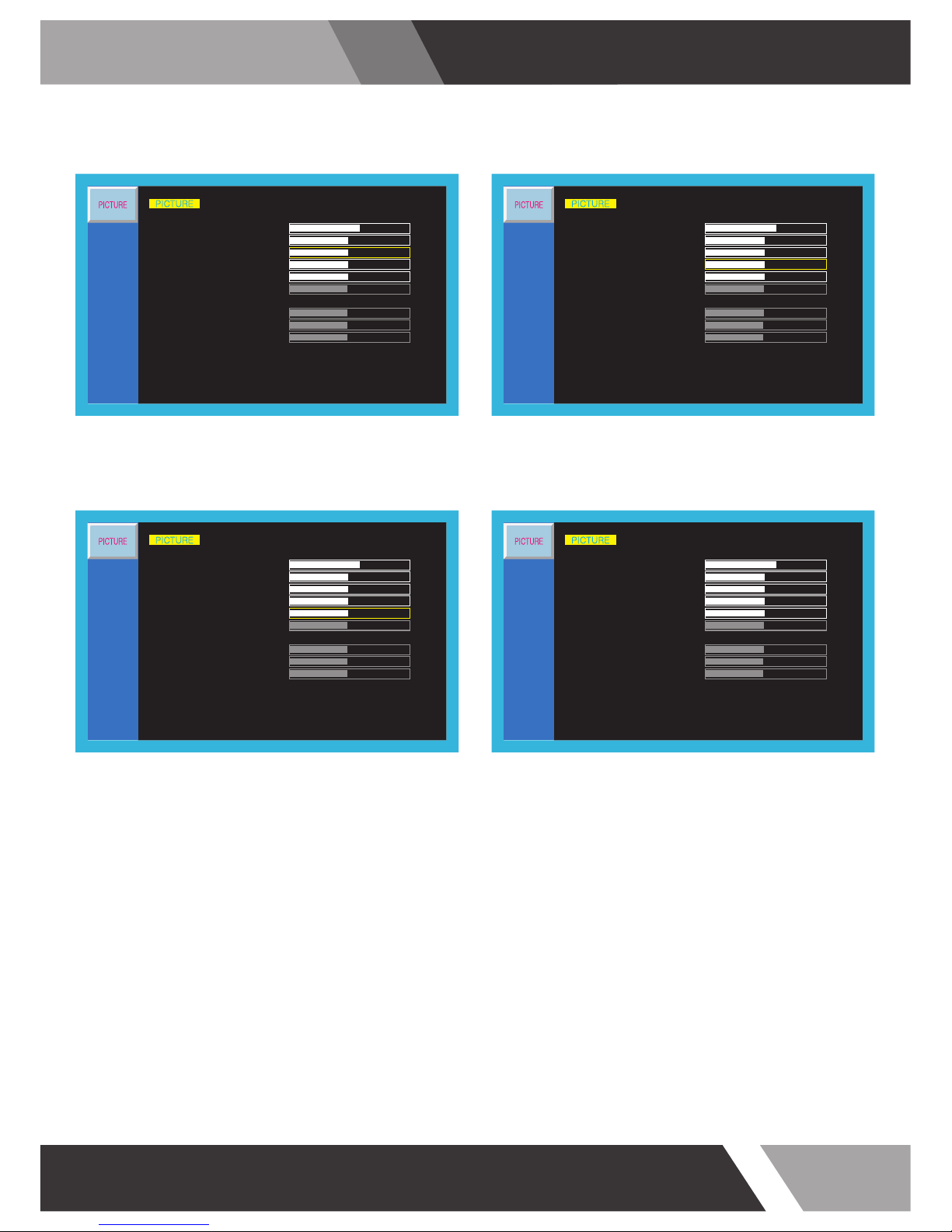

CONTRAST : Adjust visual color contrast
CONTRAST BRIGHTNESS
BRIGHTNESS : Adjust color brightness
COLOR : Adjust visual color of screen TINT : Adjust tint of color
SHARPNESS : Adjust sharpness of screen COLOR TEMP : Switch color temperature of screen
CONTRAST
60%
BRIGHTNESS
50%
COLOR
50%
TINT
50%
SHARPNESS
50%
PEAKING CONTROL
50%
COLOR TEMP ◀ MEDIUM
RED
50%
GREEN
50%
BLUE
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
50%
SCREEN
SETUP
RGB
SETUP
SETUP
CYCLE
TRIGGER
▶
MODE SELECT ◀ 1080P
▶
CONTRAST
60%
BRIGHTNESS
50%
COLOR
50%
TINT
50%
SHARPNESS
50%
PEAKING CONTROL
50%
COLOR TEMP ◀ MEDIUM
RED
50%
GREEN
50%
BLUE
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
50%
SCREEN
SETUP
RGB
SETUP
SETUP
CYCLE
TRIGGER
▶
MODE SELECT ◀ 1080P
▶
CONTRAST
60%
BRIGHTNESS
50%
COLOR
50%
TINT
50%
SHARPNESS
50%
PEAKING CONTROL
50%
COLOR TEMP ◀ MEDIUM
RED
50%
GREEN
50%
BLUE
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
50%
SCREEN
SETUP
RGB
SETUP
SETUP
CYCLE
TRIGGER
▶
MODE SELECT ◀ 1080P
▶
Page 14
14
Installation and User's Guide
Default setting is 50% and adjustable from range of 0 to 100% Default setting is 50% and adjustable from range of 0 to 100%
COLOR TINT
CONTRAST
60%
BRIGHTNESS
50%
COLOR
50%
TINT
50%
SHARPNESS
50%
PEAKING CONTROL
50%
COLOR TEMP ◀ MEDIUM
RED
50%
GREEN
50%
BLUE
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
50%
SCREEN
SETUP
RGB
SETUP
SETUP
CYCLE
TRIGGER
▶
MODE SELECT ◀ 1080P
▶
CONTRAST
60%
BRIGHTNESS
50%
COLOR
50%
TINT
50%
SHARPNESS
50%
PEAKING CONTROL
50%
COLOR TEMP ◀ MEDIUM
RED
50%
GREEN
50%
BLUE
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
50%
SCREEN
SETUP
RGB
SETUP
SETUP
CYCLE
TRIGGER
▶
MODE SELECT ◀ 1080P
▶
Default setting is 50% and adjustable from range of 0 to 100% Default setting is MEDIUM and switch to WARM, USER and
COOL color temperature options
USER - Default setting of RED, GREEN, BLUE is 50% and
adjustable from range of 0 to 100%
SHARPNESS COLOR TEMP
CONTRAST
60%
BRIGHTNESS
50%
COLOR
50%
TINT
50%
SHARPNESS
50%
PEAKING CONTROL
50%
COLOR TEMP ◀ MEDIUM
RED
50%
GREEN
50%
BLUE
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
50%
SCREEN
SETUP
RGB
SETUP
SETUP
CYCLE
TRIGGER
▶
MODE SELECT ◀ 1080P
▶
CONTRAST
60%
BRIGHTNESS
50%
COLOR
50%
TINT
50%
SHARPNESS
50%
PEAKING CONTROL
50%
COLOR TEMP ◀ MEDIUM
RED
50%
GREEN
50%
BLUE
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
50%
SCREEN
SETUP
RGB
SETUP
SETUP
CYCLE
TRIGGER
▶
MODE SELECT ◀ 1080P
▶
Page 15
15
Installation and User's Guide
SCREEN

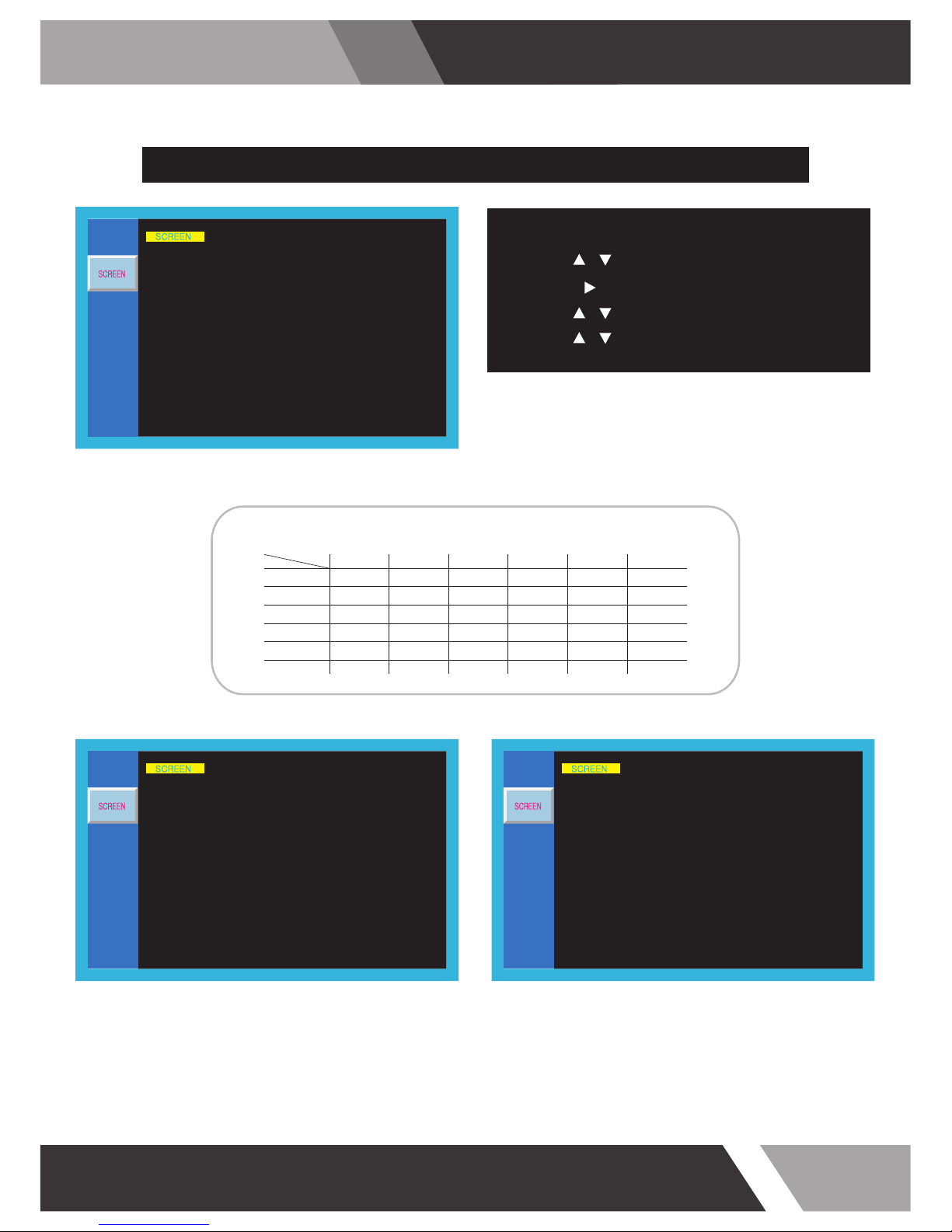

SCAN MODE : Select the scan mode of the screen PIP : Activates PIP/PBP mode
SCAN MODE PIP
SCREEN
SCAN MODE
PIP
PIP INPUT
PIP SWAP
PIP SIZE
PIP R/T
SCREEN
SETUP
RGB
SETUP
SETUP
CYCLE
TRIGGER
◀ R/B
▶
◀ SMALL
▶
▶
◀ VIDEO2
▶
◀ OFF
▶
◀ FULL
▶
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
SCREEN
SCAN MODE
PIP
PIP INPUT
PIP SWAP
PIP SIZE
PIP R/T
SCREEN
SETUP
RGB
SETUP
SETUP
CYCLE
TRIGGER
◀ R/B
▶
◀ SMALL
▶
▶
◀ VIDEO2
▶
◀ OFF
▶
◀ FULL
▶
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
SCREEN
SCAN MODE
PIP
PIP INPUT
PIP SWAP
PIP SIZE
PIP R/T
SCREEN
SETUP
RGB
SETUP
SETUP
CYCLE
TRIGGER
◀ R/B
▶
◀ SMALL
▶
▶
◀ VIDEO2
▶
◀ OFF
▶
◀ FULL
▶
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
Press the MENU/EXIT key to access menu.
1.
Use the & arrow to highlight a selection.
2.
Press the /SELECT to choose an item.
3.
4.
Use the & arrow to highlight a selection.
5.
Use the & arrow to adjust the setting on a
selected item.
Default setting is FULL and switch to UNDER, OVER and 4:3
scan mode options
Default setting is OFF and switch to ON, DW1 and DW2
PIP/PBP mode options
ON - PIP INPUT : Select an input source for PIP mode
(VIDEO1, VIDEO2, S-VIDEO)
PIP SWAP : Swap between main and PIP input
PIP SIZE : Select a size for PIP mode
(SMALL, NORMAL, LARGE)
PIP R/T : Select a location for PIP mode
(R/B, L/B)
VIDEO-1 VIDEO-2 S-VIDEO VGA D VI HD MI
VIDEO-1
MAIN
SUB
X O O X X X
VIDEO-2
O X O X X X
S-VIDEO
O O X X X X
VGA
O O O X X X
DVI
O O O X X X
HDMI
O O O X X X
PIP, PBP - COMBINATION OF SIGNAL INPUT
Page 16
16
Installation and User's Guide

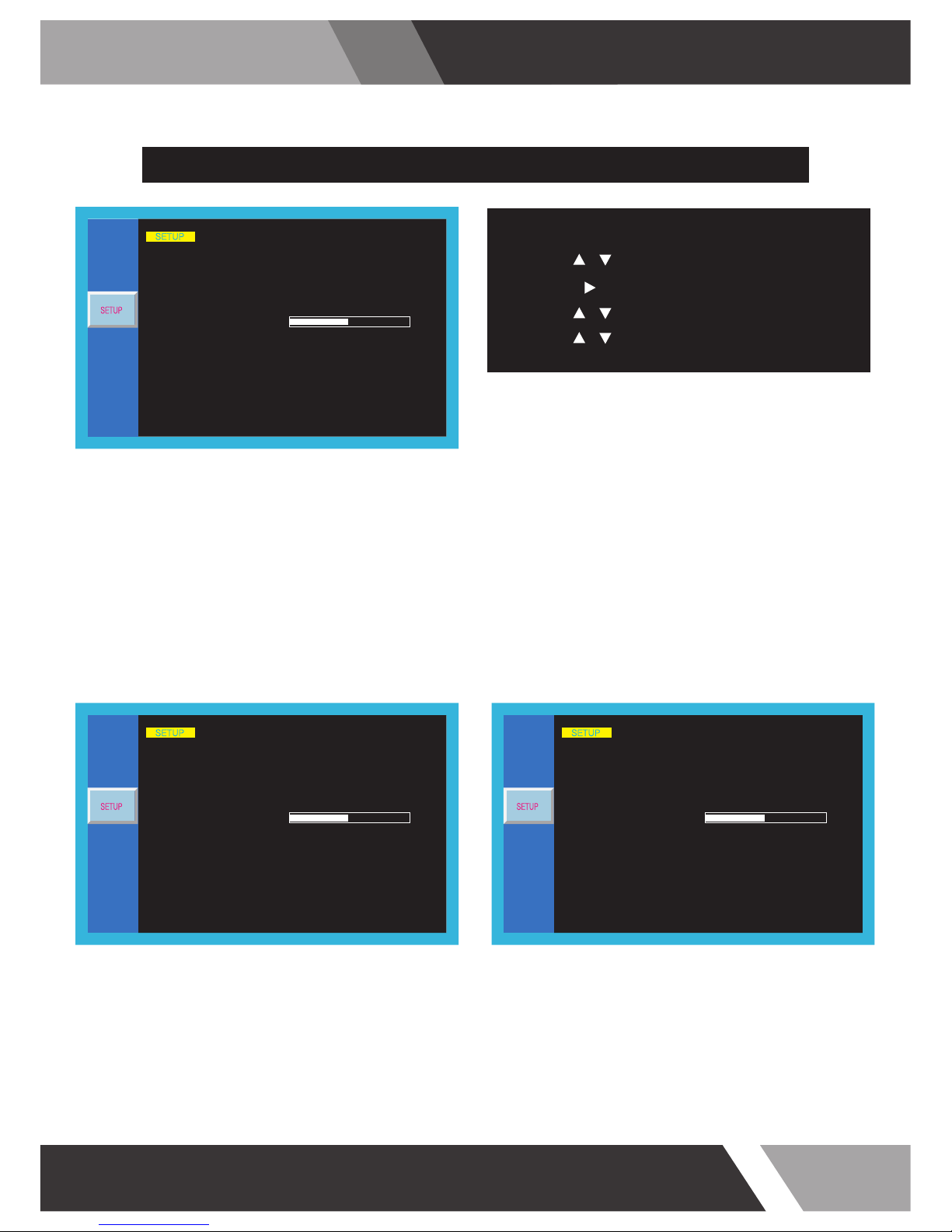

SETUP
INPUT : Select an input source for main screen LANGUAGE : Set to different language mode
SOUND MUTE : Turn on/off the sound BUTTON LOCK : Locking the button (Prevent operation)
NOISE REDUCTION : Set a noise reduction mode OSD TIME : Set a time duration of OSD menu
DEFAULT : Factory default setting
NO OPERATION : Set a no operation mode
LINE SHIFT : Move a little to protect the screen
Press the MENU/EXIT key to access menu.
1.
Use the & arrow to highlight a selection.
2.
Press the /SELECT to choose an item.
3.
4.
Use the & arrow to highlight a selection.
5.
Use the & arrow to adjust the setting on a
selected item.
INPUT LANGUAGE
Inputs can be set to VIDEO1, VIDEO2, S-VIDEO, RGB PC,
DVI, HDMI1, HDMI2 mode
Default setting is ENGLISH and language setting can be set
to ITALIAN, FRENCH, SPANISH and GERMAN
SETUP
INPUT
LANGUAGE
SOUND MUTE
BUTTON LOCK
NOISE REDUCTION
OSD TIME
SCREEN
SETUP
RGB
SETUP
SETUP
CYCLE
TRIGGER
DEFAULT
▶
LINE SHIFT ◀ ON
▶
NO OPERATION ◀ OFF
▶
◀ ON
▶
◀ OFF
▶
◀ OFF
▶
◀ ENGLISH
▶
◀ VIDEO1
▶
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
15s
SETUP
INPUT
LANGUAGE
SOUND MUTE
BUTTON LOCK
NOISE REDUCTION
OSD TIME
SCREEN
SETUP
RGB
SETUP
SETUP
CYCLE
TRIGGER
DEFAULT
▶
LINE SHIFT ◀ ON
▶
◀ ON
▶
◀ OFF
▶
◀ OFF
▶
◀ ENGLISH
▶
◀ VIDEO1
▶
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
15s
SETUP
INPUT
LANGUAGE
SOUND MUTE
BUTTON LOCK
NOISE REDUCTION
OSD TIME
SCREEN
SETUP
RGB
SETUP
SETUP
CYCLE
TRIGGER
DEFAULT
▶
LINE SHIFT ◀ ON
▶
◀ ON
▶
◀ OFF
▶
◀ OFF
▶
◀ ENGLISH
▶
◀ VIDEO1
▶
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
15s
NO OPERATION ◀ OFF
▶
NO OPERATION ◀ OFF
▶
Page 17
17
Installation and User's Guide

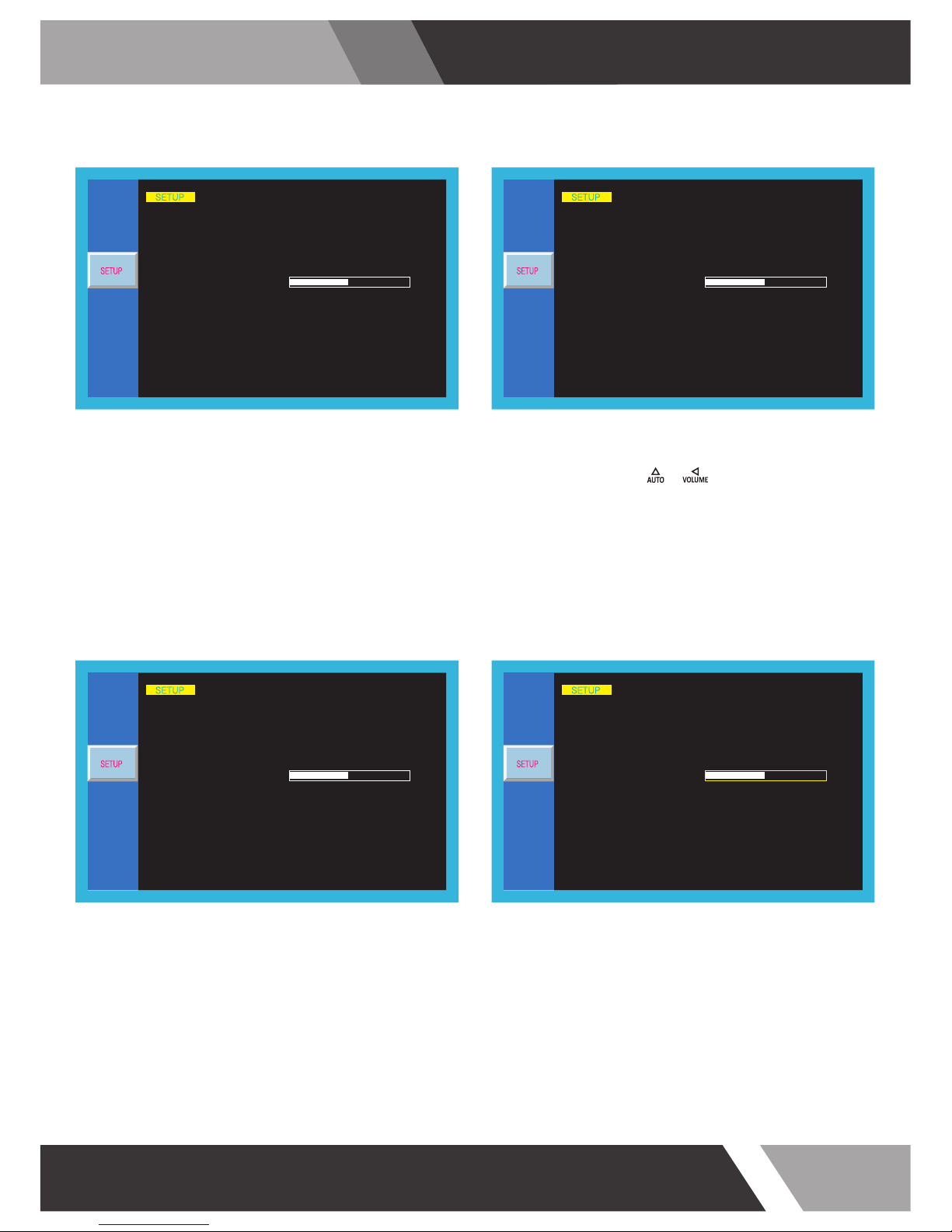

SOUND MUTE BUTTON LOCK
SETUP
INPUT
LANGUAGE
SOUND MUTE
BUTTON LOCK
NOISE REDUCTION
OSD TIME
SCREEN
SETUP
RGB
SETUP
SETUP
CYCLE
TRIGGER
DEFAULT
▶
LINE SHIFT ◀ ON
▶
◀ ON
▶
◀ OFF
▶
◀ OFF
▶
◀ ENGLISH
▶
◀ VIDEO1
▶
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
15s
SETUP
INPUT
LANGUAGE
SOUND MUTE
BUTTON LOCK
NOISE REDUCTION
OSD TIME
SCREEN
SETUP
RGB
SETUP
SETUP
CYCLE
TRIGGER
DEFAULT
▶
LINE SHIFT ◀ ON
▶
◀ ON
▶
◀ OFF
▶
◀ OFF
▶
◀ ENGLISH
▶
◀ VIDEO1
▶
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
15s
NOISE REDUCTION OSD TIME
SETUP
INPUT
LANGUAGE
SOUND MUTE
BUTTON LOCK
NOISE REDUCTION
OSD TIME
SCREEN
SETUP
RGB
SETUP
SETUP
CYCLE
TRIGGER
DEFAULT
▶
LINE SHIFT ◀ ON
▶
◀ ON
▶
◀ OFF
▶
◀ OFF
▶
◀ ENGLISH
▶
◀ VIDEO1
▶
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
15s
SETUP
INPUT
LANGUAGE
SOUND MUTE
BUTTON LOCK
NOISE REDUCTION
OSD TIME
SCREEN
SETUP
RGB
SETUP
SETUP
CYCLE
TRIGGER
DEFAULT
▶
LINE SHIFT ◀ ON
▶
◀ ON
▶
◀ OFF
▶
◀ OFF
▶
◀ ENGLISH
▶
◀ VIDEO1
▶
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
15s

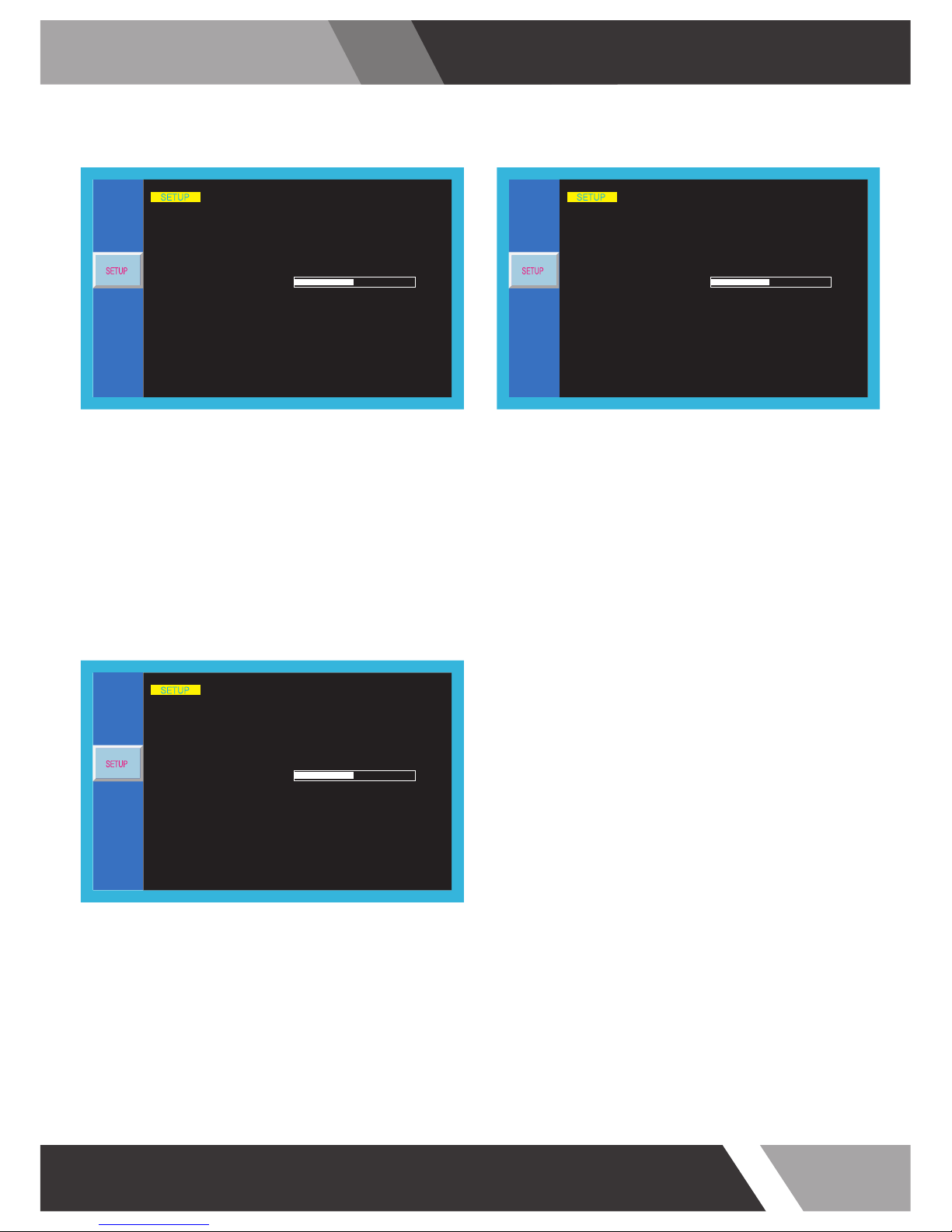

Default setting is OFF and switch to ON sound mute option
Default setting is ON and switch to OFF noise reduction option
Default setting is OFF and switch to ON button lock option
Release the lock - Press KEY LOCK button on the remote control
- Press & button on the key pad
Default setting is 15s and adjustable from range of 5 to 30s
NO OPERATION ◀ OFF
▶
NO OPERATION ◀ OFF
▶
NO OPERATION ◀ OFF
▶
NO OPERATION ◀ OFF
▶
Page 18
18
Installation and User's Guide
DEFAULT

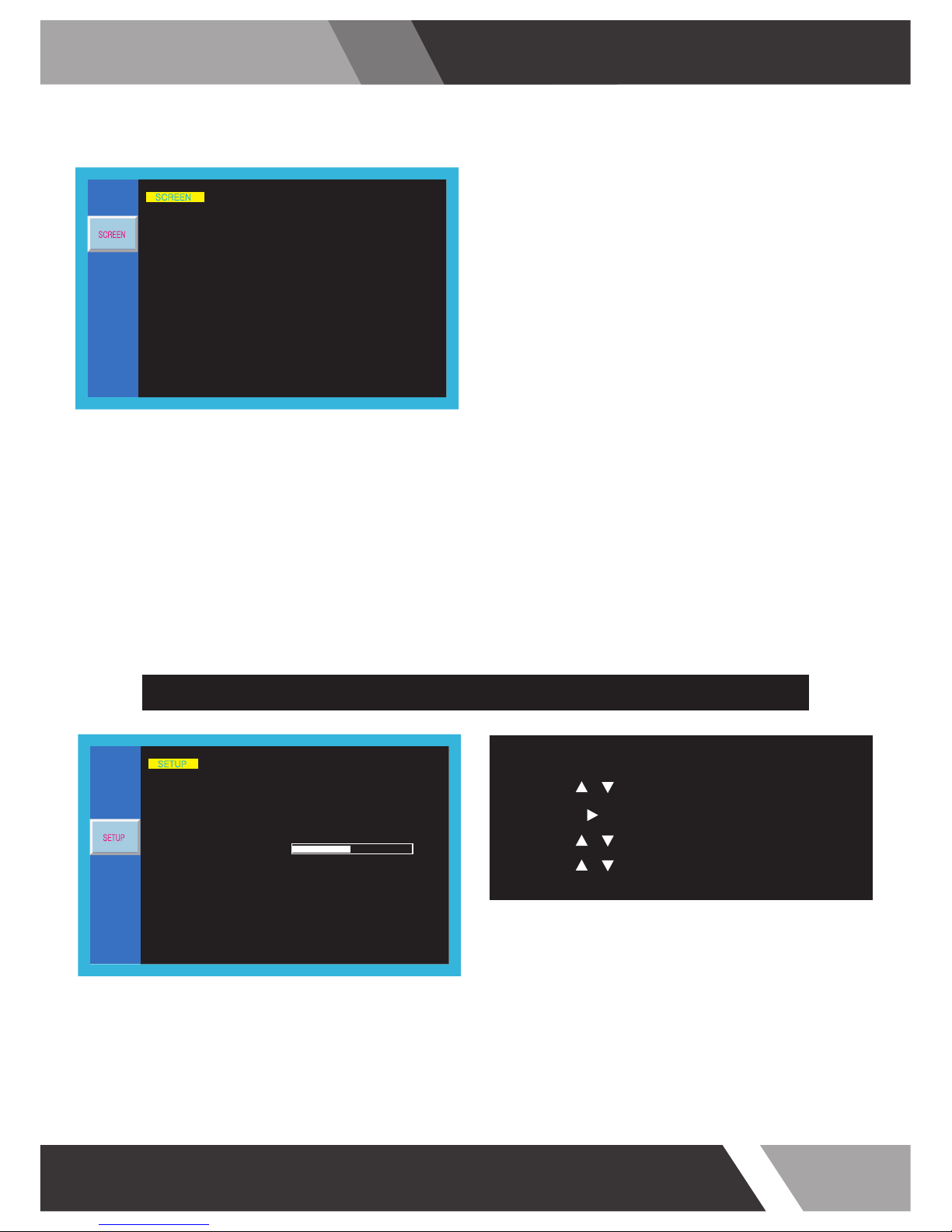

DEFAULT is set OSD menu to factory default
SETUP
INPUT
LANGUAGE
SOUND MUTE
BUTTON LOCK
NOISE REDUCTION
OSD TIME
SCREEN
SETUP
RGB
SETUP
SETUP
CYCLE
TRIGGER
DEFAULT
▶
LINE SHIFT ◀ ON
▶
◀ ON
▶
◀ OFF
▶
◀ OFF
▶
◀ ENGLISH
▶
◀ VIDEO1
▶
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
15s
LINE SHIFT
SETUP
INPUT
LANGUAGE
SOUND MUTE
BUTTON LOCK
NOISE REDUCTION
OSD TIME
SCREEN
SETUP
RGB
SETUP
SETUP
CYCLE
TRIGGER
DEFAULT
▶
LINE SHIFT ◀ ON
▶
◀ ON
▶
◀ OFF
▶
◀ OFF
▶
◀ ENGLISH
▶
◀ VIDEO1
▶
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
15s
Default setting is ON and switch to OFF line shift option
NO OPERATION
SETUP
INPUT
LANGUAGE
SOUND MUTE
BUTTON LOCK
NOISE REDUCTION
OSD TIME
SCREEN
SETUP
RGB
SETUP
SETUP
CYCLE
TRIGGER
DEFAULT
▶
LINE SHIFT ◀ ON
▶
◀ ON
▶
◀ OFF
▶
◀ OFF
▶
◀ ENGLISH
▶
◀ VIDEO1
▶
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
15s
Default setting is OFF and switch to ON no operation option
NO OPERATION ◀ OFF
▶
NO OPERATION ◀ OFF
▶
NO OPERATION ◀ OFF
▶
Page 19
19
Installation and User's Guide

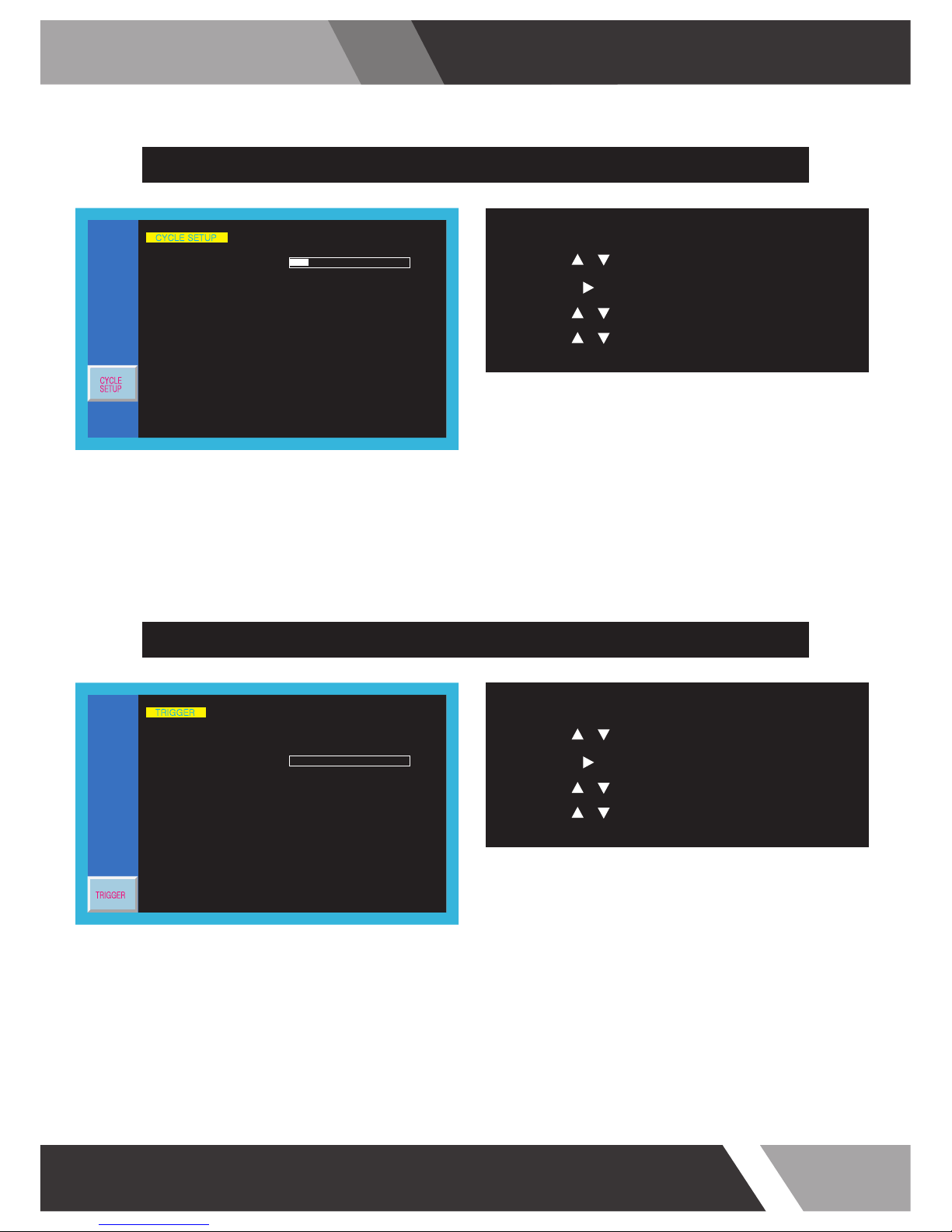

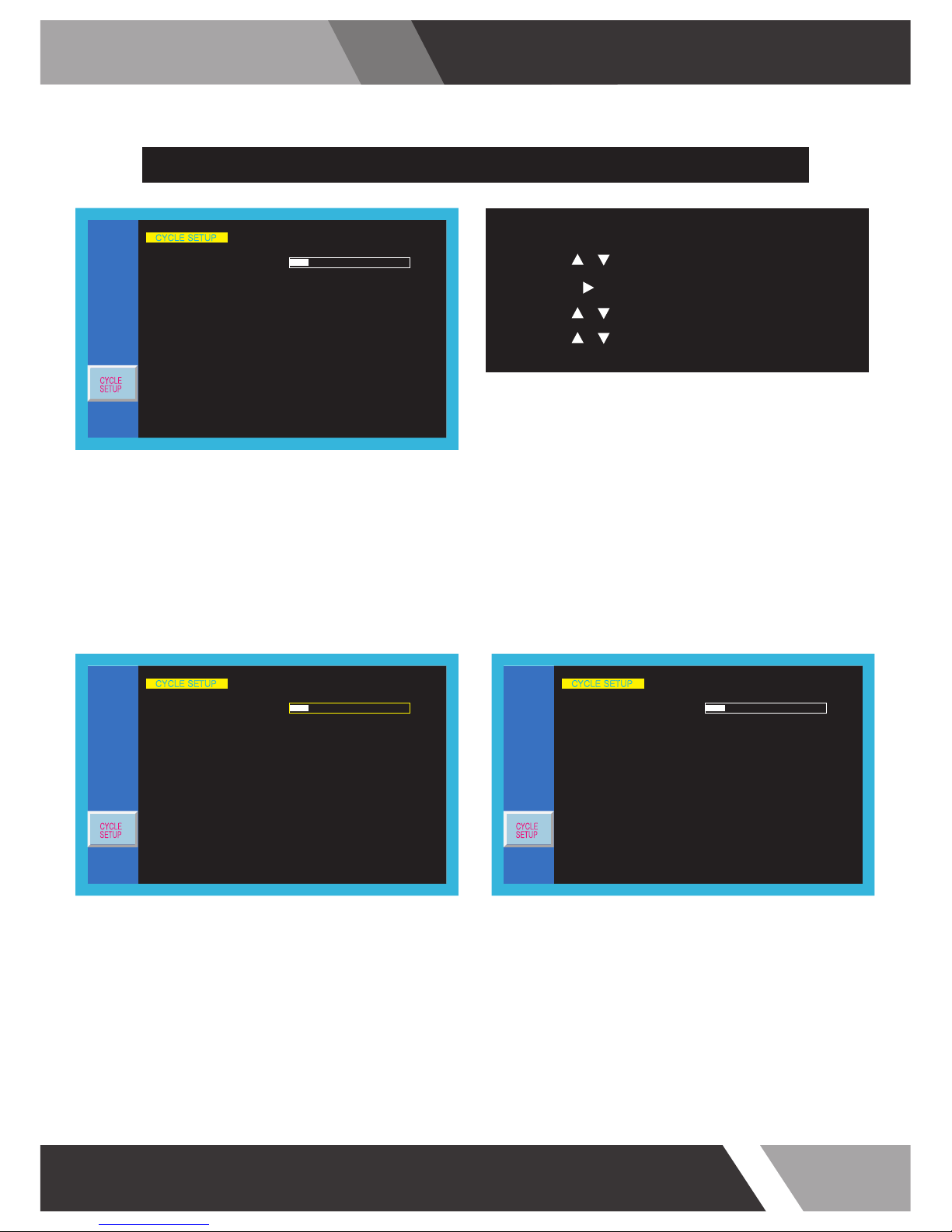

CYCLE TIME : Adjust cycle time to displayed on the screen CYCLE : Selected mode keep change continuously
CYCLE TIME CYCLE
Default setting is OFF and switch to ON cycle option
CYCLE SETUP
CYCLE TIME
CYCLE
VIDEO1
VIDEO2
S-VIDEO
RGB PC
SCREEN
SETUP
RGB
SETUP
SETUP
CYCLE
TRIGGER
DVI
HDMI 1 ◀ OFF
▶
HDMI 2 ◀ OFF
▶
◀ OFF
▶
◀ OFF
▶
◀ OFF
▶
◀ OFF
▶
◀ OFF
▶
◀ OFF
▶
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
10s
CYCLE SETUP
CYCLE TIME
CYCLE
VIDEO1
VIDEO2
S-VIDEO
RGB PC
SCREEN
SETUP
RGB
SETUP
SETUP
CYCLE
TRIGGER
DVI
HDMI 1 ◀ OFF
▶
HDMI 2 ◀ OFF
▶
◀ OFF
▶
◀ OFF
▶
◀ OFF
▶
◀ OFF
▶
◀ OFF
▶
◀ OFF
▶
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
10s
CYCLE SETUP
CYCLE TIME
CYCLE
VIDEO1
VIDEO2
S-VIDEO
RGB PC
SCREEN
SETUP
RGB
SETUP
SETUP
CYCLE
TRIGGER
DVI
HDMI 1 ◀ OFF
▶
HDMI 2 ◀ OFF
▶
◀ OFF
▶
◀ OFF
▶
◀ OFF
▶
◀ OFF
▶
◀ OFF
▶
◀ OFF
▶
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
10s
CYCLE SETUP
Press the MENU/EXIT key to access menu.
1.
Use the & arrow to highlight a selection.
2.
Press the /SELECT to choose an item.
3.
4.
Use the & arrow to highlight a selection.
5.
Use the & arrow to adjust the setting on a
selected item.
Default setting is 10s and adjustable from range of 10 to 30s
Page 20
20
Installation and User's Guide

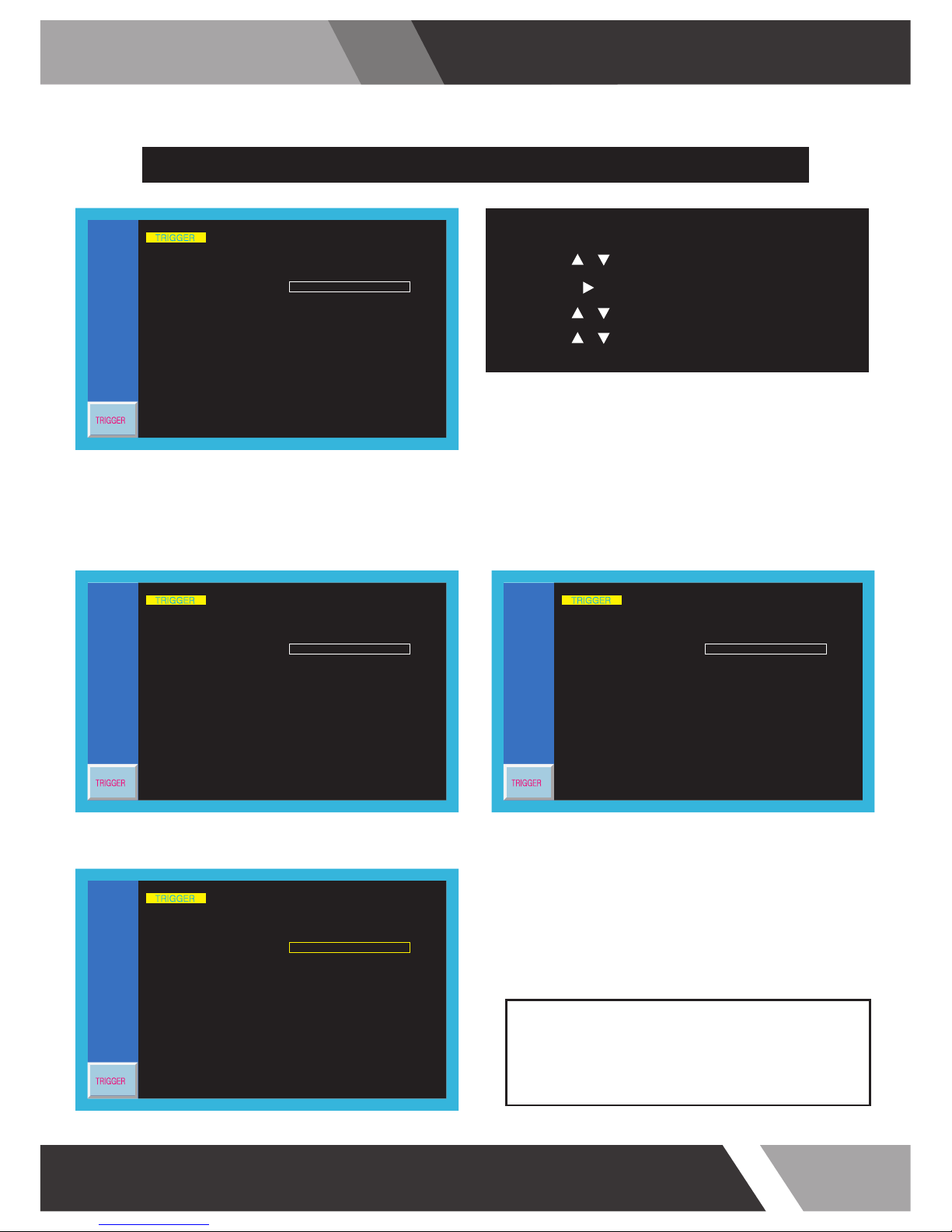

TRIGGER MODE : Set the trigger mode to OFF/FULL/
PIP/DW1/DW2
TRIGGER DWELL : Set the transition time from trigger
mode to normal mode
TRIGGER INPUT : Select the input source of trigger mode
TRIGGER MODE TRIGGER INPUT
Inputs can be set to VIDEO1, VIDEO2 and S-VIDEO mode
TRIGGER
Press the MENU/EXIT key to access menu.
1.
Use the & arrow to highlight a selection.
2.
Press the /SELECT to choose an item.
3.
4.
Use the & arrow to highlight a selection.
5.
Use the & arrow to adjust the setting on a
selected item.
Default setting is OFF and switch to ON trigger mode
TRIGGER DWELL
Default setting is 10s and adjustable from range of 10 to 60s
TRIGGER
TRIGGER MODE
TRIGGER INPUT
TRIGGER DWELL
SCREEN
SETUP
RGB
SETUP
SETUP
CYCLE
TRIGGER
◀ OFF
▶
◀ VIDEO1
▶
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
10s
TRIGGER
TRIGGER MODE
TRIGGER INPUT
TRIGGER DWELL
SCREEN
SETUP
RGB
SETUP
SETUP
CYCLE
TRIGGER
◀ OFF
▶
◀ VIDEO1
▶
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
10s
TRIGGER
TRIGGER MODE
TRIGGER INPUT
TRIGGER DWELL
SCREEN
SETUP
RGB
SETUP
SETUP
CYCLE
TRIGGER
◀ OFF
▶
◀ VIDEO1
▶
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
10s
TRIGGER
TRIGGER MODE
TRIGGER INPUT
TRIGGER DWELL
SCREEN
SETUP
RGB
SETUP
SETUP
CYCLE
TRIGGER
◀ OFF
▶
◀ VIDEO1
▶
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
10s
Notice :
After setting the trigger mode, if the trigger terminal is not
closed(short input), the screen moves to Trigger modes.
Please set the trigger mode after connecting the trigger
signal to the close position.
Page 21
21
Installation and User's Guide

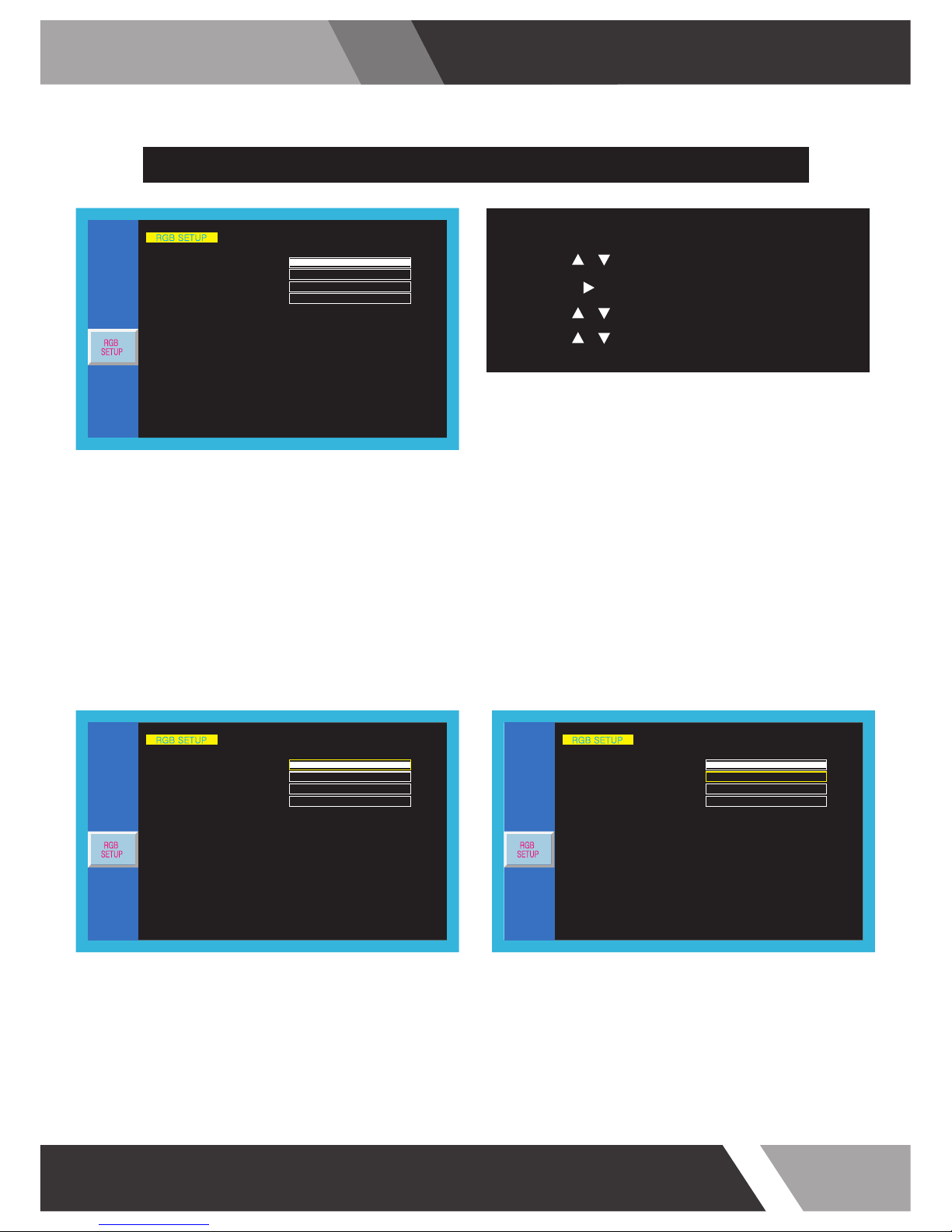

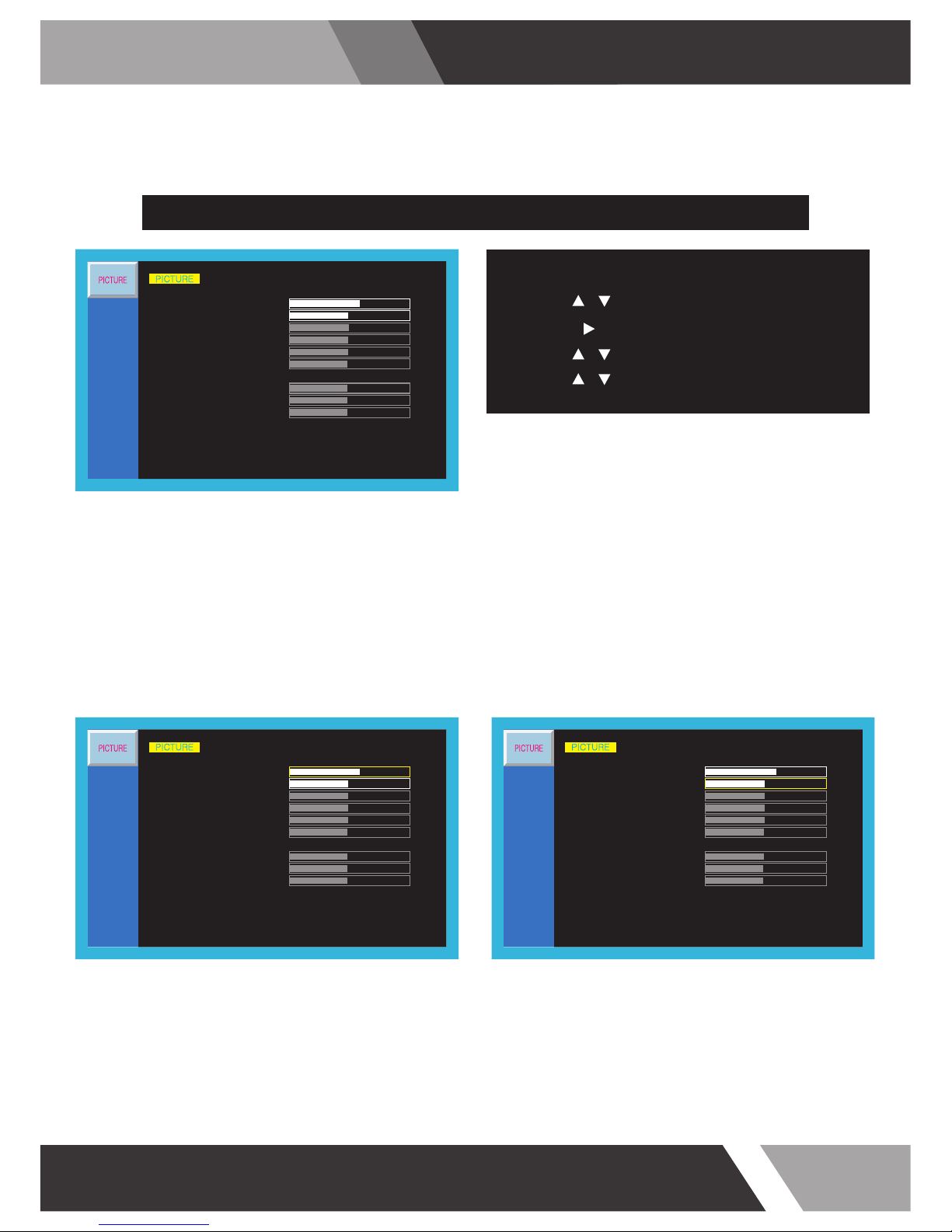

4-3 Menu Setting (VGA Mode)
Default setting is 60% and adjustable from range of 0 to 100% Default setting is 50% and adjustable from range of 0 to 100%
Press the MENU/EXIT key to access menu.
1.
Use the & arrow to highlight a selection.
2.
Press the /SELECT to choose an item.
3.
4.
Use the & arrow to highlight a selection.
5.
Use the & arrow to adjust the setting on a
selected item.
CONTRAST : Adjust visual color contrast
CONTRAST BRIGHTNESS
BRIGHTNESS : Adjust color brightness
COLOR TEMP : Switch color temperature of screen
CONTRAST
60%
BRIGHTNESS
50%
COLOR
50%
TINT
50%
SHARPNESS
50%
PEAKING CONTROL
50%
COLOR TEMP ◀ MEDIUM
RED
50%
GREEN
50%
BLUE
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
50%
SCREEN
SETUP
RGB
SETUP
SETUP
CYCLE
TRIGGER
▶
MODE SELECT ◀ 1080P
▶
CONTRAST
60%
BRIGHTNESS
50%
COLOR
50%
TINT
50%
SHARPNESS
50%
PEAKING CONTROL
50%
COLOR TEMP ◀ MEDIUM
RED
50%
GREEN
50%
BLUE
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
50%
SCREEN
SETUP
RGB
SETUP
SETUP
CYCLE
TRIGGER
▶
MODE SELECT ◀ 1080P
▶
CONTRAST
60%
BRIGHTNESS
50%
COLOR
50%
TINT
50%
SHARPNESS
50%
PEAKING CONTROL
50%
COLOR TEMP ◀ MEDIUM
RED
50%
GREEN
50%
BLUE
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
50%
SCREEN
SETUP
RGB
SETUP
SETUP
CYCLE
TRIGGER
▶
MODE SELECT ◀ 1080P
▶
Page 22
22
Installation and User's Guide
Default setting is MEDIUM and switch to WARM, USER and
COOL color temperature options
USER - Default setting of RED, GREEN, BLUE is 50% and
adjustable from range of 0 to 100%
COLOR TEMP
CONTRAST
60%
BRIGHTNESS
50%
COLOR
50%
TINT
50%
SHARPNESS
50%
PEAKING CONTROL
50%
COLOR TEMP ◀ MEDIUM
RED
50%
GREEN
50%
BLUE
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
50%
SCREEN
SETUP
RGB
SETUP
SETUP
CYCLE
TRIGGER
▶
MODE SELECT ◀ 1080P
▶
SCREEN
PIP : Activates PIP/PBP mode
SCREEN
SCAN MODE
PIP
PIP INPUT
PIP SWAP
PIP SIZE
PIP R/T
SCREEN
SETUP
RGB
SETUP
SETUP
CYCLE
TRIGGER
◀ R/B
▶
◀ SMALL
▶
▶
◀ VIDEO2
▶
◀ OFF
▶
◀ FULL
▶
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
Press the MENU/EXIT key to access menu.
1.
Use the & arrow to highlight a selection.
2.
Press the /SELECT to choose an item.
3.
4.
Use the & arrow to highlight a selection.
5.
Use the & arrow to adjust the setting on a
selected item.
Page 23
23
Installation and User's Guide
This function of each menu is listed page 16
Please refer to page 16 for SETUP menu
PIP
SCREEN
SCAN MODE
PIP
PIP INPUT
PIP SWAP
PIP SIZE
PIP R/T
SCREEN
SETUP
RGB
SETUP
SETUP
CYCLE
TRIGGER
◀ R/B
▶
◀ SMALL
▶
▶
◀ VIDEO2
▶
◀ OFF
▶
◀ FULL
▶
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
Default setting is OFF and switch to ON, DW1 and DW2
PIP/PBP mode options
ON - PIP INPUT : Select an input source for PIP mode
(VIDEO1, VIDEO2, S-VIDEO)
PIP SWAP : Swap between main and PIP input
PIP SIZE : Select a size for PIP mode
(SMALL, NORMAL, LARGE)
PIP R/T : Select a location for PIP mode
(R/B, L/B)
SETUP
Press the MENU/EXIT key to access menu.
1.
Use the & arrow to highlight a selection.
2.
Press the /SELECT to choose an item.
3.
4.
Use the & arrow to highlight a selection.
5.
Use the & arrow to adjust the setting on a
selected item.
SETUP
INPUT
LANGUAGE
SOUND MUTE
BUTTON LOCK
NOISE REDUCTION
OSD TIME
SCREEN
SETUP
RGB
SETUP
SETUP
CYCLE
TRIGGER
DEFAULT
▶
LINE SHIFT ◀ ON
▶
◀ ON
▶
◀ OFF
▶
◀ OFF
▶
◀ ENGLISH
▶
◀ VIDEO1
▶
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
15s
NO OPERATION ◀ OFF
▶
Page 24
24
Installation and User's Guide

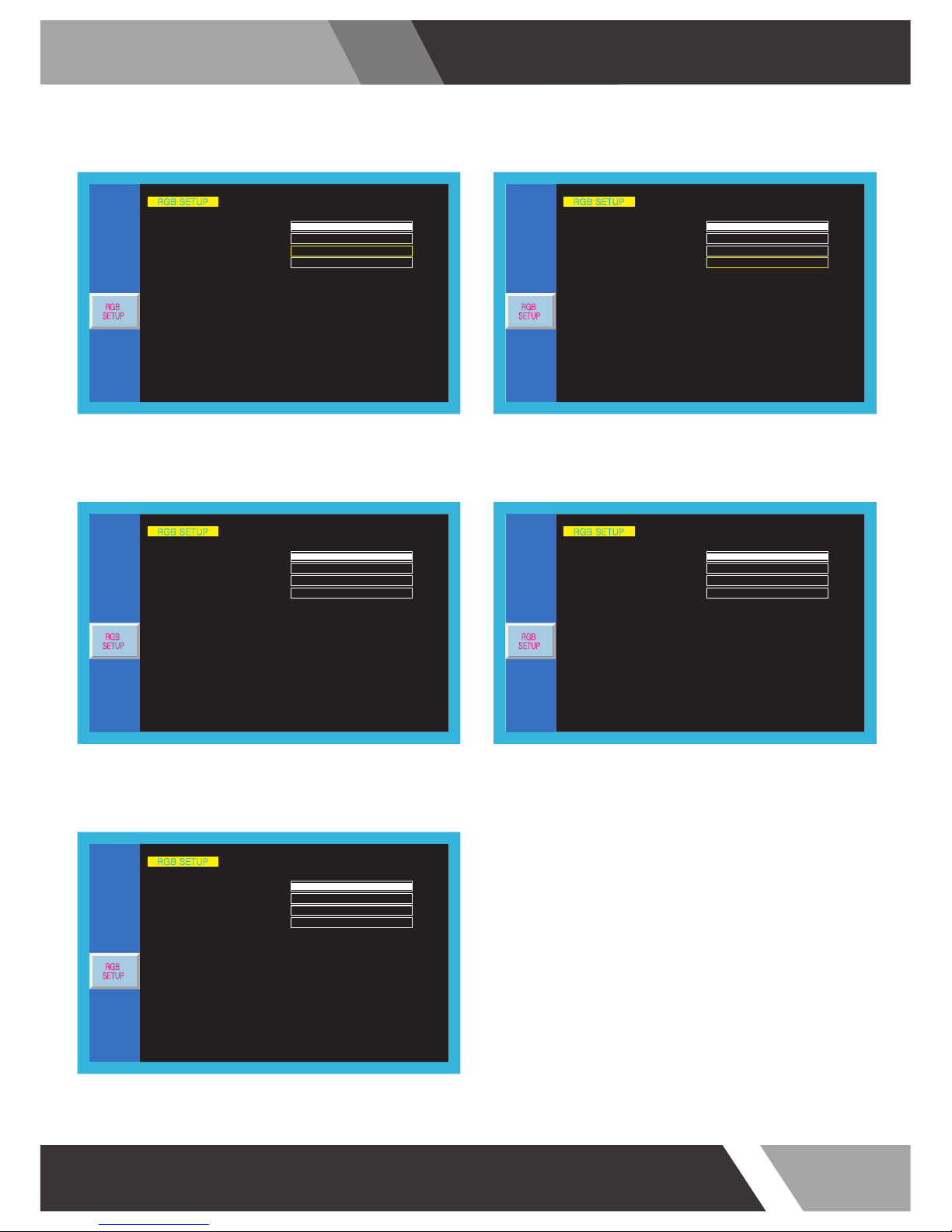

RGB SETUP
H-POSITION
V-POSITION
CLOCK
PHASE
AUTO ADJUST
POWER SAVING
SCREEN
SETUP
RGB
SETUP
SETUP
CYCLE
TRIGGER
AUTO REPEAT
◀ OFF
▶
▶
◀ OFF
▶
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
100%
0%
0%
0%
RGB SETUP
H-POSITION
V-POSITION
CLOCK
PHASE
AUTO ADJUST
POWER SAVING
SCREEN
SETUP
RGB
SETUP
SETUP
CYCLE
TRIGGER
AUTO REPEAT
◀ OFF
▶
▶
◀ OFF
▶
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
100%
0%
0%
0%
RGB SETUP
H-POSITION
V-POSITION
CLOCK
PHASE
AUTO ADJUST
POWER SAVING
SCREEN
SETUP
RGB
SETUP
SETUP
CYCLE
TRIGGER
AUTO REPEAT
◀ OFF
▶
▶
◀ OFF
▶
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
100%
0%
0%
0%
H-POSITION : Adjust horizontal position of monitor V-POSITION : Adjust vertical position of monitor
CLOCK : Adjust clock of monitor PHASE : Adjust phase of monitor
AUTO ADJUST : Auto adjust position of screen POWER SAVING : Power saving mode
AUTO REPEAT : Adjust auto repeat of monitor
RGB SETUP
Press the MENU/EXIT key to access menu.
1.
Use the & arrow to highlight a selection.
2.
Press the /SELECT to choose an item.
3.
4.
Use the & arrow to highlight a selection.
5.
Use the & arrow to adjust the setting on a
selected item.
H-POSITION V-POSITION
Can be set between 0 to 100% horizontal position of monitor
by manually
Can be set between 0 to 100% vertical position of monitor
by manually
Page 25
25
Installation and User's Guide
RGB SETUP
H-POSITION
V-POSITION
CLOCK
PHASE
AUTO ADJUST
POWER SAVING
SCREEN
SETUP
RGB
SETUP
SETUP
CYCLE
TRIGGER
AUTO REPEAT
◀ OFF
▶
▶
◀ OFF
▶
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
100%
0%
0%
0%
RGB SETUP
H-POSITION
V-POSITION
CLOCK
PHASE
AUTO ADJUST
POWER SAVING
SCREEN
SETUP
RGB
SETUP
SETUP
CYCLE
TRIGGER
AUTO REPEAT
◀ OFF
▶
▶
◀ OFF
▶
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
100%
0%
0%
0%
CLOCK PHASE
Can be set between 0 to 100% phase of monitor by manuallyCan be set between 0 to 100% clock of monitor by manually
RGB SETUP
H-POSITION
V-POSITION
CLOCK
PHASE
AUTO ADJUST
POWER SAVING
SCREEN
SETUP
RGB
SETUP
SETUP
CYCLE
TRIGGER
AUTO REPEAT
◀ OFF
▶
▶
◀ OFF
▶
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
100%
0%
0%
0%
RGB SETUP
H-POSITION
V-POSITION
CLOCK
PHASE
AUTO ADJUST
POWER SAVING
SCREEN
SETUP
RGB
SETUP
SETUP
CYCLE
TRIGGER
AUTO REPEAT
◀ OFF
▶
▶
◀ OFF
▶
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
100%
0%
0%
0%
AUTO ADJUST POWER SAVING
Default setting is OFF and switch to ON power saving modeAuto adjust position and image of screen
RGB SETUP
H-POSITION
V-POSITION
CLOCK
PHASE
AUTO ADJUST
POWER SAVING
SCREEN
SETUP
RGB
SETUP
SETUP
CYCLE
TRIGGER
AUTO REPEAT
◀ OFF
▶
▶
◀ OFF
▶
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
100%
0%
0%
0%
AUTO REPEAT
Default setting is OFF and switch to ON auto repeat mode
Page 26
26
Installation and User's Guide
This function of each menu is listed page 19
Please refer to page 19 for CYCLE SETUP menu
This function of each menu is listed page 20
Please refer to page 20 for TRIGGER menu
CYCLE SETUP
CYCLE TIME
CYCLE
VIDEO1
VIDEO2
S-VIDEO
RGB PC
SCREEN
SETUP
RGB
SETUP
SETUP
CYCLE
TRIGGER
DVI
HDMI 1 ◀ OFF
▶
HDMI 2 ◀ OFF
▶
◀ OFF
▶
◀ OFF
▶
◀ OFF
▶
◀ OFF
▶
◀ OFF
▶
◀ OFF
▶
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
10s
CYCLE SETUP
Press the MENU/EXIT key to access menu.
1.
Use the & arrow to highlight a selection.
2.
Press the /SELECT to choose an item.
3.
4.
Use the & arrow to highlight a selection.
5.
Use the & arrow to adjust the setting on a
selected item.
TRIGGER
Press the MENU/EXIT key to access menu.
1.
Use the & arrow to highlight a selection.
2.
Press the /SELECT to choose an item.
3.
4.
Use the & arrow to highlight a selection.
5.
Use the & arrow to adjust the setting on a
selected item.
TRIGGER
TRIGGER MODE
TRIGGER INPUT
TRIGGER DWELL
SCREEN
SETUP
RGB
SETUP
SETUP
CYCLE
TRIGGER
◀ OFF
▶
◀ VIDEO1
▶
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
10s
Page 27
27
Installation and User's Guide
VGA / DVI / HDMI Mode Tables
RESOLUTION VERTICAL FREQUENCY (Hz)
VGA
MODE
720X400 70
640X480 60 / 72 75
SVGA 800X600 50 / 60 / 72 / 75
XGA 1024X768 50 / 60 / 75
SXGA 1280X1024 50 / 60 / 75
VGA Mode
RESOLUTION VERTICAL FREQUENCY (Hz)MODE
720X480 30
720X576 25
SDTV 480p
EDTV 480i
EDTV 576i
720X480 60
SDTV 576p 720X576 60
HDTV 720p 1280X720 50 / 60
HDTV 1080i 1920X1080 30 / 25
HDTV 1080p 1920X1080 50 / 60
HDMI Mode
Note : Not all resolutions generated by your video source are available on the monitor.
Page 28
28
Installation and User's Guide
4-4 Menu Setting (DVI, HDMI Mode)
Default setting is 60% and adjustable from range of 0 to 100% Default setting is 50% and adjustable from range of 0 to 100%
Press the MENU/EXIT key to access menu.
1.
Use the & arrow to highlight a selection.
2.
Press the /SELECT to choose an item.
3.
4.
Use the & arrow to highlight a selection.
5.
Use the & arrow to adjust the setting on a
selected item.
CONTRAST : Adjust visual color contrast
CONTRAST BRIGHTNESS
BRIGHTNESS : Adjust color brightness
COLOR : Adjust visual color of screen TINT : Adjust tint of color
SHARPNESS : Adjust sharpness of screen COLOR TEMP : Switch color temperature of screen
CONTRAST
60%
BRIGHTNESS
50%
COLOR
50%
TINT
50%
SHARPNESS
50%
PEAKING CONTROL
50%
COLOR TEMP ◀ MEDIUM
RED
50%
GREEN
50%
BLUE
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
50%
SCREEN
SETUP
RGB
SETUP
SETUP
CYCLE
TRIGGER
▶
MODE SELECT ◀ 1080P
▶
CONTRAST
60%
BRIGHTNESS
50%
COLOR
50%
TINT
50%
SHARPNESS
50%
PEAKING CONTROL
50%
COLOR TEMP ◀ MEDIUM
RED
50%
GREEN
50%
BLUE
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
50%
SCREEN
SETUP
RGB
SETUP
SETUP
CYCLE
TRIGGER
▶
MODE SELECT ◀ 1080P
▶
CONTRAST
60%
BRIGHTNESS
50%
COLOR
50%
TINT
50%
SHARPNESS
50%
PEAKING CONTROL
50%
COLOR TEMP ◀ MEDIUM
RED
50%
GREEN
50%
BLUE
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
50%
SCREEN
SETUP
RGB
SETUP
SETUP
CYCLE
TRIGGER
▶
MODE SELECT ◀ 1080P
▶
Page 29
29
Installation and User's Guide
Default setting is 50% and adjustable from range of 0 to 100% Default setting is 50% and adjustable from range of 0 to 100%
COLOR TINT
CONTRAST
60%
BRIGHTNESS
50%
COLOR
50%
TINT
50%
SHARPNESS
50%
PEAKING CONTROL
50%
COLOR TEMP ◀ MEDIUM
RED
50%
GREEN
50%
BLUE
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
50%
SCREEN
SETUP
RGB
SETUP
SETUP
CYCLE
TRIGGER
▶
MODE SELECT ◀ 1080P
▶
CONTRAST
60%
BRIGHTNESS
50%
COLOR
50%
TINT
50%
SHARPNESS
50%
PEAKING CONTROL
50%
COLOR TEMP ◀ MEDIUM
RED
50%
GREEN
50%
BLUE
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
50%
SCREEN
SETUP
RGB
SETUP
SETUP
CYCLE
TRIGGER
▶
MODE SELECT ◀ 1080P
▶
Default setting is 1080P and switch to 1920X1080 mode
1080P - Bluray, DVD player and AV video equipment (2% Over Scan)
1920X1080 - It is the fit image on PC In (Just/Real Scan)
MODE SELECT
CONTRAST
60%
BRIGHTNESS
50%
COLOR
50%
TINT
50%
SHARPNESS
50%
PEAKING CONTROL
50%
COLOR TEMP ◀ MEDIUM
RED
50%
GREEN
50%
BLUE
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
50%
SCREEN
SETUP
RGB
SETUP
SETUP
CYCLE
TRIGGER
▶
MODE SELECT ◀ 1080P
▶
Default setting is 50% and adjustable from range of 0 to 100%
PEAKING CONTROL
CONTRAST
60%
BRIGHTNESS
50%
COLOR
50%
TINT
50%
SHARPNESS
50%
PEAKING CONTROL
50%
COLOR TEMP ◀ MEDIUM
RED
50%
GREEN
50%
BLUE
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
50%
SCREEN
SETUP
RGB
SETUP
SETUP
CYCLE
TRIGGER
▶
MODE SELECT ◀ 1080P
▶
Default setting is 50% and adjustable from range of 0 to 100%
Default setting is MEDIUM and switch to WARM, USER and
COOL color temperature options
USER - Default setting of RED, GREEN, BLUE is 50% and
adjustable from range of 0 to 100%
SHARPNESS
COLOR TEMP
CONTRAST
60%
BRIGHTNESS
50%
COLOR
50%
TINT
50%
SHARPNESS
50%
PEAKING CONTROL
50%
COLOR TEMP ◀ MEDIUM
RED
50%
GREEN
50%
BLUE
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
50%
SCREEN
SETUP
RGB
SETUP
SETUP
CYCLE
TRIGGER
▶
MODE SELECT ◀ 1080P
▶
CONTRAST
60%
BRIGHTNESS
50%
COLOR
50%
TINT
50%
SHARPNESS
50%
PEAKING CONTROL
50%
COLOR TEMP ◀ MEDIUM
RED
50%
GREEN
50%
BLUE
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
50%
SCREEN
SETUP
RGB
SETUP
SETUP
CYCLE
TRIGGER
▶
MODE SELECT ◀ 1080P
▶
Page 30
30
Installation and User's Guide
SCREEN
SCREEN
SCAN MODE
PIP
PIP INPUT
PIP SWAP
PIP SIZE
PIP R/T
SCREEN
SETUP
RGB
SETUP
SETUP
CYCLE
TRIGGER
◀ R/B
▶
◀ SMALL
▶
▶
◀ VIDEO2
▶
◀ OFF
▶
◀ FULL
▶
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
Press the MENU/EXIT key to access menu.
1.
Use the & arrow to highlight a selection.
2.
Press the /SELECT to choose an item.
3.
4.
Use the & arrow to highlight a selection.
5.
Use the & arrow to adjust the setting on a
selected item.
This function of each menu is listed page 16
Please refer to page 16 for SETUP menu
SETUP
Press the MENU/EXIT key to access menu.
1.
Use the & arrow to highlight a selection.
2.
Press the /SELECT to choose an item.
3.
4.
Use the & arrow to highlight a selection.
5.
Use the & arrow to adjust the setting on a
selected item.
SETUP
INPUT
LANGUAGE
SOUND MUTE
BUTTON LOCK
NOISE REDUCTION
OSD TIME
SCREEN
SETUP
RGB
SETUP
SETUP
CYCLE
TRIGGER
DEFAULT
▶
LINE SHIFT ◀ ON
▶
◀ ON
▶
◀ OFF
▶
◀ OFF
▶
◀ ENGLISH
▶
◀ VIDEO1
▶
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
15s
This function of each menu is listed page 22
Please refer to page 22 for SCREEN menu
NO OPERATION ◀ OFF
▶
Page 31
31
Installation and User's Guide
This function of each menu is listed page 19
Please refer to page 19 for CYCLE SETUP menu
This function of each menu is listed page 20
Please refer to page 20 for TRIGGER menu
CYCLE SETUP
CYCLE TIME
CYCLE
VIDEO1
VIDEO2
S-VIDEO
RGB PC
SCREEN
SETUP
RGB
SETUP
SETUP
CYCLE
TRIGGER
DVI
HDMI 1 ◀ OFF
▶
HDMI 2 ◀ OFF
▶
◀ OFF
▶
◀ OFF
▶
◀ OFF
▶
◀ OFF
▶
◀ OFF
▶
◀ OFF
▶
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
10s
CYCLE SETUP
Press the MENU/EXIT key to access menu.
1.
Use the & arrow to highlight a selection.
2.
Press the /SELECT to choose an item.
3.
4.
Use the & arrow to highlight a selection.
5.
Use the & arrow to adjust the setting on a
selected item.
TRIGGER
Press the MENU/EXIT key to access menu.
1.
Use the & arrow to highlight a selection.
2.
Press the /SELECT to choose an item.
3.
4.
Use the & arrow to highlight a selection.
5.
Use the & arrow to adjust the setting on a
selected item.
TRIGGER
TRIGGER MODE
TRIGGER INPUT
TRIGGER DWELL
SCREEN
SETUP
RGB
SETUP
SETUP
CYCLE
TRIGGER
◀ OFF
▶
◀ VIDEO1
▶
▼/▲ : MOVE ◀/▶ : ADJUST ▶ : ENTER MENU : EXIT VER : *.*
10s
Page 32
32
Installation and User's Guide
5. FEATURE
Screen Size 19.0 inches
Resolution 1280*1024 pixels
Pixel Pitch 0.293*0.293 mm
Brightness 250 cd/m^2
Contrast Ratio 1000:1
Aspect Ratio 5:4
Viewing Angle (H/V) 178/178 degrees
Display Color 16.7 millio n
Respo nse Time 14 ms
Video System NTSC/PAL
Panel Life Time (hours) 30,000 hours
Video In/Out (BNC Type) 2/2
S-Video In/Out 1/1
VGA In (15Pin D-Sub) 1
DVI In/HDMI In 1/2
Audio In (RCA Type) 3
PC Stereo In 1
Audio Built in Speakers Y (1W*
2)
Transmitter Remote Control Y
PIP/PBP
Dual Composite Display
Filter Type 3D Comb Filter
Deinterlacing Y
Trigger Source Switching Y (NO/NC)
LCD Protection Glass Y
Noise reduction Y
Auto source sequencing Y
Multi Lingual Language Eng, Spa, Fre, Ger, Ita
Dimension Outline Dimension (w Stand) 16.38*3.43*14.37 inches
Cabinet color/Base Stand Black/Tilt Back
Cabinet Material Electro-Galvanized Steel
AC 100~240 V (50/60Hz)
DC 12 V
Operating Temperature 0~40 celsius
Storage Temperature -20~60 celsius
VESA Mounts Size 100*100 mm
Ceiling Mount CMK- 01
Wall WB-5, 10, 30, 31
Rack Mount RMK-08
Cabinet
Power
Electrical Ratings
Circumstance
Mounts
Options
Display
Interface
Special
Features
Multi Display Function
Page 33
33
Installation and User's Guide
6. TROUBLESHOOTING
* When the following troubles are occurred, follow the trouble shooting. Before contacting service center.
Troubleshooting
The screen is too light
or to dark
Troubleshooting Tip
1. Make sure if the power supply is connected property
2. Turn on the power.
3. Select the input signal right for the connected port.
Control the BRIGHTNESS
The screen doesn’t
show up
The screen size is not fit
for the PC signal
Press the AUTO key among keys in the front.
(It is used only in the PC signal)
The screen color shows
strange in the PC signal
In the FUNCTION menu of OSD menu, perform the
The key pad does not work
Press ▲ and ◄ button on the key pad for 5 seconds.
AUTOADJUST.
Page 34
34
Installation and User's Guide
MEMO
Page 35
35
Installation and User's Guide
MEMO
Page 36
eneo® is a registered trademark of
VIDEOR E. Hartig GmbH
Exclusive distribution through specialised
trade channels only.
VIDEOR E. Hartig GmbH
Carl-Zeiss-Straße 8
63322 Rödermark/Germany
Tel. +49 (0) 6074 / 888-0
Fax +49 (0) 6074 / 888-100
www.videor.com
www.eneo-security.com
Technical changes reserved
© Copyright by VIDEOR E. Hartig GmbH
Version 04/2015
Loading...
