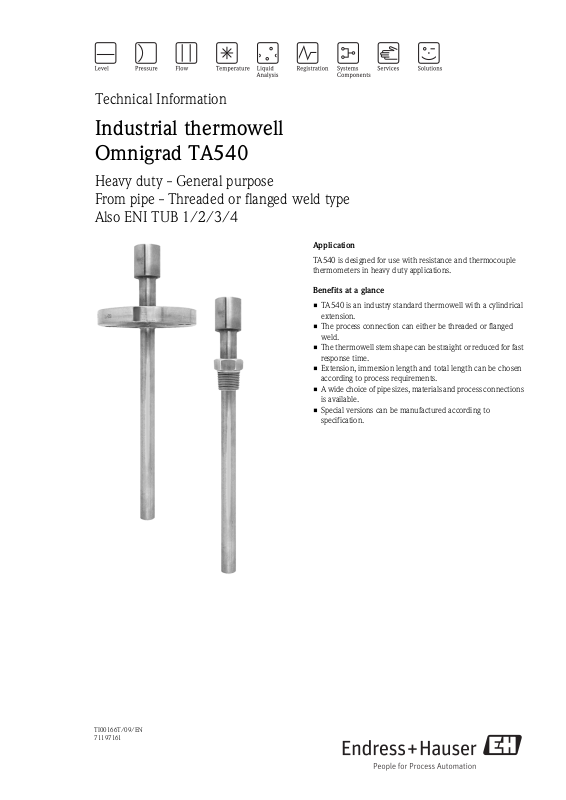

Industrial thermowell
Omnigrad TA540
Heavy duty - General purpose
From pipe - Threaded or flanged weld type
Also ENI TUB 1/2/3/4
Application
TA540 is designed for use with resistance and thermocouple
thermometers in heavy duty applications.
Benefits at a glance
• TA540 is an industry standard thermowell with a cylindrical
extension.
• The process connection can either be threaded or flanged
weld.
• The thermowell stem shape can be straight or reduced for fast
response time.
• Extension, immersion length and total length can be chosen
according to process requirements.
• A wide choice of pipe sizes, materials and process connections
is available.
• Special versions can be manufactured according to
specification.
TI00166T/09/EN
71197161
Page 2
Technical data
Pipe • Standard reference: ENI TUB 1, ENI TUB 2, ENI TUB 3, ENI TUB 4
• Cylindrical extension: Ø35 mm (1.38 in)
• Thermowell diameter: ¼" sch. 40/80, ½" sch. 40/80, ¾" sch. 40/80
Insert diameter: 6 mm (0.25 in)
Material: AISI316/W.1.4404, AISI446/W.1.4749
Connection to thermometer Threaded: ½" NPT, ¾" NPT - female, M20x1.5
TA540
Process connection
Threaded or flanged
Thread ½" NPT ¾" NPT 1" NPT 1½" NPT M20x1.5
Engagement
length
Flange type ANSI blind flange, DIN 2527/2526 Form C, UNI6000
Flange material AISI 316, A 105
Flange welding double side standard weld
8 mm (0.31 in) 8.5 mm (0.33 in) 10 mm (0.39 in) 10.5 mm (0.41 in) 15 mm (0.6 in)
Tip • Tip: straight, rounded or with reduced diameter
• Bottom shape: flat
• Bottom thickness: 5 mm (0.20 in)
2 Endress+Hauser
Page 3
TA540
Mechanical construction
Thermowell dimensions in mm (in):
1 Thermowell without process connection
2 Thermowell with NPT thread as process connection
3 Thermowell with M20 thread as process connection
4 Thermowell with flange as process connection
Pos.-No. Description
A Total length (A=T+L)
L Immersion length
ØQ1 Diamter thermowell tip, specification see product structure
R Thermowell tip length, specification see product structure
T Extension, specification see product structure
Gasket For cylindrical threads (M20x1.5) a gasket must be used to seal the connection.
Possible gasket dimension:
• M20x1.5: gasket 24x20.3x1.5 copper
The material of the gasket has to be resistant against the process medium.
The gasket is not part of the delivery.
