Proline Promag 10D
Electromagnetic flowmeter
The highly cost-effective flowmeter, available as compact wafer
Application
• The measuring principle is virtually independent of pressure,
density, temperature and viscosity
• For basic water applications; optimized for limited space and
plastic pipe installations
Device properties
• Short installation length and low weight
• Integrated ground disks made of stainless steel
• International drinking water approvals
• 2-line display with push buttons
• Device in compact or remote version
•HART
Your benefits
• Easy, fast centering of the sensor – innovative housing
construction
• Energy-saving flow measurement – no pressure loss due to
cross-section construction
• Maintenance-free – no moving parts
• Cost-effective – designed for easy applications and direct
integration
• Safe operation – display provides easy readable process
information
• Fully industry compliant – IEC/EN/NAMUR
Page 2
Table of contents
Proline Promag 10D
Function and system design . . . . . . . . . . . . . . . . . . . . . .3
Measuring principle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Measuring system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Measured variable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Measuring range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Operable flow range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Output signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Signal on alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Load . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Low flow cut off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Galvanic isolation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Terminal assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Supply voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Power consumption . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Power supply failure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Electrical connection
remote version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Potential equalization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Cable entries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Cable specification
remote version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Performance characteristics . . . . . . . . . . . . . . . . . . . . . .9
Reference operating conditions . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Maximum measured error . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Repeatability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Pressure loss . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Vibrations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Mechanical construction . . . . . . . . . . . . . . . . . . . . . . . 17
Design, dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Measuring tube specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Material . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Mounting bolts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Fitted electrodes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Process connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Operability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Local operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Remote operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Certificates and approvals . . . . . . . . . . . . . . . . . . . . . . 25
CE approval . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
C-tick symbol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Ex approval . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Drinking water approval . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Other standards and guidelines . . . . . . . . . . . . . . . . . . . . . . . . . 25
Ordering information . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Device-specific accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Measuring principle-specific accessories . . . . . . . . . . . . . . . . . 26
Communication-specific accessories . . . . . . . . . . . . . . . . . . . . . 27
Service-specific accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Mounting location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Orientation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Inlet and outlet runs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Adapters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Mounting kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Length of connecting cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Registered trademarks . . . . . . . . . . . . . . . . . . . . . . . . . 28
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Ambient temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Storage temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Degree of protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Shock and vibration resistance . . . . . . . . . . . . . . . . . . . . . . . . . 14
Electromagnetic compatibility (EMC) . . . . . . . . . . . . . . . . . . . . 14
Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Medium temperature range . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Medium pressure range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Conductivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Pressure-temperature ratings . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Pressure tightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Limiting flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2 Endress+Hauser
Page 3
Proline Promag 10D
Ue
I
I
B
L
V
Function and system design
Measuring principle Following Faraday's law of magnetic induction, a voltage is induced in a conductor moving through a
magnetic field.
In the electromagnetic measuring principle, the flowing fluid is the moving conductor.
The voltage induced is proportional to the flow velocity and is supplied to the amplifier by means of
two measuring electrodes. The flow volume is calculated by means of the pipe cross-sectional area. The
DC magnetic field is created through a switched direct current of alternating polarity.
Ue = B · L · v
Q = A · v
Ue Induced voltage
B Magnetic induction (magnetic field)
L Electrode spacing
v Flow velocity
Q Volume flow
A Pipe cross-section
I Current strength
Measuring system The measuring system consists of a transmitter and a sensor.
Two versions are available:
• Compact version: Transmitter and sensor form a mechanical unit.
• Remote version: Sensor is mounted separate from the transmitter.
Transmitter:
•Promag 10
(key operation, two-line, unilluminated display)
Sensor:
• Promag D as wafer version
DN 25 (1"), 40 (1 ½"), 50 (2"), 65 (–), 80 (3"), 100 (4")
• Promag D with threaded connection
DN 25 (1"), 40 (1 ½"), 50 (2")
a0003191
Input
Measured variable Flow velocity (proportional to induced voltage)
Endress+Hauser 3
Page 4
Measuring range Typically v = 0.01 to 10 m/s (0.033 to 33 ft/s) with the specified accuracy
Flow characteristic values (SI units)
Diameter Recommended flow Factory settings
min./max. full scale
value
[mm] [inch]
(v ~ 0.3 bzw. 10 m/s)
25 1" 9 to 300 75 0.50 1
40 1 ½" 25 to 700 200 1.50 3
50 2" 35 to 1100 300 2.50 5
65 – 60 to 2000 500 5.00 8
80 3" 90 to 3000 750 5.00 12
100 4" 145 to 4700 1200 10.00 20
Flow characteristic values (US units)
Diameter Recommended flow Factory settings
(v ~ 0.3 bzw. 10 m/s)
[inch] [mm]
1" 25 2.5 to 80 18 0.20 0.25
1 ½" 40 7 to 190 50 0.50 0.75
2" 50 10 to 300 75 0.50 1.25
– 65 16 to 500 130 1.00 2.00
3" 80 24 to 800 200 2.00 2.50
4" 100 40 to 1250 300 2.00 4.00
3
/min]
[dm
min./max. full scale
value
[gal/min]
Full scale value current output
(v ~ 2.5 m/s)
3
/min]
[dm
Full scale value current output
(v ~ 2.5 m/s)
[gal/min]
(~ 2 pulses/s)
(~ 2 pulses/s)
Pulse value
3
]
[dm
Pulse value
[gal]
Proline Promag 10D
Low flow cut off
(v ~ 0.04 m/s)
3
/min]
[dm
Low flow cut off
(v ~ 0.04 m/s)
[gal/min]
Operable flow range Over 1000 : 1
Output
Output signal Current output
• Galvanically isolated
• Active: 4 to 20 mA, RL < 700 Ω (for HART: RL ≥ 250 Ω)
• Full scale value adjustable
• Temperature coefficient: typ. 2 μA/°C, resolution: 1.5 μA
Pulse/status output
• Galvanically isolated
• Passive: 30 V DC / 250 mA
• Open collector
• Can be configured as:
– Pulse output
Pulse value and pulse polarity can be selected, max. pulse width adjustable (5 to 2000 ms),
pulse frequency max. 100 Hz
– Status output
For example, can be configured for error messages, flow recognition, limit value
Signal on alarm Current output
Failsafe mode can be selected (e.g. in accordance with NAMUR Recommendation NE 43)
4 Endress+Hauser
Page 5
Proline Promag 10D
Pulse output
Failsafe mode can be selected
Status output
"Not conductive" in the event of fault or power supply failure
Load See "Output signal"
Low flow cut off Low flow cut off, switch-on point can be selected as required
Galvanic isolation All circuits for inputs, outputs and power supply are galvanically isolated from each other
Power supply
Terminal assignment
Supply voltage • 85 to 250 V AC, 45 to 65 Hz
Power consumption Power consumption
Power supply failure Lasting min. ½ cycle frequency: EEPROM saves measuring system data
Order characteristic
for "inputs/outputs"
24 (+) 25 (–) 26 (+) 27 (–) 1 (L1/L+) 2 (N/L–)
A Pulse/status output HART current output Power supply
Functional values See "Output signal" See "Supply voltage"
• 20 to 28 V AC, 45 to 65 Hz
• 11 to 40 V DC
• 85 to 250 V AC: < 12 VA (incl. sensor)
• 20 to 28 V AC: < 8 VA (incl. sensor)
• 11 to 40 V DC: < 6 W (incl. sensor)
Switch-on current
• Max. 16 A (< 5 ms) for 250 V AC
• Max. 5.5 A (< 5 ms) for 28 V AC
• Max. 3.3 A (< 5 ms) for 24 V DC
Terminal No.
Endress+Hauser 5
Page 6
Electrical connection
b
a
e
e
b
2127
–
25–26
+
24
+
L1
(L+)
N
(L-)
e
g
b
d
h
i
c
f
b
S1
E1
E2
S2
GND
E
S
42 41
6
5
7
8437 36
dc
a
d
c
E1
E2
E
5
7
4
37
42 41
n.c. n.c.
Connecting the transmitter, cable cross-section max. 2.5 mm2 (14 AWG)
a Electronics compartment cover
bPower supply cable
c Ground terminal for protective ground
d Terminal connector for power supply cable
e Signal cable
f Ground terminal for signal cable
g Terminal connector for signal cable
h Service connector
i Ground terminal for potential equalization
Proline Promag 10D
A0003192
Electrical connection remote version
A0010695
Connecting the remote version
a Wall-mount housing connection compartment
b Sensor connection housing
c Signal cable
d Coil current cable
n.c. Not connected, insulated cable shields
Cable colors/numbers for terminals:
5/6 = brown, 7/8 = white, 4 = green, 41 = 1, 42 = 2
6 Endress+Hauser
Page 7
Proline Promag 10D
1
2
2
Potential equalization Perfect measurement can only be guaranteed if the fluid and sensor are on the same electric potential.
This is ensured by the two ground disks of the sensor.
The following should also be taken into consideration for potential equalization:
• Internal grounding concepts in the company
• Operating conditions, such as the material/grounding of the pipes, cathodic protection etc. (see
table)
Standard
Operating conditions Potential equalization
When using the measuring device in a:
• Metal, grounded pipe
• Plastic pipe
• Pipe with insulating lining
Potential equalization takes place via the ground terminal
of the transmitter (standard situation).
Note!
!
When installing in metal pipes, we recommend you connect
the ground terminal of the transmitter housing with the
piping.
Via the ground terminal of the transmitter
A0010702
Special cases for Promag D as wafer version
Operating conditions Potential equalization
When using the measuring device in a:
• Metal pipe that is not grounded
This connection method also applies in situations where:
• Customary potential equalization cannot be ensured
• Excessively high equalizing currents can be expected
Potential equalization takes place via the ground terminal
of the transmitter and the two pipe flanges.
Here, the ground cable (copper wire, 6 mm
mounted directly on the conductive flange coating with
flange screws.
When using the measuring device in a:
• Pipe with a cathodic protection unit
The device is installed potential-free in the pipe.
Only the two flanges of the pipe are connected with a
ground cable (copper wire, 6 mm
2
ground cable is mounted directly on the conductive flange
coating with flange screws.
Note the following when installing:
• The applicable regulations regarding potential-free
installation must be observed.
•There should be no electrically conductive connection
between the pipe and the device.
• The mounting material must withstand the applicable
torques.
2
/ 10 AWG) is
/ 10 AWG). Here, the
Via the ground terminal of the transmitter and the
flanges of the pipe (ground cable: copper wire at least
2
/ 10 AWG)
6mm
Potential equalization and cathodic protection (ground
cable: copper wire at least 6 mm
1 Power supply isolation transformer
2 Electrically isolated
2
/ 10 AWG)
A0010703
A0010704
Endress+Hauser 7
Page 8
Cable entries Power supply and signal cables (inputs/outputs):
1
2
3
4
5
6
7
a
b
• Cable entry M20 × 1.5 (8 to 12 mm / 0.31 to 0.47")
• Thread for cable entries, ½" NPT, G ½"
Connecting cable for remote version:
• Cable entry M20 × 1.5 (8 to 12 mm / 0.31 to 0.47")
• Thread for cable entries, ½" NPT, G ½"
Proline Promag 10D
Cable specification remote version
Coil current cable
2
• 3 × 0.75 mm
(18 AWG) PVC cable with common, braided copper shield (⌀ ~ 9 mm / 0.35")
• Conductor resistance: ≤ 37 Ω/km (≤ 0.011 Ω/ft)
• Capacitance core/core, shield grounded: ≤ 120 pF/m (≤ 37 pF/ft)
• Operating temperature: –20 to +80 °C (–4 to +176 °F)
• Cable cross-section: max. 2.5 mm
2
(16 AWG)
• Test voltage for cable insulation: ≥ 1433 V AC r.m.s. 50/60 Hz or ≥ 2026 V DC
Electrode cable
2
• 3 × 0.38 mm
(20 AWG) PVC cable with common, braided copper shield (⌀ ~ 9,5 mm / 0.37") and
individual shielded cores
• Conductor resistance: ≤ 50 Ω/km (≤ 0.015 Ω/ft)
• Capacitance core/shield: ≤ 420 pF/m (≤ 128 pF/ft)
• Operating temperature: –20 to +80 °C (–4 to +176 °F)
• Cable cross-section: max. 2.5 mm
2
(16 AWG)
A0003194
a Signal cable
b Coil current cable
1Core
2 Core insulation
3 Core shield
4 Core jacket
5 Core reinforcement
6 Cable shield
7 Outer jacket
Operation in zones of severe electrical interference
The measuring device complies with the general safety requirements in accordance with EN 61010-1,
the EMC requirements of IEC/EN 61326 and NAMUR Recommendation NE 21.
Caution!
"
Grounding is by means of the ground terminals provided for the purpose inside the connection
housing.
Ensure that the stripped and twisted lengths of cable shield to the ground terminal are as short as
possible.
8 Endress+Hauser
Page 9
Proline Promag 10D
2.5
[%]
2.0
1.5
1.0
0.5
0
0.5 %
0
1
2 4 6 8 10 [m/s]
v
5 10 15 20 25 30 32 [ft/s]0
Performance characteristics
Reference operating conditions
• Error limits following DIN EN 29104, future ISO 20456
• Water, typically +4 to +35°C (+39 to +95 °F); 2 to 6 bar (29 to 87 psi)
• Specification as per calibration protocol ± 5°C (± 41 °F) and ± 2 bar (± 29 psi)
• Data on the measured error based on accredited calibration rigs traced back to ISO 17025
Maximum measured error • Current output: also typically ±5 μA
• Pulse output: ±0.5% o.r. ± 2 mm/s (±0.5% o.r. ± 0.08 in/s) (o.r. = of reading)
Fluctuations in the supply voltage do not have any effect within the specified range.
Max. measured error in % of reading
A0003200
Repeatability Max. ±0.2% o.r. ± 2 mm/s (±0.2% o.r. ± 0.08 in/s) (o.r. = of reading)
Endress+Hauser 9
Page 10
Proline Promag 10D
h 2 x DN³
Installation
Mounting location The sensor should preferably be installed in an ascending pipe. Ensure the sensor is an adequate
distance (≥ 2 × DN) away from the next pipe bend.
!
Note!
Entrained air or gas bubble formation in the measuring tube can result in an increase in measuring
errors.
For this reason, the following mounting locations should be avoided:
• Highest point of a pipeline. Risk of air accumulating!
• Directly upstream from a free pipe outlet in a vertical pipeline. Risk of pipe not filling correctly!
!
A0010705
Mounting location
Installation with pumps
The sensor should only be installed on the pump pressure side.
Note!
• The sensor should never be installed on the pump suction side in order to avoid the risk of low
pressure, and thus damage to the measuring tube.
Information on the pressure tightness of the measuring tube → 15, section "Pressure tightness".
• Pulsation dampers may be needed if the sensor is installed downstream from piston pumps, piston
diaphragm pumps or hose pumps.
Information on the shock and vibration resistance of the device → 14, section "Shock and vibration
resistance".
A0010706
Installing the device with a pump
10 Endress+Hauser
Page 11
Proline Promag 10D
³ 5 x DN
³ 2 x DN
h
2
1
A
A
Partially filled pipes
Partially filled pipes with gradients necessitate a drain-type configuration.
A0010707
Installation with partially filled pipes
Down pipes
Install a siphon or a vent valve downstream of the sensor in down pipes h ≥ 5 m (16,4 ft). This
precaution is to avoid low pressure and the consequent risk of damage to the measuring tube. This
measure also prevents the system losing prime, which could cause air pockets. Information on the
pressure tightness of the measuring tube → 15, section "Pressure tightness".
Orientation
A0010708
Installation measures for down pipes
1Vent valve
2Pipe siphon
h Length of the down pipe
Vertical Horizontal
Vertical orientation is generally preferred. Vertical
orientation helps avoid gas and air accumulations and
deposits in the measuring tube.
The measuring electrode axis should be horizontal in
the case of horizontal orientations. This prevents
brief insulation of the two measuring electrodes by
entrained air bubbles.
A0010709
Vertical orientation
Horizontal orientation
1 Measuring electrodes for signal detection
A0010710
Endress+Hauser 11
Page 12
Proline Promag 10D
³
5 x DN
³ 2 x DN
Inlet and outlet runs If possible, install the sensor well clear of assemblies such as valves, T-pieces, elbows etc.
The following inlet and outlet runs must be observed in order to meet accuracy specifications:
• Inlet run ≥ 5 × DN
•Outlet run ≥ 2 × DN
A0010712
Inlet and outlet run
Adapters Suitable adapters to DIN EN 545 (double-flange reducers) can be used to install the sensor Promag D
as wafer version in larger-diameter pipes. The resultant increase in the rate of flow improves
measuring accuracy with very slow-moving fluids. The nomogram shown here can be used to calculate
the pressure loss caused by reducers and expanders.
!
Note!
• Adapters can not be used for Promag D with threaded connection.
• The nomogram only applies to liquids of viscosity similar to water.
The pressure loss is calculated as follows:
1. Calculate the diameter ratio: d/D
2. Read off the pressure loss (as a function of flow velocity (downstream from the reduction) and
the d/D ratio from the nomogram)
12 Endress+Hauser
Page 13
Proline Promag 10D
100
10
0.5
d / D
[mbar]
0.6 0.7 0.8 0.9
1 m/s
2 m/s
3 m/s
4 m/s
5 m/s
6 m/s
7 m/s
8 m/s
1
D
d
max. 8°
5
2
3
4
A0010713
Pressure loss due to adapters
Mounting kit The sensor Promag D as wafer version is installed between the pipe flanges with a mounting kit. The
device is centered using the recesses on the sensor. Centering sleeves are also provided depending on
the flange standard or the diameter of the pitch circle.
!
Note!
• For the sensor Promag D with threaded connection no mounting kit is required.
• A mounting kit consisting of mounting bolts, seals, nuts and washers can be ordered separately
(see "Accessories").
Mounting the sensor Promag D as wafer version
1Nut
2Washer
3 Mounting bolt
4 Centering sleeve
5Seal
A0010714
Endress+Hauser 13
Page 14
Length of connecting cable Note the following when mounting the remote version:
[ft]
200 6000
400
200
100
50 100 200
[m]
[ S/cm]μ
50
L
max
L
max
• Fix cable run or lay in armored conduit.
Note!
!
Cable movements can falsify the measuring signal especially in the case of low fluid conductivities.
• Route the cable well clear of electrical machines and switching elements.
• If necessary, establish potential equalization between the sensor and transmitter.
• The permitted cable length L
50 μS/cm is needed for all fluids.
is determined by the fluid conductivity. A minimum conductivity of
max
Proline Promag 10D

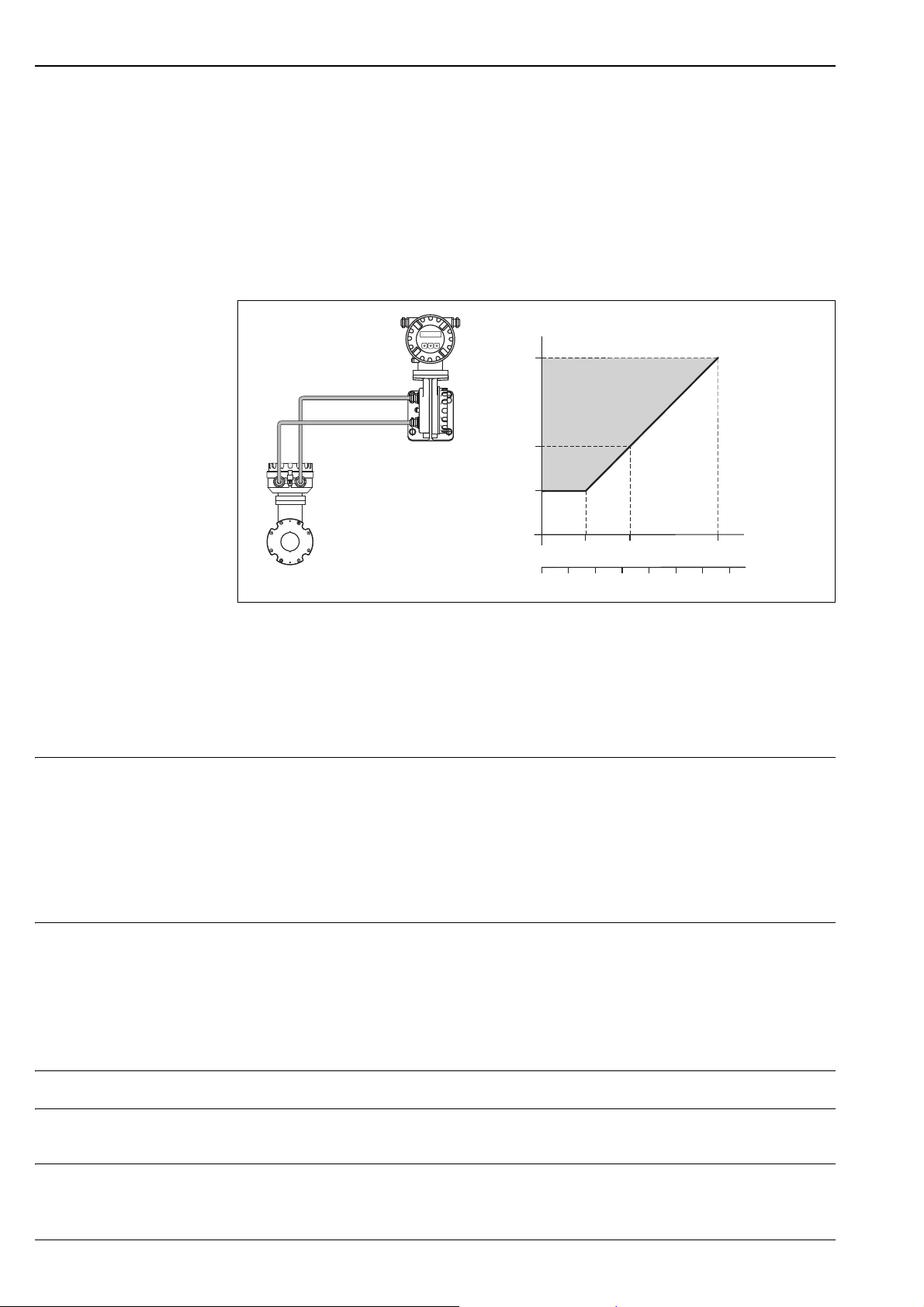

Permitted length of connecting cable for remote version
– The area shaded gray marks the permitted range
– Length of connecting cable L
– Fluid conductivity in [μS/cm]
max
Environment
Ambient temperature range • Sensor: –20 to +60 °C (–4 to +140 °F)
• Transmitter: –20 to +60 °C (–4 to +140 °F)
Caution!
"
• The permitted temperature range of the measuring tube lining may not be undershot or overshot
(→ 15, section "Medium temperature range").
• Install the device in a shady location. Avoid direct sunlight, particularly in warm climatic regions.
• The transmitter must be mounted separate from the sensor if both the ambient and fluid
temperatures are high.
Storage temperature • Sensor: –20 to +60 °C (–4 to +140 °F)
• Transmitter: –20 to +60 °C (–4 to +140 °F)
Caution!
"
• The measuring device must be protected against direct sunlight during storage in order to avoid
unacceptably high surface temperatures.
• A storage location must be selected where moisture does not collect in the measuring device. This
will help prevent fungus and bacteria infestation which can damage the liner.
Degree of protection IP 67 (NEMA 4X) for transmitter and sensor
Shock and vibration resistance
Electromagnetic compatibility (EMC)
Acceleration up to 2 g following IEC 600 68-2-6
• As per IEC/EN 61326 and NAMUR Recommendation NE 21
• Emission: to limit value for industry EN 55011
A0010715
14 Endress+Hauser
Page 15
Proline Promag 10D
[°C]
40 50 60 70 80 90 100 110 120 130 140 15030
[°F]
[psi]
40
0
80
0
[bar]
5 10152025303540 5545 50
60 65
0
[°C]
4
8
12
16
20
Process
Medium temperature range 0 to +60 °C (+32 to +140 °F)
Medium pressure range • EN 1092-1 (DIN 2501) up to PN 16
• ASME B 16.5 up to Class 150
• JIS B2220 up to 10 K
• DIN ISO 228 (G" external thread) up to PN 16
• ANSI/ASME B 1.20 (NPT" external thread) up to Class 150
Conductivity The minimum conductivity is ≥ 50 μS/cm
!
Note!
In the remote version, the necessary minimum conductivity also depends on the length of the
connecting cable (→ 10, section "Length of connecting cable").
Pressure-temperature ratings
Pressure tightness Measuring tube: 0 mbar abs (0 psi abs) with a fluid temperature of ≤ 60 °C (140 °F)
Limiting flow The diameter of the pipe and the flow rate determine the nominal diameter of the sensor.
Permitted process pressure
The optimum flow velocity is between 2 to 3 m/s (6,56 to 9, 84 ft/s). Th e velo city o f flow (v), m oreov er,
has to be matched to the physical properties of the fluid:
• v < 2 m/s (6,56 ft/s): for abrasive fluids such as potter's clay, lime milk, ore slurry etc.
• v > 2 m/s (6,56 ft/s): for fluids causing build-up such as wastewater sludges etc.
For an overview of the measuring range full scale values, see the "Measuring range" section → 4.
A0029352-EN
Pressure loss • No pressure loss if the sensor is installed in a pipe with the same nominal diameter.
• Pressure losses for configurations incorporating adapters according to DIN EN 545
(→ 12, section "Adapters")
Endress+Hauser 15
Page 16
Vibrations Secure the piping and the sensor if vibration is severe.
L
Caution!
"
If vibrations are too severe, we recommend the sensor and transmitter be mounted separately.
Information on the permitted shock and vibration resistance → 14, section "Shock and vibration
resistance".
Measures to prevent vibration of the measuring device
L > 10 m (32.8 ft)
Proline Promag 10D
A0010711
16 Endress+Hauser
Page 17
Proline Promag 10D
F
D
C
BA
DN 25…40
(1"…1½”)
DN 50
(2")
DN 65…100
(2½"…4")
E
G
J
H
d 1
e 1
d 1
d 2
d 1
d 2
e 1
e 1
d 2
e 2
Mechanical construction
Design, dimensions Compact version Promag D as wafer version
A0010716
Engineering unit mm (in)
Dimensions (SI units)
DN A B C D E F G H J d 1 d 2 e 1
EN (DIN) / JIS max. ⌀ seals
25
40 69 251 52 303 104 38 87
50 83 262 62 324 124 50 106
65 93 272 70 342 139 60 125
80 117 276 75 351 151 76 135
100 148 290 89 379 179 97 160
All dimensions in [mm]
178 20 to 27.5 153 to 168 113
55
240 43 283 86 24 68
150
Dimensions (US units)
DN A B C D E F G H J d 1 d 2 e 1 e 2
ANSI max. ⌀ seals
Endress+Hauser 17
1"
1 ½" 2.72 9.88 2.05 11.9 4.11 1.50 3.43 –
2" 3.27 10.3 2.44 12.8 4.88 1.97 4.17 –
3" 4.61 10.9 2.95 13.8 5.94 2.99 – 5.43
4" 5.83 11.4 3.50 14.9 7.05 3.82 6.30 –
All dimensions in [inch]
7.00 0.79 to 1.08 6.02 to 6.61 4.45
2.17
9.45 1.69 11.1 3.39 0.94 2.68 –
5.90
Page 18
Compact version Promag D with threaded connection
F
D
C
BA
E
G
J
H
SW
d 2
d 1
K
Proline Promag 10D
Dimensions (SI units)
DN A B C D E F G H J d 1 d 2 SW1) K
EN (DIN)
25
20 to
40 140 251 52 303 104 34.4 50 G1 ½"
50 200 262 62 324 124 43 60 G2"
1)
SW = Width across flats (AF)
All dimensions in [mm]
178
27,5
153 to
168
113
110
240 43 283 86 22 28 G1"
150
Dimensions (US units)
DN A B C D E F G H J d 1 d 2 SW1
)
ANSI
1"
1½ " 5.51 9.88 2.05 11.9 4.11 1.35 1.97 NPT 1½"
2" 7.87 10.3 2.44 12.8 4.88 1.69 2.36 NPT2"
1)
SW = Width across flats (AF)
All dimensions in [inch]
1.08
0.79 to
7
6.02 to
6.61
4.45
4.33
9.45 1.69 11.1 3.39 0.87 1.1 NPT1"
5.9
A0029291
K
18 Endress+Hauser
Page 19
Proline Promag 10D
K
F
E
D
A
H
L
N
O
P
J
G
B
C
M
Transmitter remote version
Transmitter dimensions, remote version
Dimensions (SI units)
A B C D E F G Ø H
178 113 135 20 to 27.5 153 to 168 113 100 8.6 (ISO-M8)
J K L M N O P
123 150 100 25 133 177.5 327.5
All dimensions in [mm]
Dimensions (US units)
A B C D E F G Ø H
7.00 14.5 5.31 0.79 to 1.08 6.02 to 6.61 4.45 3.94 0.34 (ISO-M8)
J K L M N O P
4.84 5.90 3.94 0.98 5.24 6.99 12.9
All dimensions in [inch]
A0010718
Endress+Hauser 19
Page 20
Transmitter mounting, remote version. Engineering unit mm (in)
248 ±2
(9.76 ±0.08)
238 (9.37)
AB
ANSCHLUSSKLEMMEN - FIELD TERMINALS
A Direct wall mounting
BPipe mounting
Proline Promag 10D
A0010719
20 Endress+Hauser
Page 21
Proline Promag 10D
E
C
B
A
D
F
H
G
d1
e1
d1
d2
d1
d2
e1
e1
e2
d2
DN 25…40
(1 to 1½")
DN 65…100
(2½ to 4")
DN 50
(2")
Sensor remote version Promag D as wafer version
A0021694
Engineering unit mm (in)
Dimensions (SI units)
DN A B C D E F G H d 1 d 2 e 1
EN (DIN) / JIS max. ⌀ seals
25
40 69 203 52 255 104 38 87
50 83 214 62 276 124 50 106
65 93 224 70 294 139 60 125
80 117 228 75 303 151 76 135
100 148 242 89 331 179 97 160
All dimensions in [mm]
129 163 143
55
192 43 235 86 24 68
102
Dimensions (US units)
5.08 6.42 5.63
2.17
7.56 1.69 9.25 3.39 0.94 2.68 –
4.02
DN A B C D E F G H d 1 d 2 e 1 e 2
ANSI max. ⌀ seals
1"
1 ½" 2.72 7.99 2.05 10.0 4.11 1.50 3.43 –
2" 3.27 8.43 2.44 10.9 4.88 1.97 4.17 –
3" 4.61 8.98 2.95 11.9 5.94 2.99 – 5.43
4" 5.83 9.53 3.50 13.0 7.05 3.82 6.30 –
Alle dimensions in [inch]
Endress+Hauser 21
Page 22
Sensor remote version Promag D with threaded connection
A
E
C
B
D
F
H
G
SW
d 2
d 1
K
Proline Promag 10D
Dimensions (SI units)
DN A B C D E F G H d 1 d 2 SW1) K
EN (DIN)
25
40 140 203 52 255 104 34,4 50 G1 ½"
50 200 214 62 276 124 43 60 G2"
1)
SW = Width across flats (AF)
All dimensions in [mm]
129 163 143
110
192 43 235 86 22 28 G1"
102
Dimensions (US units)
DN A B C D E F G H d 1 d 2 SW1) K
ANSI
1"
1 ½" 5.51 7.99 2.05 10.0 4.11 1.35 1.97 NPT1 ½"
1)
SW = Width across flats (AF)
All dimensions in [inch]
5.08 6.42 5.63
2" 7.87 8.43 2.44 10.9 4.88 1.69 2.36 NPT2"
4.33
7.56 1.69 9.25 3.39 0.87 1.1 NPT1"
4.02
A0029292
22 Endress+Hauser
Page 23
Proline Promag 10D
Weight Weight data without packaging material.
Compact version Remote version (without cable)
Diameter Total Sensor Transmitter Sensor
[inch] [mm] [lbs] [kg] [lbs] [kg] [lbs] [kg] [lbs] [kg] [lbs] [kg]
1" 25 6.4 2.9 2.4 1.1 4.0 1.8 5.5 2.5 6.8 3.1
1 ½" 40 7.7 3.5 3.7 1.7 4.0 1.8 6.8 3.1 6.8 3.1
2" 50 9.5 4.3 5.5 2.5 4.0 1.8 8.6 3.9 6.8 3.1
– 65 11.3 5.1 7.3 3.3 4.0 1.8 10.4 4.7 6.8 3.1
3" 80 13.5 6.1 9.5 4.3 4.0 1.8 12.6 5.7 6.8 3.1
4" 100 19.4 8.8 15.4 7.0 4.0 1.8 18.5 8.4 6.8 3.1
Transmitter
(field housing)
Measuring tube specifications
Pressure ratings Promag D as wafer version
Pressure rating EN (DIN)
Diameter
[inch] [mm] [inch] [mm] [inch] [mm] [inch] [mm]
1" 25
1 ½" 40 4 × M16 × 6.69" 170 2.68" 68 1.50" 38
2" 50 4 × M16 × 7.28" 185 3.23" 82 1.97" 50
– 65² 4 × M16 × 7.87" 200 3.62" 92 2.36" 60
– 65² 8 × M16 × 7.87" 200 – * – * 2.36" 60
3" 80 8 × M16 × 8.86" 225 4.57" 116 2.99" 76
4" 100 8 × M16 × 10.24" 260 5.79" 147 3.82" 97
≠
EN (DIN) flange: 4-hole → with centering sleeves
² EN (DIN) flange: 8-hole → without centering sleeves
* A centering sleeve is not required. The device is centered directly via the sensor housing.
Pressure
rating
EN (DIN) PN16
Mounting bolts
4 × M12 × 5.71" 145 2.13" 54 0.94" 24
Centering sleeves
length
Measuring tube
internal diameter
Pressure rating JIS
Diameter
[inch] [mm] [inch] [mm] [inch] [mm] [inch] [mm]
1" 25
1 ½" 40 4 × M16 × 6.69" 170 2.68" 68 1.50" 38
2" 50 4 × M16 × 7.28" 185 – * – * 1.97" 50
– 65 4 × M16 × 7.87" 200 – * – * 2.36" 60
3" 80 8 × M16 × 8.86" 225 – * – * 2.99" 76
4" 100 8 × M16 × 10.24" 260 – * – * 3.82" 97
* A centering sleeve is not required. The device is centered directly via the sensor housing.
Pressure
rating
JIS 10 K
Mounting bolts
4 × M16 × 6.69" 170 2.13" 54 0.94" 24
Centering sleeves
length
Measuring tube
internal diameter
Endress+Hauser 23
Page 24
Pressure rating ANSI
Proline Promag 10D
Diameter
[inch] [mm] [inch] [mm] [inch] [mm] [inch] [mm]
1" 25
1 ½" 40 4 × UNC ½ " × 6.50" 165 – * 1.50" 38
2" 50 4 × UNC 5/8" × 7.50" 190.5 – * 1.97" 50
3" 80 4 × UNC 5/8" × 9.25" 235 – * 2.99" 76
4" 100 8 × UNC 5/8" × 10.4" 264 5.79" 147 3.82" 97
* A centering sleeve is not required. The device is centered directly via the sensor housing.
Pressure
rating
ANSI Class 150
Mounting bolts
4 × UNC ½ " × 5.70" 145 – * 0.94" 24
Centering sleeves length
Measuring tube
internal diameter
Pressure ratings Promag D with threaded connection
Pressure rating EN (DIN)
Diameter
[mm] [inch] [mm] [inch] [mm] [inch]
25 1"
40 1 ½" G 1 ½" 50 1.97 38 1.50"
50 2" G 2" 60 2.36 50 1.97"
Pressure
rating
EN (DIN) PN16
Threaded
connection
G 1" 28 1.1 24 0.94"
Wrench size
SW
Measuring tube
internal diameter
Pressure rating ANSI
Diameter
[mm] [inch] [mm] [inch] [mm] [inch]
25 1"
40 1 ½" NPT 1 ½" 50 1.97 38 1.50"
50 2" NPT 2" 60 2.36 50 1.97"
Pressure
rating
ANSI Class 150
Threaded
connection
NPT 1" 28 1.1 24 0.94"
Material • Sensor housing: powder-coated die-cast aluminum
• Transmitter housing: powder-coated die-cast aluminum
• Measuring tube: polyamide, O-rings: EPDM
(Drinking water approvals: WRAS BS 6920, ACS, NSF 61, KTW/W270)
• Electrodes: 1.4435 (316L)
• Ground disks Promag D as wafer version: 1.4301 (304)
• Ground disks Promag D with threaded connection: 1.4301 (304)
Mounting bolts Tensile strength
• Galvanized steel mounting bolts: strength category 5.6 or 5.8
• Stainless steel mounting bolts: strength category A 2 – 70
Wrench size
SW
Measuring tube
internal diameter
Fitted electrodes Measuring electrodes (2 pieces) made of 1.4435 (316L)
24 Endress+Hauser
Page 25
Proline Promag 10D
Process connections Promag D as wafer version
The wafer version is compatible with the following process connections:
• EN 1092-1 (DIN 2501)
•ASME B16.5
• JIS B2220
Promag D with threaded connection
• DIN ISO 228, G" external thread
• ANSI/ASME B1.20, NPT" external thread
Operability
Local operation Display elements
• Liquid crystal display: unilluminated, two-line, 16 characters per line
• Display (operating mode) preconfigured: volume flow and totalizer status
• 1 totalizer
Operating elements
Local operation via three keys
Remote operation Operation via HART protocol and FieldCare
Certificates and approvals
CE approval The measuring system is in conformity with the statutory requirements of the EC Directives.
Endress+Hauser confirms successful testing of the device by affixing to it the CE mark.
C-tick symbol The measuring system meets the EMC requirements of the "Australian Communications and Media
Authority (ACMA)".
Ex approval Information about currently available Ex versions (ATEX, FM, CSA, IECEx, NEPSI etc.) can be supplied
by your Endress+Hauser Sales Center on request. All explosion protection data are given in a separate
documentation which is available upon request.
Drinking water approval • WRAS BS 6920
•ACS
•NSF 61
•KTW/W270
Other standards and guidelines
• EN 60529
Degrees of protection by housing (IP code)
• EN 61010-1
Safety requirements for electrical equipment for measurement, control and laboratory use
• IEC/EN 61326
"Emission in accordance with requirements for Class A".
Electromagnetic compatibility (EMC requirements)
• ANSI/ISA-S82.01
Safety Standard for Electrical and Electronic Test, Measuring, Controlling and related Equipment General Requirements. Pollution degree 2, Installation Category II.
• CAN/CSA-C22.2 No. 1010.1-92
Safety requirements for Electrical Equipment for Measurement and Control and Laboratory Use.
Pollution degree 2, Installation Category II
Endress+Hauser 25
Page 26
!
Proline Promag 10D
•NAMUR NE 21
Electromagnetic compatibility (EMC) of industrial process and laboratory control equipment.
•NAMUR NE 43
Standardization of the signal level for the breakdown information of digital transmitters with analog
output signal.
Ordering information
Detailed ordering information is available from the following sources:
• In the Product Configurator on the Endress+Hauser website: www.endress.com → Select country
→ Instruments → Select device → Product page function: Configure this product
• From your Endress+Hauser Sales Center: www.endress.com/worldwide
Note!
Product Configurator - the tool for individual product configuration
• Up-to-the-minute configuration data
• Depending on the device: Direct input of measuring point-specific information such as measuring
range or operating language
• Automatic verification of exclusion criteria
• Automatic creation of the order code and its breakdown in PDF or Excel output format
• Ability to order directly in the Endress+Hauser Online Shop
Device-specific accessories
Measuring principle-specific accessories
Accessories
Various accessories, which can be ordered separately from Endress+Hauser, are available for the
transmitter and the sensor. Your Endress+Hauser service organization can provide detailed
information on the specific order codes on request.
Accessory Description
Proline Promag 10 transmitter Transmitter for replacement or storage. Use the order code to define the
Accessory Description
Mounting kit for Promag D as
wafer version
Seal set for Promag D as wafer
version
Mounting set for remote version,
aluminum field housing
Cable for remote version Coil and signal cables, different lengths available
Process display
RIA45
following specifications:
• Approvals
• Degree of protection/version
• Cable for remote version
•Cable entry
• Display/power supply/operation
•Software
• Outputs/inputs
Consisting of:
•Mounting bolts
• Nuts incl. washers
• Flange seals
• Centering sleeves (if required for the flange)
Consisting of two flange seals.
Mounting kit suitable for pipe and wall mounting.
Multifunctional 1-channel display unit:
•Universal input
• Transmitter power supply
• Limit relay
•Analog output
26 Endress+Hauser
Page 27
Proline Promag 10D
Accessory Description
Process display
RIA251
Field display unit
RIA16
Memograph M graphic display
recorder
Application Manager RMM621 Electronic recording, display, balancing, control, saving and event and alarm
Digital display device for looping into the 4 to 20 mA current loop.
Digital field display device for looping into the 4 to 20 mA current loop.
The Memograph M graphic display recorder provides information on all the
relevant process variables. Measured values are recorded correctly, limit
values are monitored and measuring points analyzed. The data are stored in
the 256 MB internal memory and also on a DSD card or USB stick.
Memograph M boasts a modular design, intuitive operation and a
comprehensive security concept. The ReadWin
the standard package and is used for configuring, visualizing and archiving
the data captured.
The mathematics channels which are optionally available enable continuous
monitoring of specific power consumption, boiler efficiency and other
parameters which are important for efficient energy management.
monitoring of analog and digital input signals. Values and conditions
determined are output by means of analog and digital output signals.
Remote transmission of alarms, input values and calculated values using a
PSTN or GSM modem.
®
2000 PC software is part of
Communication-specific accessories
Accessory Description
HART Communicator
Field Xpert handheld terminal
Fieldgate FXA320 Gateway for remote interrogation of HART sensors and actuators via Web
Fieldgate FXA520 Gateway for remote interrogation of HART sensors and actuators via Web
Handheld terminal for remote configuration and for obtaining measured
values via the HART current output (4 to 20 mA) and FOUNDATION
Fieldbus.
Contact your Endress+Hauser representative for more information.
browser:
• 2-channel analog input (4 to 20 mA)
• 4 binary inputs with event counter function and frequency measurement
• Communication via modem, Ethernet or GSM
• Visualization via Internet/Intranet in Web browser and/or WAP cellular
phone
• Limit value monitoring with alarm by e-mail or SMS
• Synchronized time stamping of all measured values.
browser:
• Web server for remote monitoring of up to 30 measuring points
• Intrinsically safe version [EEx ia]IIC for applications in hazardous areas
• Communication via modem, Ethernet or GSM
• Visualization via Internet/Intranet in Web browser and/or WAP cellular
phone
• Limit value monitoring with alarm by e-mail or SMS
• Synchronized time stamping of all measured values
• Remote diagnosis and remote configuration of
connected HART devices
Endress+Hauser 27
Page 28
Proline Promag 10D
Service-specific accessories
Accessory Description
Applicator Software for selecting and planning flowmeters.
The Applicator software can be downloaded from the Internet or ordered on
CD-ROM for installation on a local PC.
Contact your Endress+Hauser representative for more information.
Fieldcheck Tester/simulator for testing flowmeters in the field.
When used in conjunction with the "FieldCare" software package, test results
can be imported into a database, printed out and used for official
certification.
Contact your Endress+Hauser representative for more information.
FieldCare FieldCare is Endress+Hauser's FDT-based asset management tool. It can
configure all intelligent field units in your system and helps you manage
them.
By using status information, it is also a simple but effective way of checking
their status and condition.
FXA193 Service interface from the device to the PC for operation via FieldCare.
Documentation
• Flow measuring technology (FA005D/06/EN)
• Operating Instructions Promag 10 (BA00082D/06/EN)
Registered trademarks
®
HART
Registered trademark of the HART Communication Foundation, Austin, USA
Applicator®, FieldCare®, Fieldcheck®
Registered or registration-pending trademarks of the Endress+Hauser Group
28 Endress+Hauser
Page 29
Proline Promag 10D
Endress+Hauser 29
Page 30
www.addresses.endress.com
Loading...
