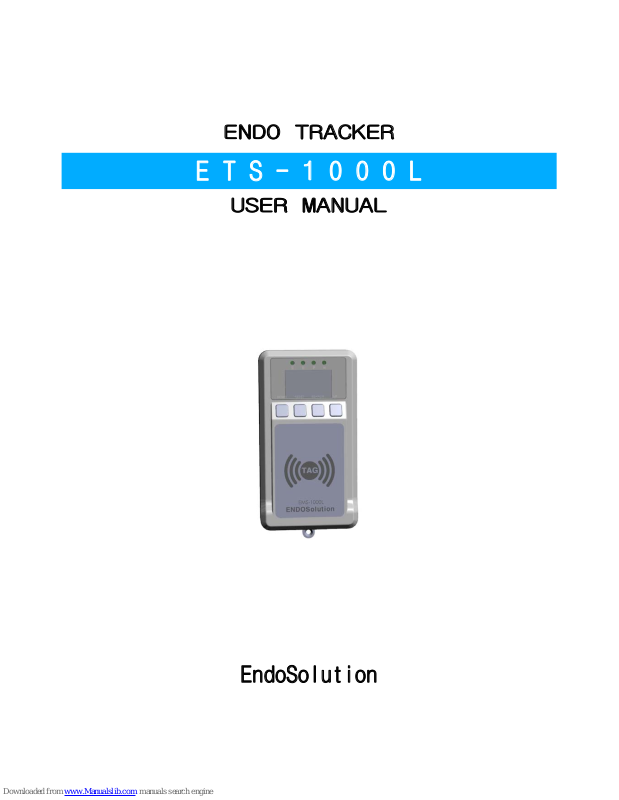

EndoSolution ETS-1000L User Manual
ENDO TRACKER
E T S - 1 0 0 0 L
USER MANUAL
EndoSolution
- 2 -
< Contents >
1. Notes before use
3
1-1. (Warning) Related to power adapter
3
1-2. (Warning) Prohibited requirements for the prevention of invasive
3
1-3. (Caution) About general use
3
2. The name of each part
3
3. H/W Diagram
4
4. How to use
4
4-1. Power Connection
4
4-2. System settings using mobile phone apps
5
4-3. install
5
4-4. How to use in the laboratory
5
4-5. How to use in the disinfecting room
6
4-6. How to use in the storage room
6
4-7. How to use in the administration Office
6
5. Care and Storage
7
6. Product Specifications
7
- 3 -
1. Notes before use
▶ Please refer to the user manual always keep in close.
▶ Before you can use in order to safely and properly use, please read this manual carefully.
- Warning : When handled improperly, it will display the content that can result in death or
injury.
- Caution : When handled improperly, it will display the content by injury or material loss
that may have occurred.
☞ Material loss says the losses up to houses, livestock and pets.
1-1. (Warning) Related to power adapter
▶ Use only the power adapter !
▶ Do not excessively bend or damage the power cord !
1-2. (Warning) Prohibited requirements for the prevention of invasive
▶ Use in a place without water !
▶ Please use the main body in places that do not fall water !
▶ When used near water, use a waterproof sheet !
1-3. (Caution) About general use
▶ Please use after you fully understand the instruction manual of this product !
▶ Do not use for any purpose other than !
▶ Do not disassemble or modify the main body !
▶ Do not drop or give strong impact to the main body !
2. The name of each part
① FrontLED : S(red) D(white) P(green) T(blue)
④ Down
⑤ Reset
⑥ Search
⑦ Up
⑧ NFC
② Corner LED
③ 4Digit LED
⑨ Adaptor LAN Port Run/Set
- 4 -
3. H/W Diagram
4. How to use
Endoscopic checker, sterilizers and storage box etc in the endoscopic management system, attach
each in the ETS-1000L. When an endoscopy or disinfection will lead the RFID tag. So transfer the
data to the server, and used to display the data received from the server.
A network configuration of an endoscope management system
4-1. Power Connection
1) A dedicated Adaptor to connect to the adapter jack of the main body.
- When the power is turned on will automatically connect to the server.
- If the server connection fails, automatic retry the connection.
Caution - If you continue to server connection fails, check the system settings using a mobile
phone app.
Loading...
