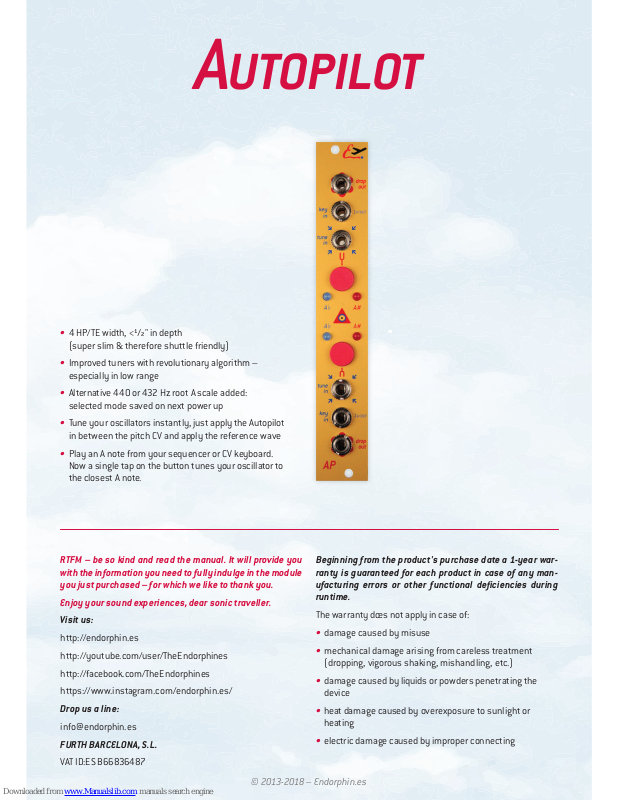

A
utopilot
RTFM – be so kind and read the manual. It will provide you
with the information you need to fully indulge in the module
you just purchased – for which we like to thank you.
Enjoy your sound experiences, dear sonic traveller.
Visit us:
http://endorphin.es
http://youtube.com/user/TheEndorphines
http://facebook.com/TheEndorphines
https://www.instagram.com/endorphin.es/
Drop us a line:
info@endorphin.es
FURTH BARCELONA, S.L.
VAT ID:ES B66836487
Beginning from the product's purchase date a 1-year warranty is guaranteed for each product in case of any manufacturing errors or other functional deficiencies during
runtime.
The warranty dœs not apply in case of:
• damage caused by misuse
• mechanical damage arising from careless treatment
(dropping, vigorous shaking, mishandling, etc.)
• damage caused by liquids or powders penetrating the
device
• heat damage caused by overexposure to sunlight or
heating
• electric damage caused by improper connecting
• 4 HP/TE width, <½" in depth
(super slim & therefore shuttle friendly)
• Improved tuners with revolutionary algorithm –
especially in low range
• Alternative 440 or 432 Hz root A scale added:
selected mode saved on next power up
• Tune your oscillators instantly, just apply the Autopilot
in between the pitch CV and apply the reference wave
• Play an A note from your sequencer or CV keyboard.
Now a single tap on the button tunes your oscillator to
the closest A note.
© 2013-2018 – Endorphin.es
© 2013-2018 – Endorphin.es
Cable Colour Code
TURN ON
(Key in)
TUNE IN
DROP OUT
short press to tune on,
long press to tune off
TO THE GATES
1v/oct (pitch CV)
from Shuttle Control
or any sequencer
tuned
pitch CV out
reference wave
AUTOPILOT

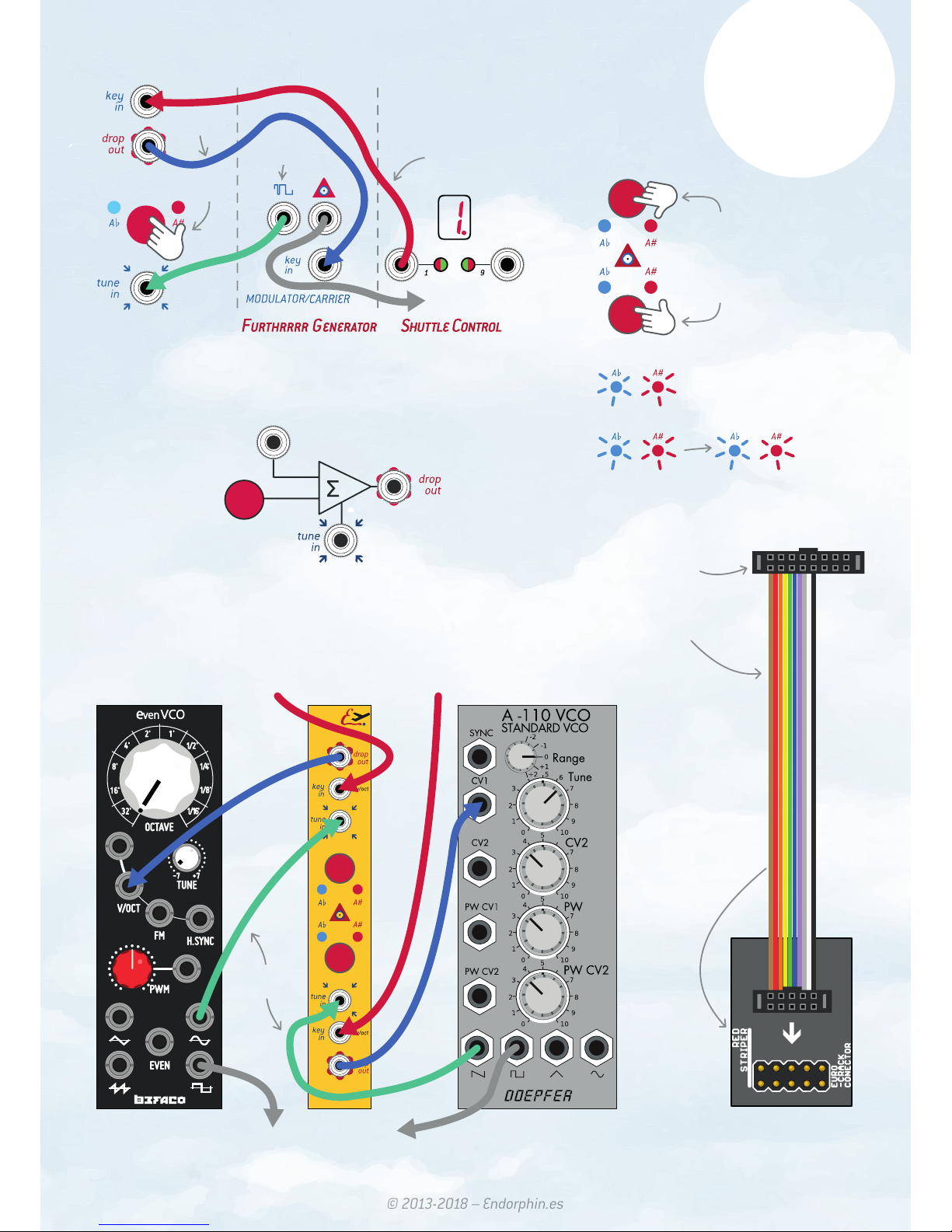

PRINCIPAL CONNECTION WITH ENDORPHIN.ES MODULES:
key
in
tune button generates
stepped voltage to
match VCO to the closest
A-note (after analyzing the
reference wave’s frequency)
summed voltage
INTERNAL SCHEMATIC (EACH PART):
reference waveform
input for analyzing the tune
pitch voltage from sequencer
or MIDI-CV keyboard
MODES CHANGE:
one blink at startup — 440 Hz root A:
two blinks at startup — 432 Hz root A:
holding both buttons
for a second
switches
between
440 and 432 Hz
root A modes
CONNECTION WITH ANY OTHER MODULES:
from 1v/oct pitch CV out from your sequencer
to VCO mixer or VCF/VCA
reference
waveforms
POWER CONNECTION:
red/brown pair or wires
correspond to negative
-12V power connector
to power buss board
Autopilot module – rear side
