The Light pack contains:
The following tools may be required:
YG-4500 Outdoor wall fitting.
Safety Warnings
INSTRUCTION MANUAL
This product is only suitable for connection to a 240V~50Hz supply.
It is recommended that this light is installed by a qualified electrician in accordance with current IEE Wiring
Regulations and local Building Regulations.
The light fitting should be connected to a lighting circuit protected by a 5 amp fuse (or a 6 amp miniature
circuit breaker).
This light has an IP44 (splash proof) rating suitable for use outdoors.
Run supply wire from a 5-amp electrical supply using double insulated 3-core cable of type H05RN-F 1.0mm
(not supplied) to selected site, ensuring it is adequately protected through the full length of the cable run, it
must come out of the flat surface of the mounting surface in line with the entry to the fitting.
Except where installed in a conduit or duct , which provides equivalent protection against mechanical damage,
a cable buried in the ground shall incorporate an earthed armour or metal sheath or both, suitable for use as a
protective conductor, or be of insulated concentric construction. Buried cables shall be marked by cable
covers or a suitable marking tape. Buried conduits and ducts shall be suitably identified. Buried cables,
conduits and ducts shall be at a sufficient depth to avoid being damaged by any reasonably foreseeable
disturbance of the ground.
This product contains breakable parts – be careful during handling and maintenance to avoid breakage.
The bulb and lid cover can become hot in use. Switch off and allow 10 minutes to cool before cleaning (using a
dry cloth only – do not use liquid or abrasive cleaners).
If any part of the bulb housing is broken or cracked then it must be replaced immediately to preserve the water
ingress protection, please consult your retailer. This is represented by the symbol
If any modification is made it will invalidate the warranty and may render the product unsafe.
Before you start
Please read these instructions carefully before fitting your new light and retain for reference.
Switch off the mains supply and remove the appropriate fuse or switch off the appropriate circuit breaker
before commencing installation.
Ensure that no one else has access that would enable the supply to be inadvertently reconnected.
Check the packaging and make sure that you have all the required parts.
Follow each assembly step in order to prevent incorrect assembly
Make sure all screws / nuts, including electrical connections etc are fully tightened before use.
Wall light with integral terminal connector.
Selection of cross and flat head screwdrivers.
Electric drill and assorted drill bits.
Wire strippers.
Electrical insulation tape.
2

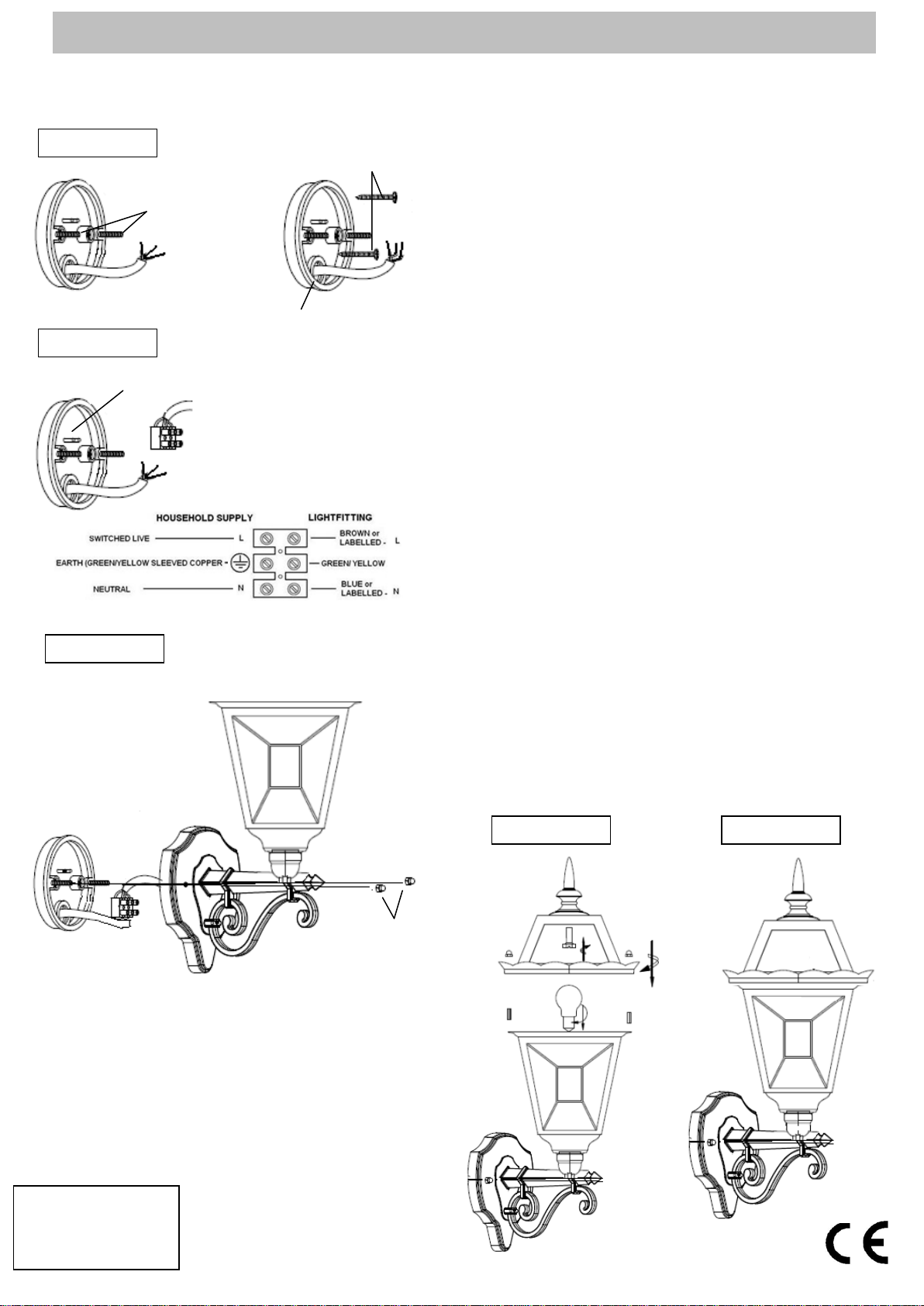

Assembly / user instructions
W28 13
Diagram A
Diagram B
Diagram C
1. Determine the position of your light fitting taking into
Diagram D
Diagram E
Fixing screws
Grommet
Terminal post
Threaded nuts
These assembly diagrams are intended as a guide – if in doubt consult a qualified electrician.
Threaded bolts
terminal block. The cable entry grommet must be
securely in place to ensure that the water ingress
protection is maintained. NOTE: This is a Class I
fitting and must be earthed. Connect the incoming
mains as per the diagram.
account the entry position of the cable and make sure
there is sufficient cable coming out of the wall to
connect to the terminal block. Ensure that the mounting
surface is solid, preferably a brick or block wall and
ensure that there are no other cables or pipes beneath
the surface.
2. Diagram A. Fit the 2 threaded posts in the back plate
and bring the mains cable through the rubber grommet
then use the back plate as a template and mark the 2
fixings holes, making sure the back plate is correctly
aligned so that the threaded bolts are horizontal. Use
appropriate fixings to secure the back plate to the wall.
Diagram B. Connect the house wiring to the internal
3.
4. Diagram C. Fit the terminal block onto the post in the
back plate and then fit the front frame over the 2
threaded bolts in the back plate and secure with the 2
threaded nuts. Take care not to trap or strain the
internal cables.
5. Diagrams D and E. Construct the lid as shown. Fit the
appropriate bulb into the lamp holder NOTE: Never fit
a bulb of a higher wattage than that specified on
the label (as this may cause overheating and
damage the fitting). Secure the lid onto the head
frame.
6. Turn on the power and test.
Endon Lighting
LS9 0SE
