The Light pack contains:
The following tools may be required:
Aherne – 3CH and 5CH (Semi-Flush fittings)
Safety Warnings
INSTRUCTION M ANUAL
These products are only suitable for connection to a 240V~50Hz supply in accordance with current
IEE wiring Regulations and should be installed in accordance with local Building Regulations and
are for Domestic indoor ceiling use only and not suitable for a Bathroom location.
The light fittings should be connected to a lighting circuit protected by a 5 amp fuse (or a 6 amp
miniature circuit breaker).
If in doubt we recommend you contact a qualified electrician. Before installing your light fitting
always:
Switch off the mains supply and remove the appropriate fuse or switch off the appropriate circuit
breaker before commencing installation.
Ensure that no one else has access that would enable the supply to be inadvertently reconnected.
Never fit bulbs of a higher wattage or of a type other than those specified on the label as this may
cause overheating and damage the fitting.
These product contains glass parts – be careful during handling and maintenance to avoid
breakage.
The bulbs become hot during use so please switch off and allow 10 minutes to cool before replacing
bulbs or cleaning the fitting.
This fitting is heavy and you may require assistance in connecting it to the supply and securing it to
the mounting surface. When fixing to the mounting surface ensure that the fixings used are
appropriate for the mounting surface on which they are being used.
Clean with a dry cloth only. Do not use liquid or abrasive cleaners on this product.
If any modification is made it will invalidate the warranty and may render the product unsafe.
Before you start
Please read these instructions carefully before fitting your new light and retain for reference.
Make sure that there are no pipes or cables beneath the mounting surface.
Check the packaging and make sure that you have all the required parts.
Follow each assembly step in order to prevent incorrect assembly.
Make sure all screws / nuts, including electrical connections etc are fully tightened before use.
This type of Light Fitting may be connected to a Dimmer if a Tungsten incandescent bulb (as
supplied) is used. If a CFL/LED type bulb is fitted then these cannot (generally) be controlled by a
dimmer.
Light fitting and mounting bracket.
Terminal connection block(s).
G9 bulbs.
Selection of cross and flat head screwdrivers.
Electric drill and assorted drill bits.
Wire strippers.
Electrical insulation tape.
1
Assembly/ User Instructions
I080 14

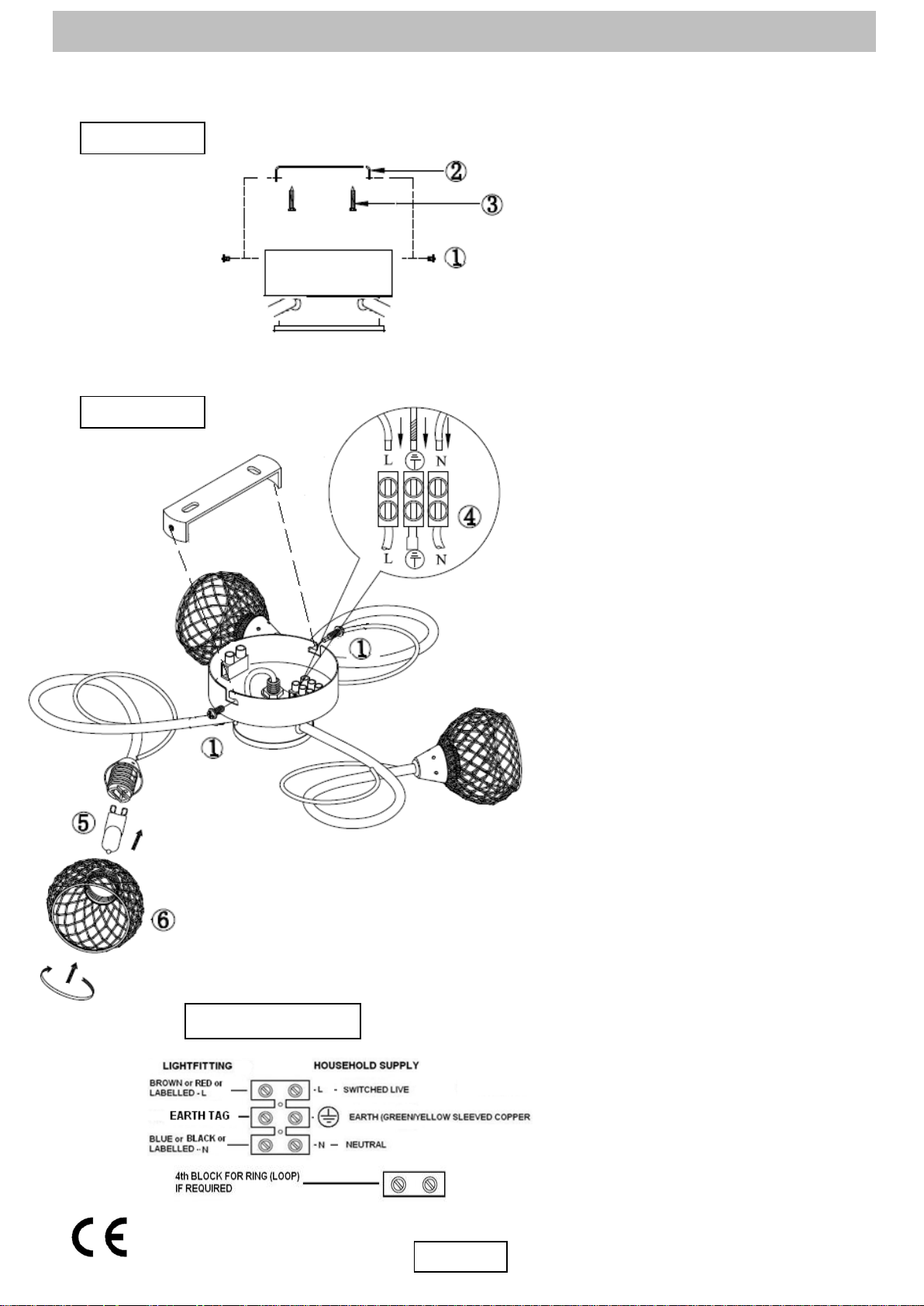

Diagram A
1. Decide on the position of the light fitting /
WIRING DETAILS
Diagram B
These assembly diagrams are intended as a guide – if in doubt consult a qualified electrician.
The 3 light fitting is shown here but the same general instruction applies to the 5 light fittings.
or remove existing light fitting. Take a
note of the position of the electrical
connections. Ensure there is a solid
mounting surface, preferably a wooden
joist or joist bridge to support the weight
of the light fitting.
2. See Diagram A. Remove the fixing
bracket by undoing the 2 side screws
(1), retain for re-use.
3. Use the fixing bracket (2) as a template
to mark the screw holes, mark the screw
holes and secure to the ceiling with the
screws (3) supplied.
4. Diagram B. Support your fitting and
connect the house wiring to the terminal
block (4) – see wiring details. NOTE:
This is a Class I fitting and must be
earthed. The 4
connector is used for the “loop” wires of
the “Ring Circuit”. There may be more
than one set of cables in the “loop”
connections. If there is a “Ring Circuit”
and you do not understand the
connections you must consult an
electrician.
not secured to ceiling cup - should
always be covered with 2 layers of good
quality insulation tape.
5. Secure the fitting back onto the fixing
bracket with the 2 side screws (1),
removed in 2 above. Make sure that all
the internal cables and connections are
inside the ceiling cup taking care not to
trap or strain the internal cables.
6. Fit the bulbs (5) being careful not to
touch the bulbs with your bare hands –
use a cloth or gloves to insert the bulbs.
NOTE; Never fit bulbs of a higher
wattage or of a type other than those
provided / specified on the lab el (as
these may cause overheating and
damage the fitting).
7. Fit the shades (6) by carefully placing
them over the bulbs and screwing them
onto the threaded lamp holder.
8. Turn on the power and test.
th
terminal block
Any loose terminal blocks –
2
