1.0 OVERVIEW
Introduction
The installation of the Endace DAG 4.3S card on a PC begins with
installing the operating system and the Endace software. This is followed
by fitting the card and connecting the ports.
Viewing this
document
In this chapter
This document, DAG 4.3S Card User Manual is available on the
installation CD.
This chapter covers the following sections of information.
• User Manual Purpose
• DAG 4.3S Card Product Description
• DAG 4.3S Card Architecture
• DAG Card Extended Functions
• EMI Suppression Ferrite Fitting
• DAG 4.3S Card System Requirements
1.1 User Manual Purpose
Description
Prerequisite
The purpose of this DAG 4.3S Card User Manual is to describe:
DAG 4.3S Card Product Description
DAG 4.3S Card Architecture
DAG Card Extended Functions
EMI Suppression Ferrite Fitting
DAG 4.3S Card System Requirements
This document presumes the DAG card is being installed in a PC already
configured with an operating system.
A copy of the Debian Linux 3.1 (Sarge) is available as a bootable ISO
image on one of the CD's shipped with the DAG card.
To install on the Linux/FreeBSD operating system, follow the instructions
in the document EDM04.05-01r1 Linux FreeBSD Installation Manual,
packaged in the CD shipped with the DAG card.
To install on a Windows operating system, follow the instructions in the
document EDM04.05-02r1 Windows Installation Manual, packaged in the
CD shipped with the DAG card.
1
Revision 6. 22 September 2005.
Endace Measurement Systems.
http://www.endace.com
1.2 DAG 4.3S Card Product Description
EDM01.05-10r1 DAG 4.3S Card User Manual
Description
The DAG 4.3S card is designed only for PCI-X buses. It is capable of cell
and packet capture and generation on IP networks.
Figure
Figure 1-1 shows the DAG 4.3S series PCI-X card.
Figure 1-1. DAG 4.3S series PCI-X Card.
The DAG 4.3S card collects packet header and payload from ATM, POS,
and supports ATM, PPP HDLC, CISCO, HDLC over OC40c SONET or
SDH networks.
Full packet or cell capture at line rate allows recording of all header
information payload and with a high precision timestamp, subject to bus
and processor availability.
The DAG 4.3S is capable of transmitting packets at 100% line rate while
simultaneously receiving packets at 100% line rate.
1.3 DAG 4.3S Card Architecture
Description
Serial SONET optical network data received by optical interface flows
into a physical layer ASIC, then immediately into the Field-Programmable
Gate Array [FPGA].
The FPGA contains an Endace DAG Universal Clock Kit [DUCK]
timestamp engine, packet record processor, and PCI-X interface logic.
Because of component close association, packets or cells are time-stamped
accurately. Time stamped packet records are stored in an external FIFO
memory before transmission to the host.
Continued on next page
2
Revision 6. 22 September 2005.
Endace Measurement Systems.
http://www.endace.com
1.3 DAG 4.3S Card Architecture, continued
EDM01.05-10r1 DAG 4.3S Card User Manual
Figure
Figure 1-2 shows the DAG 4.3S card major components and data flow.
Tx
Optics Module
Rx
LED’s
Sync
In/Out
Time Stamping
Clock
FIFO
Figure 1-2. DAG 4.3S Card Major Components and Data Flow.
1.4 DAG Card Extended Functions
Framer
DAG 4.3
FPGA
PCI-X 64-Bit 66-133MHz
Coprocessor
Connector
CPLD
Flash
ROM
Description
The DAG 4.3S functionality can be extended in many ways.
The co-processor allows for advanced features such as IP packet filtering
in hardware at line rate. Contact the Endace customer support team at
support@endace.com to enable effective use of extended functions.
3
Revision 6. 22 September 2005.
Endace Measurement Systems.
http://www.endace.com
1.5 EMI Suppression Ferrite Fitting
EDM01.05-10r1 DAG 4.3S Card User Manual
Description
Figure
In order to ensure compliance to EN55022 and FCC 47 Part 15 Class A
Radiated emission limits, the supplied EMI Suppression Ferrite must be
fitted to any cable connected to the Time Synchronization Connector.
The Ferrite component supplied in the DAG 4.3S product packaging box
must be fitted within 1cm of the plug housing..
Figure 1-3 shows the DAG 4.3S card Ferrite component.
Figure 1-3. DAG 4.3S Card Ferrite Component.
1.6 DAG 4.3S Card System Requirements
Description
Operating
system
The DAG 4.3S card and associated data capture system minimum
operating requirements are:
• PC, at least Intel Xeon 1.8GHz or faster
• Intel E7500, ServerWorks Grand Champion LE/HE or newer chip set
256 MB RAM
• At least one free PCI-X 1.0 slot supporting 66-133MHz operation
• Software distribution free space of 30MB
• Endace Linux Install CD requires 6 GB
PCI buses are not compatible with the DAG 4.3S card. Only PCI-X buses
are supported.
For convenience, a Debian 3.1 [Sarge] Linux system is included on the
Endace Software Install CD. Endace currently supports Windows XP,
Windows Server 2000, Windows Server 2003, FreeBSD, RHEL 3.0, and
Debian Linux operating systems.
Continued on next page
4
Revision 6. 22 September 2005.
Endace Measurement Systems.
http://www.endace.com
EDM01.05-10r1 DAG 4.3S Card User Manual
1.6 DAG 4.3S Card System Requirements, continued
Different
system
For advice on using a system substantially different from that specified
above, contact Endace support at support@endace.com
5
Revision 6. 22 September 2005.
Endace Measurement Systems.
http://www.endace.com
EDM01.05-10r1 DAG 4.3S Card User Manual
2.0 INSTALLING DAG 4.3S CARD
Introduction
The DAG 4.3S card can be installed in any free PCI-X 1.0 slot. It will
operate in 66, 100, and 133MHz PCI-X mode, however it will not operate
correctly in 32 or 64-bit PCI slots.
Higher speed slots are recommended for best performance.
The DAG 4.3S card should be the only device on the PCI-X bus if
possible as the card makes heavy use of PCI-X bus data transfer resources.
Although by default, the driver supports up to four DAG cards in one
system, there should not be more than one card on a single PCI-X bus due
to bandwidth limitations.
In this section
This section covers the following topics of information.
• Installation of Operating System and Endace Software
• Insert DAG 4.3S Card into PC
• DAG 4.3S Card Port Connector
2.1 Installation of Operating System and Endace Software
Description
If the DAG device driver is not installed, before proceeding with the next
chapter, install the software on Linux/FreeBSD operating systems by
following the instructions in EDM04-01 Linux/FreeBSD Installation
Guide.
To install the software on a Windows operating system, follow the
instructions in EDM04-02 Windows Installation Guide.
Go to the next chapter of information when the DAG device driver is
installed.
2.2 Insert DAG 4.3S Card into PC
Description
Procedure
Step 1. Access bus Slot
Inserting the DAG 4.3S card into a PC involves accessing the bus slot,
fitting the card, and replacing bus slot screw.
Follow these steps to insert the DAG 4.3S card.
Power computer down.
Remove PCI-X bus slot cover.
Continued on next page
6
Revision 6. 22 September 2005.
Endace Measurement Systems.
http://www.endace.com
2.2 Insert DAG 4.3S Card into PC, continued
Procedure (continued)
Step 2. Fit Card
Insert into PCI-X bus slot.
Step 3. Replace bus Slot Screw
Secure card with screw.
Step 4. Power up Computer
2.3 DAG 4.3S Card Port Connector
EDM01.05-10r1 DAG 4.3S Card User Manual
Description
There is one duplex LC-type optical port connector. The bottom
connector is for the received signal, one nearest PCI-X slot.
The top port is for transmission and remains unconnected if a splitter is
used for passive monitoring. If this port is unused, the transceiver optics
should be covered or plugged to prevent ingress of dust.
An 8-pin RJ45 socket is used for time synchronization. This socket
should never be connected to an Ethernet network or telephone line.
2.4 Pluggable Optical Transceivers
Description
Some newer versions of the DAG 4.3S cards are available with pluggable
optics. To provide compatibility with the broadest possible range of
optical parameters, Endace offers the industry standard Small Form-factor
Pluggable [SFP] optical transceiver on the DAG 4.3S card.
The SFP transceiver consists of two parts:
• Mechanical chassis attached to the circuit board
• Transceiver unit which may be inserted into the chassis
The correct transceiver is chosen to suit the optical parameters of the
target network installed in the chassis.
The transceiver may then be connected to the network via LC-style optical
connectors.
Further information about the Pluggable Optical Transceiver is available
at the Endace
http://www.endace.com/dagPluggable.htm web page.
Continued on next page
7
Revision 6. 22 September 2005.
Endace Measurement Systems.
http://www.endace.com
EDM01.05-10r1 DAG 4.3S Card User Manual
2.4 Pluggable Optical Transceivers, continued
Description, continued
Figure
Figure 2-1 shows the pluggable optical transceiver.
Figure 2-1. Pluggable Optical Transceiver.
8
Revision 6. 22 September 2005.
Endace Measurement Systems.
http://www.endace.com
3.0 SETTING DAG 4.3S CARD OPTICAL POWER
EDM01.05-10r1 DAG 4.3S Card User Manual
Description
Optical power
measure
Configuration
Part No. Fibre
Finisar
FTRJ1321S
Agilent
HFCT5942
In this chapter
The optical power range depends on the particular device fitted on the
DAG 4.3S card.
The DAG 4.3S card is shipped fitted with FTRJ 1321S 1300nm singlemode short range optics module by default.
Optical power is measured in dBm – decibels relative to 1 mW where 10
dB is equivalent to a factor of 10 in power.
The numbers are all negative, showing powers below 1 mW. The most
sensitive devices can work down to about –30 dBm, or 1 uW.
The following table describes the DAG 4.3S card optics power module
part, single-mode fibre [SMF], and configuration.
Data
Rate
SMF 2488 -18/0 -9.5/-3 1270/1600 1260/1360
SMF 2488 -19/-3 -10/-3 1260/1570 1260/1360
Min/Max
Pwr [dBm] in
Min/Max
Pwr [dBm] out
Min/Max
Wavelength in
Min/Max
Wavelength out
This chapter covers the following sections of information.
• DAG 4.3S Card Optical Power Input
• Splitter Losses
3.1 DAG 4.3S Card Optical Power Input
Description
The optical power input to the DAG 4.3S card must be within a receiver’s
dynamic range.
When optical power is slightly out of range an increased bit error rate is
experienced. If power is well out of range the system cannot lock onto the
SONET signal. In extreme cases of being out range excess power will
damage a receiver.
When power is above the upper limit the optical receiver saturates and
fails to function. When power is below the lower limit the bit error rate
increases until the device is unable to obtain lock and fails.
Continued on next page
9
Revision 6. 22 September 2005.
Endace Measurement Systems.
http://www.endace.com
EDM01.05-10r1 DAG 4.3S Card User Manual
3.1 DAG 4.3S Card Optical Power Input, continued
Input power
When the DAG card is set up, measure the optical power at the receiver
and ensure that it is within the specified power range.
Input power is adjusted by:
• Changing splitter ratio if power is too high or too low, or
• Inserting an optical attenuator if power is too high.
3.2 Splitter Losses
Description
Single mode
fibre loss
Multi-mode
fibre loss
Wavelength loss
Splitters have the insertion losses marked on packaging or in
accompanying documentation.
• A 50:50 splitter will have an insertion loss of between 3 dBm and 4
dBm on each output
• 90:10 splitter will have losses of about 10 dBm in the high loss
output, and <2 dBm in the low loss output
A single mode fibre connected to a multi-mode input has minimal extra
loss.
A multi-mode fibre connected to a single mode input creates large and
unpredictable loss.
Splitters are designed for a particular wavelength. When mismatched, the
split ratio will be different from that which was intended.
10
Revision 6. 22 September 2005.
Endace Measurement Systems.
http://www.endace.com
EDM01.05-10r1 DAG 4.3S Card User Manual
4.0 CONFIDENCE TESTING
Introduction
The confidence testing is a process to determine whether the DAG 4.3S
card is functioning correctly.
The process also involves a card capture session, and demonstrates
configuration in the style of 'What You See You Can Change', WYSYCC.
Interface statistics are also inspected during this process.
In this chapter
This chapter covers the following sections of information.
• Interpreting DAG 4.3S Card LED Status
• DAG 4.3S Card Capture Session
• Configuration in WYSYCC Style
• DAG 4.3S Card Configuration Options
• Inspect Link Data
• Reporting Problems
4.1 Interpreting DAG 4.3S Card LED Status
Description
Figure
When a DAG 4.3S card is powered up LED 1 should always illuminates.
The other LEDs display for specific functions. The DAG 4.3S has 6 status
LEDs, one is coloured blue, one yellow, two green, one orange, and one
red.

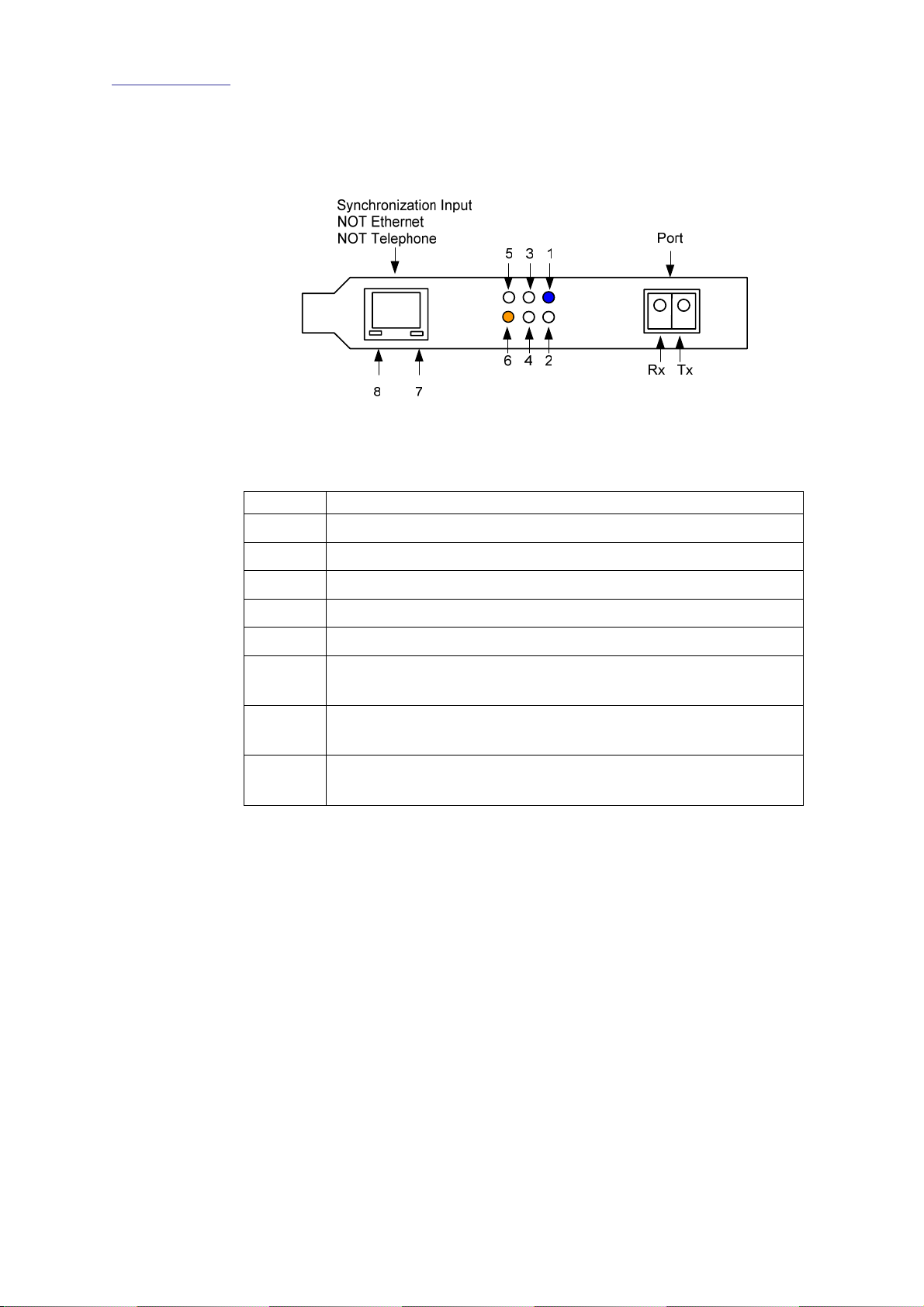

Figure 4-1 shows the DAG 4.3S status LEDs.
Figure 4-1. DAG 4.3S Card Status LEDs.
Continued on next page
11
Revision 6. 22 September 2005.
Endace Measurement Systems.
http://www.endace.com
EDM01.05-10r1 DAG 4.3S Card User Manual
4.1 Interpreting DAG 4.3S Card LED Status, continued
Figure
LED definitions
Figure 4-2 shows the correct LED state for DAG 4.3S card without optical
input.
Figure 4-2. LED State for DAG 4.3S Card Without Optical Input.
The following table describes the LED definitions.
LED Description
LED 1
FPGA successfully programmed.
LED 2 Data capture in progress.
LED 3 Reserved.
Description
LED 4 Transmitter laser ON.
LED 5 SD. Signal Detect. Illuminates when light is detected.
LED 6 LOF. Loss of frame. Illuminates the framer loses lock on a
valid SONET/SDH stream.
LED 7 PPS Out: Pulse Per Second Out – flashes indicate card is
sending a clock synchronization signal.
LED 8 PPS In: Pulse Per Second In – flashes indicate card is
receiving an external clock synchronization signal.
The dagfour utility supports configuration status and physical layer
interface statistics for the DAG 4.3S. In a troubleshooting configuration
options –si should be passed to the tool to watch the operational status of
the optical, SONET and framing layers. More details about the meaning of
the various bits are supplied through the help page (dagfour –h) as well
as via the manual page.
12
Revision 6. 22 September 2005.
Endace Measurement Systems.
http://www.endace.com
4.2 DAG 4.3S Card Capture Session
EDM01.05-10r1 DAG 4.3S Card User Manual
Description
Procedure
Step 1. Check Receiver Ports Optical Signal Levels.
Step 2. Understand Link Layer Configuration
The DAG 4.3S uses an ASIC SONET ATM/PoS physical layer interface
device to support capturing of ATM cells and HDLC encoded Packetover-SONET data frames. The card supports both SONET (STS-48c) and
SDH (STM-16c).
A successful DAG 4.3S card capture session is accomplished by checking
the receiver ports optical signal levels and checking the card has correctly
detected the link. This is followed by configuring DAG for normal use.
Follow these steps to troubleshoot DAG 4.3S card configuration.
The card supports 1300 nanometer single-mode fibre attachments with
optical signal strength between 0 dBm and -18 dBm.
If in doubt, check card receiver ports light levels are correct using an optical
power meter.
The card receiver ports are the lower half of the LC-style connector, the
closest to the LEDs.
Cover unused card transmit ports with LC-style plugs to prevent dust and
mechanical hazards from damaging optics.
Learn about the link layer configuration in use at the network link being
monitored.
Important parameters include specific scrambling options in use. If the
information cannot be obtained reliably, the card can be made to work by
varying the parameters until data is arriving at the host system.
Step 3. Check FPGA Image Loaded.
Before configuring the card, ensure the most recent FPGA image is loaded
on the card.
dag@endace:~$ dagrom -rvp –d dag0 -f xilinx/dag43pcix-terf.bit
dag@endace:~$ dagfour -d dag0
light nolaser
link noreset OC48c nofcl noeql
sonet master scramble
ATM discard pscramble norxpkts notxpkts
packet varlen slen=48 noalign64
packetA drop=0
pcix 133MHz 64-bit nodrop routesource=stream0 buf=128MB rxstreams=1 txstreams=1 mem=0:0
Continued on next page
13
Revision 6. 22 September 2005.
Endace Measurement Systems.
http://www.endace.com
4.2 DAG 4.3S Card Capture Session, continued
Procedure, continued
Step 4. Check Card is Locked to Data Stream
Configure card according to local settings.
Check through the physical layer statistics that the card is locked to the data
stream.
Step 5. List Current Settings
For DAG 4.3S framer configuration and statistics the dagfour tool is
supplied.
Calling
The dagfour -h prints a help listing on tool usage.
Step 6. Configure DAG for Normal Use
dagfour without arguments lists current settings.
EDM01.05-10r1 DAG 4.3S Card User Manual
The dagfour default command is always used:
dag@endace:~$ dagfour default
light nolaser
link noreset OC48c nofcl noeql
sonet master scramble
POS crc32 nocrcstrip short=16 long=1536 discard nopscramble rxpkts txpkts
packet varlen slen=48 noalign64
packetA drop=0
pcix 133MHz 64-bit nodrop routesource=stream0 buf=32MB rxstreams=1 txstreams=1 mem=32:0
ATM
monitoring
The default command always sets the DAG 4.3S card to POS mode. For
ATM monitoring use default atm.
14
Revision 6. 22 September 2005.
Endace Measurement Systems.
http://www.endace.com
4.3 Configuration in WYSYCC Style
EDM01.05-10r1 DAG 4.3S Card User Manual
Description
The configuration of the tool works in WYSYCC style – what you see you
can change.
To turn on the card’s laser on for instance, type:
dag@endace:~$ dagfour -d dag0 laser
light laser
link noreset OC48c nofcl noeql
sonet master scramble
POS crc32 nocrcstrip short=16 long=1536 discard nopscramble rxpkts txpkts
packet varlen slen=48
packetA drop=0
pcix 133MHz 64-bit nodrop routesource=stream0 buf=128MB rxstreams=1 txstreams=1 mem=128:0
ATM status
In ATM mode, the status output changes:
dag@endace:~$ dagfour -d dag0 atm
light laser
link noreset OC48c nofcl noeql
sonet master scramble
ATM discard pscramble rxpkts txpkts
packetA drop=0
pcix 133MHz 64-bit nodrop routesource=stream0 buf=128MB rxstreams=1 txstreams=1 mem=128:0
For configuration options removing or adding the "no" prefix will change
the setting.
4.4 DAG 4.3S Card Configuration Options
Description
There are many DAG 4.3S card configuration options supported.
default
[no]laser
atm
pos
[no]reset
oc48c
[no]fcl
set framer to normal defaults
dis/enable transmit laser
set framer into ATM mode
set framer into Packet-over-SONET (PoS) mode
hold/release framer (in) reset
set framer to OC48c mode
(un)set facility loop back in the phy. This is useful for
card chaining
[no]eql
[no]scramble
(un)set equipment loop back in the phy
(un)set SONET scrambling
Continued on next page
15
Revision 6. 22 September 2005.
Endace Measurement Systems.
http://www.endace.com
EDM01.05-10r1 DAG 4.3S Card User Manual
4.4 DAG 4.3S Card Configuration Options, continued
Description, continued
Inspect
interface
statistics
Status bits
display
master
slave
crc16
crc32
[no]crcstrip
set card to SONET clock master
set card to SONET clock slave
PoS CRC16 link
PoS CRC32 link
Don’t include CRC in ERF record or wlen count
(DAG 4.2 compatible behaviour).
slen=X
[no]varlen
capture X bytes of packet data.
dis/enable variable length capture. Otherwise
record length padded to slen. Defaults to varlen.
short=X
long=X
mem=X:Y
[no]align64
Set minimum expected packet size to X
Set maximum expected packet size to X
Configure memory allocated to streams 0, 1, …
Generate ERF records with 64-bit alignment
[default 32-bit]
Once the card has been configured as expected, the interface statistics
should be inspected to see if the card is locked to the data stream.
dag@endace:~$ dagfour -d dag0 –si
The tool will display a number of status bits as they have occurred since
the last time read. In our example, the interval is set to one second via the
-i option.
LoS
Loss of signal.
If set, this indicates that there is either no signal at
the receiver or the optical signal strength is too low
to be recognized.
OoF
Out of frame.
If set, the section overhead processor is not locked
to the SONET stream.
LoF
Loss of frame.
If set, oof had been asserted for more than 3
milliseconds.
LAIS
Line alarm indication signal.
If set indicates a SONET/SDH remote APS error.
LRDI
Line remote defect indication.
If set indicates a SONET/SDH remote APS error.
Continued on next page
16
Revision 6. 22 September 2005.
Endace Measurement Systems.
http://www.endace.com
EDM01.05-10r1 DAG 4.3S Card User Manual
4.4 DAG 4.3S Card Configuration Options, continued
Status bits display, continued
POS mode
ATM mode
LOC
Loss of clock.
If set the clock recovery PLL is unable to lock onto
and recover the input data stream, check
connections and optical signal level.
LOR
Loss of reference.
If set the clock recovery PLL is unable to lock onto
the reference clock, check configuration.
LoP
Path loss of pointer.
If set indicates the path overhead processor is not
locked onto the SONET/SDH stream, check
connections and optical signal level.
PathBIP
SONET/SDH Path Bit Interleaved Parity error. The
link is impaired, check connections and optical
signal level.
PathREI
SONET/SDH Path Remote Error Indication. The
link is impaired, check connections and optical
signal level.
In POS mode, the following columns are present:
RxFrames
Number of PoS frames received since last reading.
RxBytes
Number of PoS payload bytes received since last
reading.
In ATM mode, the following columns are present:
LCD
Loss of Cell Delineation. The framer cannot lock
onto the ATM cells.
RxCells
Number of non-idle ATM cells received since last
reading.
RxIdles
Number of idle ATM cells received since last
reading.
Continued on next page
17
Revision 6. 22 September 2005.
Endace Measurement Systems.
http://www.endace.com
EDM01.05-10r1 DAG 4.3S Card User Manual
4.4 DAG 4.3S Card Configuration Options, continued
Extra counters
These extra counters are available with the extended statistics option:
dagfour –ei
Path_Label
SONET/SDH C2 byte value or Path Signal Label.
Typically 0x13 for ATM, 0x16 for PPP, and 0xCF
for Cisco HDLC POS.
When in POS
mode
FCS_Fail
Number of PoS frames with FCS errors since last
reading.
Aborts
Number of PoS frames aborted since last reading.
Short
Long
Number of short PoS frames since last reading.
Number of long PoS frames since last reading.
RXFDrop
Number of PoS frames dropped in the Phy Receive
FIFO since last reading.
When in ATM
mode
HEC_Fail
Number of ATM Header Error Checksum Failures
since last reading.
PoS OC-48
stream example
An example for a card locked to a PoS OC-48c stream carrying a constant
traffic load is:
LoS OoF LoF LAIS LRDI LoC LoR LoP PathBIP PathREI RxFrames RxBytes
0 0 0 0 0 0 0 0 0 0 263097690 33676504219
0 0 0 0 0 0 0 0 0 0 1852309 237095640
0 0 0 0 0 0 0 0 0 0 1865467 238779776
0 0 0 0 0 0 0 0 0 0 1865461 238778954
Values
The first second has high values as the counters have accumulated their
values over more than one second.
Extended
statistics
The same situation shown with extended statistics, with leftmost columns
removed for clarity:
RxFrames RxBytes FCS Fail Aborts Short Long RXFDrop PathLabel
31866294 4078892023 0 0 0 0 0 0xcf
1861661 238292569 0 0 0 0 0 0xcf
1865472 238780385 0 0 0 0 0 0xcf
1865754 238816640 0 0 0 0 0 0xcf
Continued on next page
18
Revision 6. 22 September 2005.
Endace Measurement Systems.
http://www.endace.com
EDM01.05-10r1 DAG 4.3S Card User Manual
4.4 DAG 4.3S Card Configuration Options, continued
ATM OC-48C
Stream
An example for a card locked to an ATM OC-48c stream carrying a
constant traffic load is:
LoS OoF LoF LAIS LRDI LoC LoR LoP PathBIP PathREI RxCells RxIdles
0 0 0 0 0 0 0 0 0 0 34298407 33676504219
0 0 0 0 0 0 0 0 0 0 152115 5541287
0 0 0 0 0 0 0 0 0 0 152489 5554947
0 0 0 0 0 0 0 0 0 0 152489 5554931
Extended
statistics
The following OC-48C output is with extended statistics, leftmost columns
are removed for clarity.
LoC LoR LoP PathBIP PathREI LCD RxCells RxIdles HEC_Fail PathLabel
0 0 0 0 0 0 6013310 219055106 0 0x13
0 0 0 0 0 0 151186 5507454 0 0x13
0 0 0 0 0 0 152489 5554933 0 0x13
0 0 0 0 0 0 152489 5554941 0 0x13
POS
configuration
The following output shows a problem with optical light levels when in a
POS configuration:
LoS OoF LoF LAIS LRDI LoC LoR LoP PathBIP PathREI RxFrames RxBytes
1 1 1 0 0 1 0 1 65535 496 3922879 502432705
1 1 1 0 0 1 0 1 16014 0 0 0
1 1 1 0 0 1 0 1 16160 0 0 0
1 1 1 0 0 1 0 1 16158 0 0 0
1 1 1 0 0 1 0 1 16158 0 0 0
Extended
statistics
The following output when in POS configuration is with extended
statistics, leftmost columns are removed for clarity.
RxFrames RxBytes FCS_Fail Aborts Short Long RXFDrop PathLabel
0 0 0 0 0 0 0 0x30
0 0 0 0 0 0 0 0x30
0 0 0 0 0 0 0 0x30
0 0 0 0 0 0 0 0x30
Continued on next page
19
Revision 6. 22 September 2005.
Endace Measurement Systems.
http://www.endace.com
EDM01.05-10r1 DAG 4.3S Card User Manual
4.4 DAG 4.3S Card Configuration Options, continued
Stabilise
configuration
Follow these steps to stabilise the configuration.
Step 1. Ensure Columns are at Zero
Check that the LoS, OoF, and LoF, being the first three columns, are zero.
Check light levels.
Step 2. Inspect for BIP Errors
Check that no BIP errors occur, otherwise check cabling and light
levels.
Step 3 Check CRC Settings
For PoS, ensure scrambling and CRC settings are correct.
Step 4. Check REI Errors
REI errors indicate that the remote end of the link is detecting errors.
NOTE: This may affect the capture of data by the DAG card.
4.5 Inspect Link Data
Description
On Packet-over-SONET (PoS) links it can happen that there is very little
or no data information received. This typically indicates incorrect
scrambling settings.
While a default is provided that matches typical link settings, the actual
configuration varies from network to network.
A remedial action is to vary the scramble and pscramble options and then
retry.
If it is necessary to connect the transmit port of the DAG 4.3S to other
equipment, it is necessary to enable the transmit laser. The laser normally
used is eye safe, but is disabled as a precaution as it is not normally
needed.
The laser radiation is in the invisible infrared part of the spectrum. When
the laser is turned on, the bright red laser warning LED will be lit.
In a test-bench situation where two DAG cards are connected directly to
each other, one card must be designated the SONET clock master, and the
other card should be the SONET clock slave, deriving its clock signals
from the received network stream.
20
Revision 6. 22 September 2005.
Endace Measurement Systems.
http://www.endace.com
4.6 Reporting Problems
EDM01.05-10r1 DAG 4.3S Card User Manual
Description
Problem
resolution
checklist
If there are unresolved problems with a DAG card or supplied software,
contact Endace Technical Support via the email address
support@endace.com.
Supplying sufficient information in an email enables effective response.
The exact information available to users for trouble, cause and correction
analysis may be limited by nature of the problem.
The following problem resolution checklist is applicable to Windows OS
system except where indicated for UNIX OS system.
Ref Item
1. DAG card[s] model and serial number.
2. Host PC type and configuration.
3. Host PC operating system version.
4. DAG software version package in use.
5. UNIX operating system only. Any compiler errors or warnings
when building DAG driver or tools.
6. UNIX operating system only. For Linux and FreeBSD, messages
generated when DAG device driver is loaded. These can be
collected from command dmesg, or from log file
/var/log/syslog.
7.
UNIX operating system only. Output of cat /proc/dag.
8.
Firmware versions from dagbug –cx and dagrom -x.
9. Physical layer status reported by:
dagfour
10. Network link statistics reported by:
dagfour –ei
11. Network link configuration from the router where available.
12. Contents of any scripts in use.
13. Complete output of session where error occurred including any
error messages from DAG tools. The typescript Unix utility
may be useful for recording this information.
14,. A small section of captured packet trace illustrating the problem.
21
Revision 6. 22 September 2005.
Endace Measurement Systems.
http://www.endace.com
EDM01.05-10r1 DAG 4.3S Card User Manual
USE THIS SPACE FOR NOTES
22
Revision 6. 22 September 2005.
Endace Measurement Systems.
http://www.endace.com
5.0 RUNNING DATA CAPTURE SOFTWARE
EDM01.05-10r1 DAG 4.3S Card User Manual
Introduction
For a typical measurement session, the scripts/dag43start script is
edited and used to operate the cards directly.
In this chapter
This chapter covers the following sections of information.
• Starting Capture Session
• High Load Performance
• DAG Card Packet Transmission Capabilities
5.1 Starting Capture Session
Description
Procedure
The various tools used for data capture are in the tools sub-directory.
For a typical measurement session, ensure the driver is loaded, the
firmware has been downloaded, and the card is configured.
The integrity of the card’s physical layer is then set and checked.
Follow these steps to set a data capture session.
Process Description
Load Xilinx receive
image.
drv/dagload
dagrom -rvp –d dag0 -f xilinx/dag43pcix-terf.bit
dagrom -rvp –d dag1 -f xilinx/dag43pcix-terf.bit
Check integrity. Set, and then check the integrity of the physical
For a typical measurement session, first move to
the dag directory.
Load the driver.
Load the Xilinx receive image to each DAG. For
example, with two DAG 4.3S cards installed:
layer to both DAGs as outlined in
Chapter 4.
dagfour –d dag0 default
dagfour –d dag1 default
Continued on next page
23
Revision 6. 22 September 2005.
Endace Measurement Systems.
http://www.endace.com
5.1 Starting Capture Session, continued
Procedure, continued
Process Description
Setting capture session
parameters.
Setting fixed length
mode.
Parameters are set with dagfour.
The card can operate in two modes, variable
length capture (varlen), and fixed length
capture (novarlen).
In variable length capture mode, a maximum
capture size is set with slen=N bytes. This
figure should be in the range 32 to 2048 and is
rounded down to the nearest multiple of 4.
Packets longer than slen are truncated. Packets
shorter than slen will produce shorter records,
saving bandwidth and storage space. Full packet
capture for example:
dagfour –d dag0 varlen slen=1536
In fixed length mode, packets longer than the
selected slen are truncated to slen.
Packets shorter than slen produce records
padded out to slen length.
Large slen values in fixed length mode should
be used because short packets arriving produce
large padded records, wasting bandwidth and
storage space.
An example, for fixed length 64-byte records,
choose
is:
dagfour –d dag0 novarlen slen=48
EDM01.05-10r1 DAG 4.3S Card User Manual
slen=48 (64 – ERF header size of 16):
Continued on next page
24
Revision 6. 22 September 2005.
Endace Measurement Systems.
http://www.endace.com
5.1 Starting Capture Session, continued
Procedure, continued
Process Description
Starting a capture
session.
Once the capture parameters are configured, a
capture session is started by:
dagsnap –d dag0 –v –o tracefile0 &
dagsnap –d dag1 –v –o tracefile1
Option -v provides user information during
capture; it can be omitted for automated trace
runs.
If the –o tracefile parameter is not specified
the tool writes to stdout, which can be used to
pipeline dagsnap with other tools from
dagtools package.
By default dagsnap runs forever. Dagsnap can be
stopped with a signal:
killall dagsnap or key strokes CTL + C
Dagsnap can also be configured to run for a
fixed number of seconds and then exit using the
–s option.
5.2 High Load Performance
EDM01.05-10r1 DAG 4.3S Card User Manual
Description
Avoiding
packet loss
As the DAG card captures packets from the network link, it writes a
record for each packet into a large buffer in the host PC’s main memory.
In order to avoid packet loss, the user application reading the record, such
as
dagsnap, must be able to read records out of the buffer faster than they
arrive. Otherwise the buffer eventually fills, and packet records are lost.
For Linux and FreeBSD, when the PC buffer becomes full, the message:
kernel: dagN: pbm safety net reached 0xNNNNNNNN”
is displayed on the PC screen, and printed to log /var/log/messages.
The “Data capture” LED also goes out. This may be visibly indicated as
flashing or flickering.
Continued on next page
25
Revision 6. 22 September 2005.
Endace Measurement Systems.
http://www.endace.com
5.2 High Load Performance, continued
EDM01.05-10r1 DAG 4.3S Card User Manual
Detecting
packet losses
Avoiding packet
loss
Increasing
buffer size
Until some data is read out of the buffer to free some space, any arriving
packets subsequently will be discarded by the DAG card. Any loss can be
detected in-band by observing the lctr [Loss Counter] field of the Endace
Record Format.
In order to avoid any potential packet loss, the user process must read
records faster than they arrive from the network.
If the user process is writing records to hard disk, it may be necessary to
use a faster disk or disk array. If records are being processed in real-time, a
faster host CPU may be required.
The host PC buffer can be increased to deal with bursts of high traffic load
on the network link.
By default the dagmem driver reserves 32MB of memory per DAG card in
the system. Capture at OC-12/STM-4 (622Mbps) rates and above may
require a larger buffer.
128MB or more is suggested for Linux/FreeBSD.
In Debian Linux the amount of memory reserved is changed by editing the
file
/etc/modules.
# For DAG 3.x, default 32MB/card
dagmem
#
# For DAG 4.x or 6.x, use more memory per card, E.G.
# dagmem dsize=128m
The option dsize sets the amount of memory used per DAG card in the
system.
The value of
dsize multiplied by the number of DAG cards must be less
than the amount of physical memory installed, and must be less than
890MB for Linux on 32-bit platforms.
26
Revision 6. 22 September 2005.
Endace Measurement Systems.
http://www.endace.com
EDM01.05-10r1 DAG 4.3S Card User Manual
5.3 DAG Card Packet Transmission Capabilities
Description
The firmware included with the DAG 4.3S card allows the DAG to
transmit as well as receive packets, however the DAG does not appear as a
network interface to the operating system.
In this chapter
This chapter covers the following sections of information.
• DAG Packet Transmission
• Inline Forwarding
5.3.1 DAG Packet Transmission
Process
The following information describes the DAG capabilities of the DAG
firmware for the transmission and receiving of packets.
Process Description
Explicit packet
transmission.
Packet transmission
utility.
The DAG will not respond to ARP, ping, or
router discovery protocols. It will only transmit
packets explicitly provided by the user.
This capability allows the DAG card to be used
as a simple traffic load generator.
The DAG can also be used to retransmit
previously recorded packet traces.
By default, the packet trace will be transmitted
at 100% line rate, the packet timing of the
original trace file is not reproduced.
dagflood utility can transmit ERF format
The
packet traces. The ERF trace file to be
transmitted must contain only ERF records of
the type matching the current link configuration.
The ERF records to be transmitted must all have
a length which is a multiple of 64-bits. When
capturing a packet trace for later transmission,
you can set 64-bit alignment using the
align64
command.
dagfour
Continued on next page
27
Revision 6. 22 September 2005.
Endace Measurement Systems.
http://www.endace.com
5.3.1 DAG Packet Transmission, continued
Process,continued
Process Description
Convert trace files. It is also possible to convert trace files that have
been captured without the align64 option. This
can be done with the command:
dagconvert -v -i in.erf -o out.erf -A8
If uncertain that a trace file is 64-bit aligned for
transmission with dagflood, the file can be
tested with dagbits:
dagbits -vvc align64 -f tracefile.erf
If a captured trace file is not available, the
daggen program is capable of generating trace
files containing simple traffic patterns. This
allows the DAG card to be used as a test traffic
generator.
Capture received traffic
while transmitting.
It is possible to capture received traffic while
transmitting.
Capture programs such as dagsnap,
dagconvert, and dagbits can be used while
dagflood is sending packets.
Use of 133MHz PCI-X is recommended to
ensure adequate bandwidth is available for
simultaneous receive and transmit operation.
EDM01.05-10r1 DAG 4.3S Card User Manual
Continued on next page
28
Revision 6. 22 September 2005.
Endace Measurement Systems.
http://www.endace.com
5.3.1 DAG Packet Transmission, continued
Process (continued)
Process Description
Configuring DAG card
for transmission.
To configure a DAG card for transmission,
some memory must be allocated to a transmit
stream.
In the dagfour output, buf=nMB indicates that n
megabytes of memory has been allocated to this
DAG card in total. This memory can be split
between the available receive and transmit
stream buffers.
The memory allocation is displayed with
mem=X:Y, where X is the amount of memory
allocated to receive stream 0 in MB, and Y is
the amount of memory allocated to transmit
stream 1 in MB.
By default the memory is evenly split between
the receive streams, the transmit streams have
no memory allocated.
If the card is to be used only for transmit, the
dagfour txonly option can be used to recover
the receive buffer memory and assign all the
memory to transmit.
If the card is to be used for both transmitting
and receiving, the rxtx option can be used.
This allocates 16MB of memory to each
transmit stream, and divides the remaining
memory between the receive streams.
Alternatively the memory allocation can be
directly set with mem=X:Y option.
The stream buffer memory allocation can only
be changed when no packet capture or
transmission programs are running.
EDM01.05-10r1 DAG 4.3S Card User Manual
29
Revision 6. 22 September 2005.
Endace Measurement Systems.
http://www.endace.com
5.3.2 Inline Forwarding
EDM01.05-10r1 DAG 4.3S Card User Manual
Description
Process
The DAG card can be used as an 'inline' device to receive, inspect, filter
and forward packets between Port A and Port B.
The following information describes the DAG card inline forwarding
process.
Process Description
Inline transmission. This operation can be performed at 100% line
rate in both directions simultaneously. A PCI-X
133MHz slot is required for full performance
and the performance may be limited by the host
PC CPU and memory performance.
The dagfwddemo
program.
The dagfwddemo program is provided as a
demonstration of how this can be achieved. This
program forwards packets bidirectionally,
applying a user supplied BPF filter to each
packet with the host CPU.
Packets which match the filter are forwarded,
while packets that do not match are dropped.
Modification of
packets.
Modification of packets during inspection is
also possible.
The modifications should not change the length
of the packet, and the user is responsible for recomputing checksums as needed.
This is intended a demonstration of Inline
Forwarding technology for use in firewall or
IDS/IPS applications. It is not suitable for use as
a production firewall.
30
Revision 6. 22 September 2005.
Endace Measurement Systems.
http://www.endace.com
6.0 SYNCHRONIZING CLOCK TIME
EDM01.05-10r1 DAG 4.3S Card User Manual
Description
DUCK
configuration
Common
synchronization
In this chapter
The Endace DAG range of products come with sophisticated time
synchronization capabilities, in order to provide high quality timestamps,
optionally synchronized to an external time standard.
The system that provides the DAG synchronization capability is known as
the DAG Universal Clock Kit (DUCK).
An independent clock in each DAG card runs from the PC clock. A
card’s clock is initialised using the PC clock, and then free-runs using a
crystal oscillator.
Without synchronization, each card's clock can vary relative to a PC
clock, or other DAG cards.
The DUCK is configured to avoid time variance between sets of DAG
cards or between DAG cards and coordinated universal time [UTC].
Accurate time reference can be obtained from an external clock by
connecting to the DAG card using the synchronization connector, or the
host PCs clock can be used in software.
The DAG card synchronization connector supports a Pulse-Per-Second
(PPS) input signal, using RS-422 signalling levels.
Common synchronization sources include GPS or CDMA (Cellular
telephone) time receivers.
Endace produces the TDS 2 Time Distribution Server modules and the
TDS 6 units that enable multiple DAG cards to be connected to a single
GPS or CDMA unit.
More information is on the Endace website,
http://www.endace.com/accessories.htm, or the TDS 2/TDS 6 Units
Installation Manual.
This chapter covers the following sections of information.
• Configuration Tool Usage
• Time Synchronization Configurations
• Synchronization Connector Pin-outs
31
Revision 6. 22 September 2005.
Endace Measurement Systems.
http://www.endace.com
6.1 Configuration Tool Usage
EDM01.05-10r1 DAG 4.3S Card User Manual
Description
The DUCK is very flexible, and can be used in several ways, with or
without an external time reference source. It can accept synchronization
from several input sources, and can also be made to drive its
synchronization output from one of several sources.
Synchronization settings are controlled by the dagclock utility.
Example
dag@endace:~$ dagclock -h
Usage: dagclock [-hv] [-d dag] [option]
-h this page
-v increase verbosity
-d DAG device to use
Option:
default RS422 in, none out
none None in, none out
rs422in RS422 input
hostin Host input (unused)
overin Internal input (synchronize to
host clock)
auxin Aux input (unused)
rs422out Output the rs422 input signal
loop Output the selected input
hostout Output from host (unused)
overout Internal output (master card)
set Set DAG clock to PC clock
reset Full clock reset. Load time
from PC, set rs422in, none out
By default, all DAG cards listen for synchronization signals on their RS422 port, and do not output any signal to their RS-422 port.
dag@endace:~$ dagclock –d dag0
muxin rs422
muxout
6.2 Time Synchronization Configurations
Description
In this section
The DUCK is used in several ways, with or without an external time
reference source.
Uses include a single card with no reference, two cards with no reference,
and a card with reference.
This section covers the following topics of information:
• Single Card no Reference Time Synchronization
• Two Cards no Reference Time Synchronization
• Card with Reference Time Synchronization
32
Revision 6. 22 September 2005.
Endace Measurement Systems.
http://www.endace.com
EDM01.05-10r1 DAG 4.3S Card User Manual
6.2.1 Single Card no Reference Time Synchronization
Description
When a single card is used with no external reference, the card can be
synchronized to the host PC’s clock.
The clock in most PCs is not very accurate by itself, but the DUCK drifts
smoothly at the same rate as the PC clock.
If a PC is running NTP to synchronize its own clock, then the DUCK
clock is less smooth because the PC clock is adjusted in small jumps.
However, overall the DUCK clock does not drift away from UTC.
The DUCK clock is synchronized to a PC clock by setting input
synchronization selector to overflow:
dag@endace:~$ dagclock –d dag0 none overin
muxin overin
muxout
NOTE: dagclock should be run only after appropriate Xilinx images have
been loaded. If the Xilinx images must be reloaded, the dagclock
command must be rerun afterwards to restore the configuration.
6.2.2 Two Cards no Reference Time Synchronization
Description
Synchronizing
cards
When two DAG cards are used in a single host PC with no reference
clock, the cards are to be synchronized in some way if timestamps
between the two cards are to be compared. For example, if two cards
monitor different directions of a single full-duplex link.
Synchronization between two DAG cards is achieved in two ways. One
card can be a clock master for the second, or one can synchronize to the
host and also act as a master for the second.
If both cards are to be accurately synchronized, then one card is
configured as the clock master for the other.
Continued on next page
33
Revision 6. 22 September 2005.
Endace Measurement Systems.
http://www.endace.com
EDM01.05-10r1 DAG 4.3S Card User Manual
6.2.2 Two Cards no Reference Time Synchronization, continued
Locking cards
together
Although the master card’s clock will drift against UTC, the cards are
locked together.
The cards are locked together by connecting the synchronization
connector ports of both cards with a standard RJ-45 Ethernet cross-over
cable.
Configure one of the cards as the master, the other defaults to being a
slave:
dagclock –d dag0 none overout
Preventing
time-stamp
drift
To prevent DAG card time-stamps drifting against UTC, one card is
synchronized to the host PC clock, which in turn utilises NTP. This
provides a master signal to the second card.
In this case, connect synchronization connectors with a standard RJ-45
Ethernet cross-over cable.
Configure one card to synchronize to the PC clock, and output a RS-422
synchronization signal to the second card.
dag@endace:~$ dagclock –d dag0 none overin overout
muxin overin
muxout overout
6.2.3 Card with Reference Time Synchronization
Description
Pulse signal
from external
sources
The best timestamp accuracy occurs when DAG card is connected to an
external clock reference, such as a GPS or CDMA time receiver.
The DAG synchronization connector accepts a RS-422 Pulse Per Second
[PPS] signal from external sources.
This is derived directly from a reference source, or distributed through the
Endace TDS [Time Distribution Server] modules which allow multiple
DAG cards to use a single receiver.
Continued on next page
34
Revision 6. 22 September 2005.
Endace Measurement Systems.
http://www.endace.com
EDM01.05-10r1 DAG 4.3S Card User Manual
6.2.3 Card with Reference Time Synchronization, continued
Using external
reference
source
To use an external clock reference source, the host PC’s clock must be
accurate to UTC to within one second. This is used to initialise the
DUCK.
Time accuracy is achieved using the host PC NTP. The time reference
source is connected to synchronization connector, the card automatically
synchronizes to a valid signal.
Connecting
time
distribution
server
The TDS 2 module connects to any DAG card with a standard RJ-45
Ethernet cable and can be placed some distance from a DAG card and
existing RJ-45 cabling infrastructure.
CAUTION: Never connect DAG and/or the TDS 2 module to active
Ethernet or telephone equipment.
Testing signal
For Linux and FreeBSD, when a synchronization source is connected the
driver outputs some messages to the console log file /var/log/messages.
The dagpps tool is used to test a signal is being received correctly and is
of correct polarity. To perform the test, run:
dagpps –d dagN
The tool measures input state many times over several seconds, displaying
polarity and length of input pulse.
Some DAG cards have LED indicators for synchronization (PPS) signals.
6.3 Synchronization Connector Pin-outs
Description
Pin assignments
DAG cards have an 8-pin RJ45 connector with two bi-directional RS422
differential circuits, A and B. The PPS signal is carried on circuit A, and
the serial packet is connected to the B circuit.
The DAG 4.3S card 8-pin RJ45 connector pin assignments are:
1. Out A+
2. Out A-
3. In A+
4. In B+
5. In B-
6. In A-
7. Out B+
8. Out B-
Continued on next page
35
Revision 6. 22 September 2005.
Endace Measurement Systems.
http://www.endace.com
EDM01.05-10r1 DAG 4.3S Card User Manual
6.3 Synchronization Connector Pin-outs, continued
Figure
Out-pin
connections
Ethernet
crossover cable
Support
Figure 6-1 shows the RJ45 plug and socket connector pin-outs.
Figure 6-1. RJ45 Plug and Socket Connector Pin-outs.
Normally the GPS input should be connected to the A channel input, pins
3 and 6. The DAG can also output a synchronization pulse; used when
synchronizing two DAGs without a GPS input. Synchronization output is
generated on the Out A channel, pins 1 and 2.
A standard Ethernet crossover cable can be used to connect the two cards.
TX_A+ 1 3 RX_A+
TX_A- 2 6 RX-ARX_A+ 3 1 TX_A+
RX_B+ 4 7 TX_B+
RX_B- 5 8 TX_BRX_A- 6 2 TX_ATX_B+ 7 4 RX_B+
TX_B- 8 5 RX_B-
For cables and further advice on using GPS and CDMA time receivers
email
support@endace.com.
36
Revision 6. 22 September 2005.
Endace Measurement Systems.
http://www.endace.com
EDM01.05-10r1 DAG 4.3S Card User Manual
7.0 DATA FORMATS OVERVIEW
In this chapter
This chapter covers the following sections of information.
• Data Formats
• Timestamps
7.1 Data Formats
Description
Table
Table
The DAG 4.3S uses the ERF Types 1 and 3 timestamps.
Timestamps are in little-endian [Pentium native] byte order. All other
fields are in big-endian [network] byte order. All payload data is captured
as a byte stream, no byte re-ordering is applied.
Table 7-1 shows the Type 1 PoS HDLC Variable Length Record.
Table 7-2 shows the Type 3 ATM cell record.
timestamp
timestamp
type:1 flags rlen
lctr wlen
HDLC Header
(rlen - 20) bytes of packet
Table 7-1. Type 1 PoS HDLC Variable Length Record.
timestamp
timestamp
type:3 flags rlen
lctr wlen
ATM Header
48 bytes of cell
Table 7-2. Type 3 ATM Cell Record.
Continued on next page
37
Revision 6. 22 September 2005.
Endace Measurement Systems.
http://www.endace.com
7.1 Data Formats, continued
EDM01.05-10r1 DAG 4.3S Card User Manual
Data format
The following is an overview of the data format used.
Data Format Description
type: This field contains an enumeration of the frame
subtype. If the type is zero, then this is a legacy
format.
0: TYPE_LEGACY
1: TYPE_HDLC_POS: PoS w/HDLC framing
2: TYPE_ETH: Ethernet
3: TYPE_ATM: ATM Cell
4: TYPE_AAL5: reassembled AAL5 frame
5: TYPE_MC_HDLC: Multi-channel HDLC
frame
6: TYPE_MC_RAW: Multi-channel Raw link
data
7: TYPE_MC_ATM: Multi-channel ATM Cell
8: TYPE_MC_RAW_CHANNEL: Multi-
channel Raw Link Data.
9: TYPE_MC_AAL5: Multi-channel AAL5
frame
10: TYPE_COLOR_HDLC_POS: HDLC POS
like TYPE_HDLC_POS, but with the
LCNTR field reassigned as COLOR
11: TYPE_COLOR_ETH: Ethernet like
TYPE_ETH, but with the LCNTR field
reassigned as COLOR
flags: This byte is divided into 2 parts, the interface
identifier, and the capture offset.
1-0: Enumerates capture interface 0-3
2: Varying record
3: Truncated record [insufficient buffer space]
4: RX Error [link layer error]
5: DS Error [internal error]
7-6: Reserved
Rlen: record length Total length of the record transferred over PCI
bus to storage.
Continued on next page
38
Revision 6. 22 September 2005.
Endace Measurement Systems.
http://www.endace.com
7.1 Data Formats, continued
Data format, continued
Data Format Description
Lctr: loss counter A 16 bit counter, recording the number of
Wlen: wire length Packet length including some protocol overhead.
7.2 Timestamps
EDM01.05-10r1 DAG 4.3S Card User Manual
packets lost since the previous record between
the DAG card and memory hole due to
overloading on PCI bus.
The counter starts at zero, and sticks at 0xffff.
The exact interpretation of this quantity depends
on physical medium.
Description
The ERF format incorporates a hardware generated timestamp of the
packet’s arrival.
The format of this timestamp is a single little-endian 64-bit fixed point
number, representing seconds since midnight on the first of January 1970.
The high 32-bits contain the integer number of seconds, while the lower
32-bits contain the binary fraction of the second. This allows an ultimate
resolution of 2
-32
seconds, or approximately 233 picoseconds.
Another advantage of the ERF timestamp format is that a difference
between two timestamps can be found with a single 64-bit subtraction. It
is not necessary to check for overflows between the two halves of the
structure as is needed when comparing Unix time structures, which is also
available to Windows users in the Winsock library.
Different DAG cards have different actual resolutions. This is
accommodated by the lowermost bits that are not active being set to zero.
In this way the interpretation of the timestamp does not need to change
when higher resolution clock hardware is available.
Continued on next page
39
Revision 6. 22 September 2005.
Endace Measurement Systems.
http://www.endace.com
7.2 Timestamps, continued
EDM01.05-10r1 DAG 4.3S Card User Manual
Example code
Here is some example code showing how a 64-bit ERF timestamp (erfts)
can be converted into UNIX struct timeval representation (tv).
unsigned long long lts;
struct timeval tv;
lts = erfts;
tv.tv_sec = lts >> 32;
lts = ((lts & 0xffffffffULL) * 1000 * 1000);
lts += (lts & 0x80000000ULL) << 1; /* rounding */
tv.tv_usec = lts >> 32;
if(tv.tv_usec >= 1000000) {
tv.tv_usec -= 1000000;
tv.tv_sec += 1;
}
40
Revision 6. 22 September 2005.
Loading...
