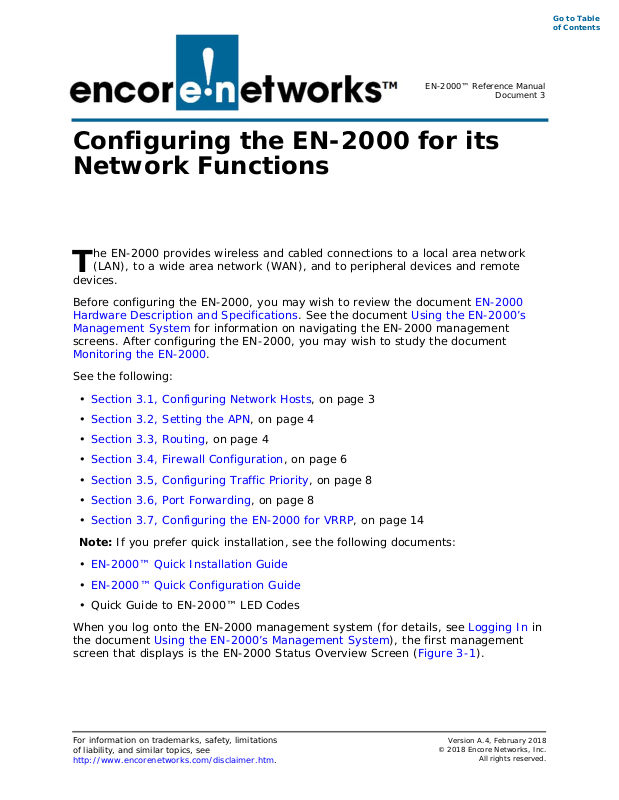

EN-2000™ Reference Manual
Document 3
Configuring the EN-2000 for its
Network Functions
he EN-2000 provides wireless and cabled connections to a local area network
(LAN), to a wide area network (WAN), and to peripheral devices and remote
devices.
Before configuring the EN-2000, you may wish to review the document EN-2000
Hardware Description and Specifications. See the document Using the EN-2000’s
Management System for information on navigating the EN-2000 management
screens. After configuring the EN-2000, you may wish to study the document
Monitoring the EN-2000.
See the following:
• Section 3.1, Configuring Network Hosts, on page 3
• Section 3.2, Setting the APN, on page 4
• Section 3.3, Routing, on page 4
• Section 3.4, Firewall Configuration, on page 6
• Section 3.5, Configuring Traffic Priority, on page 8
• Section 3.6, Port Forwarding, on page 8
• Section 3.7, Configuring the EN-2000 for VRRP, on page 14
Note: If you prefer quick installation, see the following documents:
• EN-2000™ Quick Installation Guide
• EN-2000™ Quick Configuration Guide
• Quick Guide to EN-2000™ LED Codes
When you log onto the EN-2000 management system (for details, see Logging In in
the document Using the EN-2000’s Management System), the first management
screen that displays is the EN-2000 Status Overview Screen (Figure 3-1).
For information on trademarks, safety, limitations
of liability, and similar topics, see
http://www.encorenetworks.com/disclaimer.htm.
Version A.4, February 2018
© 2018 Encore Networks, Inc.
All rights reserved.
Page 3-2 EN-2000™ Reference Manual, Document 3
Figure 3-1. EN-2000 Status Overview Screen
Go to Table
of Contents
The EN-2000 Status Overview Screen summarizes information for the firmware
and for cellular wireless, LAN, WAN, and 802.11 wireless networks.
Note: In Figure 3-1, SIM information is displayed at the end of the list of
specifications in the cellular wireless connection. In Figure 3-2, the information
within the red rectangle indicates that SIM 1 is in use.
Configuring the EN-2000 for its Network Functions Page 3-3
Figure 3-2. Information for Dual SIMs in the EN-2000
Specification of the SIM in use indicates that two SIMs are installed in the
EN-2000. If only one SIM is installed in the EN-2000, information for the SIM
will be similar to the display surrounded by red in Figure 3-3.
Figure 3-3. Information for a Single SIM in the EN-2000
Go to Table
of Contents
If no SIM is installed in the EN-2000, information for the SIM will be similar to
the display surrounded by red in Figure 3-4; that is, no SIM ID will be displayed.
Figure 3-4. Information if No SIM is in the EN-2000
3.1 Configuring Network Hosts
1 T o configure names for host devices (in the private network and in the public
network), select Network, Hostnames.
❖ The Network Host Names Screen is displayed (Figure 3-5).
Figure 3-5. Network Host Names Screen
2 To add a host name, click on the Add button.
❖ An entry row is added to the screen, as shown in the Network Host Names
Add Screen (Figure 3-6).
Page 3-4 EN-2000™ Reference Manual, Document 3
Figure 3-6. Network Host Names Add Screen
3 In the Hostname field, type a name for the host device.
4 In the IP Address field, type the host device’s IP address.
5 Then do one of the following:
a If you want to add another host device to the list, return to step 2.
b If you wish to delete a host name, select the Delete button at the right end
of that host name’s row.
❖ The host name is removed from the list.
Go to Table
of Contents
c When you have finished configuring host devices, do one of the following:
i If you wish to save the configuration and use it immediately, select Save
and Apply.
ii If you wish to save the configuration, but not to use it until the EN-2000 is
restarted, select Save.
iii If you wish to discard the configuration, select Reset.
3.2 Setting the APN
A mobile device must have an access point number (APN) so that connecting
devices can identify the device and its connection protocols.
To set the APN for the cellular wireless interface, see the document Setting
Cellular Wireless Parameters in the EN-2000.
3.3 Routing
Configure the routing screens with settings determined by your network
administrator.
1 To create a static routing table, select Network, Static Routes.
❖ The Static Routes Configuration Screen is displayed (Figure 3-7).
Configuring the EN-2000 for its Network Functions Page 3-5
Figure 3-7. Static Routes Configuration Screen
2 Select the Add button under the Interface headings for IPv4 or for IPv6, as
appropriate for your network. (The example uses IP version 4.)
❖ The Static Routes Table is displayed (Figure 3-8).
Figure 3-8. Static Routes Table
Go to Table
of Contents
3 Add information for the new entry.
4 Do one of the following:
a If you wish to add another static route, return to step 2.
b If you wish to delete a route from the table, select the Delete button at the
right end of that row.
❖ The row is deleted from the table.
c When you have finished configuring this screen, select the Save & Apply
button.
❖ The Static Routes Configuration Screen is redisplayed (recall Figure 3-7).
5 On the Static Routes Configuration Screen, do one of the following:
a If you wish to save the configuration and use it immediately , select Save and
Apply.
b If you wish to save the configuration, but not to use it until the EN-2000 is
restarted, select Save.
c If you wish to discard the configuration, select Reset.
Page 3-6 EN-2000™ Reference Manual, Document 3
3.4 Firewall Configuration
Get all firewall configuration settings from your network administrator.
1 Select the Network tab. Then select the Firewall tab. If necessary, select
the General Settings tab.
❖ The Firewall General Settings Screen is displayed (Figure 3-9).
Figure 3-9. Firewall General Settings Screen
Go to Table
of Contents
2 After configuring the fields on the screen, select the Save & Apply button.
Then select the Add button.
❖ The Firewall General Settings Screen to Add Record is displayed
(Figure 3-10).
Figure 3-10. Firewall General Settings Screen to Add Record
Configuring the EN-2000 for its Network Functions Page 3-7
3 After configuring the fields on the screen, select the Save & Apply button.
Then select the tab for Port Forwards.
❖ The Firewall Port Forward Screen is displayed (Figure 3-11).
Figure 3-11. Firewall Port Forward Screen
4 See Port Forwarding on page 8. After configuring the fields on the screen,
select the Save & Apply button. Then select the tab for Traffic Rules.
❖ The Firewall Traffic Rules Screen is displayed (Figure 3-12).
Go to Table
of Contents
Figure 3-12. Firewall Traffic Rules Screen
5 After configuring the fields for the firewall, do one of the following:
a If you wish to save the configuration and use it immediately , select Save and
Apply.
b If you wish to save the configuration, but not to use it until the EN-2000 is
restarted, select Save.
c If you wish to discard the configuration, select Reset.
Page 3-8 EN-2000™ Reference Manual, Document 3
!
3.5 Configuring Traffic Priority
See the document Configuring Traffic Priority for the EN-2000.
3.6 Port Forwarding
See the following sections:
• Configuring the Port
• Opening the Port for Use
Caution: Remember to select the Save and Apply button after configuring
each screen. Otherwise, the configuration will be lost.
3.6.1 Configuring the Port
This procedure creates rules for port forwarding.
Note: This procedure discusses configuration of an EN-2000 whose device mode
is as a cell router. Some differences in configuration might exist for other device
modes. Consult your network administrator for configuration details.
Go to Table
of Contents
1 Log into the EN-2000 management system. (For log-in details, see Logging
In, on page 2 of the document Configuring the EN-2000 for its Network
Functions.)
2 Make sure the device mode for this EN-2000 has been established. To see
the device mode, select the Quickstart tab.
Note: For information on the device mode, see the EN-2000™ Quick
Configuration Guide.
❖ The Quickstart Screen is displayed (Figure 3-13).
Configuring the EN-2000 for its Network Functions Page 3-9
Figure 3-13. Quickstart Screen
Device Mode as Cell Router
Go to Table
of Contents
3 Select the Network Tab.
4 Select the Firewall Tab; then select the Port Forwards Tab.
❖ The Port Forwarding Table is displayed (Figure 3-14).
Figure 3-14. Port Forwarding Table
5 Under the heading New Port Forwards, add a Name for the forwarding
rule. Then indicate the Protocol and the External Port number.
Note: The default value for the External Zone is wan. Confer with your
network administrator about whether to change it to cell.
6 Change the Internal Zone from cell to lan.
7 Add the Internal IP Address of your EN-2000 router or of the device on the
LAN you want to access.
8 If the internal port number the EN-2000 will use for this port forwarding rule
is different from the external port number it will use, indicate the Internal
Port number.
9 Select the Add button at the righthand end of the entry row.
Page 3-10 EN-2000™ Reference Manual, Document 3
❖ The new port forwarding rule is added to the Port Forwarding Table
(Figure 3-15).
Figure 3-15. Port Forwarding Table
Configured with a New Rule
10 Select the Save and Apply button.
11 Select the Edit button for the port forwarding rule you just added.
Go to Table
of Contents
❖ The Port Forwarding Rule Configuration Screen is displayed (Figure 3-16).
Figure 3-16. Port Forwarding Rule Configuration Screen
12 Make sure the following parameter values are set:
• Source Zone wan (to match the setting in step 6 on page 9)
• Source IP Address any
Note: The source IP address is the IP address
coming into the firewall.
• External IP Address any
Note: In this example, the external IP address is
the WAN’s IP address.
Configuring the EN-2000 for its Network Functions Page 3-11
• External Port [number] Use the setting configured on the Port Forwarding
Table (reca ll Figure 3-14).
• Internal Zone lan
• Internal Port [number] Use the setting configured on the Port Forwarding
Table (reca ll Figure 3-14).
Note: For additional security, you can specify the Source IP address or
the External IP address or both, instead of indicating any. (The source IP
address is critical; typically, you would set it to allow connectivity only from
a specific IP address or range of IP addresses.)
13 Select the Save & Apply button.
14 Then select the Back to Overview button.
❖ The Port Forwarding Table is redisplayed (recall Figure 3-15).
15 On that screen, select the Save & Apply button.
❖ Port forwarding has been configured.
16 Perform the procedure in Opening the Port for Use, on page 11.
Go to Table
of Contents
3.6.2 Opening the Port for Use
This procedure creates a firewall rule that allows port forwarding to occur.
1 On the EN-2000 management system, select the Firewall tab; then select
the Traffic Rules tab.
❖ The Table of Firewall Traffic Rules is displayed (Figure 3-17).
Figure 3-17. Table of Firewall Traffic Rules
2 Under the heading Open Ports on Router, name the rule and add the port
number, as shown in Figure 3-18.
Page 3-12 EN-2000™ Reference Manual, Document 3
Figure 3-18. Table of Firewall Traffic Rules
Entering a Traffic Rule for a Port
Note: In Figure 3-18, the rule is named port test rule 1, and its port is the
same as the port number entered in step 5 on page 9. (Recall the Port
Forwarding Table, Figure 3-14.)
Go to Table
of Contents
For good housekeeping, we recommend also using the same rule name as
used in step 5 on page 9 (or a name similar to that name).
3 On the righthand side of the entry row, select the Add button.
❖ The Table of Firewall Traffic Rules is redisplayed ( Figure 3-19). It includes
the new rule.
Figure 3-19. Table of Firewall Traffic Rules
Updated with New Rule
4 On the far right side of the new rule, select the Edit button.
❖ The Screen to Edit a Traffic Rule is displayed (Figure 3-20).
Configuring the EN-2000 for its Network Functions Page 3-13
Figure 3-20. Screen to Edit a Traffic Rule
Go to Table
of Contents
5 On the Screen to Edit a Traffic Rule, make sure the following values are
indicated:
• Source Zone wan
• Destination Port same as the port number entered in
step 5 on
page 9
Note: Also recall the Port Forwarding Table,
Figure 3-14 on page 9.
6 Select the Save & Apply button.
7 Select the Back to Overview button.
❖ The Table of Firewall Traffic Rules is redisplayed (Figure 3-21).
Figure 3-21. Table of Firewall Traffic Rules
Page 3-14 EN-2000™ Reference Manual, Document 3
8 On the Table of Firewall Traffic Rules, select the Save & Apply button.
❖ The firewall rule has been configured. The port has been opened.
3.7 Configuring the EN-2000 for VRRP
When you install the EN-2000, you can configure VRRP back -up as the EN-2000’s
principal use. If you wish to do that, see the EN-2000™ Quick Configuration
Guide.
However, if you wish to use the EN-2000 for another principal purpose, yet
support VRRP, follow the steps in this section.
1 On the EN-2000’s management screen, select the Network tab; then select
the VRRP tab.
❖ The VRRP Configuration Screen is displayed (Figure 3-22).
Figure 3-22. VRRP Configuration Screen
Go to Table
of Contents
2 On the VRRP Configuration Screen, do the following:
• Select the box to Enable VRRP.
• Type the Interface Name. Use the EN-2000’s network interface (Cell or
WAN) that your network administrator specifies.
Note: Your EN-2000’s network interfaces are listed on the EN-2000 Status
Overview Screen (Figure 3-1, on page 2).
• Type the Virtual ID. The default value is 01.
• Type the Virtual IP (the IP address) for the VRRP set. Get this address
from your network administrator.
• Indicate the VRRP Priority for this EN-2000. Primary (value 255) means
that this EN-2000 is the principal router in the VRRP set. Back-Up (value
100) means that this router is a back-up in case the primary router fails.
When the primary VRRP router fails, a back-up router in the VRRP set
assumes responsibility and control/priority . If there is more than one back up VRRP router , the back -up router with the highest value assumes priority
until the primary router recovers.
Configuring the EN-2000 for its Network Functions Page 3-15
The EN-2000 uses asymmetric parameters for VRRP, so when the primary
router recovers, it automatically resumes the primary role in the VRRP set.
Go to Table
of Contents
Page 3-16 EN-2000™ Reference Manual, Document 3
Go to Table
of Contents
Loading...
