Programming remote transmitters:
To program replacement remotes please follow the procedures below. The
unit will hold a maximum of 2 remote codes and when programming all
other older remote codes will be deleted.
Method 1: Turn On and Off the ignition 8 times and leave it ON and wait 2
seconds. The LED will glow solid. Press button 1 of the new remote control
to set the code. The LED will flash twice and the siren will chirp twice. Press
button 1 on the second remote and the LED will flash 4 times and the siren
will chirp 4 times. Turn Off the ignition to set the codes.
Method 2: With the ignition ON, press firmly and hold in the programming
button on the back of the main unit. The LED will glow solid. Press button 1
of the new remote control to set the code. The LED will flash twice and the
siren will chirp twice. Press button 1 on the second remote and the LED will
flash 4 times and the siren will chirp 4 times. Turn Off the ignition to set the
codes.
Battery Replacement:
The M1 remotes use a “AAA” Battery and will last approximately 4 months
depending on use.
For Customer service please email:
customerservice@encoreautomotivesystems.com
For Dealer Tech Support please call 855-463-6267: Ext 3
Encore Automotive Systems
27240 Turnberry Lane Suite 200, Valencia CA 91355
www.encoreautomotivesystems.com

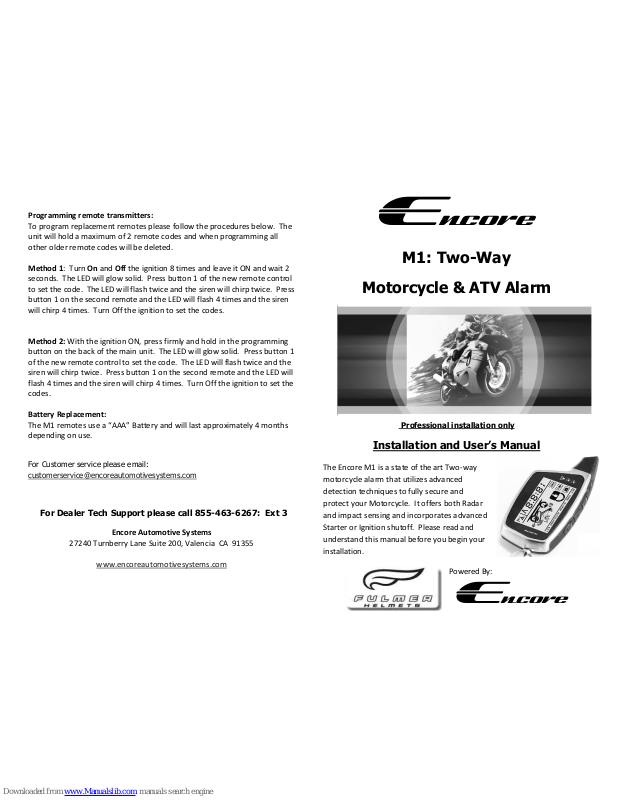

Encore
M1: Two-Way
Motorcycle & ATV Alarm
Professional installation only
Installation and User’s Manual
The Encore M1 is a state of the art Two-way
motorcycle alarm that utilizes advanced
detection techniques to fully secure and
protect your Motorcycle. It offers both Radar
and impact sensing and incorporates advanced
Starter or Ignition shutoff. Please read and
understand this manual before you begin your
installation.
Powered By:
E
ncore
Wire Diagram:
E
ncore
M1 Two Way
Motorcycle Alarm
RED: System Power
Black: System Ground
White: Lt. Parking Light
White: Rt. Parking Light
Yellow: 12 Volt ACC.
Violet: Kill INPUT
Violet: Kill OUTPUT
Blue/Wht: Horn Input
Blue: Horn Output
2 Pin
3 Pin
9 Pin
Radar Sensor
3 Pin Connector
2 Pin Connector
Siren
Antenna
LED
L
e
a
r
n
B
u
t
t
o
n
Locking Tab
Black Red Violet
Blue/Wht Blue Violet
Yellow White W hite
Connector Front View
Main wire Harness: 9 – Pin Main Harness
Red: Main unit Power, + 12 Volt. Please connect this wire to constant 12
volt Power at the battery or any stable power source.
Black: Ground (-). Connect this wire to any stable ground or the negative
battery terminal of the motorcycle.
Yellow: This wire should be connected to 12 Volt Ignition. This wire should
have power when the Ignition Key is in the ON or RUN position only.
Violet (2): These wires are the starter or ignition cutoff. They are a relay
input and output. The starter wire or Ignition wire of the motorcycle should
be confirmed and then cut. Both sides of the cut wire should go to either
violet wires. One is the input and the other the output. Either wire can be
used but both need to be connected to complete the circuit. This circuit is
normally closed and will disconnect when the system has been triggered.
Please use caution if interrupting the ignition of the vehicle.
White Wires (2): The two white wires are the output for the turn indicators.
One is to be connected to the right positive side of the turn indicator and
the other is for the left. Both have positive outputs from a relay and both
are isolated so they will not affect turn indicator operation.
Blue / White: This is the input for the horn of the motorcycle. It will allow
you to change the polarity of the horn output. If the motorcycles horn is
triggered by a negative or ground signal, connect this wire to ground. If the
horn has a positive trigger, this wire should be connected to a positive
power source or the red wire of this harness. Please check the horn when
the key is ON and determine if the trigger of the horn is positive or negative.
Once determined turn the key to the OFF position and insure the trigger is
correct. This wire is attached to the common post of a horn relay and will
be open when the horn is not used.
Blue: This is the horn output and will deliver the output polarity based on
the connection to the Blue / white wire above. Please install the siren as
most horn wires are accessible from the outside of the motorcycle and can
easily be disconnected.
Other Connections:
Siren wires: The siren plugs into the two pin connector dedicated for the
siren output. Please secure the siren in a good place facing down and
attach with two screws. This siren has double sided tape on the back but
screws should be used to secure it in place.
Antenna: The antenna should be mounted away from surrounding metal in
an area that is open to allow for the greatest range. It can be placed
beneath fairings or in any area including the handle bars, tail, side covers or
under the seat.
LED Indicator: The LED should be mounted in an area where it can be seen
by the rider as well as any unwanted intruder. This will act as a visual
deterrent and will give the rider notification of the status of the system.
Microwave or Radar Sensor: The Radar sensor is designed to detect
movement above and around the motorcycle. It connects to the three pin
plug on the main unit. This sensor will penetrate all surfaces except metal.
It should be mounted in the middle of the motorcycle facing UP and can be
