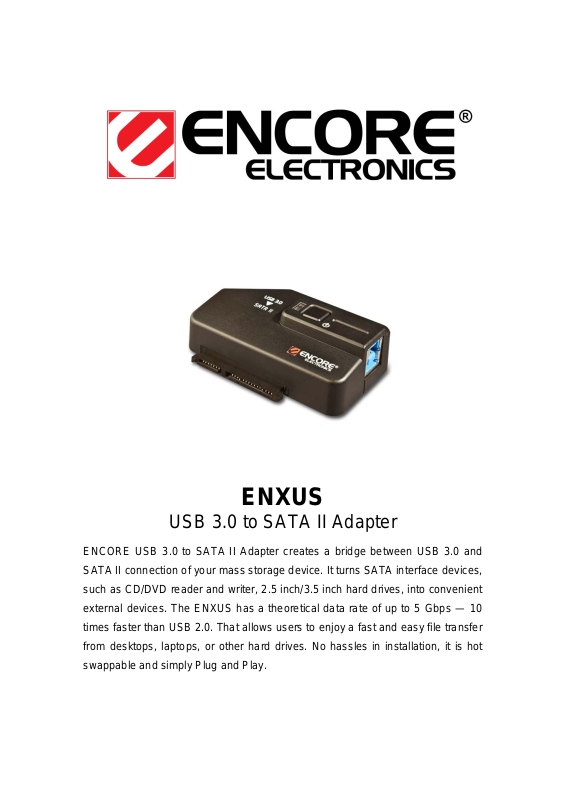

Page 1
ENXUS
USB 3.0 to SATA II Adapter
ENCORE USB 3.0 to SATA II Adapter creates a bridge between USB 3.0 and
SATA II connection of your mass storage device. It turns SATA interface devices,
such as CD/DVD reader and writer, 2.5 inch/3.5 inch hard drives, into convenient
external devices. The ENXUS has a theoretical data rate of up to 5 Gbps — 10
times faster than USB 2.0. That allows users to enjoy a fast and easy file transfer
from desktops, laptops, or other hard drives. No hassles in installation, it is hot
swappable and simply Plug and Play.
Page 2
Features
2A AC power supply ensures power for the most power-hungry devices
Access any 2.5", 3.5", or 5.25" Serial ATA through the SuperSpeed USB 3.0
port - Unlike IDE, a Serial ATA connector is the same design for 2.5", 3.5"
and 5.25" drive sizes
Fully Supporting USB3.0 specification
NO Drivers Need for MS Windows® 7 / XP, Windows VISTA®
Plug-N-Play - easy hot swapping
SuperSpeed (5 Gbps) / high-speed (480 Mbps) / full-speed (12 Mbps)
Supports HDD up to 2TB
Support SATA Gen2i (3 Gbps) & Gen1i (1.5 Gbps)
Specifications
Bus Interface Universal Serial Bus 3.0
Standard USB 3.0 backward compatible with USB 2.0/1.x
Super-Speed (5 Gbps)
Transfer Rate
Host Connector USB 3.0 SuperSpeed Type B Female
Drive Connectors 22 pin SATA DATA and Power Combo Male
Dimension 70 x 46 x 21mm
Weight 30 g
External Power
High-speed (480 Mbps)
Full-speed (12 Mbps)
Input: 100~240 V, 1000 mA
Output: 12V, 2000 mA / 5V, 2000 mA
Page 3
System Requirements
Operation System: Windows® 7 / XP, Windows VISTA®
One Available USB 3.0 or USB 2.0 port
Package Contents
Quick Installation Guide x 1
USB 3.0 to SATA II Adapter x 1
USB 3.0 cable x 1
Power Adapter x 1 (External power adapter is included in selective countries)
