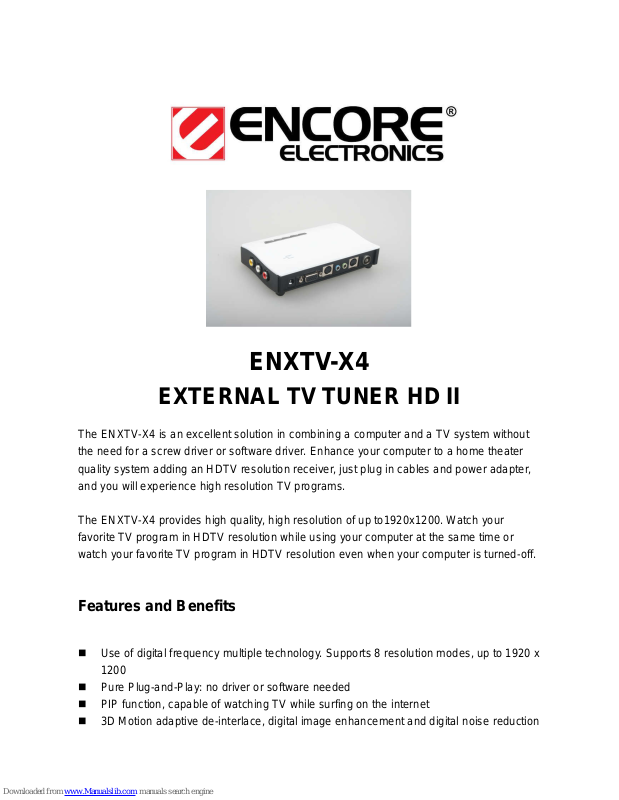

Encore ENXTV-X4, EXTERNAL TV TUNER HD II Quick Manual

ENXTV-X4

EXTERNAL TV TUNER HD II

The ENXTV-X4 is an excellent solution in combining a computer and a TV system without
the need for a screw driver or software driver. Enhance your computer to a home theater
quality system adding an HDTV resolution receiver, just plug in cables and power adapter,
and you will experience high resolution TV programs.

The ENXTV-X4 provides high quality, high resolution of up to1920x1200. Watch your
favorite TV program in HDTV resolution while using your computer at the same time or
watch your favorite TV program in HDTV resolution even when your computer is turned-off.

Features and Benefits

 Use of digital frequency multiple technology. Supports 8 resolution modes, up to 1920 x

1200

 Pure Plug-and-Play: no driver or software needed
 PIP function, capable of watching TV while surfing on the internet
 3D Motion adaptive de-interlace, digital image enhancement and digital noise reduction

technology bring you clearer and sharper image

 Full TV channel supplement: suitable to receive signals via either wire or wireless

connection, compatible to PAL/NTSC

 Supports PAL, NTSC TV standard, with VIDEO, and S-VIDEO input for easy connection

of video camera, DVD, TV game player, etc

 Supports multi-channel display (TV wall) to preview all channels conveniently
 PC-Free Mode: watch TV programs or play console games without turning on your PC
 Watch PC and TV on the same screen
 Full Function Remote Control

Specification

TV format NTSC, PAL, SECAM

Output video mode: 4:3
(800x600, 1024x768, 1280x1024, 1600x1200)

Output video mode: 16:10
(1440x900, 1680x1050, 1920x1200)

Resolution

Output video mode: 16:9

(1366x768, 1600x900,1920x1080)
TV input 75 Ohm impedance, F or PH type
Video input RCA Video in, S-Video in
Audio input RCA L/R,

3.5mm connector (for PC use)
Audio output 3.5mm connector
RGB output D-SUB 15 Pin
Environmental Operating Temperature:0°C~40 °C

Storage Temperature: -5°C~50°C
Operating Humidity: 0%~80% RH, non-condensing

Certification FCC, CE, RoHS
