Overview

Thank you for purchasing this product. Read this chapter to know about your ENCORE 802.11g Wireless USB Adapter.

Unpacking information

Before getting started, please verify that your package includes the following items:

1. IEEE 802.11g Wireless USB Adapter

2. One Utility/ Manual CD

Introduction to ENCORE 802.11g Wireless USB Adapter

ENCORE 802.11g Wireless USB adapter provides users to launch 802.11g wireless network at 54 Mbps in the 2.4GHz frequency, which is also compatible with IEEE

802.11b wireless devices at 11Mbps. You can configure this adapter with ad-hoc

mode to connect to other 2.4GHz wireless computers or with Infrastructure mode to connect to a wireless AP or router for accessing to Internet. This adapter i ncludes a convenient Utility for scanning available networks and saving preferred networks that users usually connected with. Security encryption can also be configured by this utility.

Key Features

y Complies with IEEE 802.11b/g wireless

standard

y Complies with Universal Serial Bus Rev.

1.0, 1.1 and 2.0 specifications.

y High Speed transfer data rate up to 54

Mbps

y Support turbo mode for 72 Mbps data

rate

y Support driver for Windows2000, XP

32/64 bit and Vista 32/64 bit

y Supports auto-installation and diagnostic

utilities.

y Support wireless data encryption with

64/128-bit WEP, WPA (TKIP with IEEE

802.1x) and AES functions.

Installation Guide

Software Installation

Note: The following driver installation guide uses Windows XP as the presumed operation system. The procedures and screens in Windows2000 and Vista are familiar with Windows XP.

Insert the CD-Rom that came with this product to your CD-Rom drive. The menu window pops up automatically. Please click the “Driver” button of this product.

Note: If the CD-Rom fails to auto-run, please click on “My Computer”Æ your CD-Rom Drive then double-click the “Setup” icon to start the this menu.

1. The language-selecting window pops up. Please select the language you use

and click Next.

2. The welcome window pops up. Click the “Next” button to proceed.

3. Please wait while installation.

4. Click the “Finish” button to complete driver and utility installation.

5. For Windows XP and 2000 users, please insert this USB wireless adapter to your

computer.

6. The “Found New Hardware Wizard” pops up.

7. Select “No, not this time” and click the “Next” button.

8. Select “Install the software automatically” and then click the “Next”

button.

9. Click the “Finish” button to complete installation.

Management Guide

Read this chapter to understand the management interface of the device and how to manage the device.

Making a Basic Network Connection

Before You Start

In the following instruction for making a network connection, we use the u ti li t y we provided to configure your wireless network settings.

Note: For Windows XP users tha t want to configure your wireless network usi ng this Utility, please perform the following procedures to disable your native Windows XP wireless support (Wireless Zero Configuration Service)

1. Double click the icon on your desktop to start the utility.

2. Make sure that the “Windows Zero Config” checkbox is unchecked.

Ad-Hoc Mode

An Ad-Hoc mode wireless network connects two computers directly without the use of a router or AP. It is also know as a peer-to-peer network. For example, we can install this wireless adapter to two computers respectively. The communication between the two computers is an Ad-Hoc mode network.

To use this adapter in Ad-Hoc Mode

1. Double click the icon on your desktop.

2. Click the “Available Network” button to scan available wireless network

adapters. Double click on the network adapter that you are going to connect to.

3. Click the OK button to confirm that you are connecting to an open wireless

network.

4. Click OK to add this network into the profile list.

Note: This example is an open wireless network. If you are going to connect to a Wireless adapter with security protection, you will have to configure the encryption settings in this profile to be corresponding to the other wireless adapter. Please cl ick

on the “Network Authentication” drop list to select an authentication method, and then select a “Data encryption” type. Fill in each required blanks and click “OK”.

Infrastructure mode

An Infrastructure Mode network contains at least one wireless client and one wireless AP or router. This client connects to Internet or intranet by communicating with this wireless AP.

To use this adapter in Infrastructure Mode:

1. Double click the icon on your desktop.

2. Click the “Available Network” button to scan available access points. Double

click on the AP that you are going to connect to.

3. Click the OK button to confirm that you are connecting to an open wireless

network.

4. Click OK to add this network into the profile list.

Note: This example is an open wireless network. If you are going to connect to an AP with security protection, you will have to configure the encryption settings in this profi le to be corresponding to your AP. Please click on the “Network Authentication” drop list to select an authentication method, and then select a “Data encryption” type. Fill in each required blanks and click “OK”.

Tip: Windows XP and Windows 2000 users is also allowed to connect to your wireless network with the “RT-Set” setup wizard. Please refer to “Appendix” for more information.

Introduction to the Wireless LAN Utility

Note: This management instruction uses Windows XP as the presumed operation system.

Starting the Wireless LAN Utility

Double click the shortcut on your desktop. The Wireless LAN Utility pops up. You may click on the tabs above to configure this adapter. The checkboxes below provide the following functions:

Check this checkbox to show the utility icon on your

Show Tray Icon

Windows Zero Config

Radio Off

Disable Adapter

system tray, which is in the notification area at the lower-right corner of the windows desktop. You may also uncheck it to remove the utility icon from system tray. Uncheck this checkbox to use native Windows XP wireless support (Wireless Zero Configuration Service) instead of using this utility to configure your wire less network. Check this checkbox to prevent this adapter form transmitting or receiving signals. Uncheck it to communicate. Check this checkbox Uncheck it to enable this adapter again.

to disable this wireless adapter.

General

After starting the utility, the general page pops up This General tab provides the information of your current wireless network connection. You may click the Renew button to refresh those listed information.

Status: Speed: Type: Encryption:

SSID: Signal Strength: Network Address:

Check if the device associated to target network. The current connection speed Infrastructure mode or Ad-Hoc mode.

The performing encryption mode for connecting to current network profile.

The SSID (network name) of the connected wireless network. Indicates the signal strength detected by this adapter. Shows the current IP addresses settings for this adapter.

Profile

The Profile tab lists the preferred connections. You can click the buttons beside to do configure each connection.

Add

Remove

Edit

Duplicate

Set Default T o select a profile as your default wireless connection, click this

Click this button to add a connection profile for this adapt er. To remove a connection profile, click this profile on t he profile

list and click this button to delete it. To modify the configurations for a profile, click this profile on

the profile list and click this button to edit. To make a copy of a profile, click the profile that going to be

copied, and click this button to copy it.

profile on the list and click this button. You may also double click on each profile to select it as your default wireless connection.

Available Network

This available tab lists the reachable wireless network of this adapter.

Refresh

Add to Profile

Click this button to rescan available networks around the adapter. To add an available Network to your profile list, select an available network and click this button to add.

Advanced

This Advanced tab provides advanced configurations to this adapter. Every modification in this tab will be performed after clicking the Apply button. T o restore the default settings of the advanced tab, click th e Set defaults button to perform restoring.

Power Save

None Disable Power saving function. Min Minimum power consumption Max Maximum power consumption

Turbo Mode

OFF Disable turbo mode ON Enable turbo mode AUTO Enable or disable turbo automatically according to the detected

environment

Fragment Threshold

The maximum size of a packet that is going to be segmented and transmitted. Select the size from 256 to 2432(default) bytes.

RTS Threshold

Select the RTS Threshold form 0 to 2432(default)

Wireless Mode

802.11g/b Connect to a 802.11g/b network (2.4GHz/54Mbps)

802.11b Connect to a 802.11b network (2.4GHz/11Mbps)

802.11b Preamble Mode

Select the preamble mode to be long, short or auto detection mode.

Region Domain

Select your region from the drop list. Please note that it is necessary for you to select a correct region. Selecting an incorrect region may again the applicable law.

WOL

Enter the MAC Address of the designated device and click wake up button to power on the device.

PSP XLink Mode

Mark this check box to enable PSP XLink mode. This function allows PSP users to play games with players around the world.

WMM Parameter

Mark the checkbox to enable QoS or Power save function for WMM.

Status

This tab shows the current connection status of this adapter.

Statistics

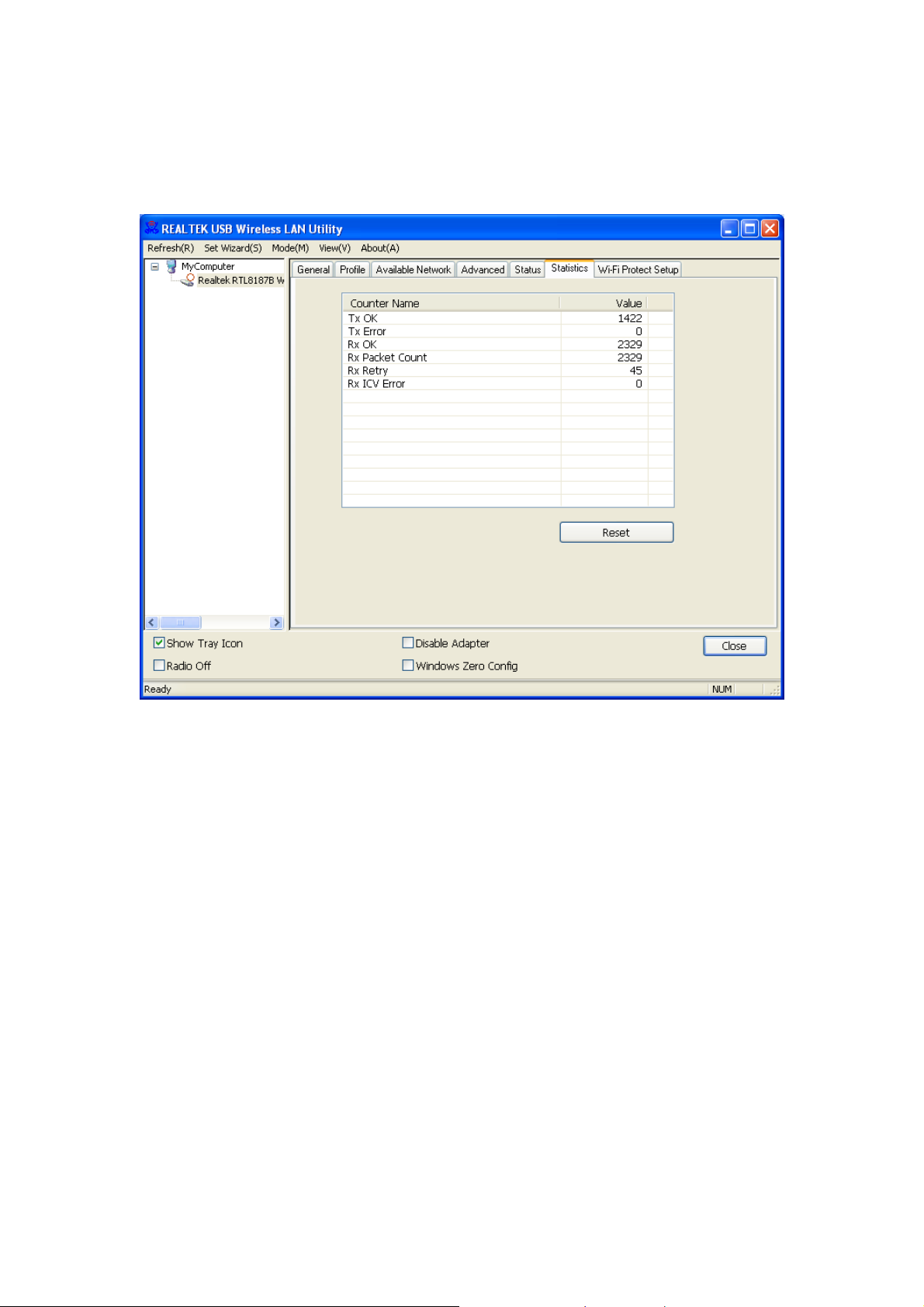

See this tab to show the transmission activity record. Clicking the “Reset” button recounts the values from zero.

Wi-Fi Protected Setup

This page provides users to connect this device with routers or AP with PIN number or PBC mechanism. Click on the PIN or PBC button to start.

Note: Please note that the two connection methods would only work with routers or AP that support PIN number or PBC. Please make sure that the AP or Router support this function first.

Appendix

RT-Set Setup Wizard

For Windows 2000 and XP users to connect to a wireless network easily, we also provide the RT-Set setup wizard to help users set their preferred wireless network step by step. You can configure your wireless network via this RT-Set setup wi zar d in the following three modes:

Station mode (infrastructure): Select this mode to connect to the AP (access point) in your LAN. Station mode (ad hoc): Select this mode to connect to another wireless network adapter in your LAN. AP mode: Select this mode to perform this adapter as an AP (access point).

T o start the RT -Set Wizard, please click the “RT-Set” tab on the up-left corner of the window

Connect to a wireless network in infrastructure mode

1. To connect this adapter to an AP, select the “Station (infrastructure)” mode and click

the “Next” button to proceed.

2. The RT-Set scans the available AP within your LAN. Those AP are listed with their SSID.

Click the wireless AP that you are going to connect with and then click the “Next” button. You may also click the “Refresh” button to scan wireless AP again.

3. The “unsecured network” window may pop up if the AP you select doesn’t use security

encryption settings. Click the “OK” button after your confirmation.

4. Click “OK” after configuring the profile content to be corresponding to the AP that you are

going to connect with. If you are connecting to an AP without security encryption, please click “OK” button without configuration.

5. Configure the IP address for connecting to the network. You may choose “Use the

following IP address” to fill in IP addresses manually or choose “Obtain an IP address automatically (recommend)”.

6. After configuring IP addresses, click the “Finish” button to complete.

Connect to a wireless network in ad hoc mode

1. T o connect this adapter to another computer, select the “Station (ad hoc)” mode and click

the “Next” button to proceed.

2. The RT-Set scans the available wireless adapters within your LAN. Those adapters are

listed with their SSID. Click the one that you are going to connect with and then click the “Next” button. You may a lso click the “Refresh” button to scan wireless adapters again.

3. The “unsecured network” window may pop up if the adapter you select doesn’t use

security encryption settings. Click the “OK” button after your confirmation.

4. Click “OK” after configuring the profile content to be corresponding to the wireless

adapter that you are going to connect with. If you are connecting to a wireless adapter without security encryption, please click “OK” button without configuration.

5. Configure the IP address for connecting to the wireless adapter . Y ou may choose “Use the

following IP address” to fill in IP addresses manually or choose “Obtain an IP address automatically”.

Use this adapter as an AP

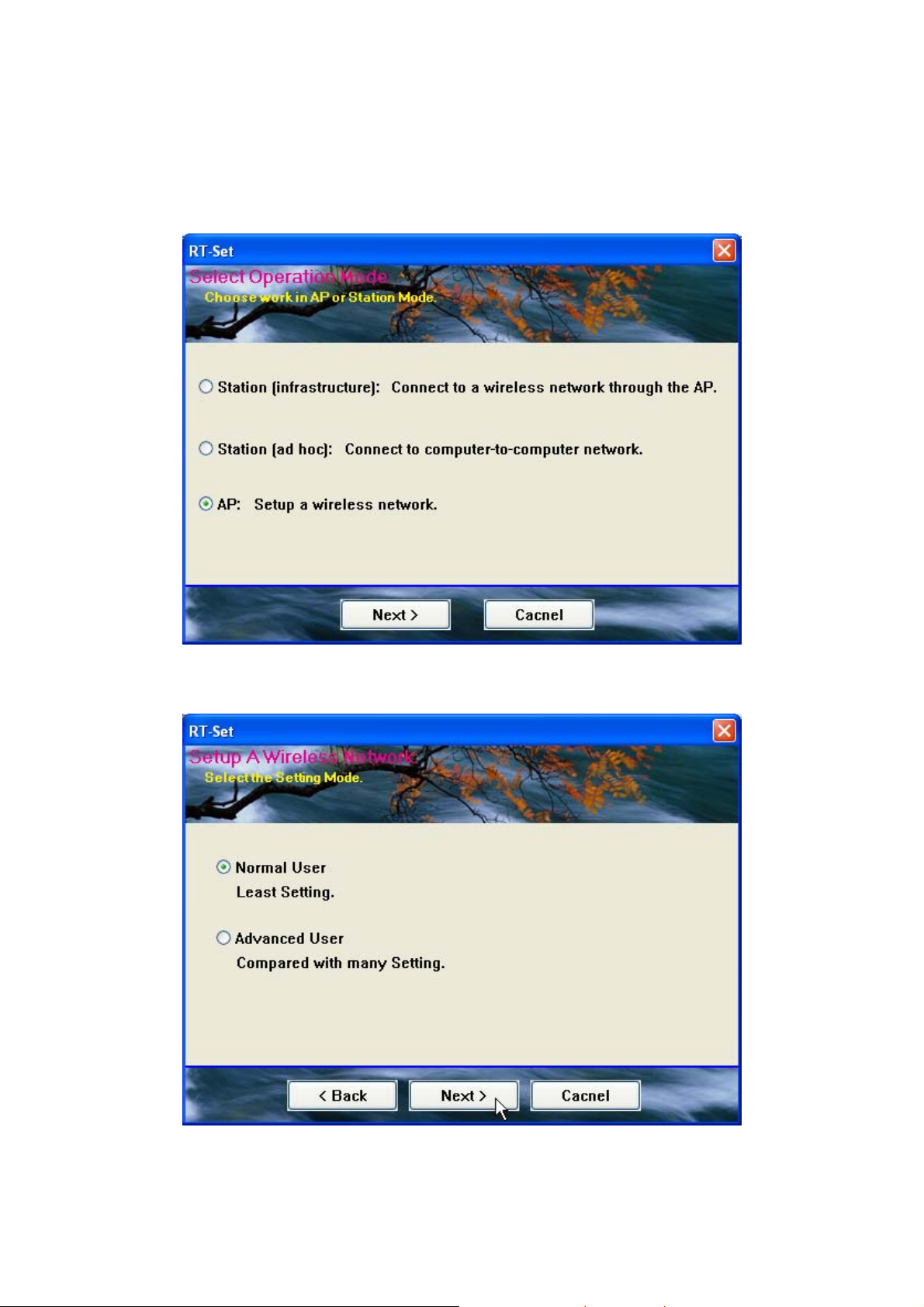

1. To use this adapter as an AP (access point), select the “AP” mode and click the “Next”

button to proceed.

2. Select “Normal User” (recommend) to make an step-by-step configuration. You may also

select “Advanced Users” to configure this AP with more detail.

3. Assign an SSID for this AP, which is the name that is going to be identified while other

wireless devices scan for available network. Choose to use WEP encryption or not from the drop list and click “Next” to proceed.

4. Click the “Next” button after confirming those settings above.

5. Click “Finish” to complete setup.
