Chapter 1: Introduction
With seamless viewing technology, ENUTV-DITF provides an excellent combination of speed and stability. This advanced seamless viewing technology can always keep smooth video streaming even though in unstable transmission conditions.
ENUTV-DITF brings high quality video and audio directly to your computer. This compact tuner stick features built-in ISDB-T/SBTVD receiver, high-performance external antenna, and high speed USB 2.0 interface. Now, you can enjoy your favorite TV shows even on a road trip!
The design of ENUTV-DITF matches your style. It is fully compatible with your desktop or laptop PC. Its compact design with high speed USB2.0 interface lets you enjoy high quality digital TV programs anywhere using the digital antenna. It comes with a friendly software application complete with recording features. Never miss your favorite shows with scheduled recording. With ENUTV-DITF build-in application, you can record digital TV perfectly to files.
Page 4
3
www.encore-usa.com
1.1 Features
2-in-1 Product: Digital TV Tuner / Digital Video Recorder  Watch free-to air ISDB-T/SBTVD TV programs in Windows on your PC or Notebook  ISDB-T full segment TV standard support  Real-time MPEG4 recording  Scheduled recording and time-shift live TV: watch and record your favorite TV
shows
H.264 High Quality Video Compression: crystal clear picture quality  Time-shifting playback, simultaneously watch and record the TV program with
immediate replay and pause
Support subtitle or closed captioning  Still image snapshots  Support EPG (Electronic Program Guide) and schedule recording (EPG feature
depends on television broadcast used in different regions)
Support Windows® 7 / XP , Windows Vista®  Full function infrared remote control
Page 5
4
www.encore-usa.com
1.2 System Requirements
Available USB 2.0 port  Pentium® 4 2.0 GHz or above / equivalent AMD® Athlon™ CPU  Minimum 256MB memory  Minimum 100MB free hard disk space  Microsoft Windows® 7 / XP; Windows Vista® 32bit/64bit  Graphic Card : 1024x768, DirectX® 9.0c or above compatible graphic card  Sound Card: AC97 compatible PCI sound card  CD or DVD ROM Drive
Notes:
To support High definition TV, the minimum requirement is one of the following video cards with DX-VA (DirectX Video Acceleration) enabled:
ATI Radeon 7200 or above nVidia Geforce MX 440 or above Intel 82865 or above
To support HDTV 1080p with subtitle/DTV CC: a Pentium IV 2.8 GHz processor (or higher) is recommended. The minimum requirement is one of the following video cards with DX-VA enabled:
ATI Radeon X700 (256M RAM) or above nVidia Geforce FX 6200 (256M RAM) or above
Page 6
5
www.encore-usa.com
1.3 Specifications
1.4 Package Contents
ENUTV-DITF  Remote control  Installation CD  User manual  USB cable  TV Antenna  Antenna adapter
Device Interface USB 2.0
TV Tuner ISDB-T / SBTVD (Full-seg)
Channel Frequencies VHF 170 ~ 240 MHz
UHF 470 ~ 862 MHz
Antenna Connector 75 Coaxial Input (for free-to-air ISDB-T / SBTVD)
Video Output Resolution Up to Full HD 1080P
Digital Video Format MPEG-4 AVC (H.264)
Digital Audio Format MPEG-4 HE-AACv2
Dimension 95 x 30 x 15 mm
Page 7
6
www.encore-usa.com
Chapter 2: Getting Started
2.1 Device Driver Installation

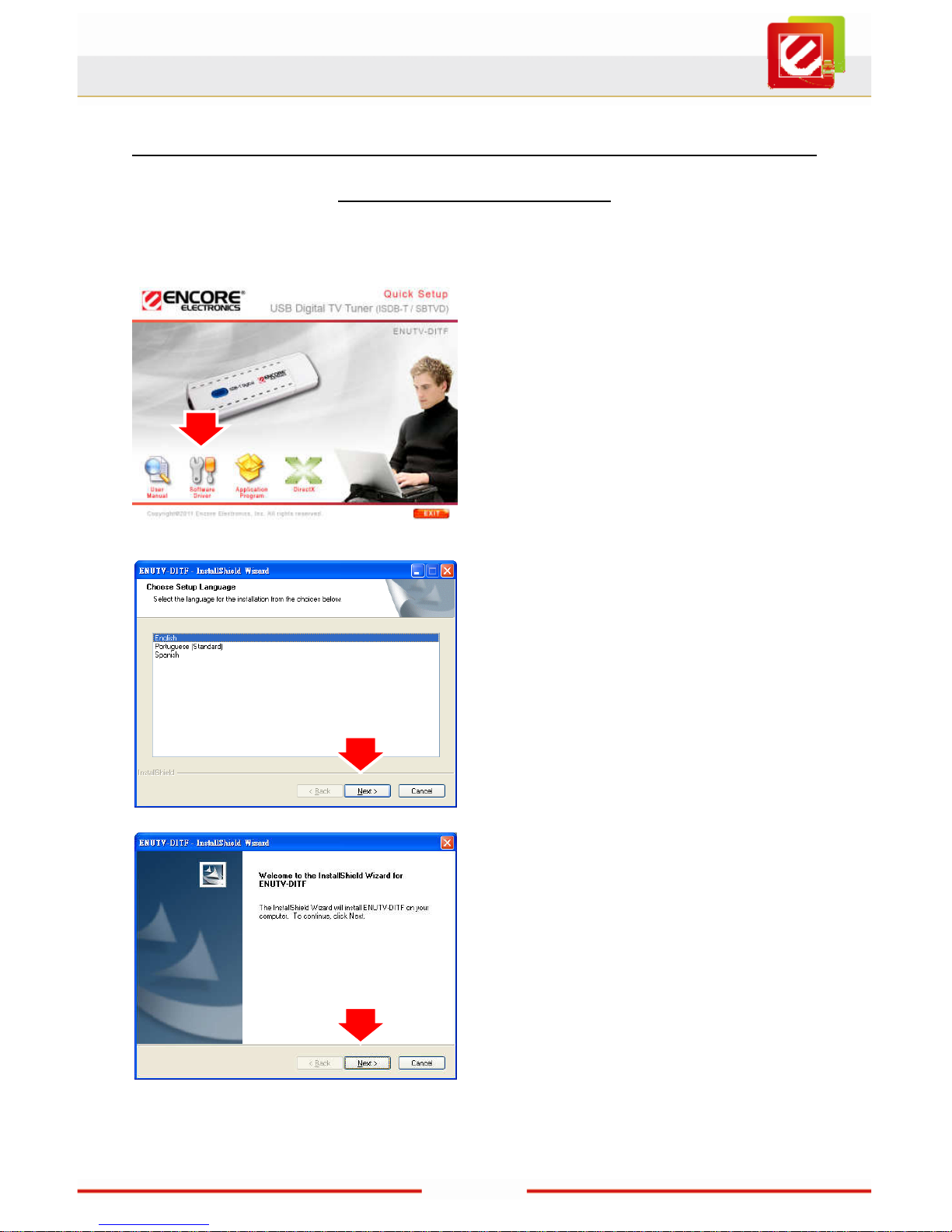

Insert the provided CD into the CD-ROM drive, and then follow the on-screen instructions below.
1. Insert the provided CD into the CD-ROM drive. The setup screen should automatically appear.
2. Click the” Software Driver” icon..
3. Choose the Language which you use. And then click “Next” to continue.
4. Click “Next” to start installation.
Page 8
7
www.encore-usa.com

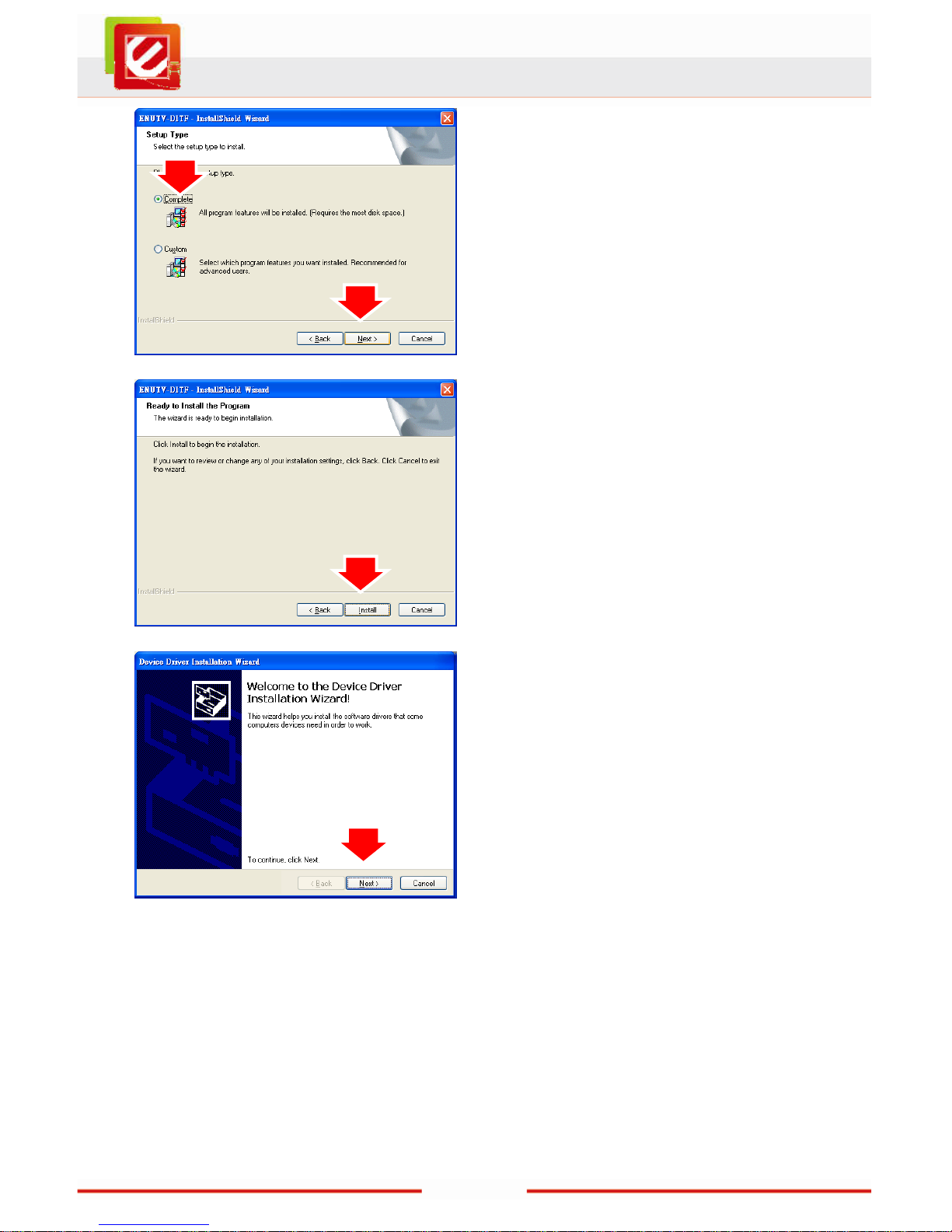

5. Click “Next” button to continue.
6. Click “Install” button.
7. Click “Next” button to continue.
Page 9
8
www.encore-usa.com

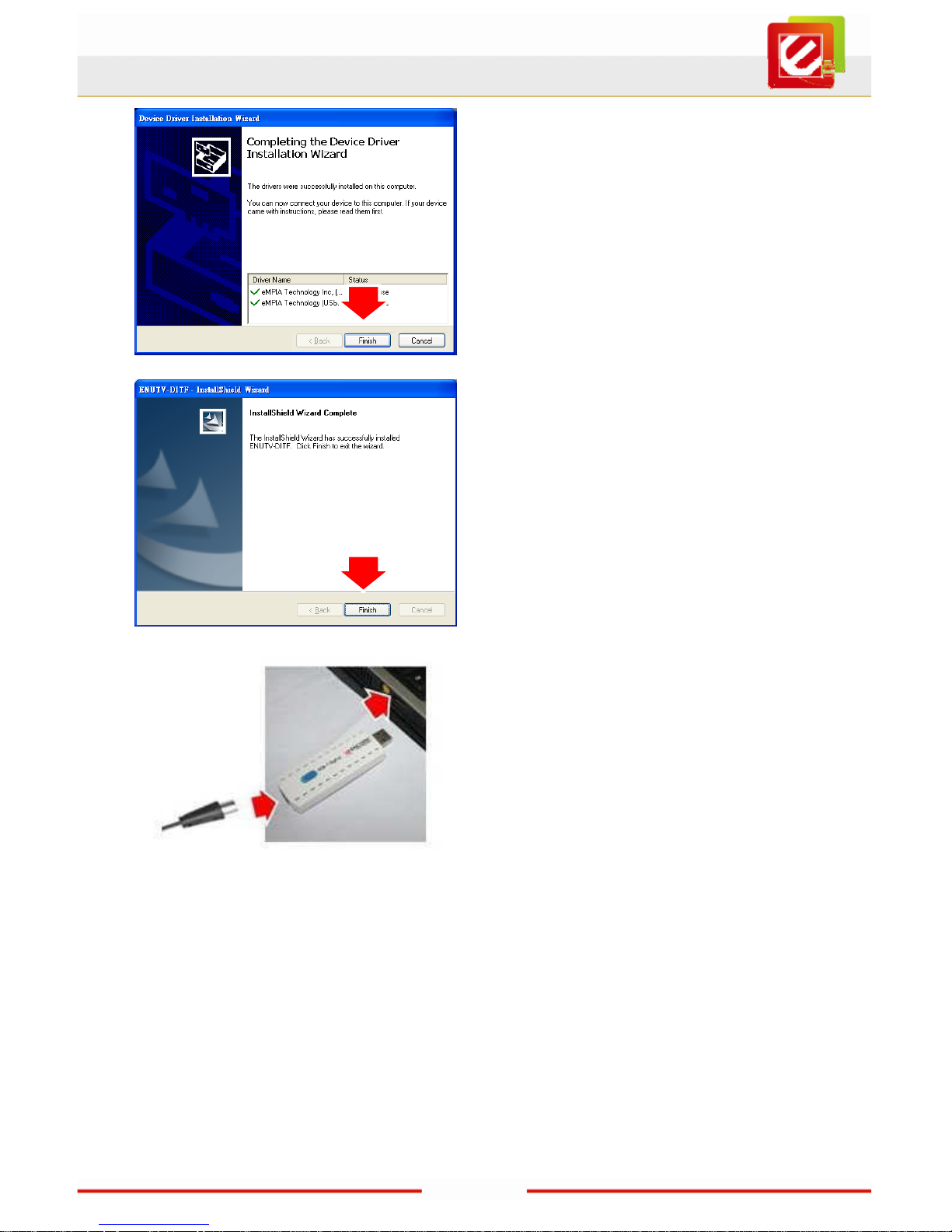

8. Click “Finish” button.
9. Click “Finish” button to close the wizard.
10. Connect the ENUTV-DITF to PC USB Hub.
Page 10
9
www.encore-usa.com

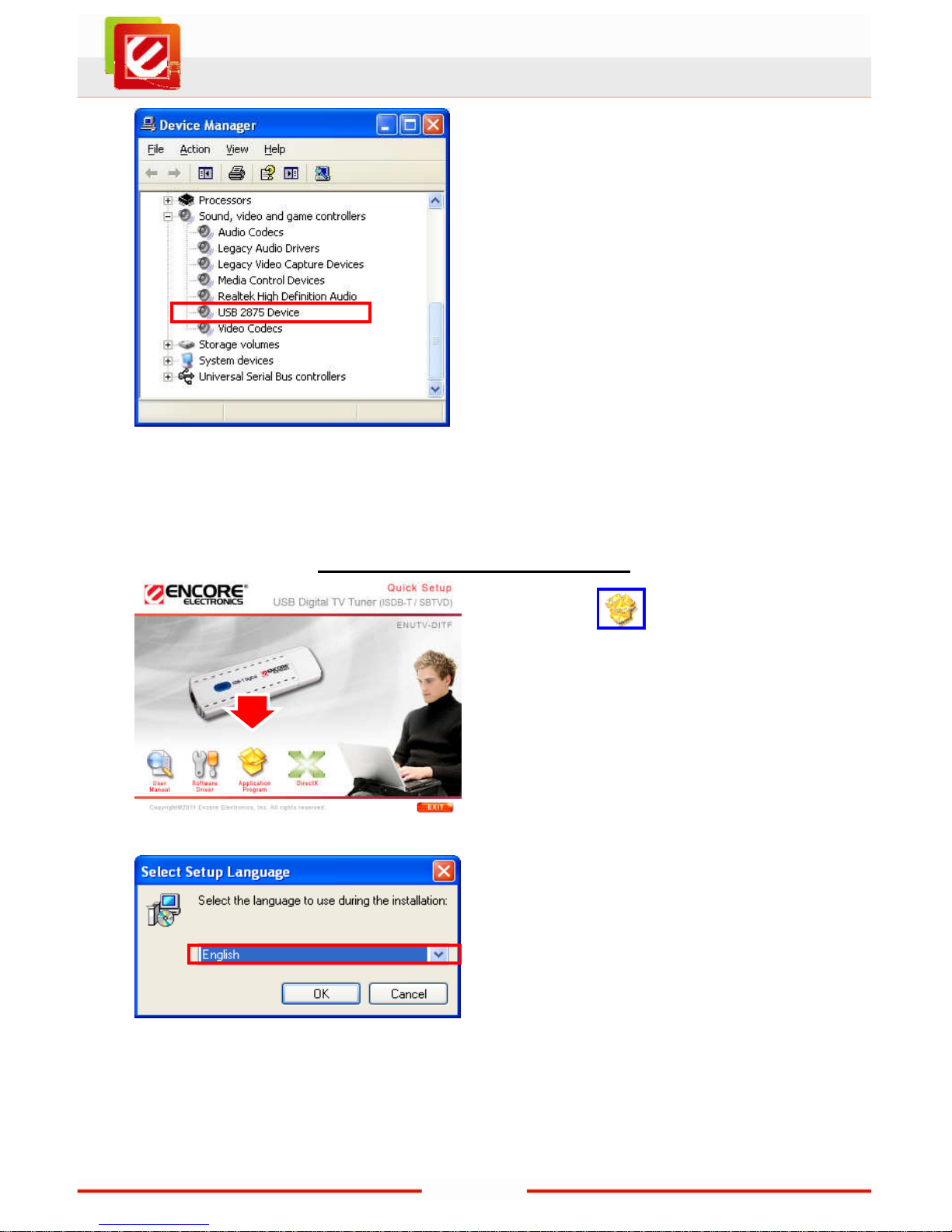

11. To examine if this device is properly installed, you can go to “Device Manager” in Windows®.
12. Open “Sound, video and game
controllers” and you should see” USB 2875 Device” now.
2.2 Install the BlazeDTV software
1. Click the” Application Program” icon.
2. Choose the Language which you use. And then click “OK” to continue.
Page 11
10
www.encore-usa.com

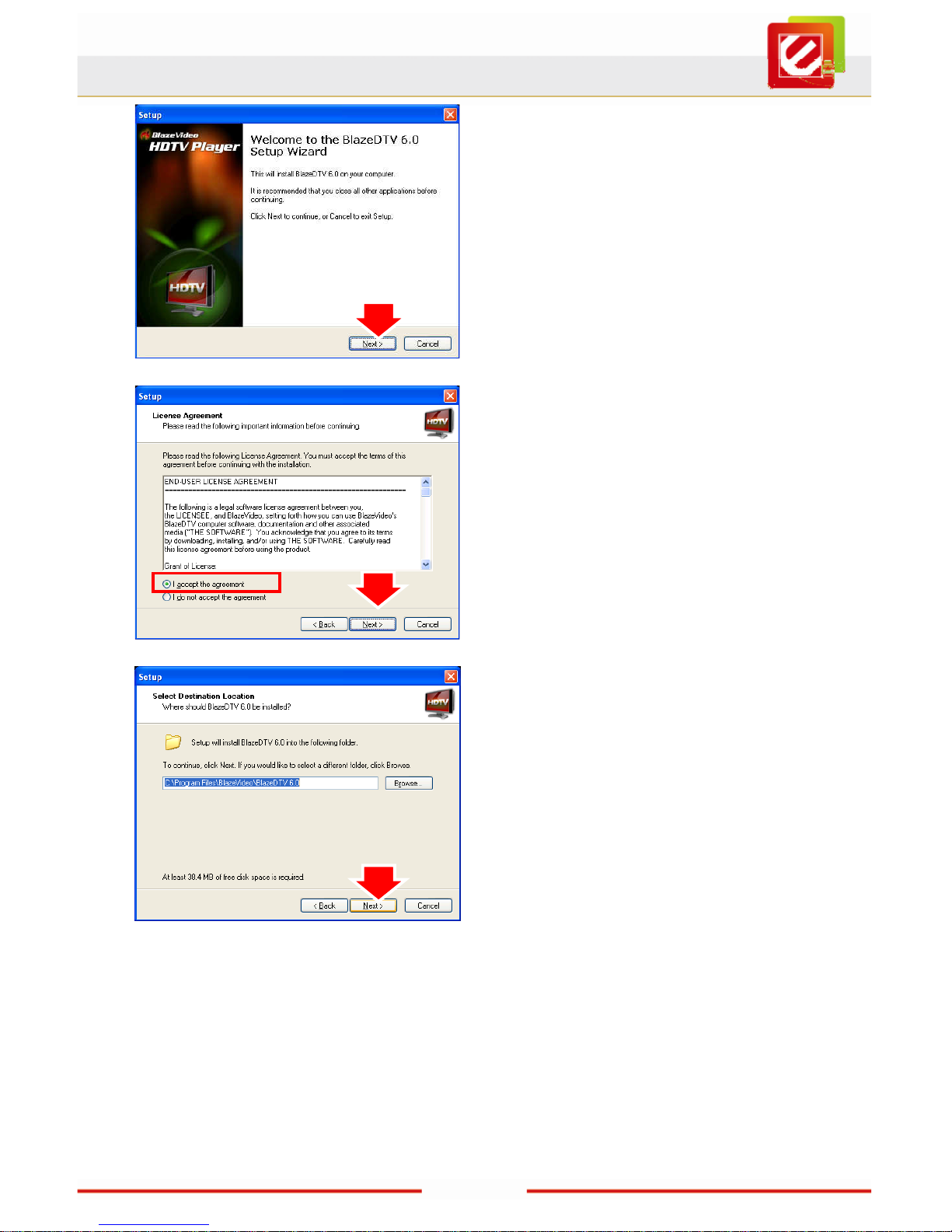

3. Click “Next” button to start the Installation.
4. Please read the License Agreement and select “I accept the agreement”.
5. Click “Next” button to continue.
6. Click “Next” button to accept the default location or choose a different folder.
Page 12
11
www.encore-usa.com

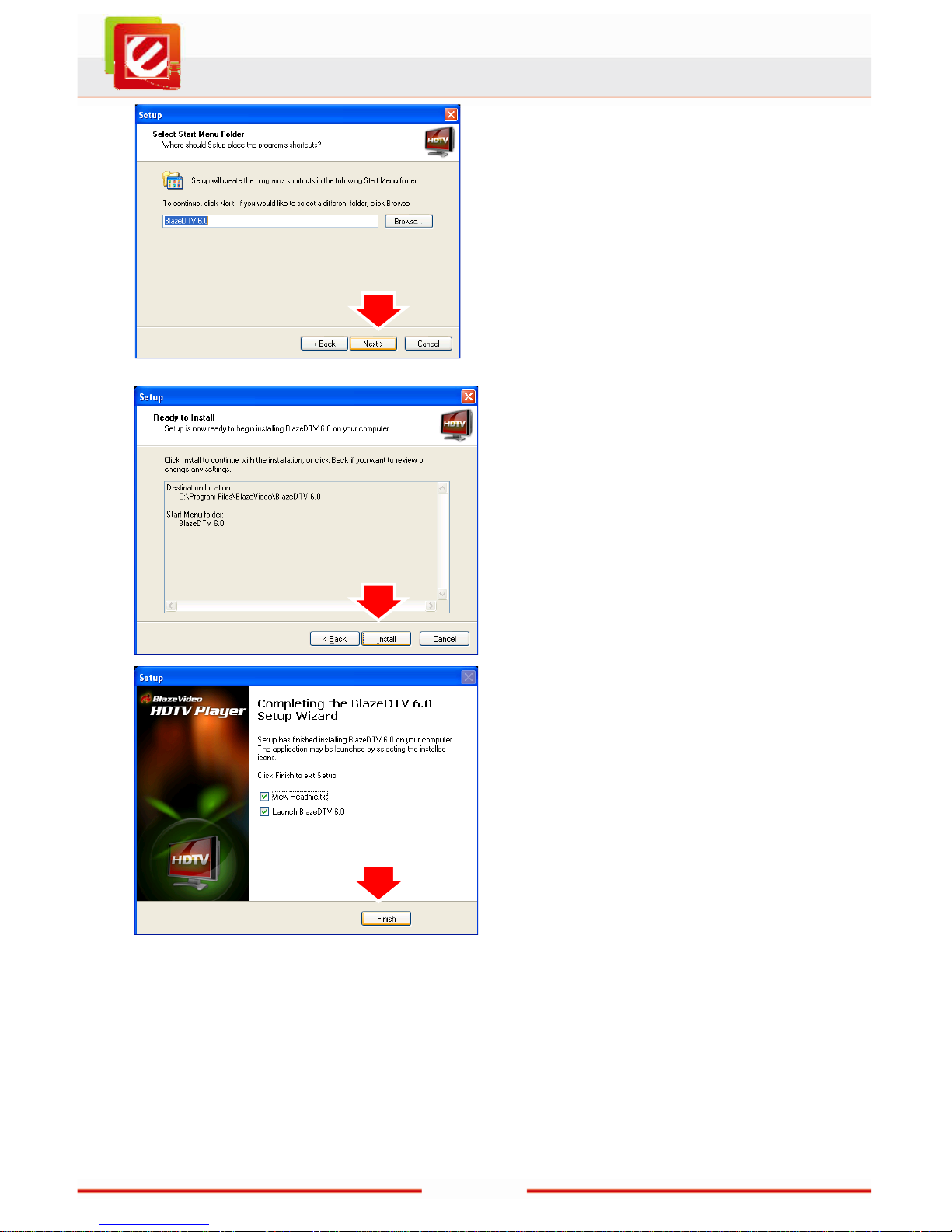

7. Click “Next” button.
8. Click “Install” button.
9. Click “Finish” button.
10. Then restart your computer.
Page 13
12
www.encore-usa.com
Chapter 3: Launch the BlazeDTV
3.1 Setting the BlazeDTV software
Please check TV antenna cable connecting to ENUTV-DITF first, and then check ENUTV-DITF connecting to PC USB port.
Notes: We highly recommend you use the outdoor antenna for better signal reception.
Follow the on-screen instructions and the guidance below.

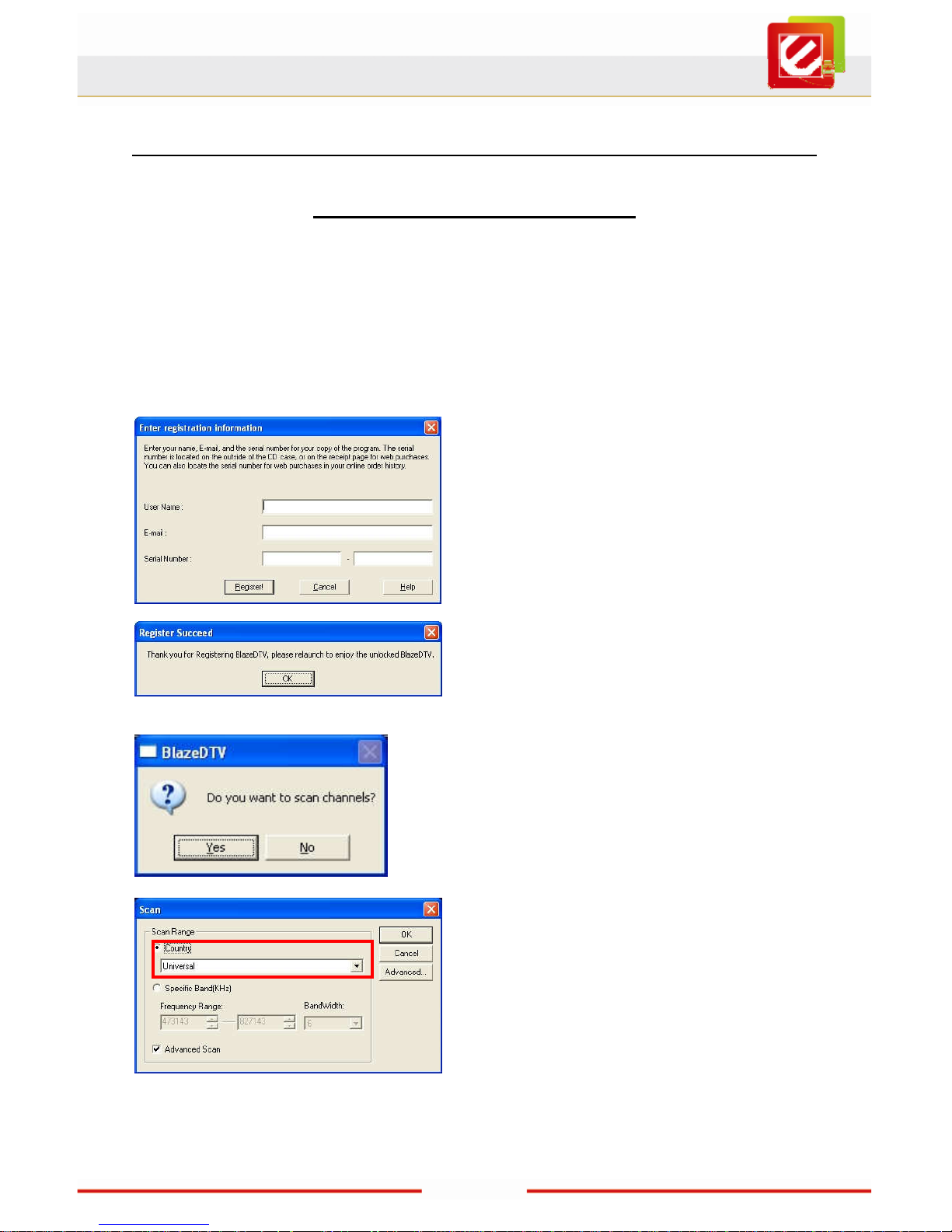

1. The first time you launch BlazeDTV, it will ask you to enter the serial number. You can find it on CD disk bag.
2. Clink “OK” to launch software.
3. Click "Yes" button to scan channels.
4. Choose the Country and then click “OK” to continue. Then System will auto scan all channels.
Page 14
13
www.encore-usa.com
3.2 Main Function

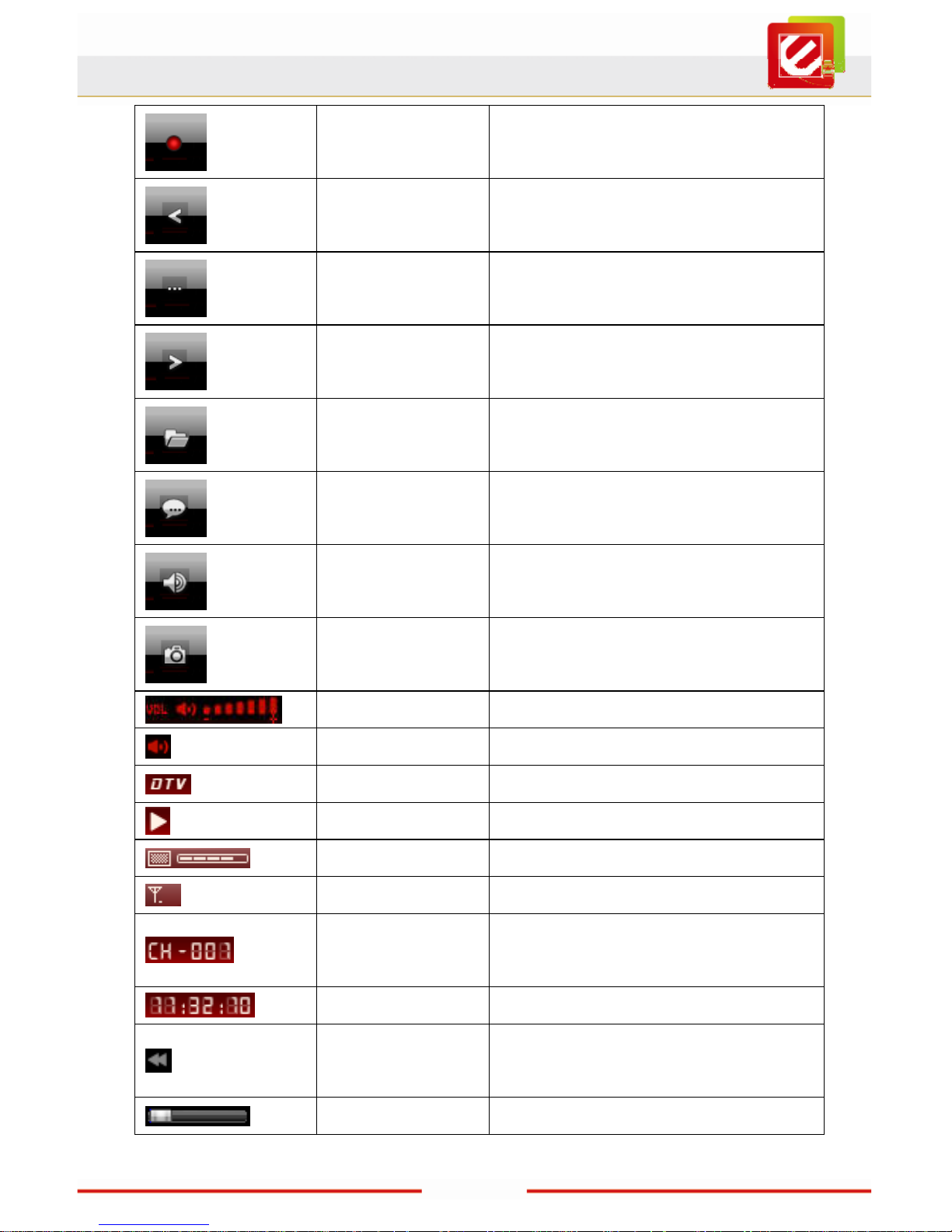

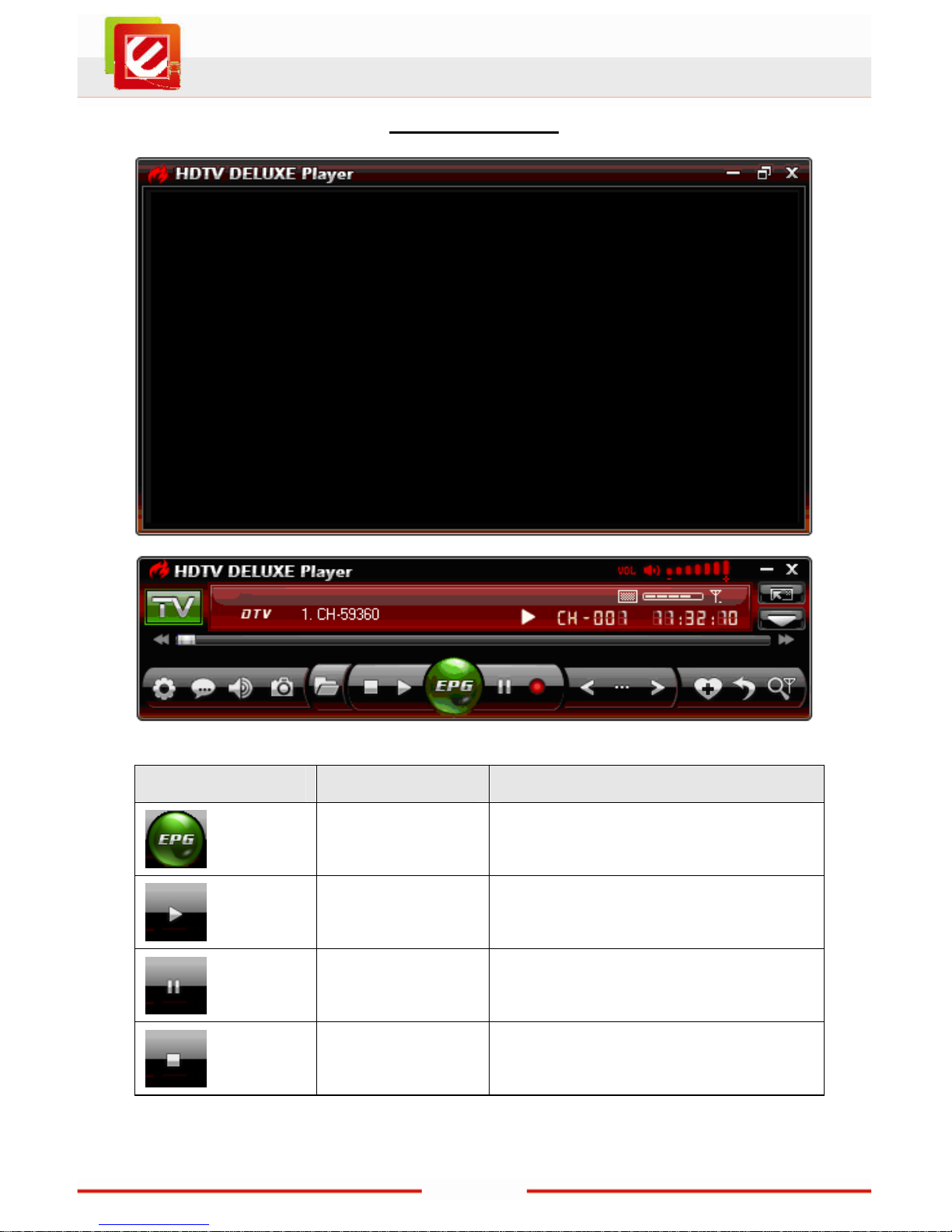

Button/Icon Name Description
EPG Open TV EPG window / playback
Play Play TV or Media
Time Shift / Pause Time Shift (for TV) or pause playback
Stop
Stop the current playback / Click play to restart playback.
Page 15
14
www.encore-usa.com
Record Record TV
Previous
Skip to play previous TV channel / DVD chapter
Browse Browse channel
Next
Skip to play next TV channel / DVD chapter
Open Select playback type
Subtitles
Select Subtitles: Select language caption if there are multiple language captions.
Audio
Select Audio: Click to select audio if there are various audio options.
Capture Capture video as “.bmp” still image
Volume Control Drag slider bar to adjust volume Mute Turn on/off audio Media Type Display playback type Playback status Display playback status Signal Quality Display TV signal quality Signal Strength Display TV signal strength
Channel/chapter
Display current TV channel / DVD chapter information
Time Display current time of TV / DVD
Fast backward
Fast backward, switch between 1X, 2X, 4X, 8X, 16X at each press
Slider bar Drag the slider to new position for
Page 16
15
www.encore-usa.com

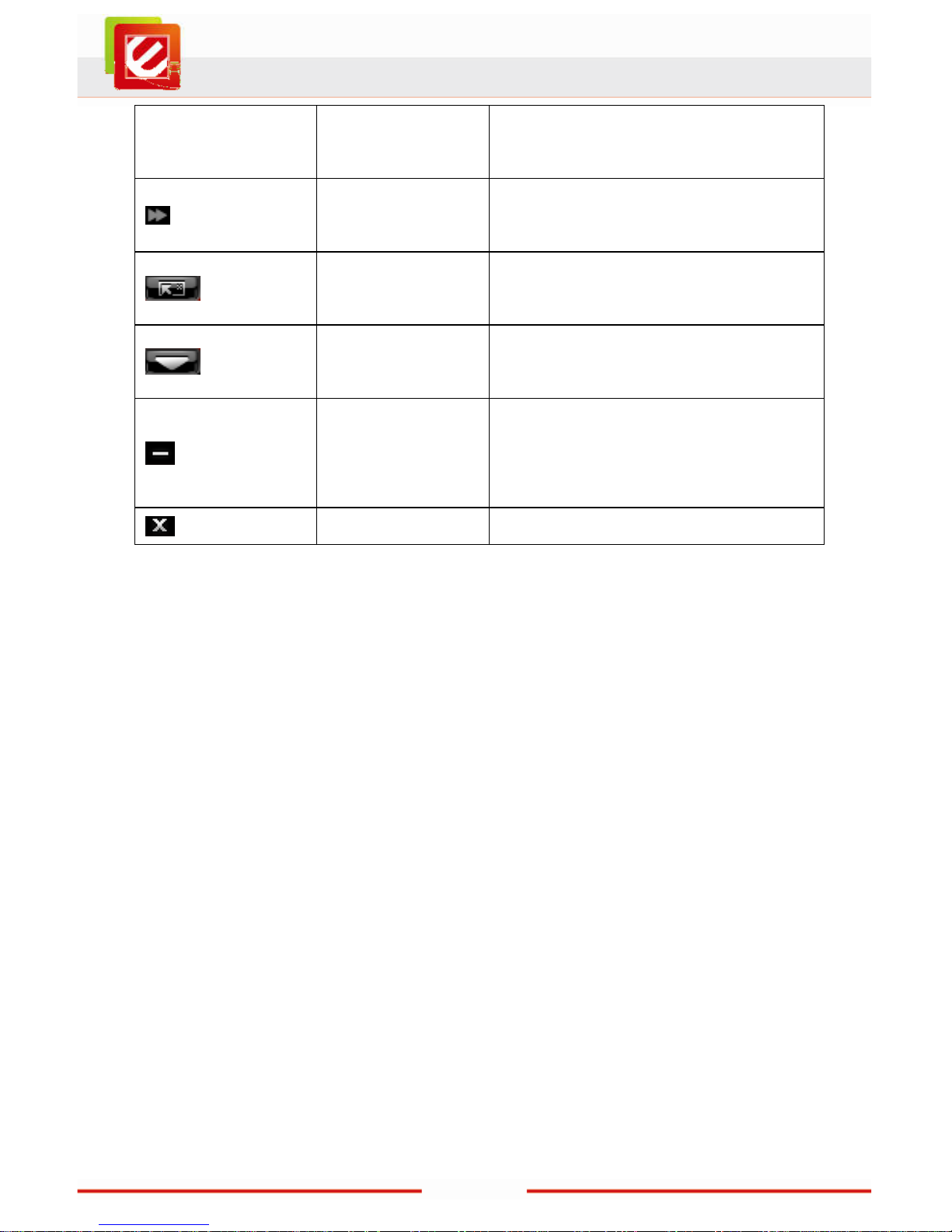

playback. (Only available on Professional Version)
Fast Forward
Fast forward, switch between 1X, 2X, 4X,
8X, 16X at each press Open Floating Panel
Show Floating Panel
Show Advanced Panel
Show / Hide Advanced Panel
Minimize
Click it, the control panel and the view
window will be minimized and displayed
as icons on system toolbar. Exit Exit BlazeDTV
Page 17
16
www.encore-usa.com
Chapter 4: Remote Control

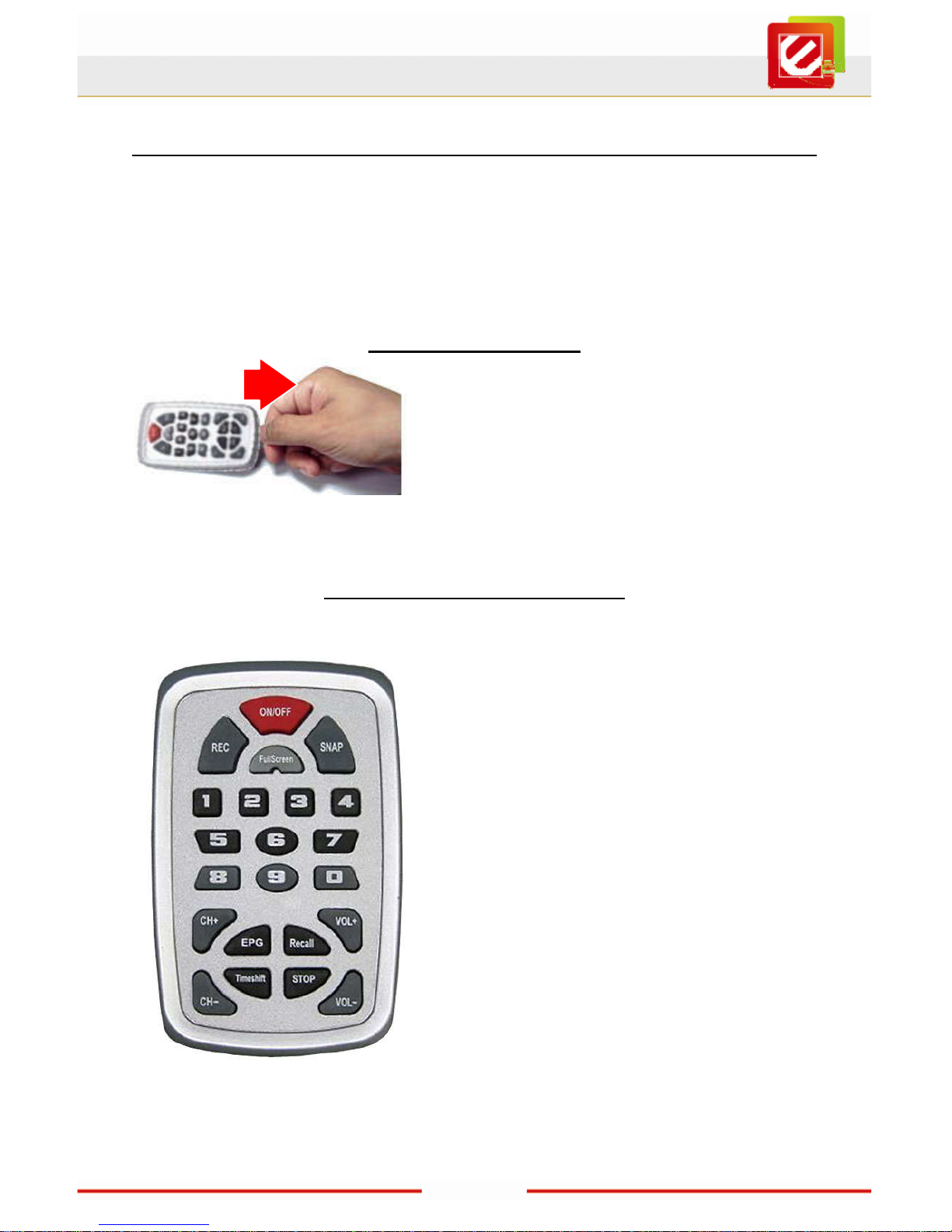

The Remote Control allows you to operate the device remotely. Aim the front of the Remote Control at the Remote Control Receiver window and press the control buttons as you would.
4.1 Installing Batteries
Please draw out the plastic from remote control. And then put in battery.
4.2 Remote controller functions
For default button assignments, please refer to the list below:
1. ON/OFF: Open/Close the program
2. REC: Start to record TV programs
3. Full Screen: Full screen display
4. SNAP: Still image snapshot
5. 0-9 key: Number keys
6. Vol+/Vol-: Click to increase/decrease volume
7. Ch+/Ch-: Click to switch previous/next channel
8. EPG: show the Electronic Program Guide
9. Timeshift: start Timeshift feature
10. Recall: Return to the last TV channel
11. Stop: Stop the recording
Page 18
17
www.encore-usa.com
Chapter 6: Technical Support
Please visit www.encore-usa.com for the latest product information and downloads. International tech support hotlines are listed on the back cover
