Chapter 1: Introduction
1.1 Package Contents
The following items are included in the ENUTV-DAQ package.
1 PC HDTV Tuner  1 Installer CD  1 RF adapter  1 User Manual  1 Remote Contr ol  1 USB extension cable  1 Portable antenna
1.2 Requirement
Operating Syst ems:
Windows® XP (SP3) / Windows Vista® (SP2) / Windows® 7
Processor: Intel® Pentium® 4 2.0 GHz or above CPU
(2.8 GHz or above for HDTV)
RAM: minimum 256 M B
(512 MB DDR RAM rec ommended)
Hard Disk: minimum 1GB free space, 5400 RPM or above  Graphics Card: 1024x768 resolution or higher,
Microsoft DirectX® 9.0c or above
Notes:
To support HDTV (High definition TV), the mini m um requirement is one of the following video cards wi th DX-VA (video card hardware acceleration) enabled:
ATI Radeon 7200 or above  nVidia Geforce MX 440 or above  Intel 82865 or above
To support HDTV 1080p with subtitle/DTV CC: A Pentium IV 2.8 GHz processor (or higher) is recommended. The minimum req uirement is one of the following video cards w ith DX-VA enabled: Recommended:
ATI Radeon X700 (256M RAM) or above  nVidia Geforce FX 6200 (256M RAM) or above
Page 4
3
www.encore-usa.com
Chapter 2: Getting Started
2.1 Connect ENUTV-DAQ
To install the ENUTV-DAQ into your computer, follow the steps below:
1. Connect t he TV ant enna / cable to the connector.
Notes: We highly recommend you use the outdoor antenna for better signal reception
2.2 Device Driver Installation
1. Insert the installation CD into the CD-ROM drive. The setup screen will automatically appear.
2. Click the “Setup Driver” button.
3. Click “Next” on driver setup w elcome window to continue.
Page 5
4
www.encore-usa.com
4. Make sure the “Complete” radio button is selected then click “Next”
5. Click “Install” button
Page 6
5
www.encore-usa.com
6. Click “Next” button
7. Click “Finish” button
Page 7
6
www.encore-usa.com
8. Click “Finish” button.
9. Click “Finish” button to restart.
10. Connect the Device t o PC U SB Hub.
Page 8
7
www.encore-usa.com
11. To m ake sure the driver is properly
installed and star ted, open the “Device Manager”. Please double-click the “Sound, video and game controller”.
Page 9
8
www.encore-usa.com
2.3 Install the TotalMedia™ software.

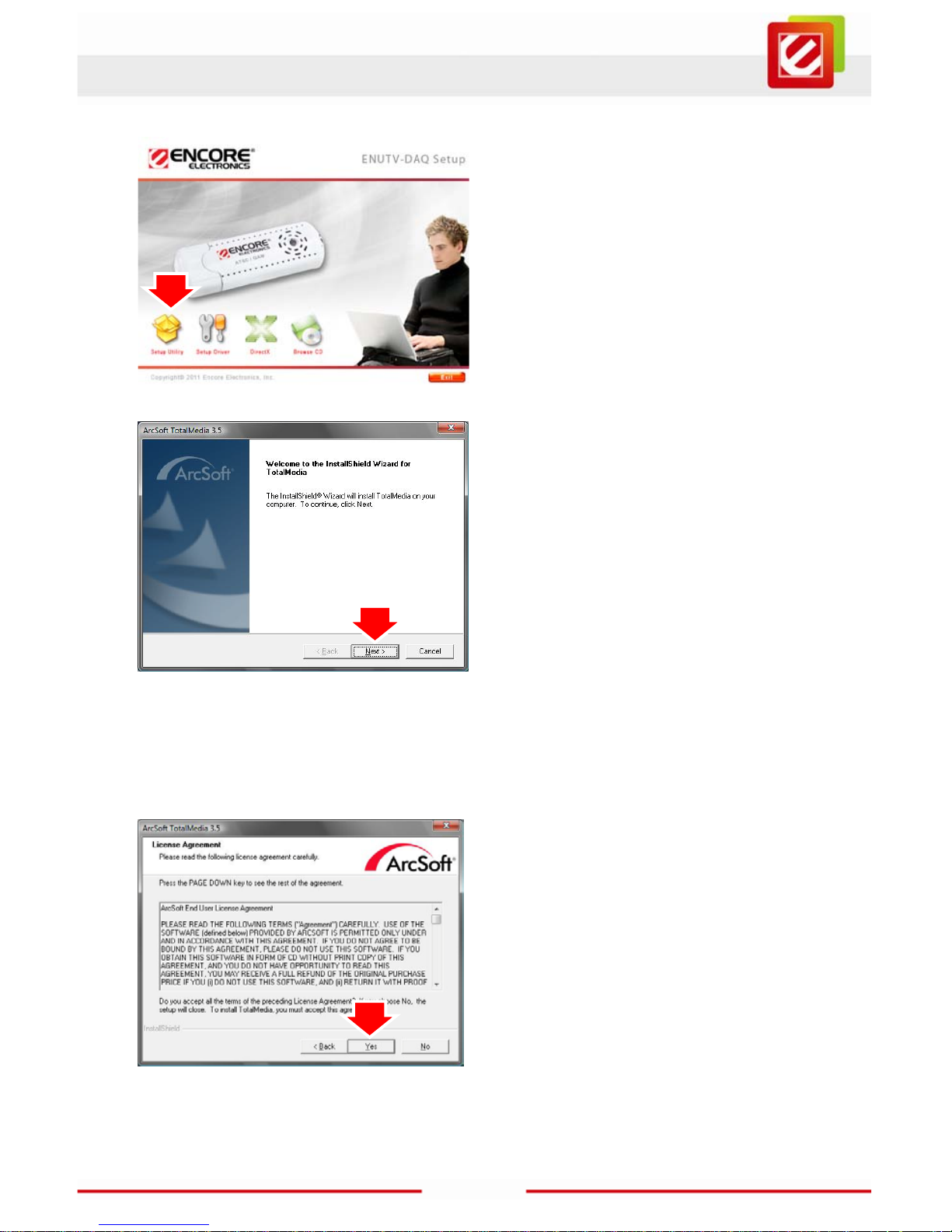

1. Click the Setup Utility” button.
2. Click “Next” on TotalMedia setup welcome window to conti nue.
3. Please read the License Agreement and click “Yes” button.
Page 10
9
www.encore-usa.com

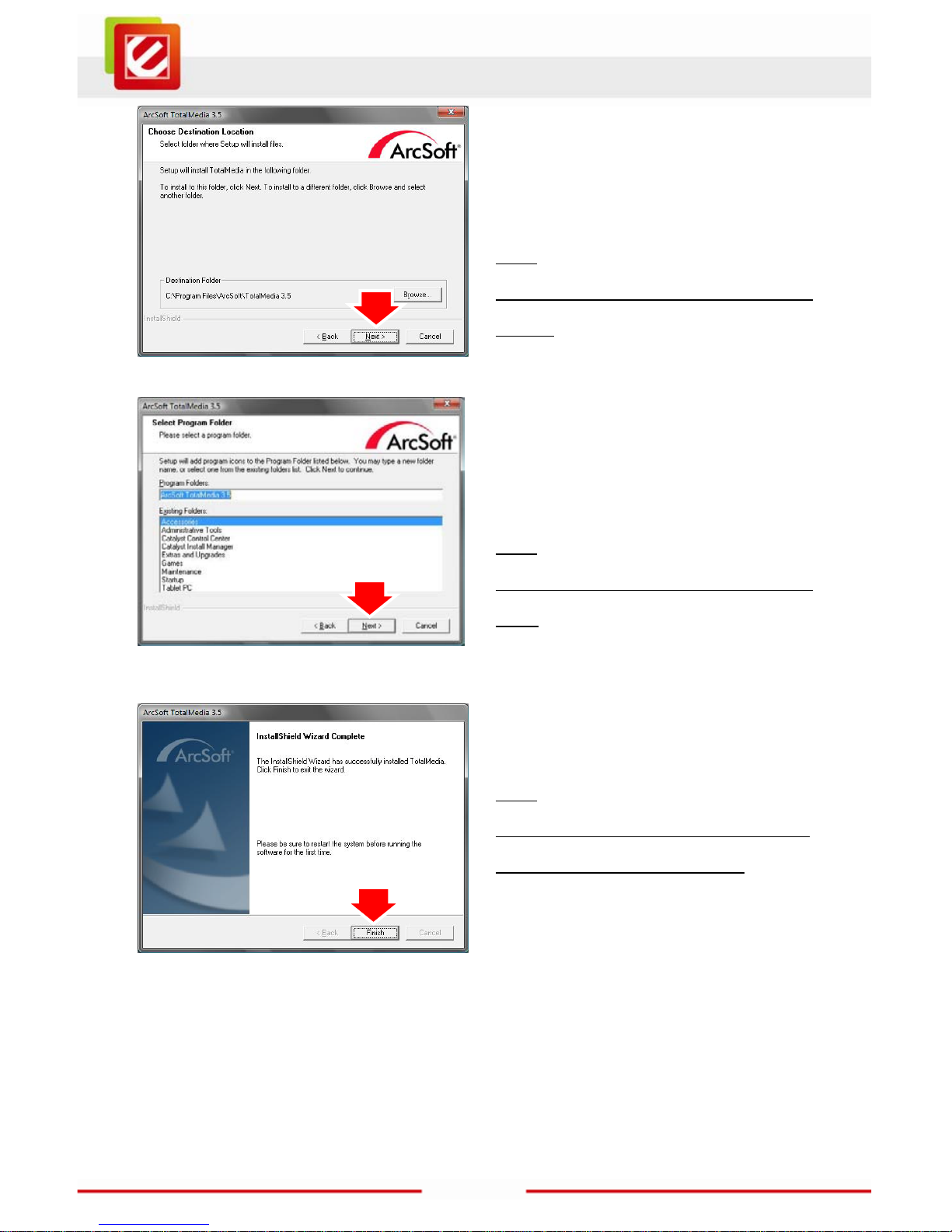

4. Click “Next” button to accept the default location or choose a different folder.
Note: We recommend not to change the default location
5. Click Next” button to accept the default program folder or choose a different fol der.
Note: We recommend not to change the default folder
6. Click “Finish” button to exit.
Note: We recommend restar ting your computer right after the Installation Wizard.
Page 11
10
www.encore-usa.com

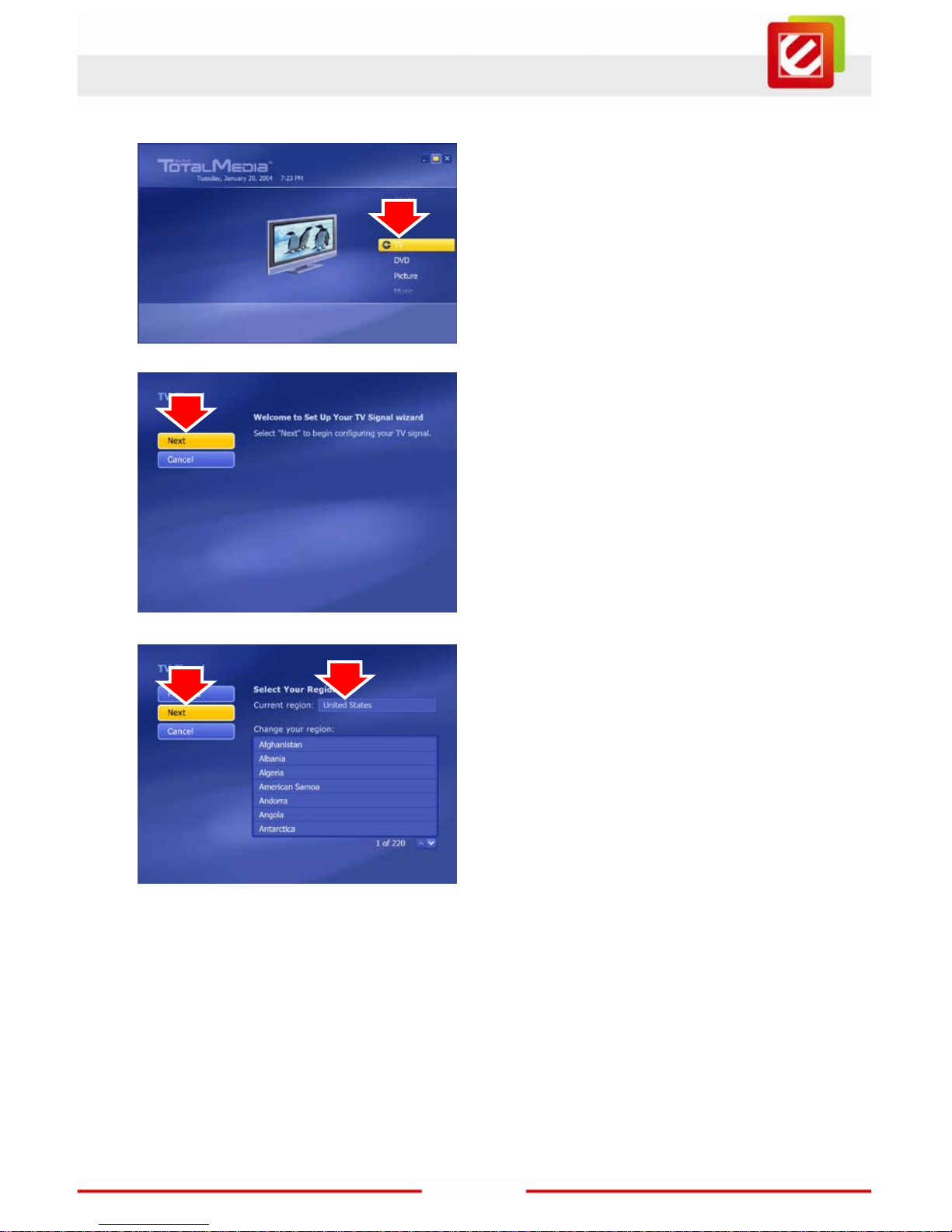

2.4 Setting the TotalMedia™ software.
1. Use remote control or mouse to selec t TV function.
2. Click “Next” button to continue.
3. Select your r egion then click “Next” button again.
Page 12
11
www.encore-usa.com

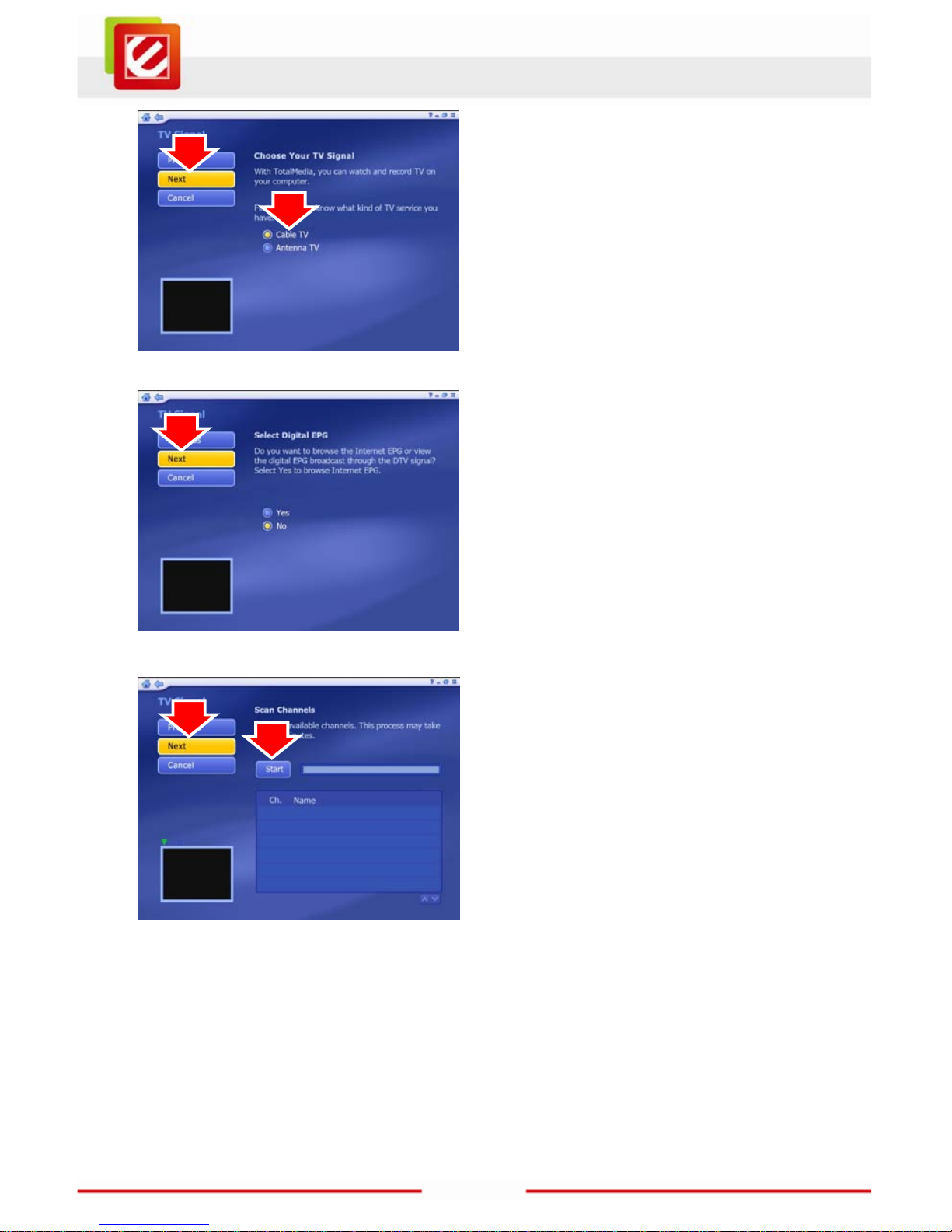

4. Select TV servic e and click “Next” button.
5. Click “Next” button to continue.
6. Click “Start” button to scan channel automatically.
7. Click “Next” button when scanning finish.
Page 13
12
www.encore-usa.com

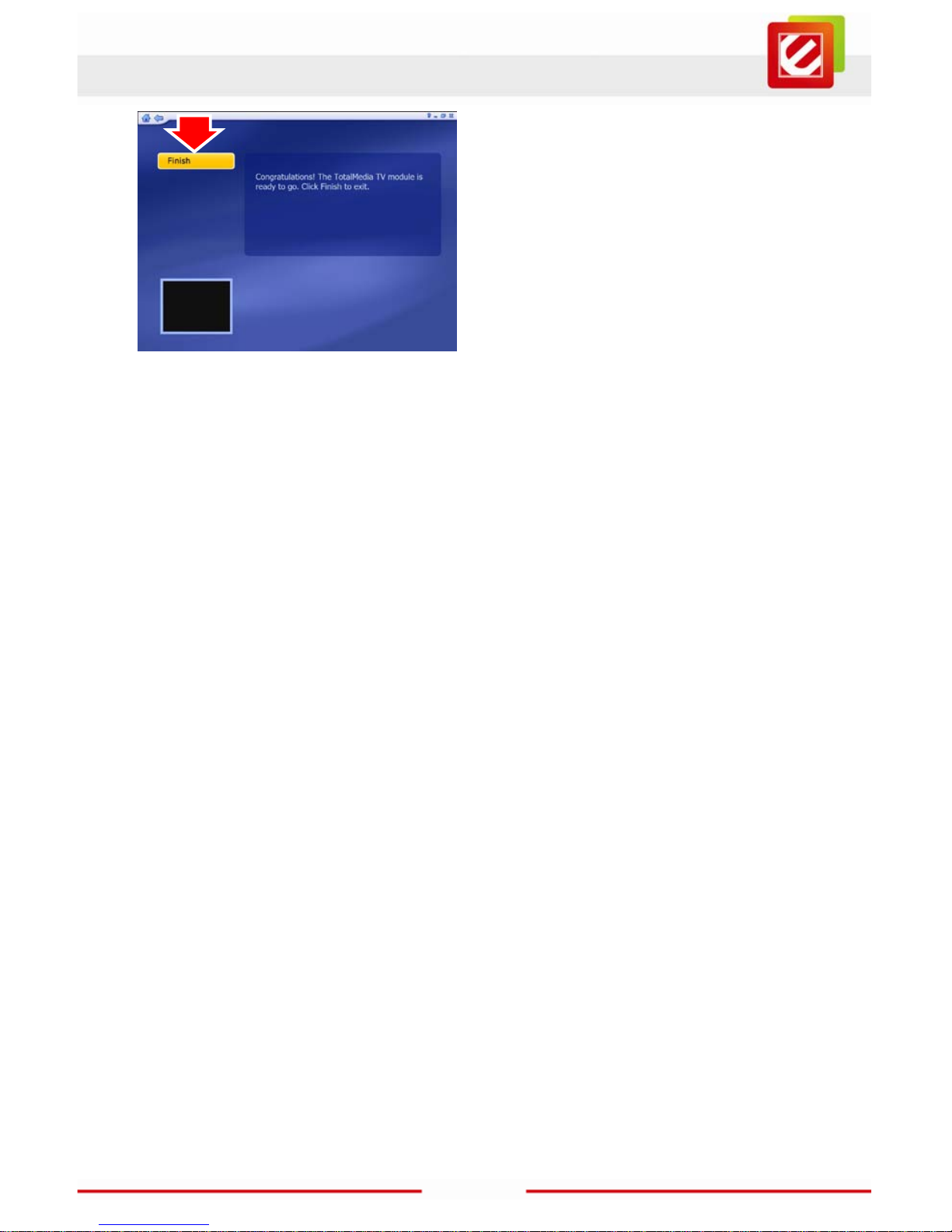

8. Click “Fi nish” button.
9. Watch and enjoy your high q uality digital TV.
Page 14
13
www.encore-usa.com
Chapter 3: Launch the TotalMedia
3.1 Floating Toolbar

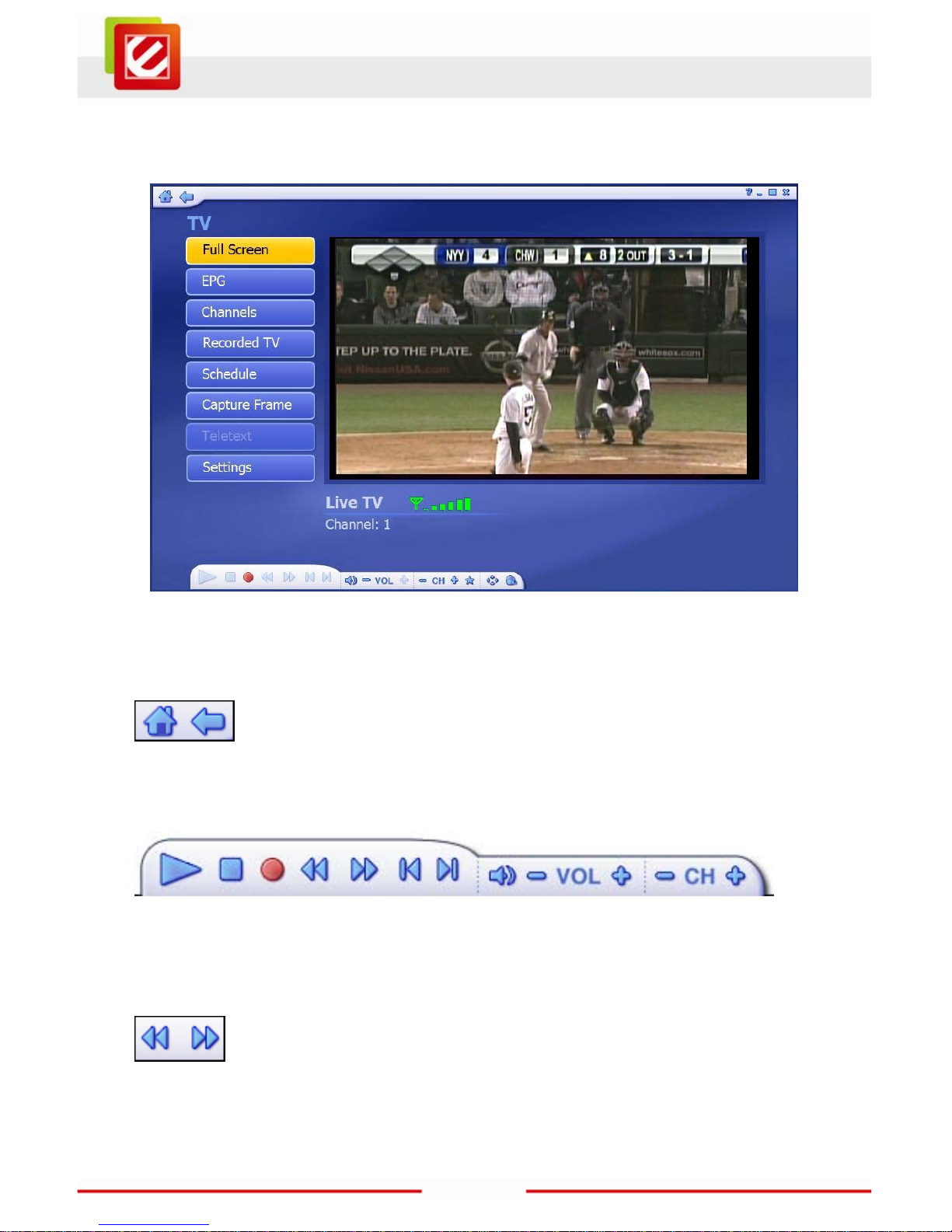

The floating toolbar appears for a few seconds whenever you move t he mouse:
The "Home" button (it looks like a house) takes you to the program' s startup screen. The arrow takes you t o the previous screen.
The toolbar at the bottom of the screen f eatures standard audio/video playback cont rols (Play/Pause, Stop, Rec ord,) plus Volume and Channel controls. Special controls for MPEG2 playback and only appear when neces sary.
When watching m ovie discs, video fil es, and recorded TV shows: Use these butt ons to adjust the playback speed at variable rates.
Page 15
14
www.encore-usa.com
When watching M P EG-2 videos and recorded TV shows: Use these butt ons to skip forward by roug hly 27 seconds, or backwards by roughly 27 seconds. These buttons are useful for bypassing commercials or skipping back slightly if you accidentally skip ahead too far.

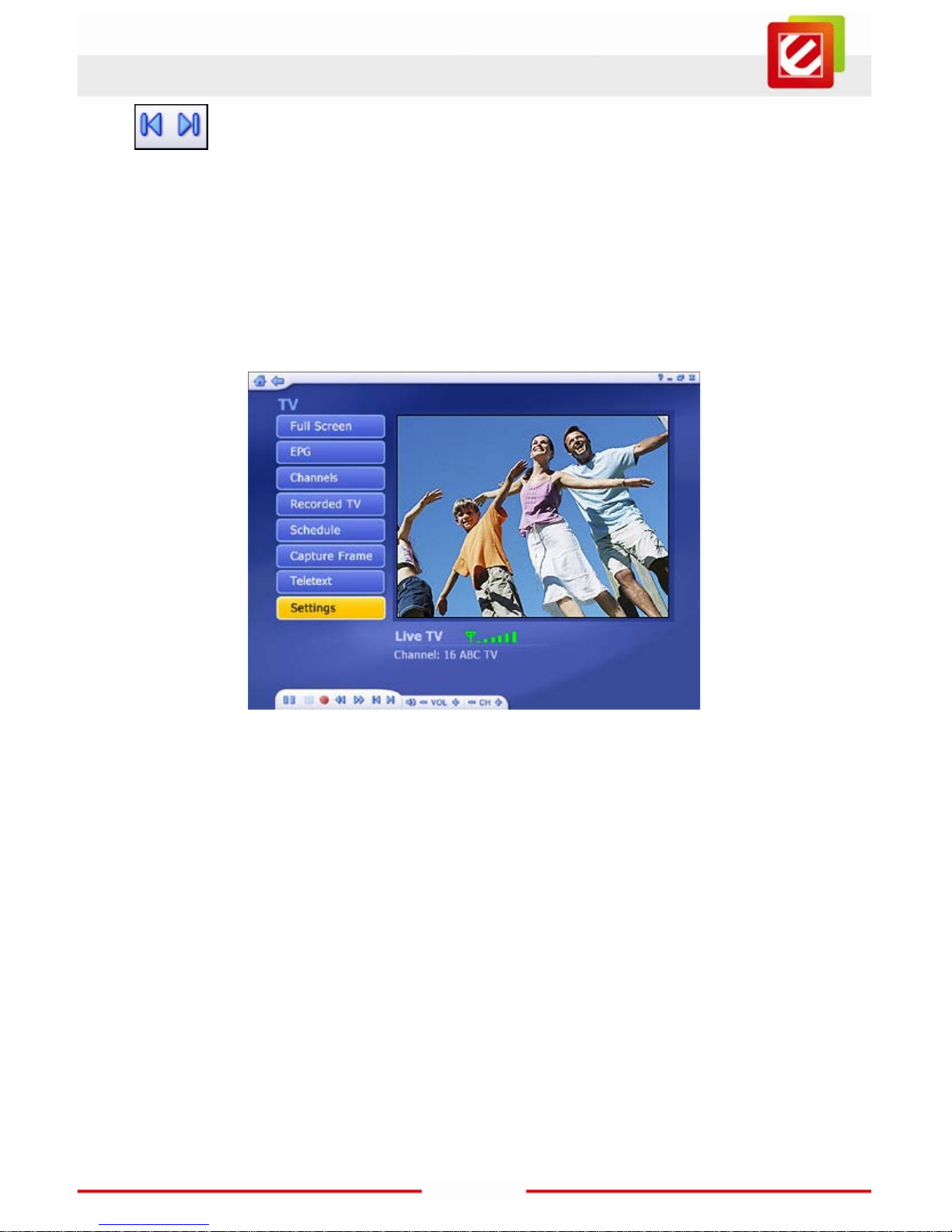

3.2 TV Module
This secti on lets you view and edit the settings for TV recording.

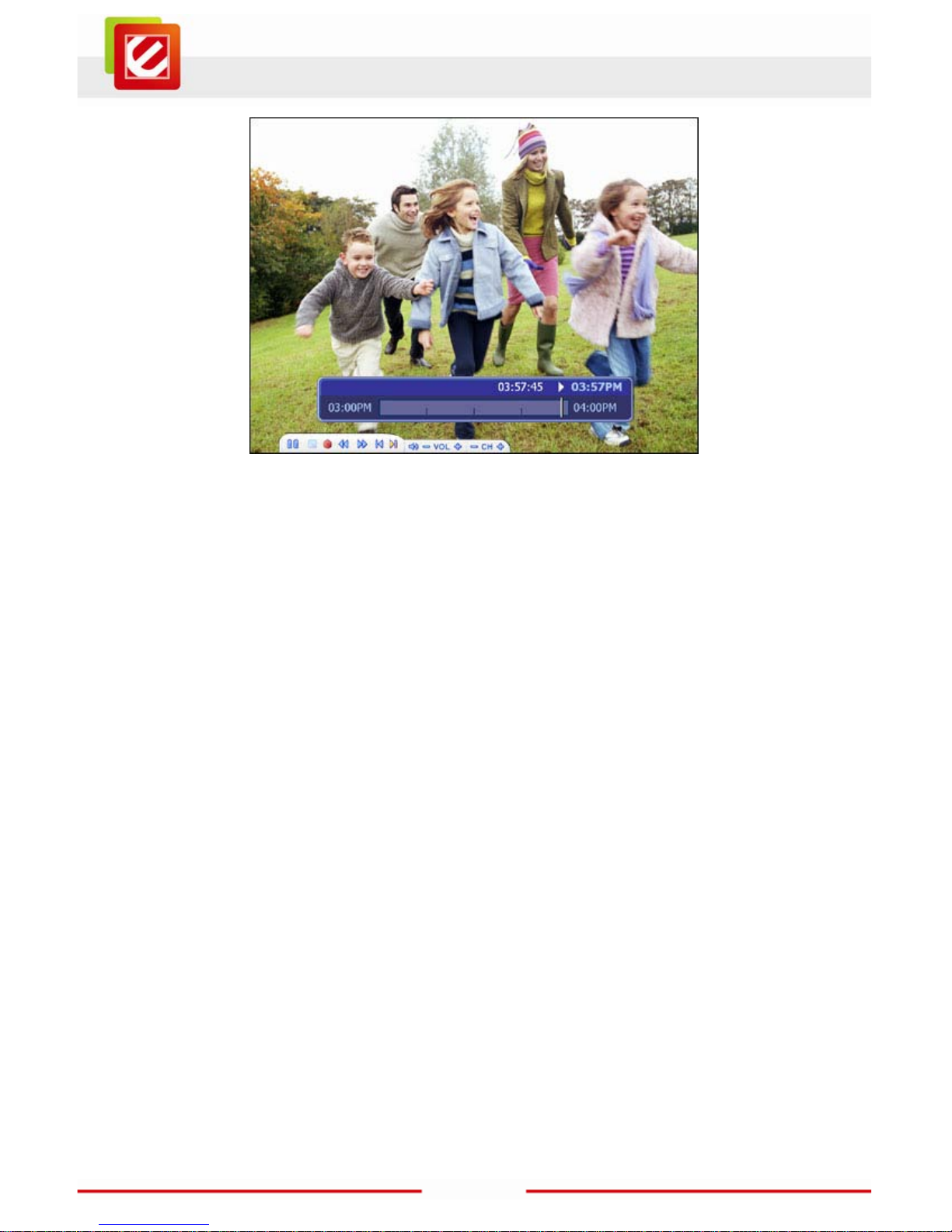

You may pause and rewind TV (w hile you’re watching) using both the remote control and the toolbar. Options inc lude: Full Screen - Displays the video over the ent ire program display area-typically the
entire screen. You can click the Full Screen button to switch int o full screen mode. Press "Esc " or double-click the mouse to go back to a normal window.
Page 16
15
www.encore-usa.com
Note: You should check the "Time Shift" option in TV Settings to display the time bar.
EPG - Display t he electronic programmi ng guide.  Channels - View the program channel li st. Click a channel to lear n more about it.  Recorded TV - Burn the recorded TV shows to a disc.  Schedule - Program the application to record TV shows.  Capture Frame - Take a sc reen capture of the current video screen. The captured
image will be s aved in the "My Documents | My Pictures" folder by default.
Teletext - Watch teletext ( if available).  Settings - View and edit the settings for the TV module.
3.3 EPG
This secti on lets you view the channel program lists. If you are using a digital TV system, please select to access EPG or network EPG to view the program lists. While using analog TV syst em , the program will take you to the network EPG directly.
Note: This opti on is only available if you are using an EPG service. The Internet EPG may not be available in all countries and the E P G on some digital services may not be supported.
Page 17
16
www.encore-usa.com
3.4 Channels
This secti on lets you view the channel li st and select a specific channel.
The available channels are listed here. There is a preview window in the bottom left corner of the screen. To watch a channel, click on it, and it will appear in the preview window. You can click the button next to the preview window to play it in Full Screen mode. Press "E sc" to exit Full Screen. Double click a channel will take you back to the TV main screen and the program wil l start showing.
Options inc lude: Add to Favorit e - Highlight a channel on th e list and click on the butt on to set it as a
favorite channel. A checkmark indicates favorite channel.
Delete From Favorite - If you select a favorite channel, click on this button to remove
it from the favorite channels list .
From the "Channel T ype", choose either to view "All" or only the "Favorite" channels.
Note: When using digital tuner, there will be two more opt ions: "TV" and "Radio".
Page 18
17
www.encore-usa.com

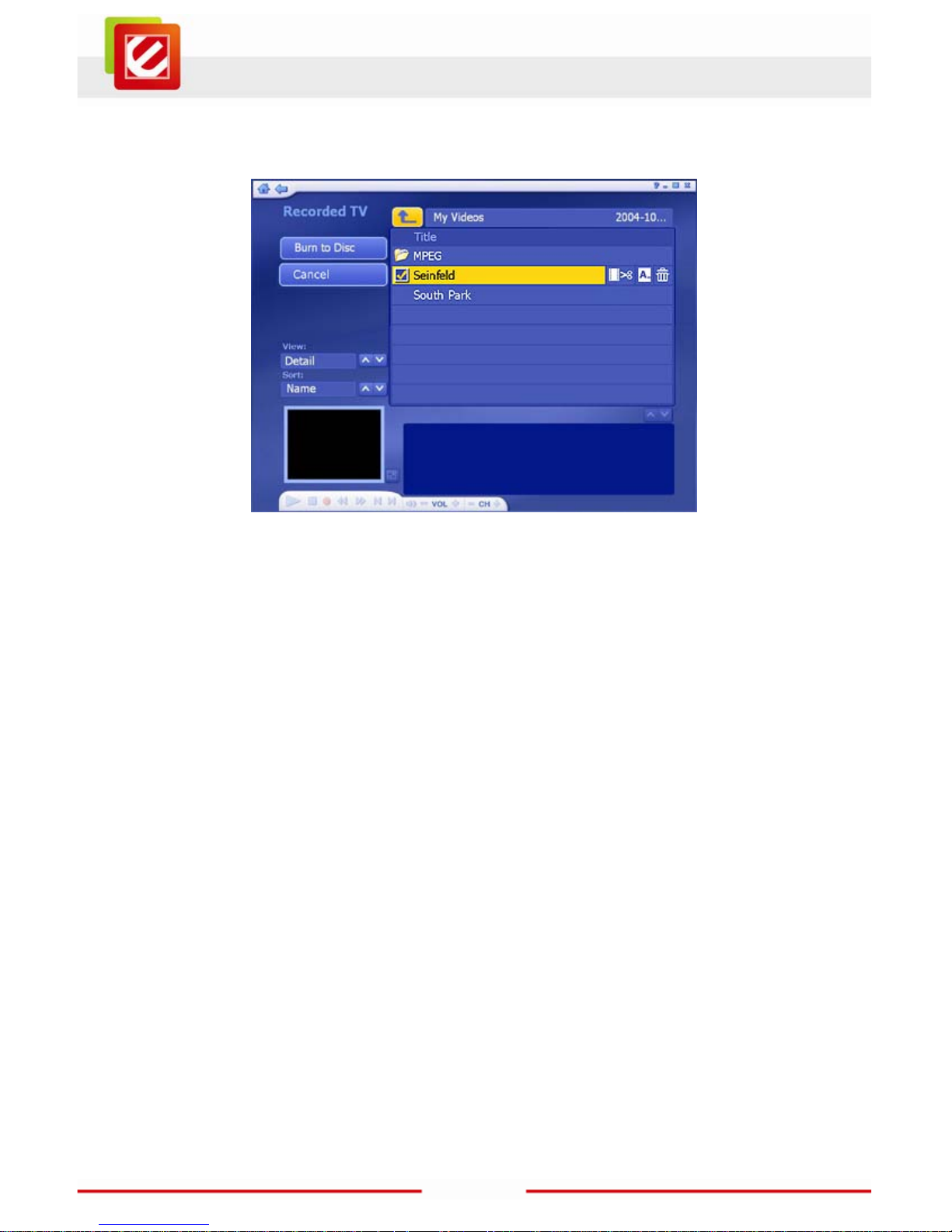

3.5 Recorded TV
This secti on displays your recorded TV shows.
When you play back recorded TV, you can fast forward or rewind using ei ther the
controls on your remote control, keyboard, or on the floating toolbar. You can click the button ne xt to the preview window to play it in Full Screen mode. Press "Esc" to exit Full Screen.
From the View section, you can choose either "Detail" or "Thumbnail" view. Both
views show you thumbnails of the available photos and folders; "Detail" view includes file/folder names and dates.
From the Sort section, choose to arrange t he photos according t o name or date.  To trim a video, clic k the scissors icon to the right of the file.  To rename a video file, click the "A_" icon to access a virtual keyboard.  Click the Del ete (trash can) icon to del ete a file.
Page 19
18
www.encore-usa.com
3.6 Burn To Disc

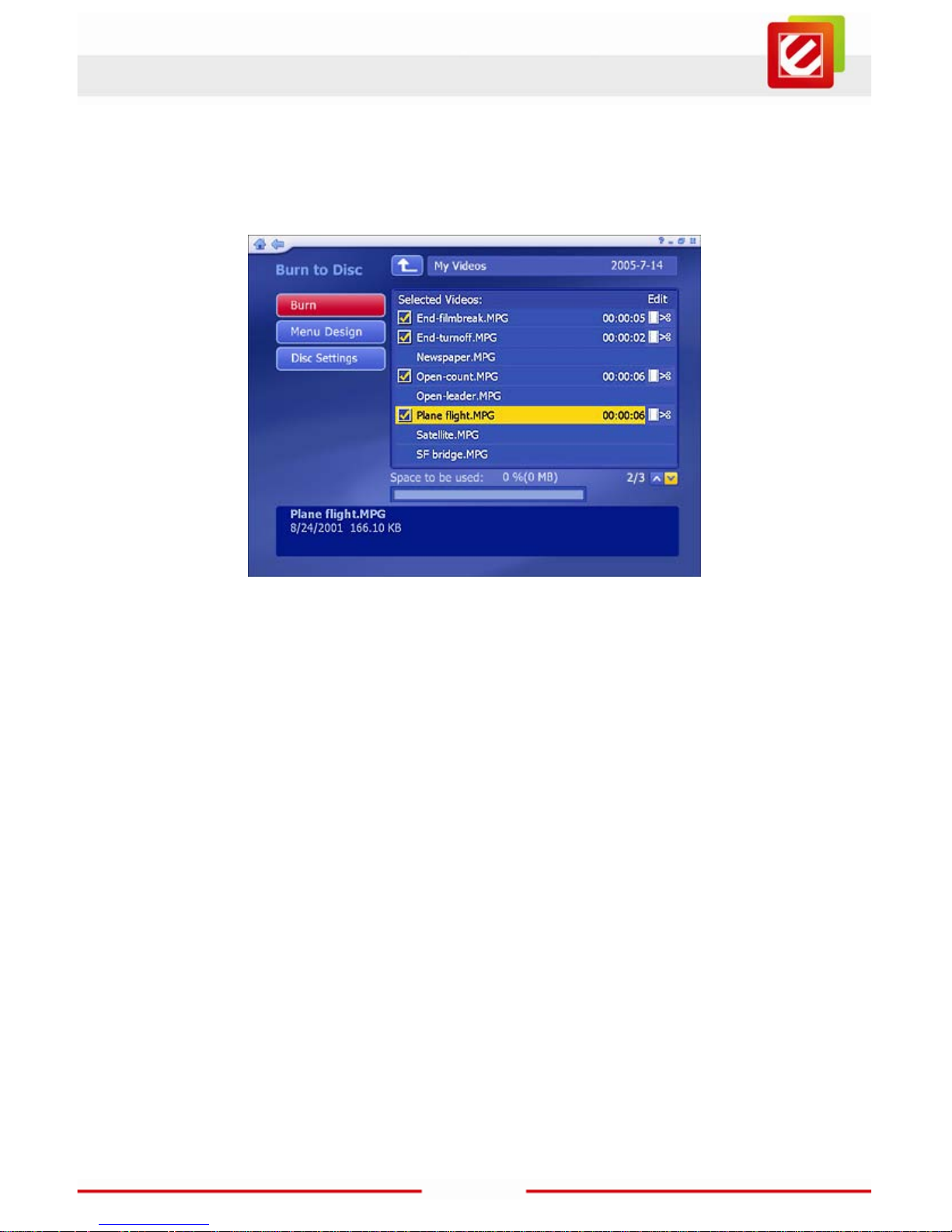

Create a DVD or VCD (depending on your settings) c ontaining the selected files. Burn one or more video cl ips to disc. Browse to t he folder that contains the vi deos, and select the specific files you want.
Check the video f iles you want to burn to a disc. Click again to deselect (uncheck) a
video file.
To trim a video clip, or to choose the frame be used as the chapter button thumbnail,
click the scissors icon to the right of the file name.
Click the disc settings button, to select the proper disc drive, change video format
and modify other disc options.
Click the DVD M enu Design button to pers onalize your DVD disc with a custom title
and graphics .
When you’re ready to make a disc, click "Burn."
Page 20
19
www.encore-usa.com
3.7 Schedule
This secti on lets you program the application to record TV shows, then the application wi ll monitor the s chedule and record the s cheduled programs autom atically on the correct day/time.

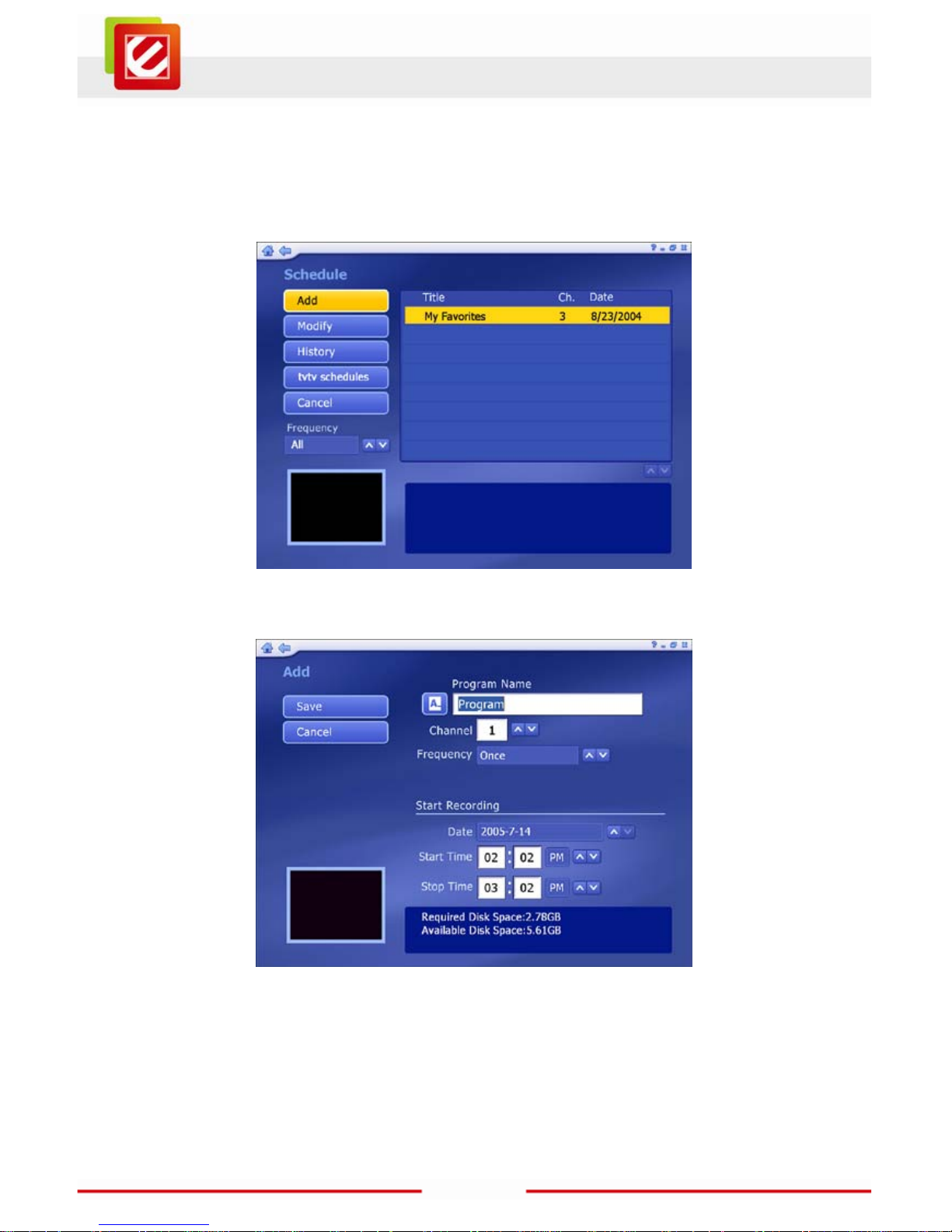

Add - Lets you enter in a new program for recording:
Enter the name of t he program (click "A_" to access a virtual keyboard), then select
a channel, rec ording Frequency (once, daily, or weekl y), and set the start/st op recording time.
Modify - Edit the recording details of the selected item.  History - Di splay a history of your recorded TV shows.
Page 21
20
www.encore-usa.com
The selected r ecorded program can be show n in the preview area.  Click the Del ete (trash can) icon to del ete a file.  Click the "Clear All" button to discard all the files.
The "Frequenc y" option enables you to filter shows by how often they are recorded (once, daily, and weekly).If conflicting recording sessions are scheduled, you will be presented with a summary of the conflicts and asked to update the schedule. tvtv schedules - Download program s chedules from the tvtv w ebsite. (The option is only available whe n you are using the tvtv EPG.)

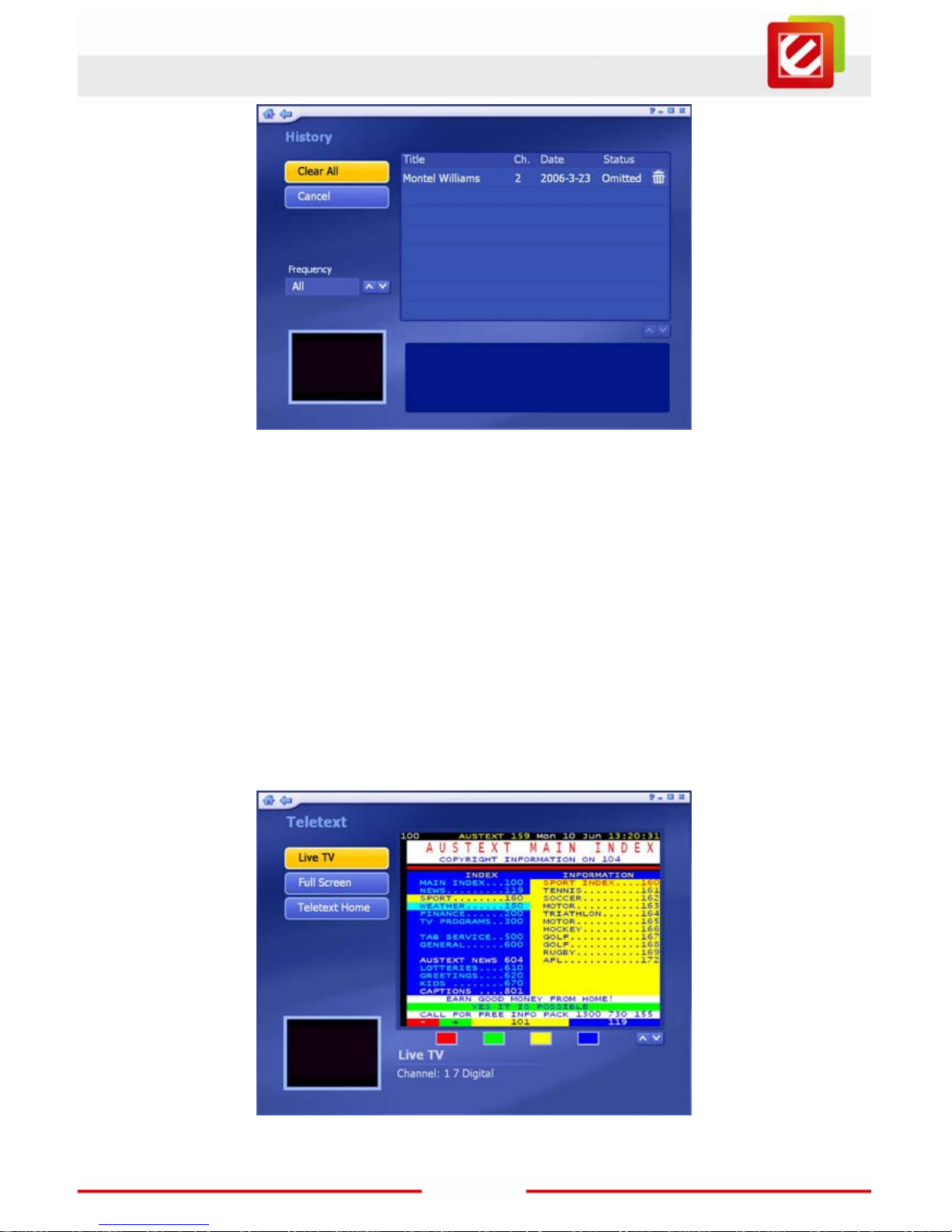

3.8 TELETEXT
This secti on lets you watch the teletext. The available teletext ch annels are listed in the preview area.
Page 22
21
www.encore-usa.com
Move your mouse t o select different teletext channels. The selected ti tles will be shown on the red, green, yellow and blue area. Click the button with the corresponding color to watch it.
Click the "Li ve TV" but ton to go back to the TV screen.  Click the "Teletext Home" button to go back to the teletext main index page.
Note: This func tion is not available in all countries. (Typically only Europe.) Note: For detailed information and operations of the TotalMedia™ software, please check the TotalMedia™ User’s Manual included in installation CD.
Chapter 4: Using the Remote Control
4.1 Installing Batteries

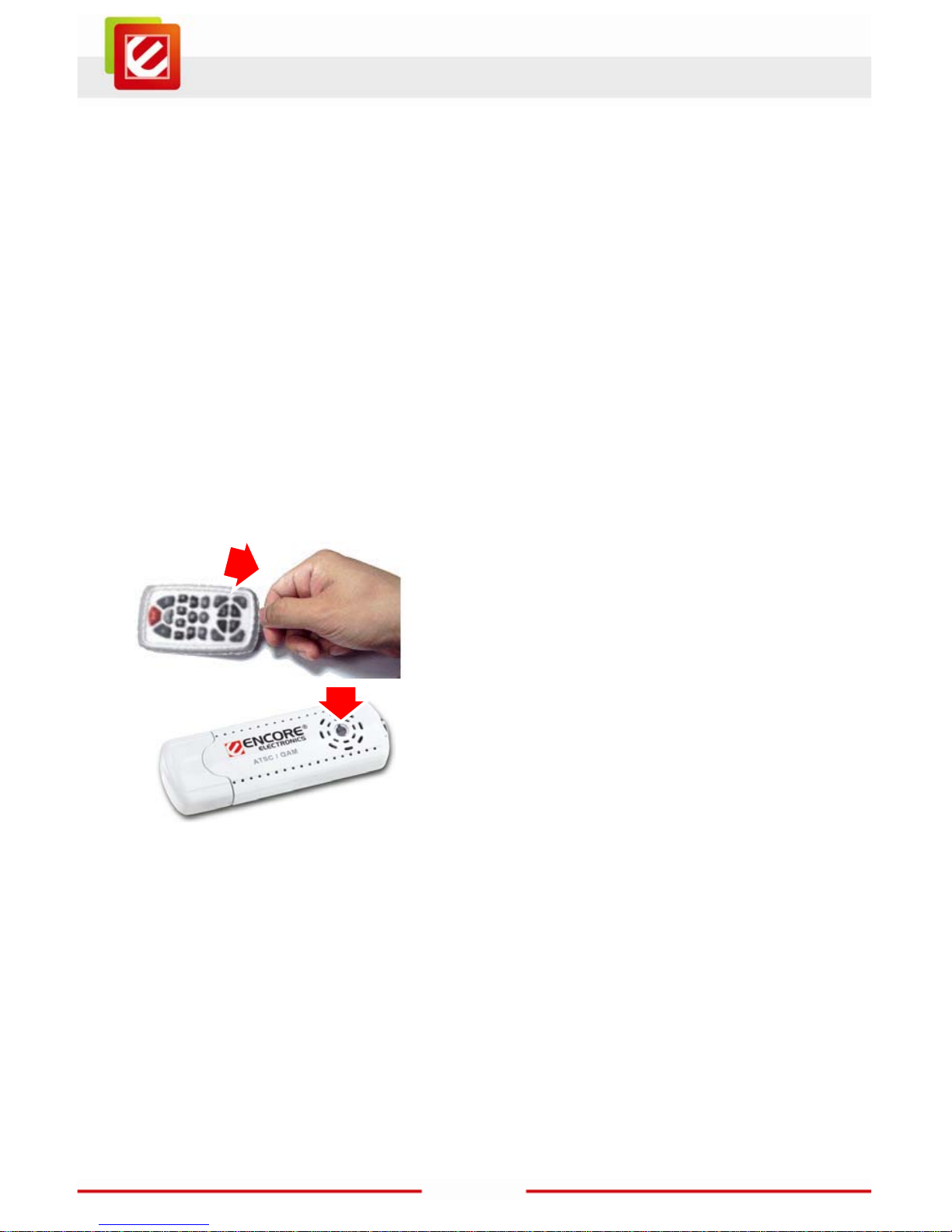

1. Please draw out t he plastic from remot e control.
2. Infrared sensor. When using the remote control, please ai m it at the infrared sensor.
Notes: the r emote controller range is up to 6 meters
Page 23
22
www.encore-usa.com

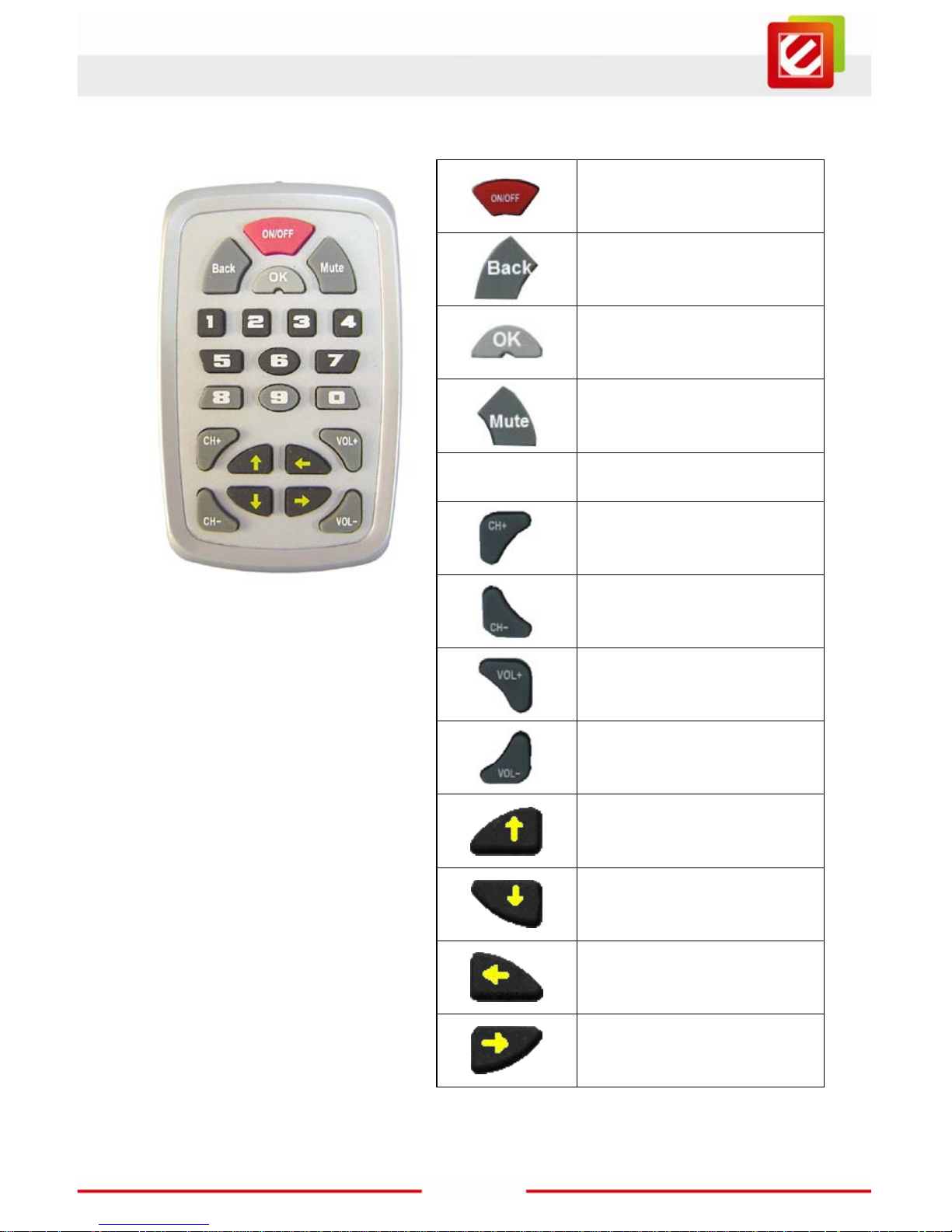

4.2 Remote controller function s
Open/Close TV Software
Back button
Select / Enter button
Mute ON / Mute OFF button
0~9
Number Selections 0 to 9
Switch to the next channel
Switch to the previous channel Volume High
Volume Low
Move Cursor Up button
Move Cursor Down button
Move Cursor Left button
Move Cursor right button
Page 24
23
www.encore-usa.com
Chapter 5: Tips and Troubleshooting
Q1: I’ve installed the PC HDTV Tuner and can see it in Windows Device Manager . But
I just can’t get it to work. What’s wrong?
A1: Check that you’re c onnected dir ectly to a USB 2.0 por t on your comput er - if not, that
may be the problem. You need a free USB 2.0 port for the HDTV tuner to work properly; connec ting through a hub c an cause problems (particularly i f the hub’s not powered or has sever al devices plugged into i t). In some cases even an extension cord can cause problems, particularl y if it’s longer than 10 feet.
If that doesn’t solve it, try restarting your machine and make sure no other applications are running — video requires a lot of computer horsepower and additional apps may be just enough to cause a pr oblem.
Sometime even an intense virus scan or indexing software like Google Desktop Search, Yahoo Desktop Search can be enough to cause quality or reliability problems. The only way to be sur e is to trying to t urning off the s oftware long enough to chec k whether the pro blem stops.
Q2: TotalMedia is gi ving me a “device cann ot be detected” message even though
my HDTV tuner ’s plugged in pr operly - how do I fix this?
A2: This probably means your device di dn’t install properly for some reason - it’s easy t o
check, here’s what to do:
•Windows XP: right click “My Computer”, click on “Properties”, click the “Hardware” tab, then click “Device Manager ”.
•Windows Vista and Windows 7: right click “ Computer”, c lick on “Proper ties”, then click “Device Manager”.

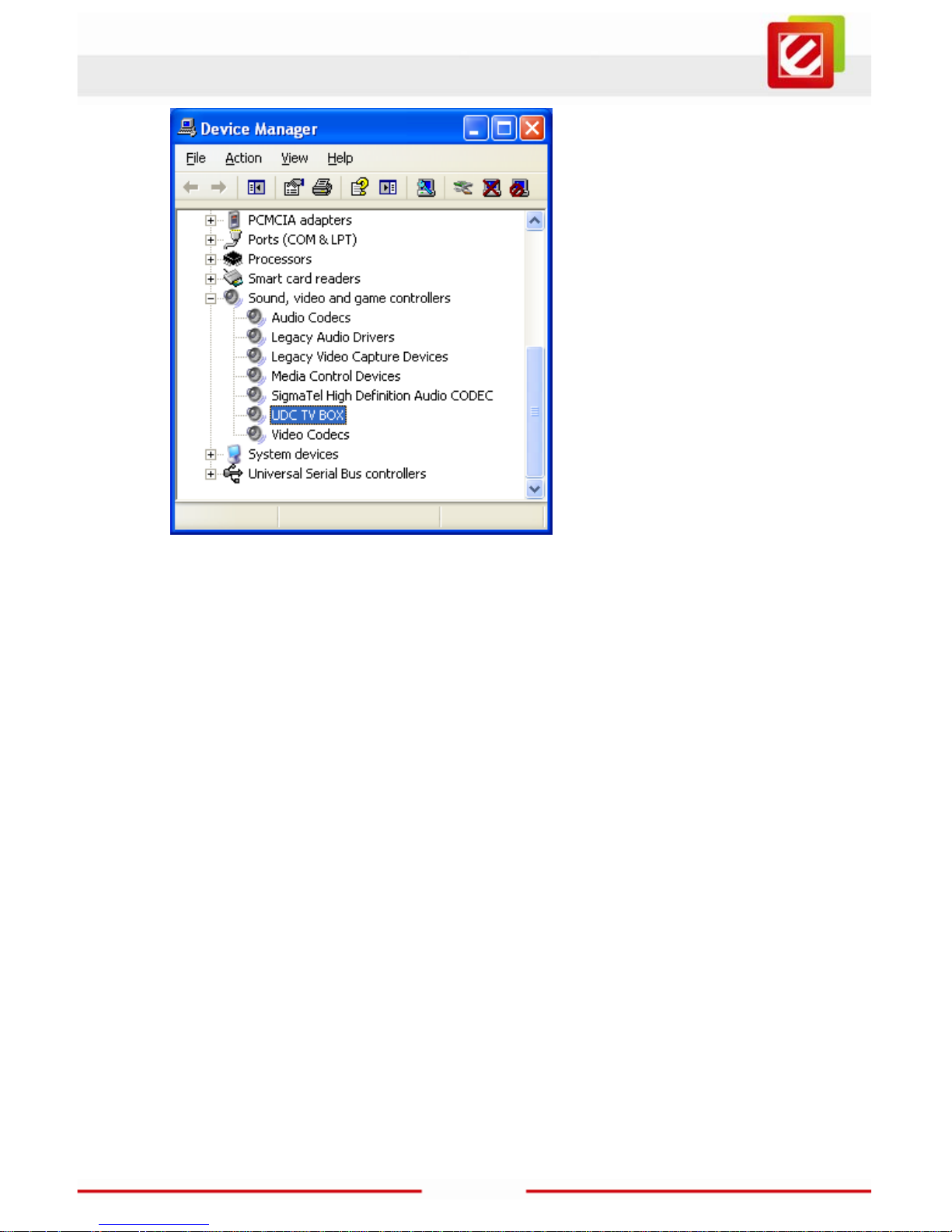

If all’s well, you should see an item called “UDC TV BOX” under the section for “Sound, video a nd game controllers”.
Page 25
24
www.encore-usa.com
If it’s listed s omewh er e els e a nd has a ques t ion m ark or an e xcl amat ion mark next to it, first try removing your PC HDTV T uner then plugging it into a different USB 2.0 port on your computer. If the device appears in the “Sound, video and game c ontrol lers” section, it ’s been correctly recognize d by Windows and s hould work. If not , the best thing is to r einstall the software driver by running the “ Setup Dri ver” agai n. If you r un into problems , contact our support team so we can help.
Page 26
25
www.encore-usa.com
