Encore ENPUH-302 User Manual

ENPUH-302

SuperSpeed USB 3.0

ExpressCard

User’s Manual

ABOUT THIS MANUAL

This manual is designed for use with the SuperSpeed USB 3.0 ExpressCard. Information in this
document has been carefully checked for accuracy; however, no guarantee is given to the
correctness of the contents. The information in this document is subject to change without notice.
The manufacturer does not make any representations or warranties (implied or otherwise)
regarding the accuracy and completeness of this document and shall in no event be liable for
any loss of profit or any commercial damage, including but not limited to special, incidental,
consequential, or other damage.

SAFETY INSTRUCTIONS

Always read the safety instructions carefully:

 Keep this User’s Manual for future reference.
 Keep this equipment away from humidity.

If any of the following situations arises, get the equipment checked by a service technician:

 The equipment has been exposed to moisture.
 The equipment has been dropped and damaged.
 The equipment has obvious sign of breakage.
 The equipment has not been working well or you cannot get it to work according to the User’s

Manual.

COPYRIGHT

This document contains proprietary information protected by copyright. All right are reserved. No
part of this manual may be reproduced by any mechanical, electronic or other means, in any
form, without prior written permission of the manufacturer.

1

Table of Contents

1. INTRODUCTION .................................................................................................................. 3

FEATURES..................................................................................................................................3

PACKAGE CONTENTS ..................................................................................................................3

SYSTEM REQUIREMENTS.............................................................................................................3

2. INSTALLATION....................................................................................................................4

WINDOW 7 / XP / WINDOWS VISTA...............................................................................................4

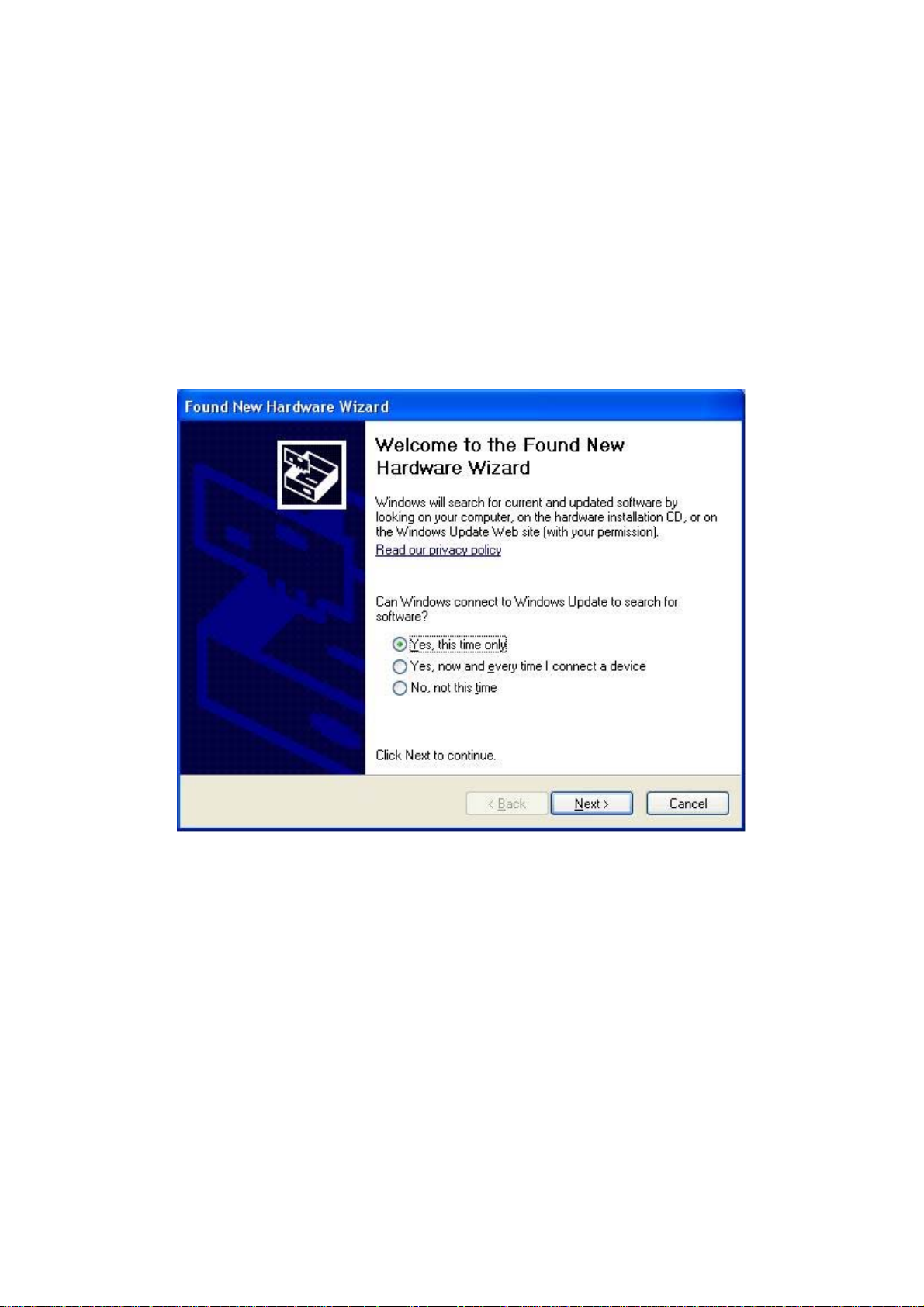

3. HARDWARE INSTALLATION..............................................................................................9

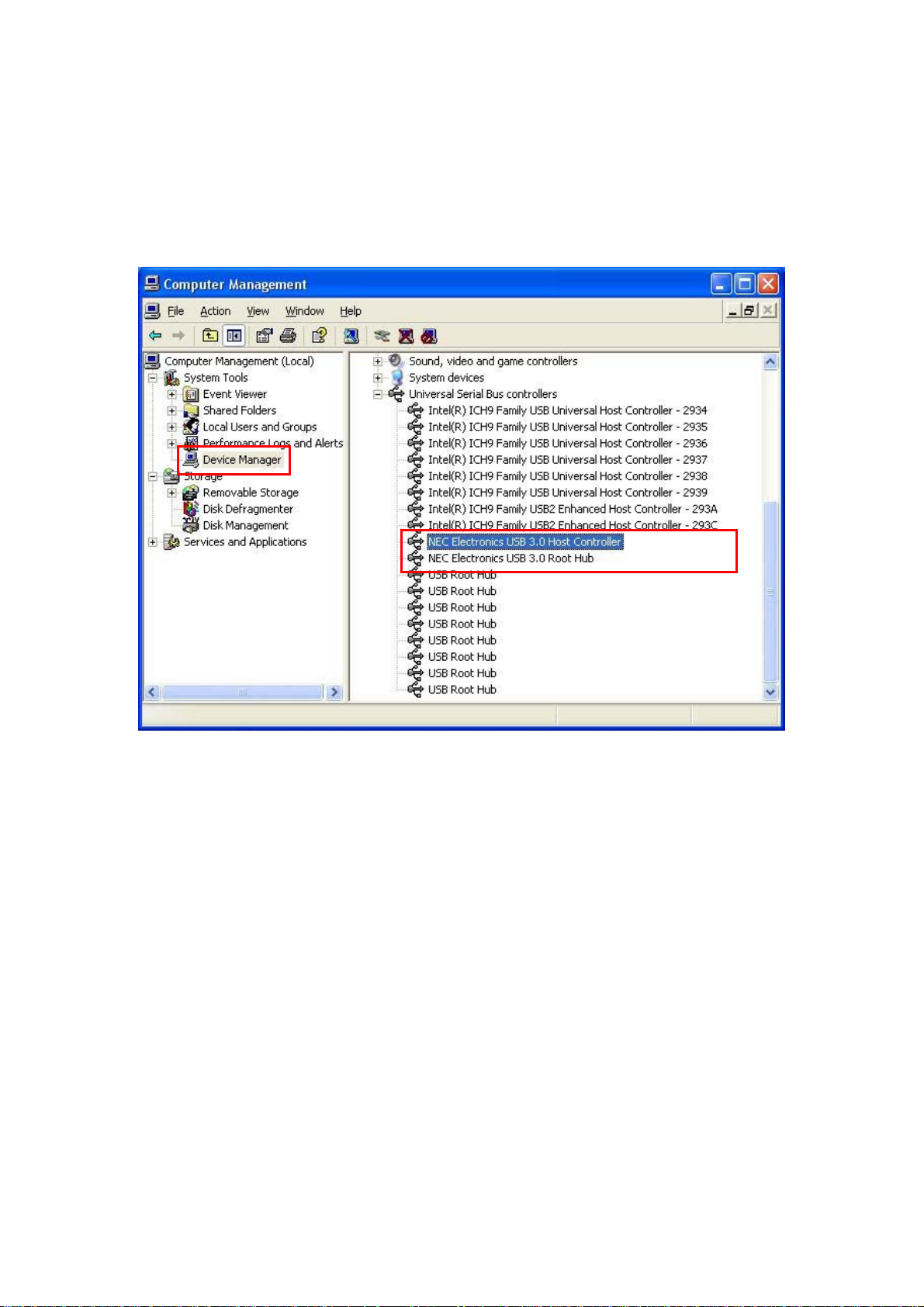

4. INSTALLATION VERIFICATION ........................................................................................11

WINDOW XP............................................................................................................................. 11

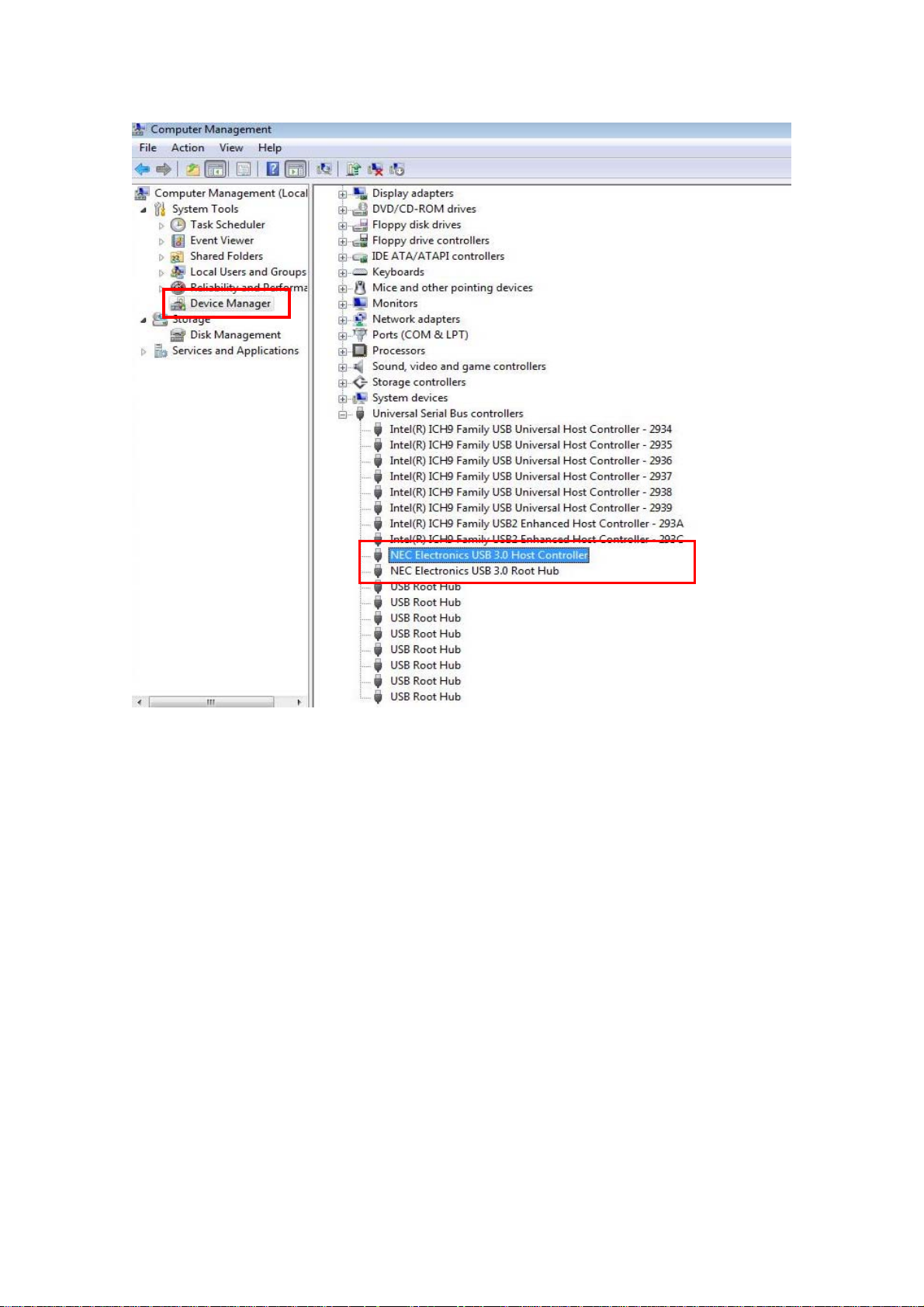

WINDOW VISTA/ WINDOWS 7 .....................................................................................................12

5. SPECIFICATION ................................................................................................................13

6. REGULATORY COMPLIANCE ..........................................................................................13

FCC CONDITIONS.....................................................................................................................13

CE ..........................................................................................................................................13

2

1. Introduction

Encore Electronics’ SuperSpeed USB 3.0 ExpressCard adds two USB 3.0 ports to your notebook
computer. The data transfer rate is at an amazing speed up to 5 Gbps — 10 times faster than
USB 2.0 (480 Mbps). Now, you can connect to the latest USB devices, such as external hard
drives, Blu-ray burners, external video adapters and camcorders.
The SuperSpeed USB 3.0 ExpressCard is ideal for professionals who need high-performance
storage devices and people who enjoy watching HD videos. ENPUH-320 has advanced power
management feature. That will extend the notebook running time. ENPUH-320 also is
backward compatible with USB 2.0 and USB 1.1.

Features

 Up to 10X Faster than USB 2.0
 Less File Transfer Time
 Backward Compatibility
 More Efficient Power Usage

 Better Device Stability with Increased Power Output

Package Contents

 SuperSpeed USB 3.0 2 ports ExpressCard x 1
 User Manual x 1
 Driver CD x 1

3

System Requirements

 An available ExpressCard slot
 Windows® XP/Vista/7 (32/64 bits)

Notice: Mac systems do not support this USB 3.0 2 port ExpressCard.

2. Installation

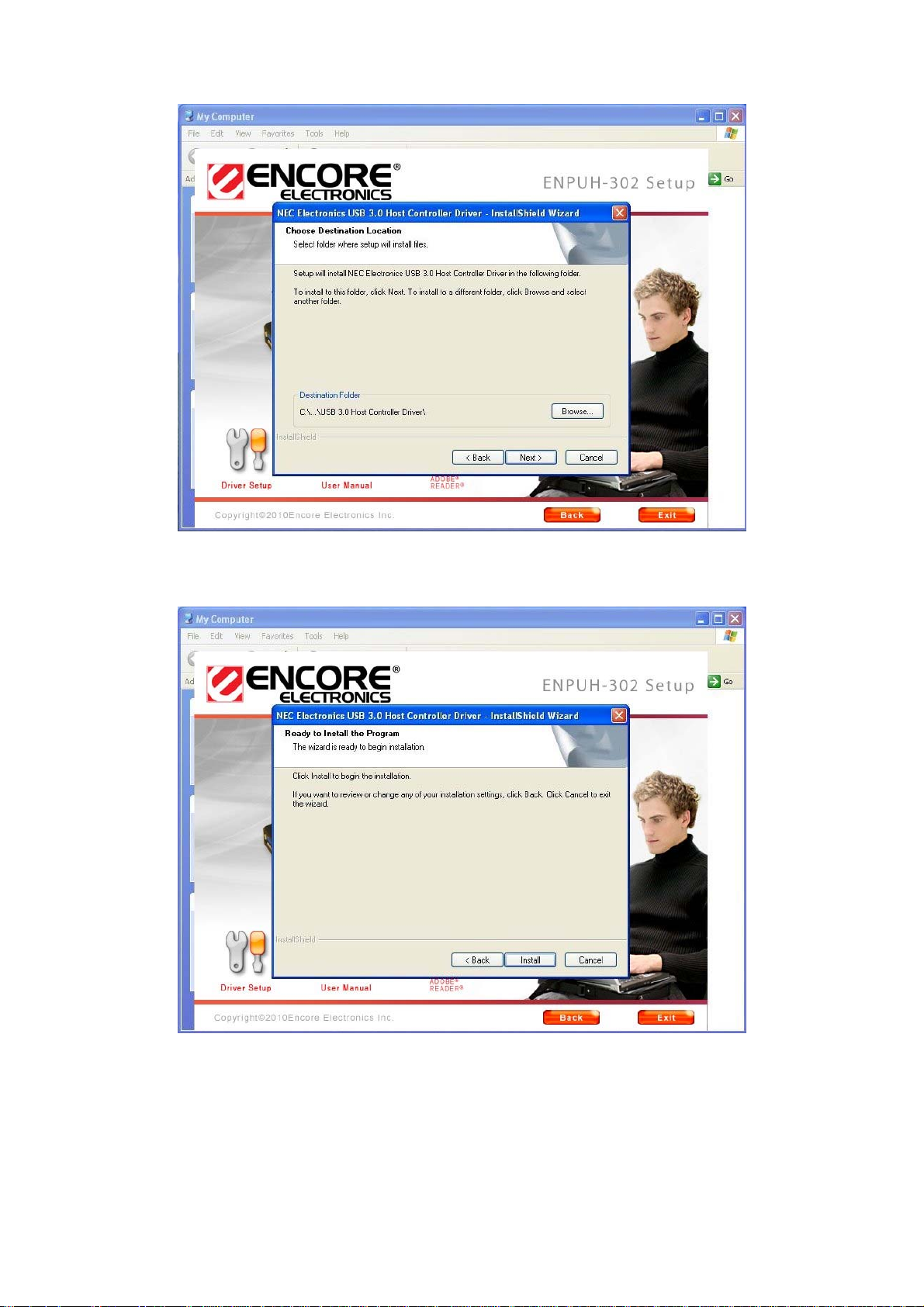

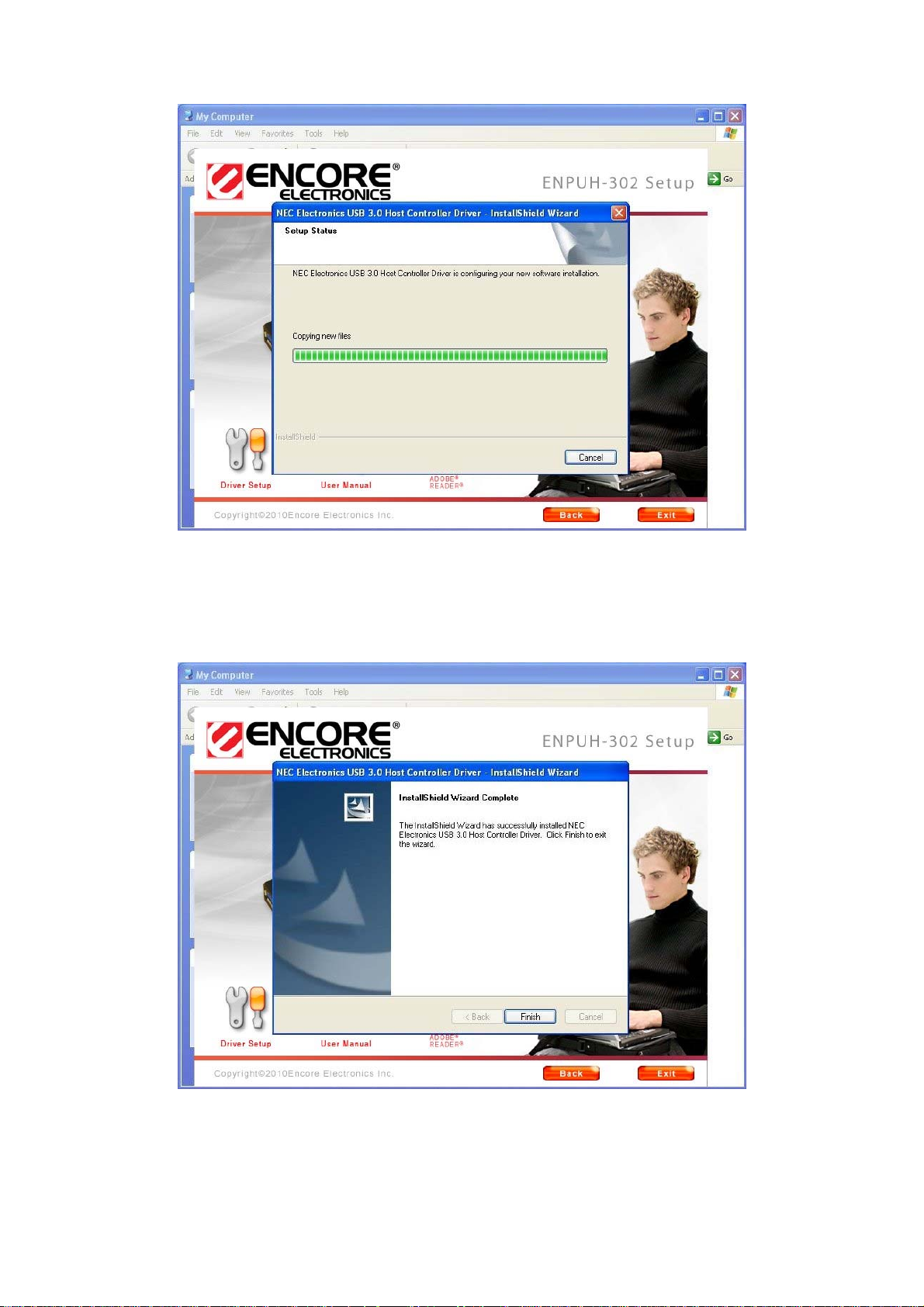

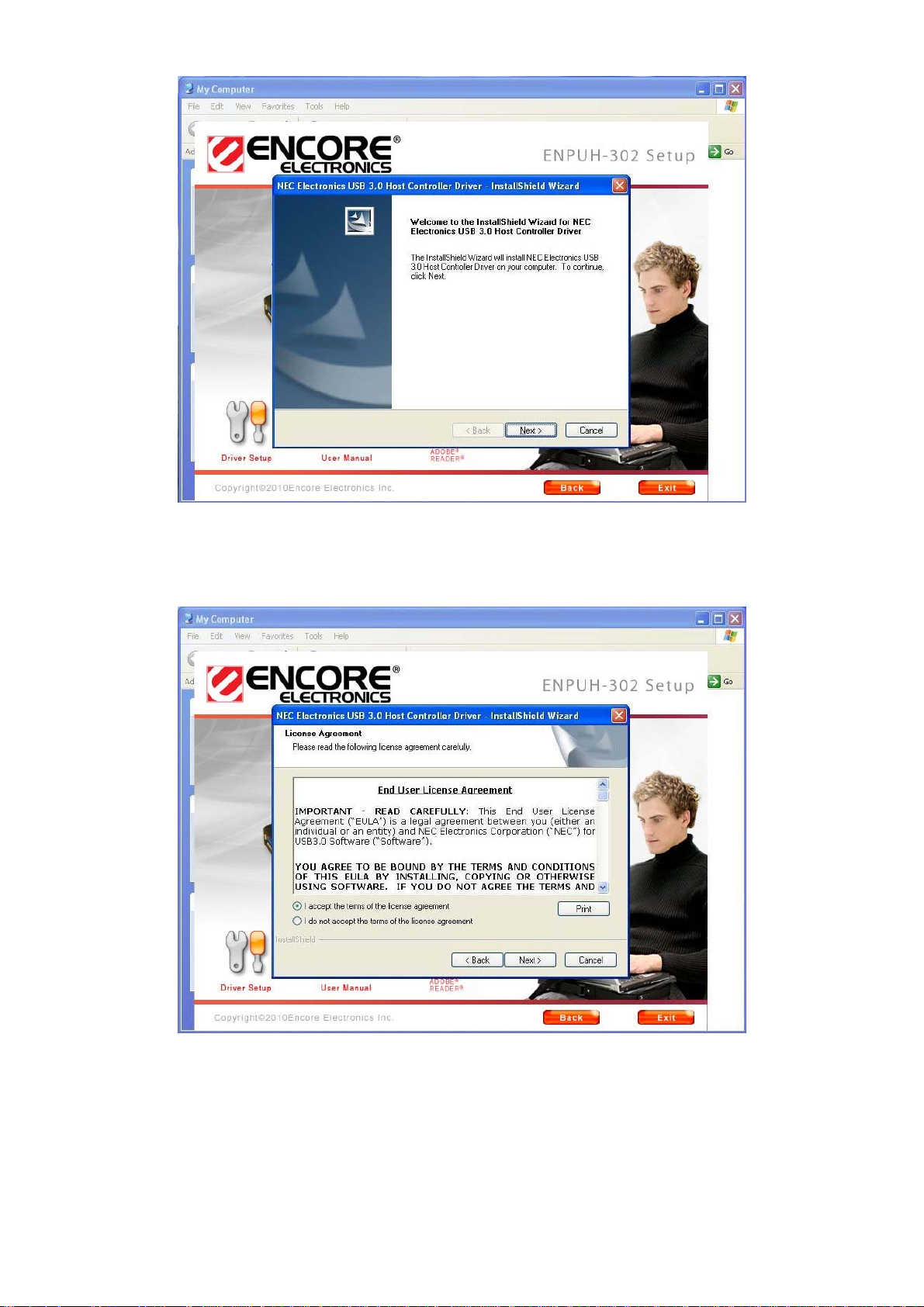

You will need to install the driver for your SuperSpeed USB 3.0 ExpressCard to your laptop first.
Please follow the procedures as below.

Window 7 / XP / Windows Vista

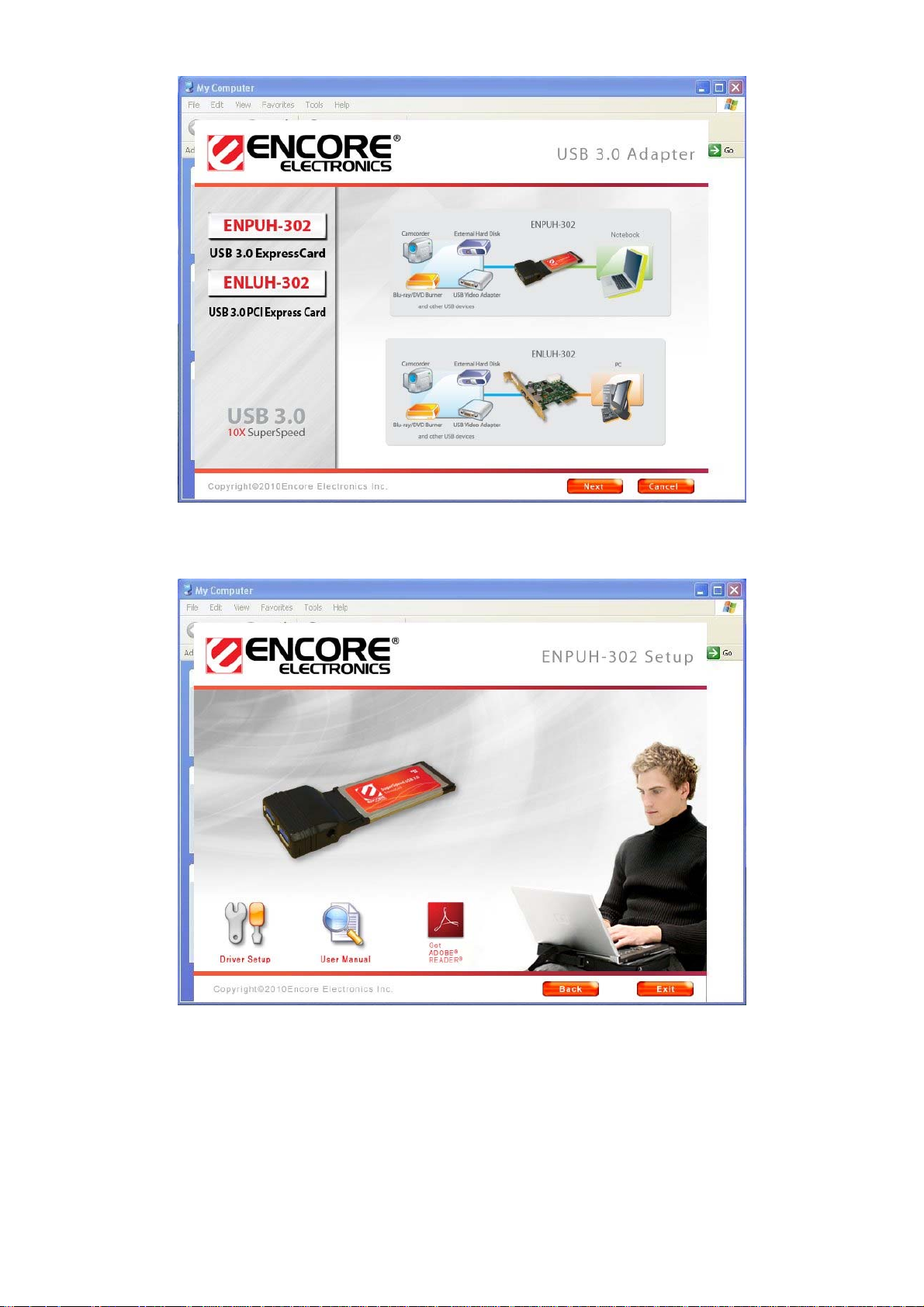

1. Insert the provided Driver into CD-ROM. The following screen will show up and please
choose the correct product model, ENPUH-302.

4
