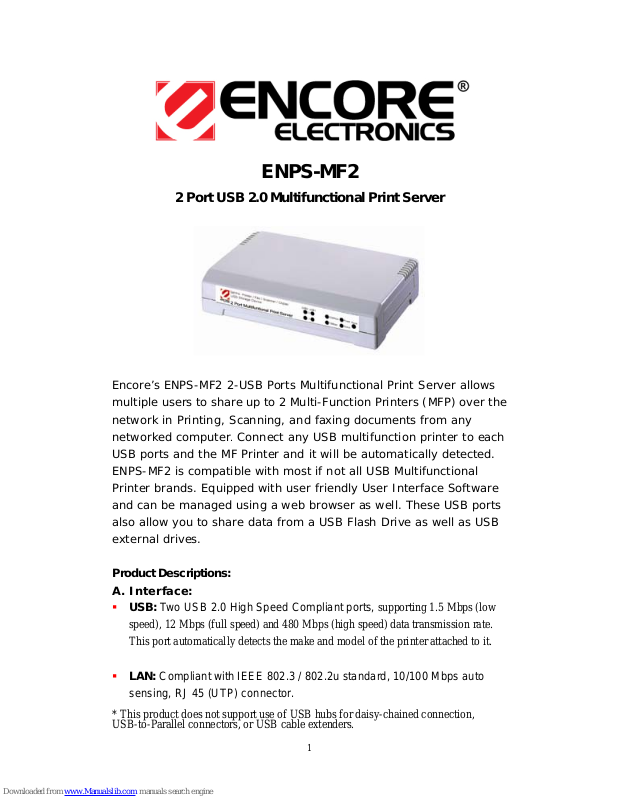

Encore ENPS-MF2 Specifications

ENPS-MF2

2 Port USB 2.0 Multifunctional Print Server

Encore’s ENPS-MF2 2-USB Ports Multifunctional Print Server allows
multiple users to share up to 2 Multi-Function Printers (MFP) over the
network in Printing, Scanning, and faxing documents from any
networked computer. Connect any USB multifunction printer to each
USB ports and the MF Printer and it will be automatically detected.
ENPS-MF2 is compatible with most if not all USB Multifunctional
Printer brands. Equipped with user friendly User Interface Software
and can be managed using a web browser as well. These USB ports
also allow you to share data from a USB Flash Drive as well as USB
external drives.

Product Descriptions:

A. Interface:

 USB: Two USB 2.0 High Speed Compliant ports, supporting 1.5 Mbps (low

speed), 12 Mbps (full speed) and 480 Mbps (high speed) data transmission rate.
This port automatically detects the make and model of the printer attached to it.

 LAN: Compliant with IEEE 802.3 / 802.2u standard, 10/100 Mbps auto

sensing, RJ 45 (UTP) connector.

* This product does not support use of USB hubs for daisy-chained connection,
USB-to-Parallel connectors, or USB cable extenders.

1

B. Key Software Specifications:

Setup CD Yes (Windows® Setup CD-ROM)
Supported Network Operating System Windows® 2000/XP / Windows Vista™
Supported Protocol TCP/IP (UDP)
DHCP (client) Support Yes
Management 1. Web interface

2. Windows-based Setup Program

3. Configuration Utility

Firmware Upgradeable 1. Web interface

2. TFTP

USB devices support Printer, MFP, USB Scanner, USB Storage (HD, Pen

drive, iPod), Digital Camera, USB Card Reader,
Smartcard Reader

MFP Sharing Support Print, Scan, Fax and Card reader
MFP Proprietary Scan Utility Support Yes
Windows Scan Utility (WIA) Support Yes

C. Hardware Specifications:

CPU RDC x86 R2886@150MHz
Flash 1MB
System Memory 8MB SDRAM
USB Port 2-USB 2.0 ports
LAN Port 10/100 Mbps, auto-sensing
Reset Button Yes (Reset / Load Factory Defaults)

Power Adapter 100-240V Input / 5V, 2A Output
Dimension 160 (Length) x 100 (Width) x 35 (Height) mm
Weight 250 g (device only)
EMI Certifications CE / FCC Class B
Temperature

Operating：0 ~ 50°F ; Storage：-5 ~ 65°F

Humidity

Operating：0 ~ 70%; Storage：0 ~ 80%

The specification is subject to change without prior notice.
