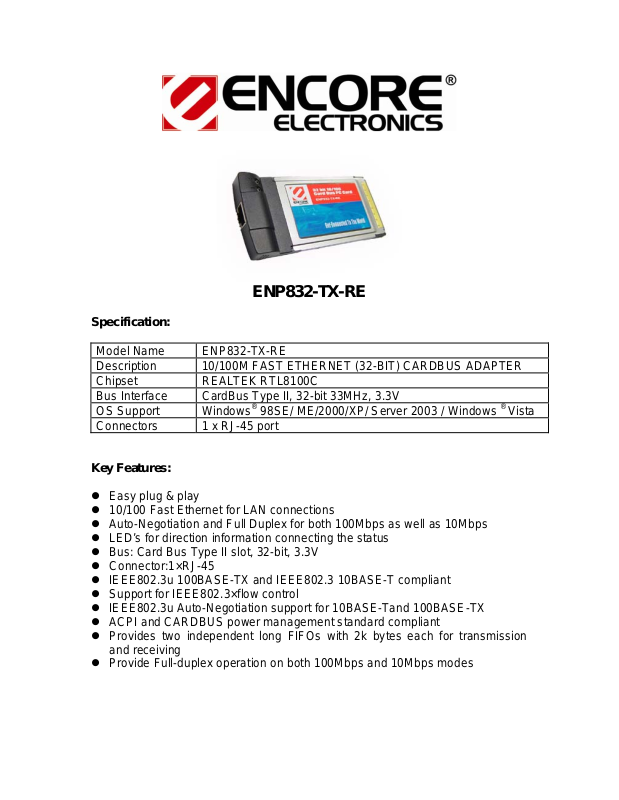

Encore ENP832-TX-RE DATA SHEET

ENP832-TX-RE

Specification:

Model Name ENP832-TX-RE
Description 10/100M FAST ETHERNET (32-BIT) CARDBUS ADAPTER
Chipset REALTEK RTL8100C
Bus Interface CardBus Type II, 32-bit 33MHz, 3.3V
OS Support Windows® 98SE/ ME/2000/XP/ Server 2003 / Windows ® Vista
Connectors 1 x RJ-45 port

Key Features:

z Easy plug & play
z 10/100 Fast Ethernet for LAN connections
z Auto-Negotiation and Full Duplex for both 100Mbps as well as 10Mbps
z LED’s for direction information connecting the status
z Bus: Card Bus Type II slot, 32-bit, 3.3V
z Connector:1×RJ-45
z IEEE802.3u 100BASE-TX and IEEE802.3 10BASE-T compliant
z Support for IEEE802.3×flow control
z IEEE802.3u Auto-Negotiation support for 10BASE-Tand 100BASE-TX
z ACPI and CARDBUS power management standard compliant
z Provides two independent long FIFOs with 2k bytes each for transmission

and receiving

z Provide Full-duplex operation on both 100Mbps and 10Mbps modes
