Encore EN-MGS12 DATA SHEET

12 Port Bandwidth Management Gigabit Ethernet Switch

EN-MGS12

Product Description

Boost your network connectivity with the EN-MGS12
Ethernet Switch. It provides you 12 fully manageable Gigabit Ethernet ports that allows
for 10/100/1000Mbps connections. Using the Web-management interface, network
intensive files travel secure and more efficiently through the network. The EN-MGS12
reduces network congestion without sacrificing network security and integrity. It can also
be used as a standalone switch. Download large files without sacrificing network
integrity. Talk using VoIP without interrupting the network.

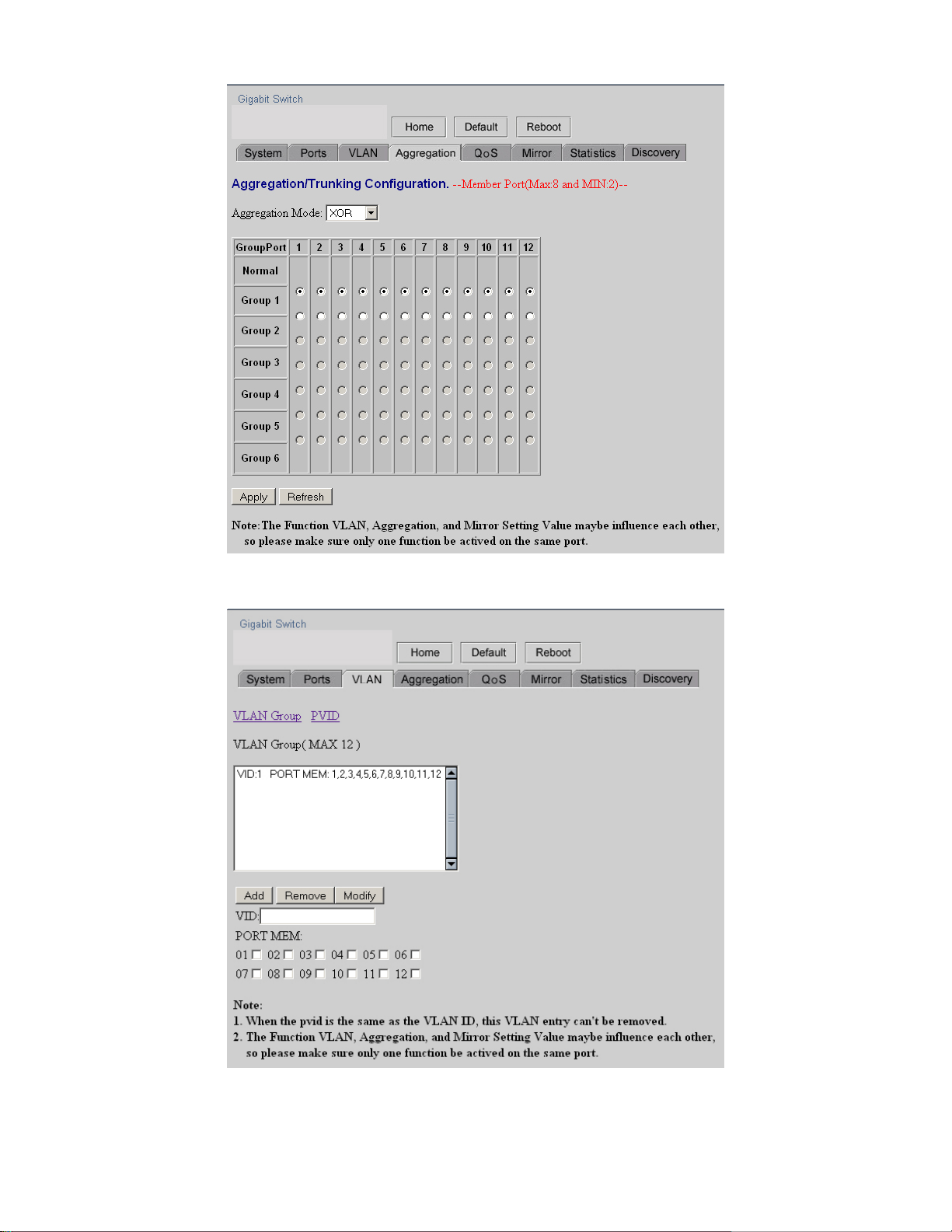

The Web interface offers a variety of bandwidth management tools for creating a
powerful, flexible network. VLAN creates virtual networks within an existing physical
network. Port Aggregation enlarges the bandwidth of backbone connections. QoS
support for seamless network integration of VoIP or videoconference. 802.3x and
backpressure flow control mechanisms ensure the integrity of data transmission in the
network.

Bandwidth Management Gigabit

Encore Electronics 2005

WWW.ENCORE-USA.COM
EN-MGS12

Figure 1 Back Port View

Figure 2 Front LED View

1

Figure 3 Usage Diagram

Key features: Specifications:

• 12 fixed 10/100/1000Mbps Gigabit Ethernet
ports for easy network connecting application.

• Provide Auto-discovery Function for easy
Network management.

• Provide 8K MAC address entries and 12 groups
VLAN table

• Support up to 8 ports and 6 groups port
aggregation.

• Support QoS with TOS, Port Shaper, port
Policer and port storm for better communication
quality.

• Support full duplex flow control and half duplex
back pressure

• Store-and-forward forwarding scheme

• Error packet filtering

• Support Jumbo frame 12K bytes

• Supports 208K buffer Memory

• Support Web-based management interface.

• 100-240Vac/ 50-60Hz universal input

Standard

IEEE802.3, 802.3u, 802.3x, 802.3z/ab 802.1q
standards

Interface

12 * 10/100/1000 Mbps RJ-45 ports
One Restore Default Button

NWay Protocol Support

Network speed: 10Mbps, 100Mbps and 1000Mbps
Duplex mode: Full and Half (1000BaseT support full
duplex only)

Diagnostic LEDs

Power (green), LINK/ACT (green, amber)

Operating Humidity

10% to 90% non-condensing

Operating Temperature

0°~ 50°C

Dimension

207 x 145 x 32 mm

Power Supply

External power adapter 100~240VAC, 50/60Hz
5V7A

Certification

FCC; CE Class A
