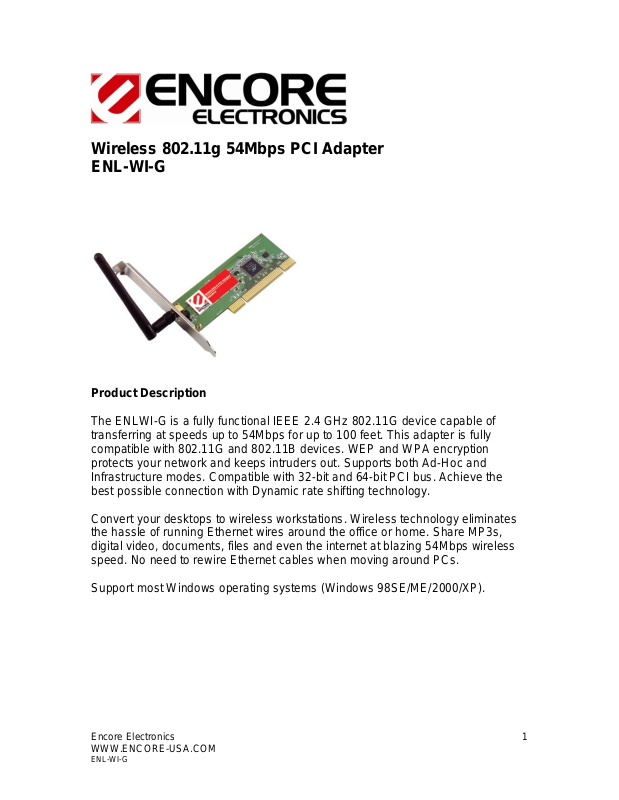

Encore ENLWI-G User Manual
Wireless 802.11g 54Mbps PCI Adapter
ENL-WI-G
Product Description
The ENLWI-G is a fully functional IEEE 2.4 GHz 802.11G device capable of
transferring at speeds up to 54Mbps for up to 100 feet. This adapter is fully
compatible with 802.11G and 802.11B devices. WEP and WPA encryption
protects your network and keeps intruders out. Supports both Ad-Hoc and
Infrastructure modes. Compatible with 32-bit and 64-bit PCI bus. Achieve the
best possible connection with Dynamic rate shifting technology.
Convert your desktops to wireless workstations. Wireless technology eliminates
the hassle of running Ethernet wires around the office or home. Share MP3s,
digital video, documents, files and even the internet at blazing 54Mbps wireless
speed. No need to rewire Ethernet cables when moving around PCs.
Support most Windows operating systems (Windows 98SE/ME/2000/XP).
Encore Electronics
WWW.ENCORE-USA.COM
ENL-WI-G
1
Product Features
• Compatible with IEEE 802.11g high rate standard to provide wireless
Ethernet speeds of 54Mbps data rate
• Dynamic date rate scaling at 54, 48, 36, 24, 18, 12, 9 and 6Mbps for
802.11g
• Dynamic date rate scaling at 11, 5.5, 2 and 1Mbps for 802.11b
• Maximum reliability, throughput and connectivity with automatic data rate
switching
• Supports wireless data encryption with 64/128-bit WEP standard for
securityu Supports WPA-PSK
• Supports 32-bit PCI interface slot for Desktop PC
• Drivers support Windows 98, 2000, ME and XP
• Simple user setup & diagnostics utilities Type approval compliant with
FCC Part 15.247 for US, ETS 300 328 for Europe
Product Specifications
Radio Technology
IEEE 802.11g Orthogonal Frequency Division
Multiplexing (OFDM)
IEEE 802.11b Direct Sequence Spread
Spectrum (DSSS)
Interface
32-bit PCI interface
Transmission Rate
1, 2, 5.5, 6, 11, 12, 18, 22, 24, 36, 48, 54Mbps
(auto sense)
Receiver Sensitivity
54Mbps: Typical -73dBm @ 10% PER
11Mbps: Typical -85dBm @ 8% PER
Wireless LAN Frequency Range
2412 ~ 2484 MHz ISM band (channels 1 ~ 14)
Modulation Schemes
DBPSK/DQPSK/CCK/OFDM
Media Access Protocol
CSMA/CA with ACK
Transmit Power
Minimum 15dBm typically @ 802.11b
Minimum 12dBm typically @ 802.11g
Channel
USA: 11
Europe: 13
Japan: 14
Driver Support
Windows 98(SE)
Windows 2000
Windows ME
Windows XP
Security
64/128-bits WEP Encryption
Wireless Fidelity Protected Access (WPA)
Range Coverage
Indoor: 35 ~ 100 meters (depends on
environment)
Outdoor: 100 ~ 300 meters (depends on
environment)
Roaming
Full mobility and seamless roaming from cell to
cell
Continuous Current Consumption
240mA typ. for receive mode
530mA typ. for transmit mode
Diagnostic LEDs
Link status
Dimensions (W x H x D)
133 x 121 x 21.6 mm (without antenna)
Operation Temperature
0 ~ 40 oC
Storage Temperature
-10 ~ 70 oC
Humidity
10% ~ 95% RH, no condensation
Certifications
FCC Part 15.247 for US
ETS 300 328 for Europe
Encore Electronics
WWW.ENCORE-USA.COM
ENL-WI-G
2
