Encore ENLTV-FM3 User Manual
ENLTV-FM3
PCI TV Tuner Adapter with FM Radio
User’s Guide
ENLTV-FM3 User’s Guide
User’s Notice
No part of this manual, including the products and software described in it, may be
reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in
any form or by any means, except documentation kept by the purchaser for backup purposes,
without the express written permission of us.
WE PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND,
EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED
WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE. IN NO EVENT SHALL US, ITS DIRECTORS, OFFICERS,
EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS
OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS), EVEN IF WE
HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY
DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
Product warranty or service will not be extended if: (1) the product is repaired, modified or
altered, unless such repair, modification of alteration is authorized in writing by us; or (2) the serial
number of the product is defaced or missing.
Products and corporate names appearing in this manual may or may not be registered
trademarks or copyrights of their respective companies, and are used only for identification or
explanation and to the owners’ benefit, without intent infringe.
z Windows, MS-DOS, and DirectX are registered trademarks of Microsoft Corporation.
z Adobe and Acrobat are registered trademarks of Adobe Systems Incorporated.
The product name and revision number are both printed on the product itself. Manual revisions are
released for each product design represented by the digit before and after the period of the manual
revision number. Manual updates are represented by the third digit in the manual revision number.
SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE
FURNISHED FOR INFORMATION USE ONLY, AND ARE SUBJE CT TO CHANGE AT ANY
TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY
US. WE ASSUME NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR
INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS
AND SOFTWARE DESCRIBED IN IT.
Copyright Encore Electronics © 2009. All Rights Reserved.
2
ENLTV-FM3 User’s Guide
Contents:
Chapter 1: Introduction...................................................................................................................... 4
1.1 - Package Contents............................................................................................................... 4
1.2 - System Requirements........................................................................................................ 4
Chapter 2: Getting Started ................................................................................................................. 5
2.1 – ENLTV-FM3 Hardware Installation ................................................................................. 5
2.2 - Device Driver Installation ................................................................................................. 6

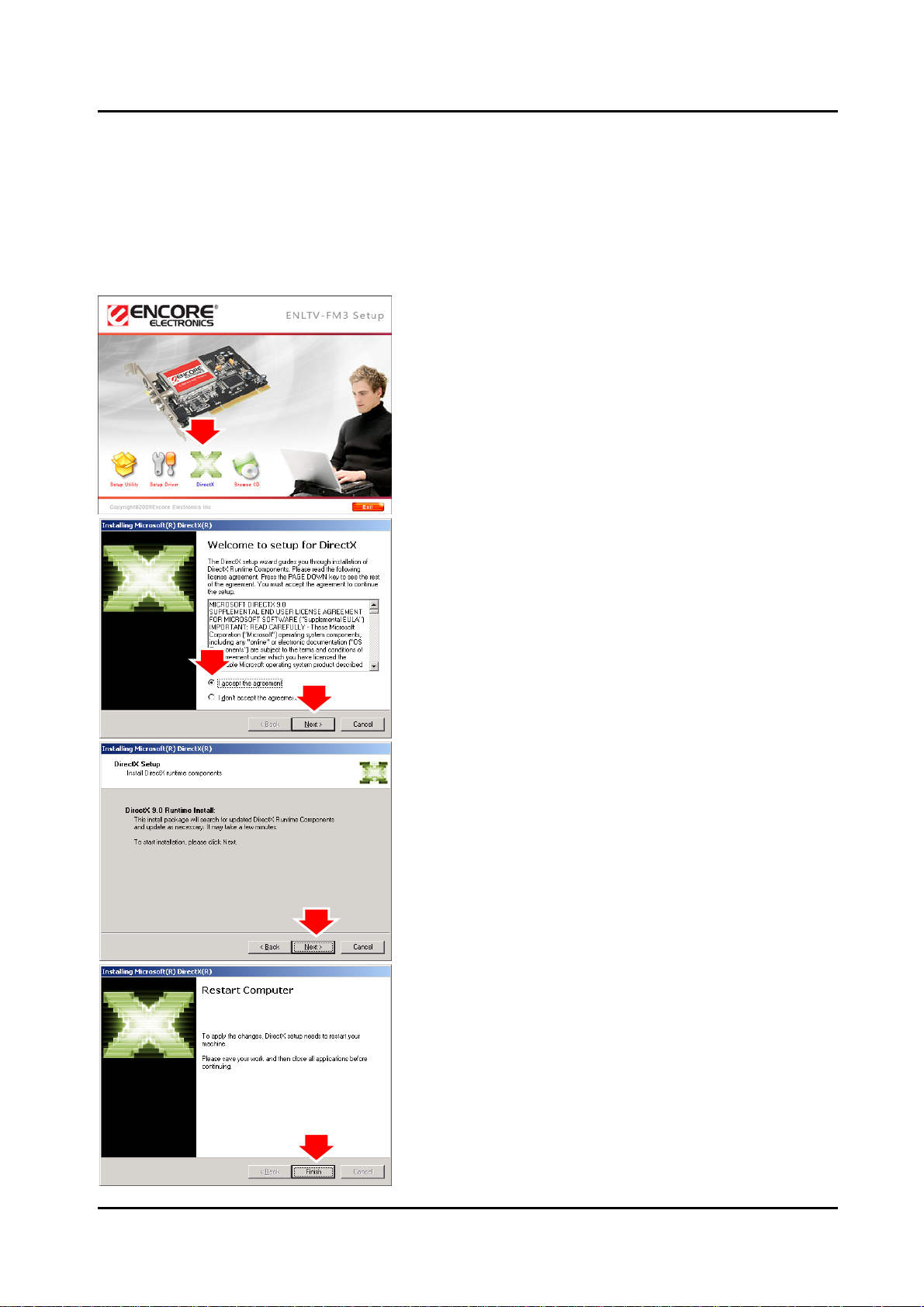

2.3 - Install the DirectX® ........................................................................................................ 13
2.4 - Install the ENLTV-FM3 Utility software......................................................................... 14
Chapter 3: Launch the ENL TV -FM3 Program.............................................................................................. 20
3.1 - Running the ENLTV-FM3 for the first time.................................................................... 20
3.2 - Watch TV programs or movies from DVD/VCR/Camcorder ......................................... 22
3.3 - Video Recorder................................................................................................................ 23
3.4 - Using the Snapshot.......................................................................................................... 24
3.5 - Playback Video................................................................................................................ 24
3.6 - ImageViewer.................................................................................................................... 26
3.7 – Time-Shifting.................................................................................................................. 27
3.8 - Using and setting up the FM Radio................................................................................. 28
Chapter 4: Using the Remote Control.............................................................................................. 29
Chapter 5: Frequently Asked Questions .......................................................................................... 30
Chapter 6: Technical Support........................................................................................................... 31
3
ENLTV-FM3 User’s Guide
Chapter 1: Introduction
1.1 - Package Contents
The following items are included in the ENLTV-FM3 package.
z CD setup disc (includes Software Driver and Utility Software)
z ENLTV-FM3 PCI card
z Video cable
z FM antenna
z Remote sensor cable
z Remote controller
z User’s guide
1.2 - System Requirements
z Intel® Pentium® 4 1.7GHz CPU or above
z Minimum 256 MB memory
z Minimum 1GB hard disk space available
z 1024x768 graphic card, DirectX® 9.0c or above compatible graphic card or higher
z One free PCI slot
z PCI 2.1 or 2.2 compliant interface
z Microsoft Windows® XP/ Windows® Vista
z CD-ROM drive
4
ENLTV-FM3 User’s Guide
Chapter 2: Getting Started
2.1 – ENLTV-FM3 Hardware Installation
Install the ENLTV-FM3 PCI Card to the computer’s
available PCI slot according to your computers
manual and new hardware installation procedures.
Make sure that the computer’s power cord is
unplugged before inserting the ENLTV-FM3 card to
the PCI slot. ENLTV-FM3 supports PCI bus 2.1 and
above.
Refer to the device connection diagram below for
port connections:
Caution:
Take an extra care handling the Remote sensor cable, do not insert or remove the sensor
cable while the computer is powered-on. Otherwise, it can cause the ENLTV-FM3 to
malfunction.
5
ENLTV-FM3 User’s Guide
2.2 - Device Driver Installation
1. Placed the CD software that comes with the ENLTV-FM3 in the CD-ROM drive.
(Assuming that the ENLTV-FM3 Tuner card is properly installed to the computer’s PCI
slot), then follow the on-screen installation guide below.
Device driver installation for Windows® XP Home/Professional Edition/x64 Edition
1. When the computer is powered-on for the
very first time during the setup, a
message “Found New Hardware Wizard”
dialogue box will appear on the screen.
Click “Cancel” button to close “Found New
Hardware Wizard” window.
2. Insert the installation CD into the
CD-ROM drive. The setup screen will
automatically appear.
3. Click the “Setup Driver” button.
4. Select the language then click “Next”.
6
ENLTV-FM3 User’s Guide
5. Click “Next” on driver setup welcome
window to continue.
6. Click “Install” to begin install driver.
7. Click “Next” button.
7
ENLTV-FM3 User’s Guide
8. Click “Continue Anyway” to continue the
installation.
9. Click ”Continue Anyway” button
10. Click “Finish” button
8
ENLTV-FM3 User’s Guide

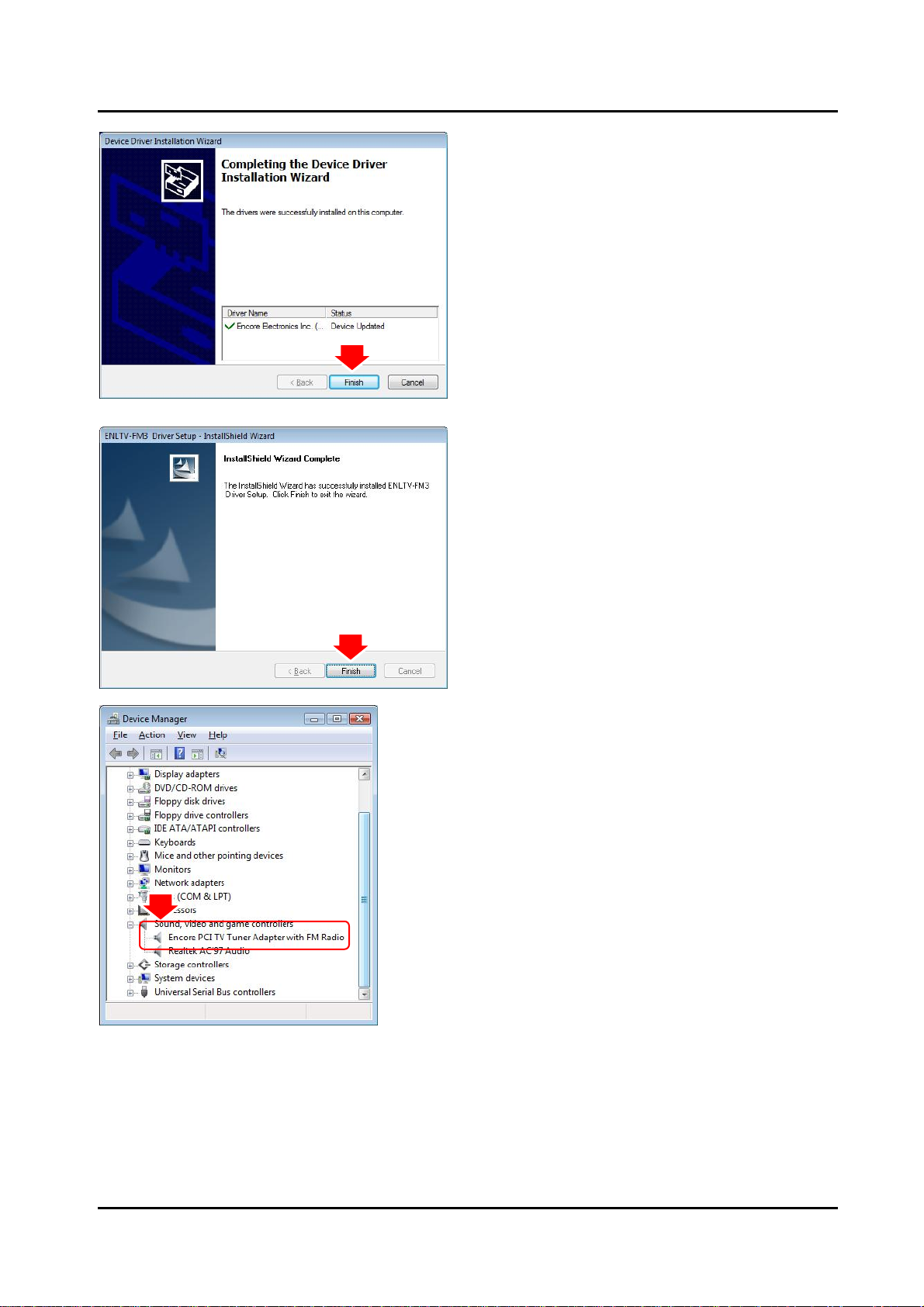

11. Click “Finish” to reboot PC.
12. To make sure the driver is properly
installed and started, open the “Device
Manager”. Please double-click the
“Sound, video and game controller”.
9
ENLTV-FM3 User’s Guide
Device driver installation for Windows® Vista
1. After ENLTV-FM3 hardware has been
installed, the next time when the computer
is powered-on, a message “Found New
Hardware” dialogue box will appear on the
screen. Click “Cancel” button to close
“Found New Hardware” window.
2. Insert the installation CD into the
CD-ROM drive. The setup screen will
automatically appear.
3. Click the “Setup Driver” button.
4. Select the language then click “Next”.
10
