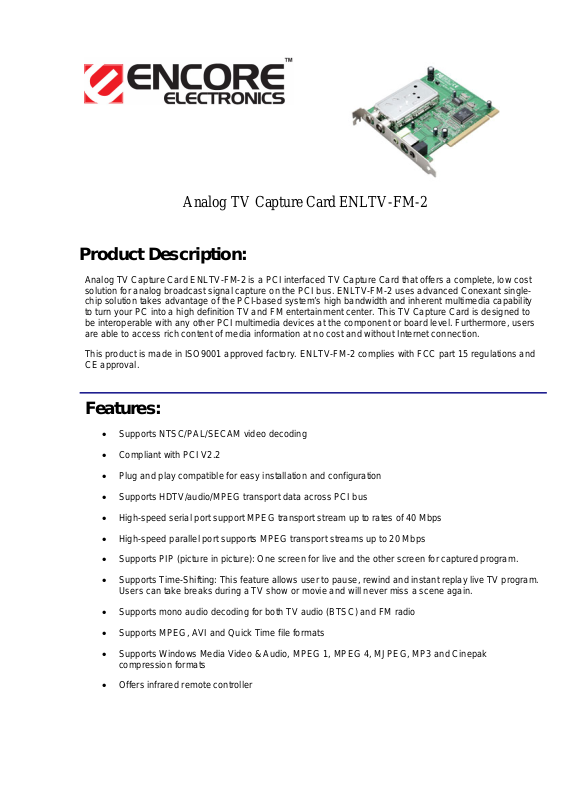

Encore ENLTV-FM-2 DATA SHEET

Analog TV Capture Card ENLTV-FM-2

Product Description:

Analog TV Capture Card ENLTV-FM-2 is a PCI interfaced TV Capture Card that offers a complete, low cost
solution for analog broadcast signal capture on the PCI bus. ENLTV-FM-2 uses advanced Co nexant single­chip solution takes advantage of the PCI-based system’s high bandwidth and inherent multimedia capability
to turn your PC into a high definition TV and FM entertainment center. This TV Capture Card is designed to
be interoperable with any other PCI multimedia devices at the component or board level. Furthermore, users
are able to access rich content of media information at no cost and without Internet connection.

This product is made in ISO9001 approved factory. ENLTV-FM-2 complies with FCC part 15 regulations and
CE approval.

Features:

• Supports NTSC/PAL/SECAM video decoding

• Compliant with PCI V2.2

• Plug and play compatible for easy installation and configuration

• Supports HDTV/audio/MPEG transport data across PCI bus

• High-speed serial port support MPEG transport stream up to rates of 40 Mbps

• High-speed parallel port supports MPEG transport streams up to 20 Mbps

• Supports PIP (picture in picture): One screen for live and the other screen for captured program.

• Supports Time-Shifting: This feature allows user to pause, rewind and instant replay live TV program.

Users can take breaks during a TV show or movie and will never miss a scene again.

• Supports mono audio decoding for both TV audio (BTSC) and FM radio

• Supports MPEG, AVI and Quick Time file formats

• Supports Windows Media Video & Audio, MPEG 1, MPEG 4, MJPEG, MP3 and Cinepak

compression formats

• Offers infrared remote controller

Analog TV Capture Card ENLTV-FM-2

Specification Tables:

Video Standards

NTSC, PAL or SECAM

TV Tuner:

NTSC, PAL I, PAL BG, PAL DK, and SECAM

Interface

PCI V2.2

Connectors

1 CATV/VHF/UHF connector
1 RF FM connector (For Tuners with FM connector)
1 S-Video connector
1 microphone jack for Audio output
1 microphone jack for remote sensor

Operating Temperature
0°C ~ 70°C

Humidity
5 % ~ 95 % (non-condensing)

Storage Temperature

-20°C ~ 80°C

Supported OS

Windows 98, 98SE, ME, 2000, and XP

Minimum System Requirements

Pentium III compatible processor 700 MHz and above
Minimum 128 MB RAM
Graphics card with minimum 16 MB memory
AC97 compatible sound card
CD-ROM drive
One available PCI slot
Operating System comes with DirectX 9

Regulations

FCC part 15 and CE approval

Encore Electronics 2006
WWW.ENCORE-USA.COM
ENLTV-FM-2
