Encore ENLTV, ENLTV-FM User Manual

Personal Video Recorder

ENLTV / ENLTV-FM

(PCI TV Capture Card)

ENLTV Series

User’s Guide

Version 2.2

ENLTV User’s Guide -

User’s Notice

No part of this manual, including the products and software described in it, may be
reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in
any form or by any means, except documentation kept by the purchaser for backup purposes,
without the express written permission of us.

WE PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND,
EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED
WARRANTIES OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE. IN NO EVENT SHALL US, ITS DIRECTORS, OFFICERS,
EMPLOYEES OR AGENTS BE LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS
OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS), EVEN IF WE
HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY
DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.

Product warranty or service will not be extended if: (1) the product is repaired, modified or
altered, unless such repair, modification of alteration is authorized in writing by us; or (2) the serial
number of the product is defaced or missing.

Products and corporate names appearing in this manual may or may not be registered
trademarks or copyrights of their respective companies, and are used only for identification or
explanation and to the owners’ benefit, without intent infringe.

z Windows, MS-DOS, and DirectX are registered trademarks of Microsoft Corporation.
z Adobe and Acrobat are registered trademarks of Adobe Systems Incorporated.

The product name and revision number are both printed on the product itself. Manual revisions are
released for each product design represented by the digit before and after the period of the manual
revision number. Manual updates are represented by the third digit in the manual revision number.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE
FURNISHED FOR INFORMATION USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY
TIME WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY
US. WE ASSUME NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR
INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS
AND SOFTWARE DESCRIBED IN IT.

Copyright Encore Electronics © 2009. All Rights Reserved.

2

ENLTV User’s Guide -

Contents:

Chapter 1: Introduction...................................................................................................................... 4

1.1 - Package Contents............................................................................................................... 4

1.2 - System Requirements........................................................................................................ 4

Chapter 2: Getting Started ................................................................................................................. 5

2.1 - ENLTV / ENLTV-FM Hardware Installation.................................................................... 5

2.2 - Device Driver Installation ................................................................................................. 6

2.3 - Install the DirectX® ........................................................................................................ 14

2.4 - Install the ENLTV Utility software.................................................................................15

Chapter 3: Launch the ENLTV Program ......................................................................................... 20

3.1 - Running the ENLTV for the first time............................................................................. 20

3.2 - Watch TV programs or movies from DVD/VCR/Camcorder ......................................... 22

3.3 - Record Video...................................................................................................................23

3.4 - Snapshot Image................................................................................................................ 24

3.5 - Playback Video................................................................................................................ 24

3.6 - Browse Images ................................................................................................................ 26

3.7 – Time-Shifting.................................................................................................................. 27

3.8 - Using and setting up the FM Radio................................................................................. 29

Chapter 4: Using the Remote Control.............................................................................................. 30

Chapter 5: Frequently Asked Questions .......................................................................................... 31

Chapter 6: Technical Support........................................................................................................... 34

3

ENLTV User’s Guide -

Chapter 1: Introduction

1.1 - Package Contents

The following items are included in the ENLTV / ENLTV-FM package.

z CD Setup Disc (includes Software Driver and Utility Software)
z ENLTV or ENLTV-FM PCI Card
z Video Cable
z Audio Cable
z Remote Controller
z FM Antenna (ENLTV-FM only)
z User’s Guide

1.2 - System Requirements

z Intel® Pentium® 4 1.7GHz CPU or above
z Minimum 256 MB memory
z Minimum 1GB hard disk space available
z 1024x768 graphic card, DirectX® 9.0c or above compatible graphic card or higher
z One free PCI slot
z PCI 2.1 or 2.2 compliant interface
z Microsoft Windows® XP/ Windows Vista™
z CD-ROM drive

4

ENLTV User’s Guide -

Chapter 2: Getting Started

2.1 - ENLTV / ENLTV-FM Hardware Installation

Install the ENLTV / ENLTV-FM PCI Card to the

computer’s available PCI slot according to your

computers manual and new hardware installation

procedures. Make sure that the computer’s power

cord is unplugged before inserting the ENLTV /

ENLTV-FM card to the PCI slot. ENLTV /

ENLTV-FM supports PCI bus 2.1 and above.

Refer to the device connection diagram below for port connections:

Caution:

Take an extra care handling the Remote sensor cable, do not insert or remove the sensor
cable while the computer is powered-on. Otherwise, it can cause the ENLTV / ENLTV-FM
to malfunction.

5

ENLTV User’s Guide -

2.2 - Device Driver Installation

1. Placed the CD software that comes with the ENLTV / ENLTV-FM in the CD-ROM drive.

(Assuming that the ENLTV / ENLTV-FM PCI TV Tuner card is properly installed to the

computer’s PCI slot), then follow the on-screen installation guide below.

Device driver installation for Windows® XP Home/Professional Edition/x64 Edition

1. When the computer is powered-on for the

very first time during the setup, a

message “Found New Hardware Wizard”

dialogue box will appear on the screen.

Click “Cancel” button to close “Found New
Hardware Wizard” window.

1. Insert the installation CD into the

CD-ROM drive. The setup screen will

automatically appear.

1. Select the language

2. Click the “Setup Driver” button.

6

ENLTV User’s Guide -

3. Click “Next” on driver setup welcome

window to continue.

4. Make sure the “Complete” radio button is
selected then click “Next”

5. Click “Install” to begin install driver.

7

ENLTV User’s Guide -

6. Click “Next” button.

7. Click “Continue Anyway” to continue the

installation.

8. Click ”Continue Anyway” button

8

ENLTV User’s Guide -

9. Click “Finish” button

10. Click “Finish” to reboot PC.

11. To make sure the driver is properly

installed and started, open the “Device

Manager”. Please double-click the

“Sound, video and game controller”.

9

ENLTV User’s Guide -

Device driver installation for Windows Vista™

1. After ENLTV / ENLTV-FM hardware has

been installed, the next time when the

computer is powered-on, a message

“Found New Hardware” dialogue box will

appear on the screen. Click “Cancel”

button to close “Found New Hardware”

window.

2. Insert the installation CD into the

CD-ROM drive. The setup screen will

automatically appear.

3. Select the language

4. Click the “Setup Driver” button.

10

ENLTV User’s Guide -

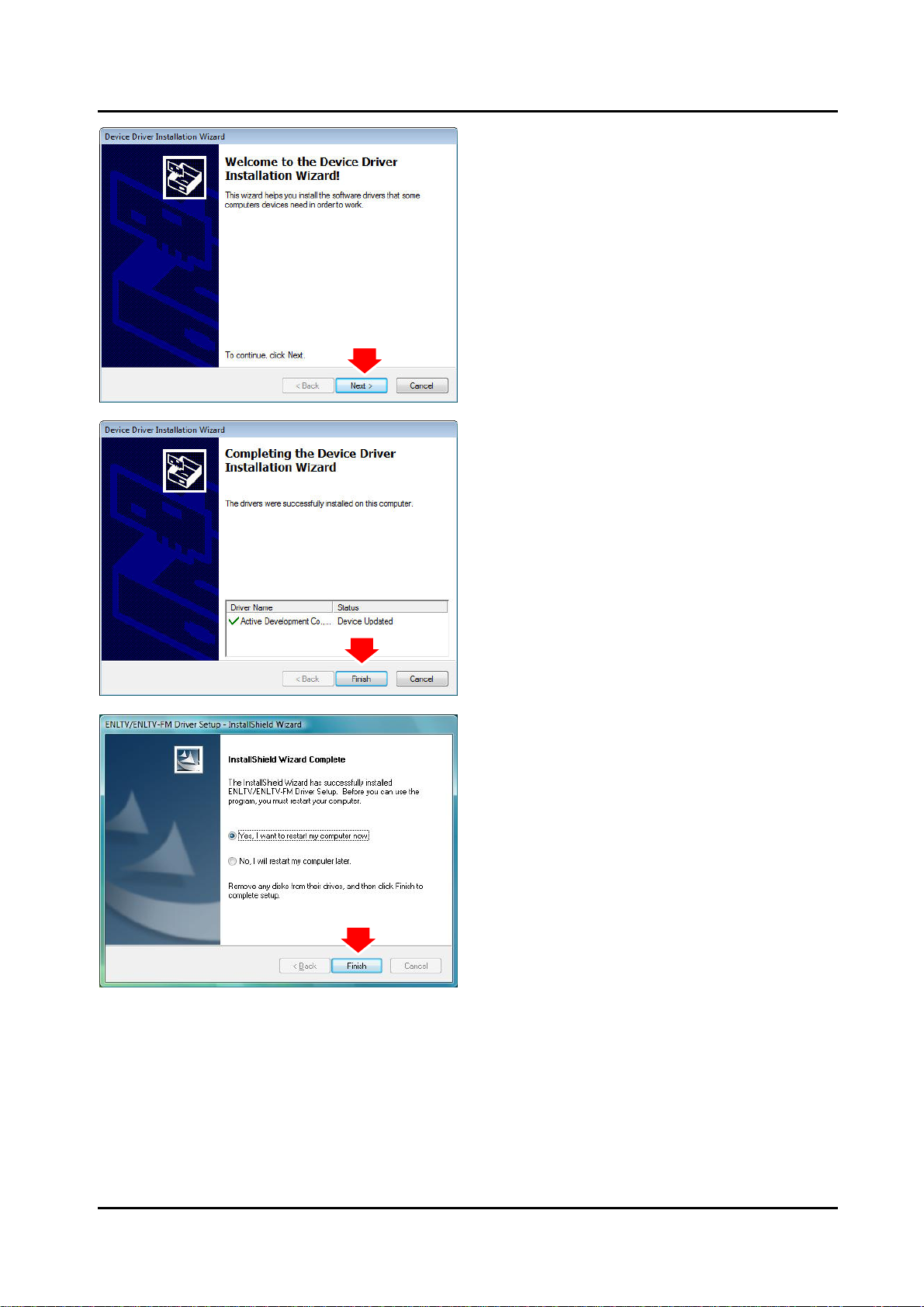

5. Click “Next” on driver setup welcome

window to continue.

6. Make sure the “Complete” radio button is
selected then click “Next”

7. Click “Install” button

11
