Encore ENHWI-2AN3 User Manual

ENHWI-2AN3
802.11n Wireless Router
TABLE OF CONTENTS
1 INTRODUCTION ........................................................................................................................3
2 KEY FEATURES..........................................................................................................................4
3 P A CKAGE CONTENTS..............................................................................................................5
4 PRODUCT LAYOUT...................................................................................................................5
5 NETWORK + SYSTEM REQUIREMENTS.............................................................................7
6 ENHWI-2AN3 PLACEMENT.....................................................................................................7
7 SETUP LAN, WAN.......................................................................................................................8
8 PC NETWORK ADAPTER SETUP (WINDOWS XP)..............................................................9
9 BRING UP ENHWI-2AN3.........................................................................................................11
10 SMART WIZARD......................................................................................................................11
11 INITIAL SETUP ENHWI-2AN3...............................................................................................26
12 AP ROUTER MODE..................................................................................................................28
13 REPEATER MODE..................................................................................................................92
APPENDIX A – FCC INTERFERENCE STATEMENT................................................................106
APPENDIX B – IC INTERFERENCE STATEMENT...................................................................107
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
2

I - Introduction

Thank You for your purchase of Encore’s ENHWI-2AN3 802.11n Wireless
Router. ENHWI-2AN3 is backward compatible with wireless devices running
802.11g and 802.11b technologies. ENHWI-2AN3 is not only a Wireless Access Point, but also a wireless Repeater use to extend your wireless coverage farther in established Local Area Networks. The 4-port 10/100 Mbps full-duplex Switch connects your wired Ethernet devices together to join the LAN.
At 300 Mbps wireless transmission rate, the Access Point built into the router uses advanced MIMO (Multi-Input, Multi-Output) technology to transmit multiple streams of data into a single wireless channel providing a seamless access to multimedia contents. Its robust RF signal travels farther, eliminates dead spots and extends network range. For data protection, wireless security and privacy, the ENHWI-2AN3 encodes all wireless transmissions with WEP, WPA, and WPA2 data encryptions.
With the built-in DHCP Server & a powerful SPI firewall, the ENHWI-2AN3 protects your computers against intruders and known Internet attacks, and still provides safe and secured VPN pass-through with data rate at incredible speed and QoS function. The ENHWI-2AN3 is ideal for media-centric applications such as streaming video, internet gaming, and VoIP telephony to run multiple media­intense data streams through the network at the same time, with no degradation in performance.
With multiple SSID you can setup up to 4 wireless networks with up to 254 total connections, setup one SSID for your family, another for Guests, for neighbors or possibly one for kids, each SSID can have own connection policies. Plus, with QoS Feature you can control any device to have more or less bandwidth control over another computer, this is a good feature for users who use a lot of WiFi Multimedia, audio or video streaming, etc, or just plain wireless computing.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
3

II - Key Features

Features Advantages
Incredible Data Rate up to 300 Mbps**
Multiple SSID
IEEE 802.11b/g/n Compliant
Four 10/100 Mbps Fast Switch RJ-45 Ports (with Auto­Crossover)
Easily handled heavy data loads such as Wi-Fi Multimedia, MPEG audio / video streaming,
Up to 4 SSID that can be used to group your family or visitors wireless connection in one router to up to 4 different SSID, each can have own connection policies, security and password
Fully Interoperable with IEEE 802.11b/g/n compliant devices with legacy protection
Scalability. Extend your network computers.
Firewall supports, DMZ, MAC Filter, IP Filter, URL Filter, ICMP Blocking, SPI, Port Mapping, Port Forwarding, Port Trigger Support 802.1x Authenticator,
802.11i (WPA/WPA2, AES), VPN pass-through WDS (Wireless Distribution System)
Web Site – www.encore-usa.com
Use to prevent attacks from hackers or viruses from the internet, Parental Control and Internet Keyword Control
Provide mutual authentication (Client and dynamic encryption keys to enhance wireless security) Make Wireless AP and Bridge mode simultaneously as a wireless repeater
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
4
** Theoretical wireless signal rate based on IEEE standard of 802.11a, b, g, n chipset used. Actual throughput may vary. Network conditions and environmental factors lower actual throughput rate. All specifications are subject to change without notice.

III - Package Contents

Check and make sure that none of the items listed below are missing. Do not discard the packing materials, in case of return; the unit must be shipped back in its original packaging.
1. ENHWI-2AN3 Wireless 802.11n Router
2. 100V~240V Power Adapter (Use only the supplied power adapter)
3. Two pieces 2 dBi 2.4 GHz SMA Upgradeable Antenna
4. Quick Installation Guide leaflet
5. CD-ROM (Smart Install Setup Wizard and User’s Manual)
6. Patch cable – Ethernet CAT5e RJ-45 Connector

IV - Product Layout

Front Panel View
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
5
LED Lights Description
POWER
WLAN
1 to 4
WAN
Lights up in Red when powered ON. Blinks on TEST/RESET
Lights up in Green when Wireless LAN is enabled. Blinks on traffic
Blinks in Green on data traffic
Lights up in Green when WAN port is use
Rear View
Item Description
Reset
WPS™
Power connector, connects to a DC 12V
Press and release this button to reboot the device. Press and hold this button for 10 seconds to load the factory default settings of the system.
Press this button to start WPS™ function.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
6
DC 12V 1A Power Adapter (Supplied)
LAN1 ~ LAN4
WAN
Ports 1 to 4 Local Area Network (LAN)10/100 Mbps RJ-45 ports Wide Area Network (WAN) port or Internet Port. Connects to xDSL or Cable Modem

V - Network + System Requirements

To begin using the ENHWI-2AN3, make sure you meet the following as minimum requirements:
h PC / Notebook Computer h Operating System – Microsoft™
®
Windows Vista™ / Windows
h 1 Free RJ-45 Network Interface Card port
7
Windows® 98SE/ME/XP/2000/
h Wi-Fi adapter card – optional. h External xDSL (ADSL) or Cable modem with an Ethernet WAN port
(RJ-45).
h A Web Browser (Internet Explorer, Safari, Firefox, Opera etc.) h Few Ethernet compatible CAT5 or better cables.

VI - ENHWI-2AN3 - Where to place

You can place ENHWI-2AN3 on a desk or other flat surface, or you can mount it on a wall. For optimal performance, place your ENHWI-2AN3 Wireless Router in the center of your office (or your home) in a location that is away from any potential source of interference, such as a metal wall or microwave oven. This
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
7
location must be close to a power connection and your ADSL/Cable modem. If the antennas are not positioned correctly, performance loss can occur.

VII - Setup LAN, WAN

LAN connection:
Connect Ethernet cable between your PC/Notebook LAN port & one of the 4 available LAN ports on ENHWI-2AN3.
WAN connection:
Connect Ethernet cable between WAN port of your ADSL/CABLE modem & WAN port of ENHWI-2AN3. Make sure your ADSL/CABLE modem is already setup and working well. Contact your ISP (Internet Service Provider) if you have any questions.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
8

VIII - PC Network Adapter Setup

Windows XP
Assuming your PC or Laptop is equipped with a Network Interface Card. Click on START Æ select “Control panelÆ From the Control Panel Window select “Network Connections
Right-click (Use the right button of your mouse) the “Local Area Connection” icon then select and click “Properties
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
9
Click to Highlight the “Internet Protocol (TCP/IP)” then click “Properties” button
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
10
Select the “General” tab. ENHWI-2AN3 supports DHCP Server, select both “Obtain an IP address
automatically” and “Obtain DNS server address automatically

IX - Power up the ENHWI-2AN3

Connect the supplied power-adapter to the power port and then plug it to a wall power outlet. The ENHWI-2AN3 automatically enters and run the self-test phase in just a few seconds. The Power LED will light a steady red light indicating that the ENHWI-2AN3 is ready for operation.

X - Smart Wizard

Before you start the ENHWI-2AN3 router’s Smart Wizard, check the followings:
Internet connection should be running & ready to use (ADSL or cable modem).
xDSL Modem or Cable Modem must have an RJ-45 LAN port
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
11
Microsoft Windows compatible PC/Notebook with UPnP enabled Network Interface Card adapter. (This can be found in your network cards advanced properties within MS Windows) Optional, this is if you prefer to use the UPnP feature.
CAT 5 or better network Ethernet cable(s), RJ-45 connector** for PC/Notebook connections. (** RJ-45 looks like a telephone cable connector
but bigger)
Step 1: Connect the ENHWI-2AN3 “WAN Port” & your Cable or DSL Modem’s LAN port using the provided Ethernet / RJ-45 patch cable.
Step 2: Connect any of the four available LAN ports to your PC or Notebooks RJ-45 network interface card port using an Ethernet network cable (not provided).
Step 3: Power-on the ENHWI-2AN3 unit. The red power LED in the front the panel should light up & stay on to indicate that the router is ready.
Step 4: Bring up the Smart Wizard. The “Smart Wizard” is a user friendly step-by­step instruction to initially help you in setting up your router connecting your computer(s) to the internet and to help you install administrator’s user ID and password, setup the wireless security to protect your router and your LAN computers from hackers and other type of intrusions. Insert the ENHWI-2AN3 Setup Disc CD into your CDROM drive. An Encore logo will popup in a few seconds then will disappear then immediately followed by the menu screen. Click on the “Setup Wizard” icon to start the “SMART WIZARD”. (Refer to the graphical instruction below this section)
If in case after you have inserted the CD onto your CDROM drive and nothing happens or there is no Welcome screen came up, open your computer’s Windows Explorer or browse the CD contents, go to the root directory and look for the file Setup.exe, double click it to start the Smart Wizard.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
12
A welcome screen will pop up a few seconds and then will disappear, followed by the menu screen below.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
13
Click Setup Wizard to run user friendly step-by-step basic setup settings Click User Manual to open the user manual (you are stepping into it right now). Click Adobe Reader to install Adobe Acrobat reader on your PC/Notebook (NOTE:
When clicked Adobe Reader will start installing. Click Cancel to stop). Click EXIT when finish or anytime you want to abort.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
14
ENHWI-2AN3 Setup Wizard
Click
to proceed to the next step. Click <Exit> to abort.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
15
Make sure your DSL/CABLE modem is setup and working prior to this Smart Wizard. If not, call your Internet Service Provider and have them check and help you in setting up your DSL/Cable modem.
Click
to proceed.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
16
Check the Cable or DSL Modem and the ENHWI-2AN3 connection.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
17
Check power connection for modem as well as ENHWI-2AN3. Make sure the antenna is connected to rear panel of ENHWI-2AN3. Click <Next> to proceed.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
18
Notice the LED will light up on this stage. If not, check back the procedures.
Click
to configure WAN & Wireless settings.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
19
Logging into the Software Wizard for the first time:
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
20
Enter the factory default username is admin and password is also admin. Click
to continue. Your default browser screen will connect to the ENHWI-2AN3
User Interface screen using the factory default address http://192.168.0.1 .
Click
to enter the mode selection screen.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
21
Select the mode your ENHWI-2AN3 is going to use. The Setup Wizard will skip the WAN configuration under AP Repeater Mode.
Click settings.
and your ENHWI-2AN3 will automatically detect your “Internet” Network
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
22
The Smart Wizard will detect the DHCP and PPPoE connections automatically. In the picture above it shows that the Smart Wizard detected a DHCP server. You can choose the detected service type or select “Others” to setup the WAN settings manually.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
23
Here, you can configure the host name and MAC address of the ENHWI-2AN3. The “Clone MAC Address” button clones the MAC address of your PC and use it as the MAC address of your ENHWI-2AN3 router instead of the real MAC address of the router.
The Smart Wizard has finished setting up the WAN Configuration portion. Click
to proceed to other portions.
Setting up the Wireless LAN
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
24
Enter the name for your wireless network SSID (the default is ENCORE59FE74) and security key (default is 1234567890). Move and point your mouse over to the security level blocks from the weakest (red block) to the strongest (green block), and click on the selected block to select the level of security you desired. The “Key” type will depend on the wireless security you selected. If you choose WEP as the wireless security you will be prompted whether an ASCII or Hexadecimal is your preferred key type. Hexadecimal requires 10 character digits on the KEY: field.
Click
to proceed
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
25
To save configuration changes click
NOTE:
After the Wireless settings are saved and the ENHWI-2AN3 is rebooted, you need to reconnect your WLAN client using the new security settings you just changed. You will need to reenter the new wireless security key for the client and the ENHWI-2AN3 reestablish wireless connections.

XI – How to login to the ENHWI-2AN3 Web Based Graphical User Interface

The ENHWI-2AN3 use a web based user interface for setting up your router’s configuration, it can be access through your web browser such as Internet Explorer or Mozilla Firefox.
ENHWI-2AN3 web based user interface login procedure
1. OPEN your browser (Example: Internet Explorer, Mozilla, Netscape, etc).
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
26
2. Type-in http://192.168.0.1 exactly in address field and hit the [Enter] key on your keyboard.
3. Type-in the ENHWI-2AN3 Username and Password (the factory default is admin and admin)
4. Click
5. You will see the configuration home page of the ENHWI-2AN3 as follows.
to navigate into the ENHWI-2AN3 configuration home page.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
27
ENHW-2AN3 Home Page Screen
XII - The AP Router Mode SYSTEM
System:
Shows the Uptime, Hardware information, Serial number as well as the Firmware version information and other vital information
Status Tab
This page allows you to monitor the status of your router.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
28
1. WAN Settings: Scroll down to see the full information. This section displays whether the WAN port is connected to a Cable / DSL modem. It also displays the router’s WAN IP address, Subnet Mask, ISP Gateway, MAC address and the Primary DNS.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
29
2. LAN Settings: Scroll down to see this section, displays the ENHWI-2AN3 Router’s LAN ports current information. It also shows whether the DHCP Server is enabled or disabled.
3. WLAN Settings: Scroll down to see this section. This section displays the
current WLAN configuration settings. The wireless configuration details such as the SSID, Security settings, ESSID, BSSID, Channel number and wireless clients connected info are briefly shown.
LAN Tab
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
30
The LAN Tab is where LAN settings can be changed. If you are an entry level user, after hooking up the necessary cables, try to access the internet from your computer. If you can open a website with no problem, leave the settings as it is. If changes
were made, click the
button to save the changed configurations.
LAN IP
IP address: 192.168.0.1 is the router’s LAN manufacturers default IP address (this
will also be the “Default Gateway” IP address of your LAN clients). It can be change based on your LAN design and configurations. Typical designs don’t need to change this IP address.
IP Subnet Mask: 255.255.255.0 specifies the Subnet Mask address for your LAN segment. This is based on the IP address range used.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
31
802.1d Spanning Tree: This is disabled by default. If 802.1d Spanning Tree function is enabled, this router will use the spanning tree protocol to prevent network loops.
DHCP Server
DHCP Server: This can be enabled or disabled, “Enabled” by default.
Lease time: Lease time assigned to all IP address by the DHCP server.
Start IP: This is the first IP address in the IP pool range in which are being
assigned and leased to DHCP clients.
End IP: This is the end of the IP address pool range
Domain Name: The Domain Name for the existing or customized network.
DHCP Tab
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
32
This is where to view the current LAN clients that have assigned or leased IP address by the DHCP server. currently connected to your network. The table shows the assigned or leased IP address, MAC address and the lease expiration data for each DHCP clients. Use the <Refresh> button to update the available information. Click the <Refresh> button to get the updated table.
You can click to put a check mark on “Enable Static DHCP IP“. It is possible to add more static DHCP IP addresses. They are listed in the table “Current Static DHCP Table“. IP address can be deleted if wanted to.
Click the <Apply> button to save the changes made to the configuration.
This screen also shows all the DHCP clients that are
Schedule Tab
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
33
This page allows users to set up a scheduled function for the Firewall and Power Saving features of the ENHWI-2AN3 router.
.
Edit the scheduled function to allow configuration for firewall or power savings services. Fill in the schedule and select type of service you desired. Click <Apply> to save the settings.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
34
The “Schedule” table screen lists the pre-scheduled services. Select any of the schedules by using the check box located on the right side of each line to edit or Delete selected schedule line.
Event Log Tab
On this “Event Log” screen, it displays all events and events information occurred after the start-up. Scroll down to see more. The Event Log can be saved to the local file-storage device such as hard disc drive by using the <Save> button, or the Event Log can be emptied using the <Clear> button. Use the <Refresh> button to reset the Event Log and to get the most updated information. When the router is powered OFF, the Event Log will be wiped out and will come up empty. The saved logs can be uploaded and viewed again.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
35
Monitor Tab
This screen shows the histogram of the network connection on WAN, LAN & WLAN. Auto refresh keeps information updated frequently.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
36
Language Tab
This is where you select preferred language.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
37
WIZARD
Click Wizard to configure the basic functionalities of the ENHWI-2AN3 Router. A popup Setup Wizard Window will be immediately displayed. If the popup window for Setup Wizard failed to appear check your Popup Settings and make sure popup is allowed at least temporarily for this purpose. Before you continue, check all the needed cables if they are properly hooked up. Check your DSL or Cable Modem if working properly and is connected to your ISP and then click <Next>. Refer to the
Smart Wizard section for more details.
INTERNET
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
38
- Status
This page shows the current Internet connection type and status
- Dynamic IP
Use the MAC address when registering for the Internet service, and do not change it unless required by your ISP. If your ISP use the MAC address of the Ethernet card as an identifier, connect only the PC with the registered MAC address to the broadband router and click the <Clone MAC Address> button. This will replace the current MAC address with the already registered Ethernet card MAC address.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
39
Host Name: This is optional. MAC address: The default value is set to the WAN’s physical address or MAC of
the broadband router.
- Static IP
If your ISP Provider has assigned a fixed public IP address for you to use, enter the assigned IP address, Subnet Mask, Default Gateway IP address, Primary and Secondary DNS (if available) of your ISP provider.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
40
- Point-to-Point Protocol over Ethernet (PPPoE)
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
41
Login / Password: Enter the PPPoE username and password assigned by your
ISP Provider or internet service provided.
Service Name: This is optional.
Maximum Transmission Unit (MTU): This is the maximum size of the packets.
Type: Keep Connection - will stay connected to the Internet
Automatic Connection - automatically connects to the Internet when
an application needs it, and drops the connection after the designated idle time period. Manual Connection – manually connect and disconnect to the internet by the user
Idle Timeout (available only under Automatic Connection): This is a
maximum period of time for which the Internet connection is maintained
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
42
during inactivity. If the application is inactive for certain time designated here the internet connection will be automatically dropped.
- Point-to-Point Tunneling Protocol (PPTP)
PPTP allows the secure connection over the Internet by simply dialing in to a local point provided by your ISP provider. The image screen allows client PCs to establish a normal PPTP session and provides hassle-free configuration of the PPTP client on each client PC.
Click <Apply> to save configuration and connect to ISP provider.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
43
- Layer 2 Tunneling Protocol (L2TP)
WAN Interface Settings:
WAN Interface Type :
Dynamic IP Address – Use the DHCP client function to
retrieve WAN port IP address, which will used to establish theL2TP tunnel. The router’s L2TP tunnel address will be assigned after tunnel is established, which will be different from the WAN IP address it gets earlier.
Hostname : This is optional. If your ISP requires you to put a
hostname, you may enter it here.
MAC address : Optional. This address will overwrite WAN
port default MAC address. If your ISP provides this MAC address, enter it here. You can also click “Clone MAC” button to clone your PC’s MAC address to overwrite WAN port default MAC address.
DNS : Optional. If your ISP doesn’t provide you with a DNS
server address automatically through DHCP, enter a DNS server IP address here, if “Service IP/Name” field is domain name in “L2TP Settings”.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
44
Static IP Address – Manually configure WAN port IP address,
contents of this are:
o My IP Address : This is the WAN port IP address
provided by your ISP to establish the L2TP tunnel.
o My Subnet Mask : This is the WAN port Subnet Mask
provided by your ISP to establish the L2TP tunnel.
o Gateway IP Address : This is the WAN port Gateway
IP address provided by your ISP to establish L2TP tunnel.
o DNS : This is optional. This is the WAN port DNS
address provided by your ISP to resolve the website IP Address into the domain or URL name during establishing L2TP tunnel if you use domain name in “Service IP/Name” instead of IP address .
L2TP Settings :
Login : Enter the L2TP username assigned by your ISP
Provider.
Password : Enter the L2TP password assigned by your ISP
Provider.
Service IP/Name : Enter the L2TP server IP address or
domain name.
MTU : What would you select would be the maximum size of
packets. Keep it in default if you are not familiar with this setting.
Type :
o Keep Connection - stay connected to the Internet o Automatic Connection - automatically connects to the
Internet when an application needs it, and drops the connection after the designated idle time period.
o Manual Connection – manually connect and
disconnect to the internet by the user
Idle Timeout : This function is available only if Automatic
Connection is selected under “Type”. This is a maximum period of time for which the Internet connection is maintained during inactivity. If the application is inactive for certain time designated here the internet connection will be automatically dropped.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
45
WIRELESS
- Basic
In basic setting page, you can set wireless Radio, Mode, Band, SSID, and Channel.
Radio: You can turn on/off wireless radio. If wireless Radio is turned off, the
ENHWI-2AN3 will not take wireless connections.
Mode: Three operation modes for selections, the AP router and AP router
with WDS. If you choose AP Router Mode, there will be two selections under it, the AP or WDS function in the drop-down menu.
Band: You can select the wireless standards running on your network
environment such as the following:
2.4 GHz(B): If all your clients are using 802.11b
2.4 GHz(N): If all your clients are using 802.11n
2.4 GHz(B+G): If both 802.11b or a 802.11g
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
46
2.4 GHz(G): If all your clients are using 802.11g
2.4 GHz(B+G+N): If your clients are mixed using 802.11b,
802.11g, or 802.11n
Enable ESSID: ENHWI-2AN3 supports up to 4 SSID. Use the down arrow to
select the number of SSID you wanted to have in your wireless LAN. Once established you can set the security policy settings for each. See “Policy” section for more details.
ESSID1 to ESSID4: ESSID is the name of your wireless network. It is
recommended to use a unique name to identify your wireless device in the LAN. This is case sensitive and up to 32 printable characters.
Auto Channel: Disable by default. If Enabled will automatically search all
channels and automatically change to the clearest channel detected. Different items are visible below the Auto Channel.
Channel: Channel 11 by default. This is visible only when the Auto Channel is
disabled. You can enter your preferred channel number here for the ENHWI-2AN3 wireless LAN.
Check Channel Time: This menu is visible only when the Auto Channel is
enabled. Selections are from One Hour to One Week. This is the duration of when will the ENHWI-2AN3 check for and use the clearest channel in the area automatically.
- WDS with AP Router
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
47
Wireless Distribution System. The WDS is a way of interconnecting wireless routers and allow an extended wireless network coverage using multiple wireless routers without the use of a wired backbone. Each WDS AP requires the same channel and encryption type to work.
MAC address 1~4: Please enter the MAC address of the neighboring APs that
participates in the WDS. A maximum of 4 devices are allowed.
Set Security: WDS Security depends on your AP security settings. Note: It
does not support mixed mode such as WPA-PSK/WPA2-PSK Mixed mode.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
48
- Advanced
On this tab you can set the advanced wireless settings. If you’re in doubt what to enter or use here, leave these settings as it is. This is for advance users only. Wrong parameters can make the router un-operational.
Fragment Threshold: Default value is 2346.Specifies the maximum size of a
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
49
packet during the fragmentation of data to be transmitted. If you set this value too low, it will result in a bad performance.
RTS Threshold: Default value is 2347. When the packet size is smaller than the RTS threshold, the wireless router will not use the RTS/CTS mechanism to send this packet.
Beacon Interval: Default value is 100. This is the interval of time that this wireless router broadcasts a beacon. A Beacon is used to synchronize the wireless network.
DTIM Period: Default value is 1. Enter a value between 1 and 255 for the
Delivery Traffic Indication Message (DTIM). A DTIM is a countdown informing clients of the next window for listening to broadcast and multicast messages.
Data Rate: The “Data Rate” is the rate that this access point uses to transmit
data packets. The access point will use the highest possible selected transmission rate to transmit the data packets.
N Data Rate: The “Data Rate” is the rate that this access point uses to transmit
data packets for N compliant wireless nodes. Highest to lowest data rate can be fixed.
Channel Bandwidth: This is the range of frequencies that will be used.
Preamble Type: The “Long Preamble” can provide better wireless LAN
compatibility while the “Short Preamble” can provide better wireless LAN performance.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
50
CTS Protection: It is recommended to enable the protection mechanism. This
mechanism can decrease the rate of data collision between
802.11b and 802.11g wireless stations. When the protection mode is enabled, the throughput of the AP will be a lower due to an increase of data frame transmission.
TX Power: 10% to 100%. Default value is 100%.
- Security
ENHWI-2AN3 provides complete wireless LAN security types. Selections are WEP, IEEE 802.1x, IEEE 802.1x with WEP, WPA with pre-shared key or PSK and WPA with RADIUS. With these wireless securities, unauthorized access can be prevented. Make sure all other wireless stations use the same security type, and were setup with the same security key.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
51
ESSID Selection: ENHWI-2AN3 router supports multiple ESSID, you can name your
wireless ESSID here.
Broadcast ESSID: If you enabled “Broadcast ESSID”, every wireless station located
within the coverage of this Router can see this ESSID. If you are building a public wireless network, enabling this feature is recommended. Disabling “Broadcast ESSID” can provide better security.
WMM: Wi-Fi Multi Media if enabled supports QoS to dedicate line and other resource
for better audio, video and voice streaming to a particular station and applications.
Encryption: If set to Disable, the router will have no protection against uninvited
wireless guests, your LAN will be prone to hackers. It is highly recommended to Enable this function and set your own wireless security.
Enable 802.1x Authentication
IEEE 802.1x is an authentication protocol using RADIUS server. When this is Enabled, every LAN user must use an account to login to this Access Point before accessing the wireless LAN. The authentication is processed by a RADIUS server. This mode only authenticates users by IEEE 802.1x, but it does not encrypt the data during communication.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
52
WEP Encryption
When you select 64-bit or 128-bit WEP key, you have to enter WEP keys to encrypt data. You can generate the key by yourself. You can enter up to four WEP keys and select one of them as a default key. The AP can receive any packet encrypted by one of the four keys.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
53
Authentication Type: There are two authentication types: "Open System" and
"Shared Key". Both AP and wireless client must be
configured with the same authentication type.
Key Length: You can select the WEP key length for encryption, 64-bit or 128-bit.
The larger the key will be the higher level of security is used, but the throughput will be lower.
Key Type: You may select ASCII Characters (alphanumeric format) or
Hexadecimal Digits (in the "A-F", "a-f" and "0-9" range) to be the WEP Key.
Default Key: It’s the key used to encrypt data.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
54
Key1 - Key4: The WEP keys are used to encrypt data transmitted in the wireless
network. Use the following rules to setup a WEP key on the device.
64-bit WEP:
128-bit WEP:
Click <Apply> at the bottom of the screen to save the above configurations.
input 10-digits Hex values (in the "A-F", "a-f" and "0-9" range)
or 5-digit ASCII character as the encryption keys.
input 26-digit Hex values (in the "A-F", "a-f" and "0-9" range)
or 13-digit ASCII characters as the encryption keys.
WPA Pre-Shared Key Encryption
Wi-Fi Protected Access (WPA) is an advanced security standard. You can use a pre-shared key to authenticate wireless stations and encrypt data during communication. It uses TKIP or CCMP (AES) to change the encryption key frequently. The encryption key is not easy to be cracked by hackers. This is the best security available.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
55
WPA-RADIUS Encryption
Wi-Fi Protected Access (WPA) is an advanced security standard. You can use an external RADIUS server to authenticate wireless stations and provide the session key to encrypt data during communication. It uses TKIP or CCMP (AES) to change the encryption key frequently. Press
<Apply> button when you are done.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
56
- MAC Address Filtering
This wireless router supports MAC Address Control, which prevents unauthorized clients from accessing your wireless network.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
57
Enable wireless access control: Enable the wireless access control function
Adding an address into the list
Enter the "MAC Address" and "Description" of the wireless station to be added and then click <Add>. The wireless station will now be added into the "MAC Address Filtering Table" below. If you are having any difficulties filling in the fields, just click "Reset" and both "MAC Address" and "Description" fields will be cleared.
Remove an address from the list
If you want to remove a MAC address from the "MAC Address Filtering Table", select the MAC address that you want to remove in the list and then click "Delete Selected". If you want to remove all the MAC addresses from the list, just click the <Delete All> button. Click <Reset> will clear your current selections.
Click <Apply> at the bottom of the screen to save the above configurations.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
58
- Wi-Fi Protected Setup™ (WPS™)
WPS™ is the simplest way to establish a connection between the wireless clients and the wireless router. You don’t have to select the encryption mode and fill in a long encryption passphrase every time when you try to setup a wireless connection. You only need to press a button on both wireless client and wireless router, and the WPS will do the rest for you.
The wireless router supports two types of WPS, the WPS via Push Button and WPS via PIN code. If you want to use the Push Button, you have to push a specific button on the wireless client or in the utility of the wireless client to start the WPS mode, and switch the wireless router to WPS mode. You can simply push the WPS button of the wireless router, or click the ‘Start to Process’ button in the web configuration interface. If you want to use the PIN code, you have to know the PIN code of the wireless client and switch it to WPS mode, then fill-in the PIN code of the wireless client through the web configuration interface of the wireless router.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
59
WPS: Check the box to enable WPS function and uncheck it to disable the WPS
function.
WPS Current Status: If the wireless security (encryption) function of this
wireless router is properly set, you’ll see a ‘Configured’ message here. Otherwise, you’ll see ‘UnConfigured’. Click the “Release Configuration” can clear the security
st
settings of the 1
SSID.
Self Pin Code: This is the WPS PIN code of the wireless router. You may need
this information when connecting to other WPS-enabled wireless devices.
SSID: This is the network broadcast name (SSID) of the router.
Authentication Mode: It shows the active authentication mode for the wireless
connection.
Passphrase Key: It shows the passphrase key that is randomly generated by
the wireless router during the WPS process. You may need this information when using a device which doesn’t support WPS.
Interface: If device is set to repeater mode, you can choose “Client” interface to
connect with other AP by using WPS, otherwise you may choose
“AP” interface to do WPS with other clients.
WPS via Push Button: Press the button to start the WPS process. The router
will wait for the WPS request from the wireless devices within 2 minutes.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
60
WPS via PIN: You can fill-in the PIN code of the wireless device and press the
button to start the WPS process. The router will wait for the WPS request from the wireless device within 2 minutes.
- Client List
WLAN Client Table shows the Wireless clients associated to this Wireless Router.
- Policy
The Broadband router can allow you to set up the Wireless Access Policy up to 4 SSID’s.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
61
FIREWALL
The Broadband router provides extensive firewall protection by restricting connection parameters, thus limiting the risk of hacker attacks, and defending against a wide array of common Internet attacks. However, for applications that require unrestricted access to the Internet, you can configure a specific client/server as a Demilitarized Zone (DMZ).
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
62
Note: To enable the Firewall settings select Enable and click Apply
- Advanced
You can allow the VPN packets to pass through this Broadband router.
- Demilitarized Zone (DMZ)
If you have a client PC that cannot run an Internet application (e.g. Games) properly behind the NAT firewall, then you can open up the firewall restrictions to unrestricted two-way Internet access by defining a DMZ Host. The DMZ function allows you to re-direct all packets going to your WAN port IP address to a
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
63
particular IP address in your LAN. The difference between the virtual server and the DMZ function is that the virtual server re-directs a particular service/Internet application (e.g. FTP, websites) to a particular LAN client/server, whereas DMZ re-directs all packets (regardless of services) from your WAN IP address to a particular LAN client/server.
Enable DMZ: Enable / Disable DMZ
LAN IP Address: Fill-in the IP address of a particular host in your LAN Network
or select a PC from the list on the right that will receive all the packets originally from the WAN port/Public IP address.
Click <Apply> at the bottom of the screen to save the above configurations.
- Denial of Service (DoS)
The Broadband router's firewall can block common hacker attacks, including Denial of Service, Ping of Death, Port Scan and Sync Flood. If Internet attacks occur the router can log the events.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
64
Flood: Protects the router from Sync Flood attack.
- MAC Filter
If you want to restrict users from accessing certain Internet applications / services (e.g. Internet websites, email, FTP etc.), and then this is the place to set that configuration. MAC Filter allows users to define the traffic type permitted in your LAN. You can control which PC client can have access to these services.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
65
Enable MAC Filtering: Check to enable or disable MAC Filtering.
Deny: If you select “Deny” then all clients will be allowed to access Internet
except the clients in the list below.
Allow: If you select “Allow” then all clients will be denied to access Internet
except the PCs in the list below.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
66
Add PC MAC Address
Fill in “LAN MAC Address” and <Description> of the PC that is allowed / denied to access the Internet, and then click <Add>. If you find any typo before adding it and want to retype again, just click <Reset> and the fields will be cleared.
Remove PC MAC Address
If you want to remove some PC from the "MAC Filtering Table", select the PC you want to remove in the table and then click <Delete Selected>. If you want to remove all PCs from the table, just click the <Delete All> button. If you want to clear the selection and re-select again, just click <Reset>.
Click <Apply> at the bottom of the screen to save the above configurations.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
67

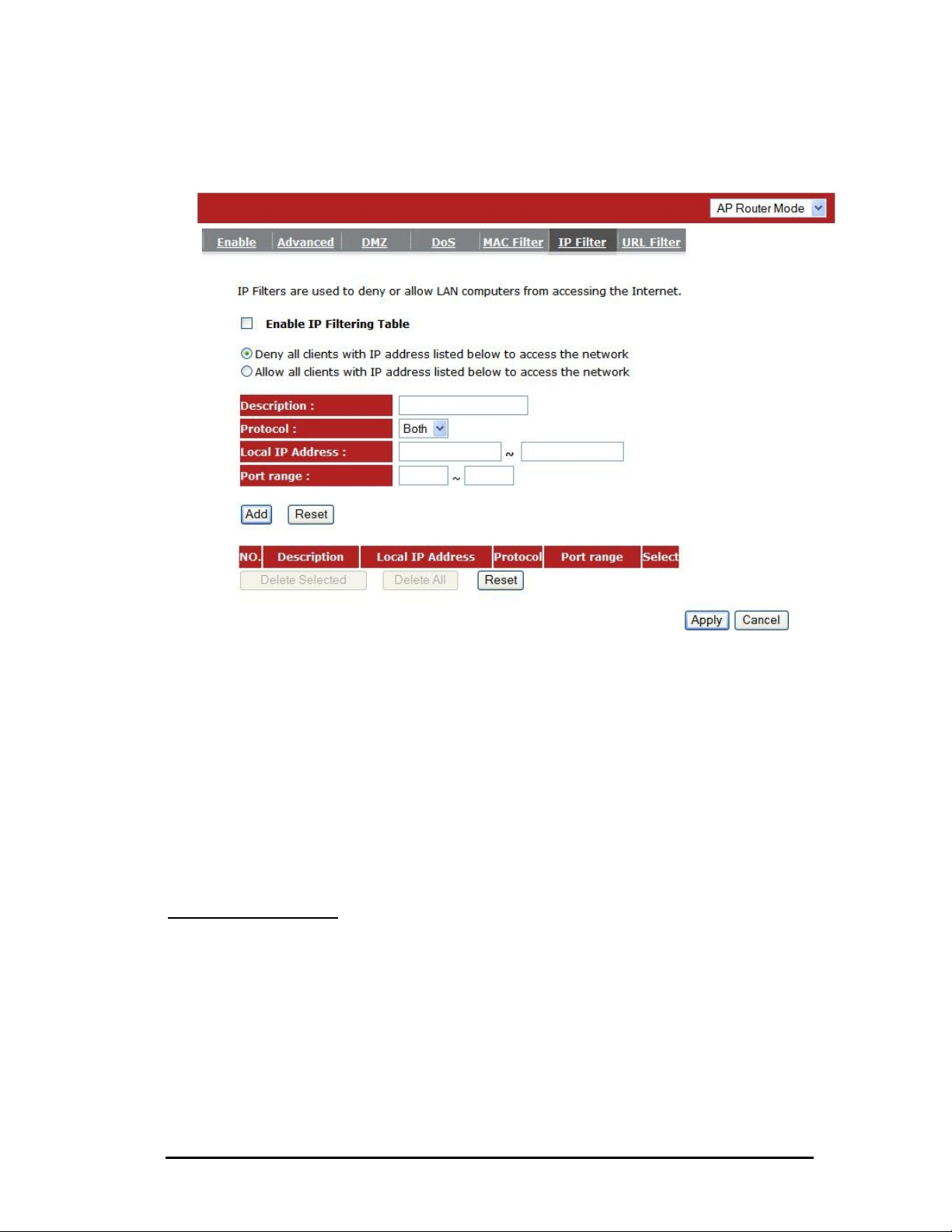

- IP Filter
Enable IP Filtering: Check to enable or uncheck to disable IP Filtering.
Deny: If you select “Deny” then all clients will be allowed to access Internet
except for the clients in the list below.
Allow: If you select “Allow” then all clients will be denied to access Internet
except for the PCs in the list below.
Add PC IP Address
You can click <Add> PC to add an access control rule for users by an IP address
or IP address range.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
68
Remove PC IP Address
If you want to remove some PC IP from the <IP Filtering Table>, select the PC you want to remove in the table and then click <Delete Selected>. If you want to remove all PCs from the table, just click the <Delete All> button.
Click <Apply> at the bottom of the screen to save the above configurations.
- URL Filter
You can block access to some Web sites from particular PCs by entering a full
URL address or just keywords of the Web site.
Enable URL Blocking: Enable or disable URL Blocking
Add a URL Keyword
Fill-in the “URL/Keyword” field with your url / keyword, and then click <Add>. You can enter the full URL address or the keyword of the web site you want to block. If
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
69
you happen to make a mistake and want to retype again, just click "Reset" and the field will be cleared.
Remove URL Keyword
If you want to remove some URL keywords from the "Current URL Blocking Table", select the URL keyword you want to remove in the table and then click <Delete Selected>. If you want remove all URL keywords from the table, click <Delete All> button. If you want to clear the selection and re-select again, just click <Reset>. Click <Apply> to save the above configurations
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
70
ADVANCED
- Network Address Translation (NAT)
Network Address Translation (NAT) allows multiple users at your local LAN site to access the Internet using a single Public IP Address or multiple Public IP Addresses. NAT provides Firewall protection from hacker attacks and has the flexibility to allow you to map Private IP Addresses to Public IP Addresses for key services such as Websites and FTP. Select Disable to disable the NAT function.
- Port Mapping
Port Mapping allows you to re-direct a particular range of service port numbers (from the Internet / WAN Port) to a particular LAN IP address. It helps you to host servers behind the router NAT firewall.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
71
Enable Port Mapping: Enable or disable port mapping function.
Description: description of this setting.
Local IP: This is the local IP of the server behind the NAT firewall.
Protocol: This is the protocol type to be forwarded. You can choose to forward
TCP” or “UDP” packets only, or select “BOTH” to forward both “TCP” and “UDP” packets.
Port Range: The range of ports to be forward to the private IP.
Add Port Mapping
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
72
Fill in the "Local IP", “Protocol”, “Port Range” and "Description" of the setting to be added and then click "Add". Then this Port Mapping setting will be added into the "Current Port Mapping Table" below. If you find any typo before adding it and want to retype again, just click <Reset> and the fields will be cleared.
Remove Port Mapping
If you want to remove a Port Mapping setting from the "Current Port Mapping Table", select the Port Mapping setting that you want to remove in the table and then
click D<Delete Selected>. If you want to remove all Port Mapping settings from the table, click <Delete All> button. Click <Reset> will clear your current selections.
Click <Apply> at the bottom of the screen to save the above configurations.
- Port Forwarding (Virtual Server)
Use the Port Forwarding (Virtual Server) function when you want different servers/clients in your LAN to handle different service/Internet application type (e.g. Email, FTP, Web server etc.) from the Internet. Computers use numbers called port numbers to recognize a particular service/Internet application type. The Virtual Server allows you to re-direct a particular service port number (from the Internet/WAN Port) to a particular LAN private IP address (See Glossary for an explanation on Port number).
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
73
Enable Port Forwarding: Enable or disable Port Forwarding.
Description: The description of this setting.
Local IP / Local Port: This is the LAN Client/Host IP address and Port number
that the Public Port number packet will be sent to.
Protocol: Select the port number protocol type (TCP, UDP or both). If you are unsure, then leave it to the default “both” setting. Public Port enters the service (service/Internet application) port number from the Internet that will be
re-directed to the above Private IP address host in your LAN Network.
Public Port: Port number will be changed to Local Port when the packet enters
your LAN Network.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
74
Add Port Forwarding
Fill in the "Description" , "Local IP", "Local Port", "Protocol" and “Public Port
of the setting to be added and then click <Add> button. Then this Virtual Server setting will be added into the "Current Port Forwarding Table" below. If you find any typo before adding it and want to retype again, just click <Reset> and the fields will be cleared.
Remove Port Forwarding
If you want to remove Port Forwarding settings from the "Current Port Forwarding Table", select the Port Forwarding settings you want to remove in the table and then click "Delete Selected". If you want to remove all Port Forwarding settings from the table, just click the <Delete All> button. Click <Reset> will clear your current selections.
Click <Apply> at the bottom of the screen to save the above configurations.
- Port Triggering (Special Applications)
Some applications require multiple connections, such as Internet games, video Conferencing, Internet telephony and others. In this section you can configure the router to support multiple connections for these types of applications.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
75
Enable Trigger Port: Enable or disable the Port Trigger function. Trigger Port: This is the outgoing (Outbound) range of port numbers for this
particular application.
Trigger Type: Select whether the outbound port protocol is “TCP”, “UDP” or
BOTH”.
Public Port: Enter the In-coming (Inbound) port or port range for this type of
application (e.g. 2300-2400, 47624)
Public Type: Select the Inbound port protocol type: “TCP”, “UDP” or “BOTH Popular Applications: This section lists the more popular applications that
require multiple connections. Select an application from the Popular Applications selection. Once you have selected an application, select a location (1-5) in the “Add” selection box and then click the <Add> button. This will automatically list the Public Ports
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
76
required for this popular application in the location (1-
5) you specified.
Add Port Triggering
Fill in the "Trigger Port", "Trigger Type”, “Public Port”, "Public Type", "Public Port" and "Description" of the setting to be added and then Click
<Add>. The Port Triggering setting will be added into the "Current Trigger­Port Table" below. If you happen to make a mistake, just click <Reset>
and the fields will be cleared.
Remove Port Triggering
If you want to remove Special Application settings from the "Current Trigger-Port Table", select the Port Triggering settings you want to remove
in the table and then click <Delete Selected>. If you want remove all Port Triggering settings from the table, just click the <Delete All> button. Click
<Reset> will clear your current selections.
- Application Layer Gateway (ALG)
You can select applications that need ALG support. The router will let the selected application to correctly pass through the NAT gateway.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
77
- UPNP
With UPnP, all PCs in you Intranet will discover this router automatically. So, you don’t have to configure your PC and it can easily access the Internet through this router.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
78
Enable / Disable UPnP: You can enable or Disable the UPnP feature here.
After you enabled the UPnP feature, all client systems that support UPnP, like Windows XP, can discover this router automatically and access the Internet through this router without having to configure anything. The NAT Traversal function provided by UPnP can let applications that support UPnP connect to the internet without having to configure the virtual server sections.
- Quality of Service (QoS)
QoS lets you classify Internet application traffic by source/destination IP address and port number. You can assign priority for each type of application and reserve bandwidth for it. The packets of applications with higher priority will always go first. Lower priority applications will get bandwidth after higher priority applications get enough bandwidth. This can let you have a better experience in
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
79
using critical real time services like Internet phone, video conference …etc. All the applications not specified by you are classified as rule “Others”.
Priority Queue
This can put the packets of specific protocols in High/Low Queue. The packets in High Queue will process first.
Unlimited Priority Queue: The LAN IP address will not be bounded in the QoS
limitation.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
80
High/Low Priority Queue: This can put the packets in the protocol and port
range to High/Low QoS Queue.
Bandwidth Allocation:
This can reserve / limit the throughput of specific protocols and port range. You can set the upper bound and Lower bound.
Type: Specify the direction of packets. Upload / Download or both. IP range: Specify the IP address range. You could also fill one IP address Protocol: Specify the packet type. The default ALL will put all packets in the QoS
priority Queue.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
81
Port range: Specify the Port range. You could also fill one Port. Policy: Specify the policy of QoS, Min option will reserve the selected data rate
in QoS queue. Max option will limit the selected data rate in QoS queue.
Rate: The data rate of QoS queue. Disabled:
This turn off QoS Service.
- Routing
You can set Enable Static Routing to let the router forward packets using your routing policy.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
82
Destination LAN IP: Specify the destination LAN IP address of static routing rule. Subnet Mask: Specify the Subnet Mask of static routing rule. Default Gateway: Specify the default gateway of static routing rule. Hops: Specify the Max Hops number of static routing rule. Interface: Specify the Interface of static routing rule.
TOOLS
- Admin
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
83
You can change the password required to log into the broadband router's system web-based management. By default, the password is: admin. Passwords can contain 0 to 12 alphanumeric characters, and are case sensitive.
Old Password: Fill in the current password to allow changing to a new
password.
New Password: Enter your new password and type it again in Repeat New
Password for verification purposes
Remote management
Allows you to designate a host in the Internet. The ability to configure the
Broadband router from a remote site. Enter the designated host IP Address
in the Host IP Address field.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
84
Host Address: This is the IP address of the host in the Internet that will have
management/configuration access to the Broadband router from a remote site. If the Host Address is left 0.0.0.0 this means anyone can access the router’s web-based configuration from a remote location, providing they know the password.
Port: The port number of the remote management web interface. Enabled: Check to enable the remote management function. Click <Apply> at the bottom of the screen to save the above configurations.
- Time
The Time Zone allows your router to refer or base its time on the settings configured here, which will affect functions such as Log entries and Firewall settings.
Setting Up Time:
Synchronize with the NTP server
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
85
Time Zone: Select the time zone of the country you are currently located. The
router will set its time based on your selection.
NTP Time Server: The router can be set up to use external NTP Time Server.
Daylight Savings: The router can also be set to automatically adjust to the
Daylight Savings changes. If you wish to use this function, you must select the Daylight Savings Time period and put a checkmark on the Enable box to enable your daylight savings time configuration.
Click <Apply> at the bottom of the screen to save the above configurations.

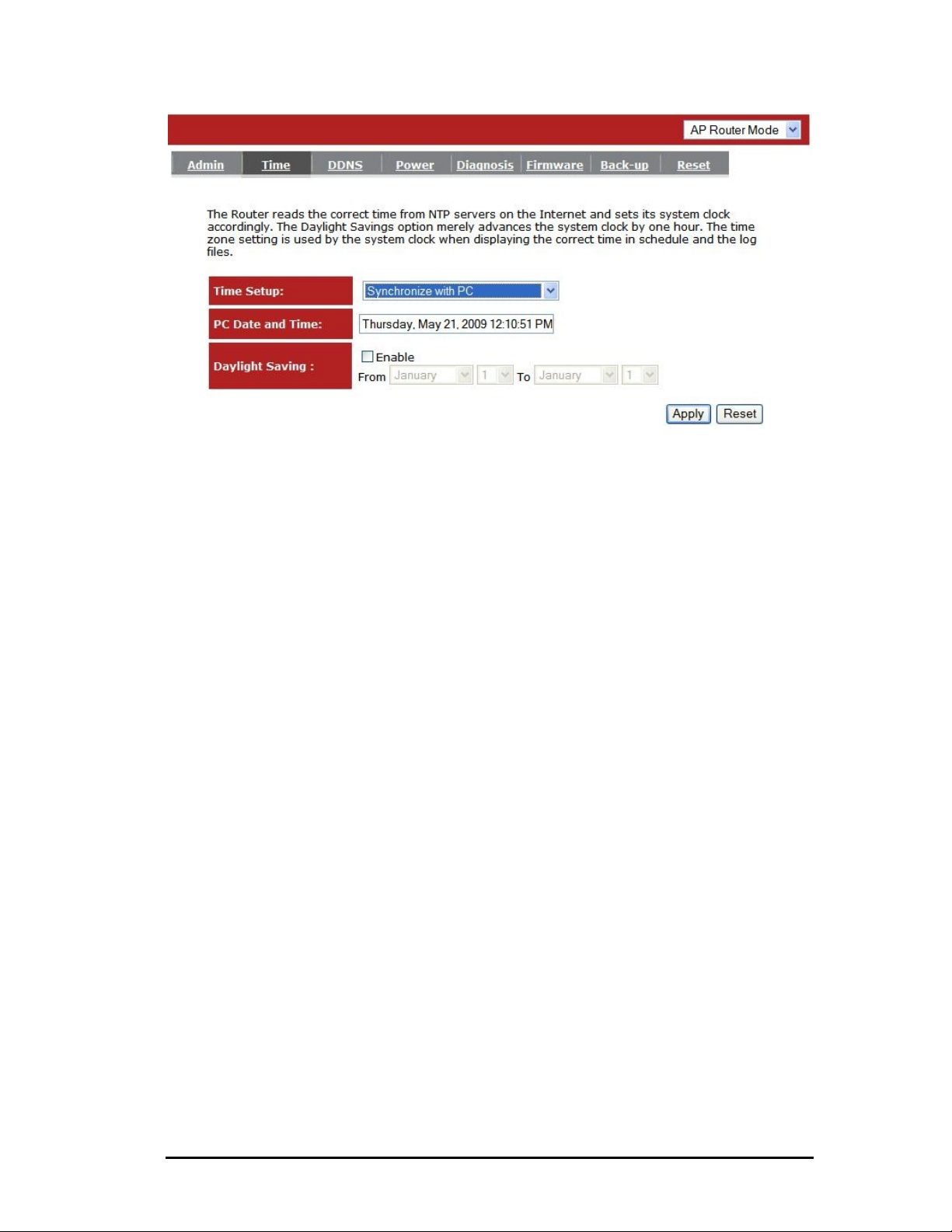

Synchronize with your PC
You could synchronize timer with your computers time.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
86
PC Date and Time: This field would display your computer’s date and time.
Daylight Savings: The router can also take Daylight Savings into account. If you
wish to use this function, you must select the Daylight Savings Time period and check/tick the enable box to enable your daylight saving configuration.
Click <Apply> at the bottom of the screen to save the above configurations.
- DDNS
DDNS allows you to map the static domain name to a dynamic IP address. You must register to a DDNS services and to get an account, password and your static domain name from the DDNS service providers. This router supports DynDNS, TZO and other common DDNS service providers.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
87
Enable/Disable DDNS: Enable or disable the DDNS function of this router
Server Address: Select a DDNS service provider
Host Name: Fill in your static domain name that uses DDNS.
Username: The account that your DDNS service provider assigned to you.
Password: The password you set for the DDNS service account above.
Click <Apply> at the bottom of the screen to save the above configurations.
- Power
Saving power in WLAN mode can be enabled / disabled in this page.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
88
- Diagnosis
In this page lets you run diagnosis to your network status.
- Firmware
This page allows you to upgrade the router’s firmware. To upgrade the firmware of your Broadband router, you need to download the firmware file to your local hard disk, and enter that file name and path in the appropriate field on this page. You can also use the Browse button to find the firmware file in your PC.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
89
Once you’ve selected the new firmware file, click <Apply> at the bottom of the screen to start the upgrade process
- Back-up
This page allows you to save the current router configurations. When you save the configurations, you also can restore the saved configurations into the router through the Restore Settings. If extreme problems occur you can use the Restore to Factory Defaults to set all configurations to its original default settings. Warning: You will loose any saved data and settings when you set back to the manufacturer’s default settings, but you can re-enter your previous settings manually.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
90
Backup Settings: This can save the current Broadband router configuration to a file named "config.bin the saved configuration to the Broadband router. Alternatively, you can use the "Restore to Factory Defaults" tool to force the Broadband router to perform a power reset and restore the original factory settings.
" on your PC. You can also use the <Upload> button to restore
- Reset
You can reset the broadband router when system stops responding correctly or stop functions.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
91

XIII - Repeater Mode

Repeater mode has limited settings compared to the AP mode. Choose “Repeater mode” on the top right corner of the configuration page.
System restarts and connects to the IP address http://192.168..0.1 You will see the configuration homepage under “REPEATER” mode now.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
92
System
- Status
System status section allows you to monitor the current status of your router.
You can see the Uptime, hardware information, serial number as well as firmware version information. LAN Settings: This page displays the Broadband router LAN port’s current LAN
information.
WLAN Settings: Wireless configuration details such as SSID,
Status(Connected/Disconnected), Security and Channel are briefly shown.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
93
- LAN
The LAN Tabs shows LAN settings. LAN settings can be change as needed. If you are an entry level user, try opening a website from your computer. If you’re successful and able to connect and browse the web site you opened without any problem, do not change any of the settings.
Click <Apply> at the bottom of this screen to save the changed configurations.
IP address: This is the router’s LAN IP address (Your LAN clients default gateway
IP address). It can be changed based on your network architecture.
IP Subnet Mask: Specify a Subnet Mask IP address for your LAN segment.
802.1d Spanning Tree: This is disabled by default. If 802.1d Spanning Tree
function is enabled, this router will use the spanning tree protocol to prevent network loops.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
94
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
95
- Event Log
View operations log of the ENHWI-2AN3. This page shows the current system log of the ENHWI-2AN3 router. It displays any event occurred after system start up. Use the scroll bar to go down to the bottom of the page, the system log can be saved <Save> to a local file for future use or the system log can be cleared <Clear> or it can be refreshed <Refresh> to get the most updated information. When the system is powered down, the system log will disappear if not saved to a local file.
- Monitor
The Monitor Tab shows the bandwidth monitoring feature of each network interface of the ENHWI-2AN3 router, wireless or wired and of the network packet histogram for the network connection on WLAN. Auto refresh keeps information updated frequently.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
96
- Language
This Wireless Router supports multiple languages for user interface. Select your preferred language.
Wireless
- Basic
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
97
You can set parameters use by the wireless stations to connect to this router. The parameter includes Mode, ESSID, Channel Number and Associated Client.
Radio: Enable or Disable Wireless function
Band: Allows you to set the frequency band of the router. Fix at 802.11b,
802.11g or 802.11n modes. You can also select B+G mode to allow
802.11b and 802.11g clients at the same time.
Enable ESSID: You can specify the maximum ESSID number.
ESSID1~3: Allow you to specify ESSID of WLAN. Site Survey: Click this button to scan the available wireless routers that can be
set as this router’s parent router. By doing so this ENHWI-2AN3 router will become a wireless extender / repeater of the selected parent router. Select one router from the list for that router to become this router’s parent router.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
98
- Client List
This WLAN Client Table shows the Wireless client associated to this Wireless Router.
- Policy
The Broadband router allows you to set up the Wireless Access Policy. If multiple SSID is created, this is the place to set the policy for each SSID.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
99
Communication between Wireless clients: This function is to allow other Wireless Client to communicate with another Wireless Client on the LAN connected on the same SSID.
Communication between Wireless clients and wired clients: This function allows the Wireless Client to communicate with other Wireless Client in the LAN on specific SSID as well as the Wired Client connected to the switch portion of this router.
Tools
- Admin
You can change the password that is required to log into the broadband router's system web-based management. By default, the password is: admin. Passwords can contain 0 to 12 alphanumeric characters, and are case sensitive.
ENHWI-2AN3 User’s Manual
Encore Electronics Inc.
Tel – (626) 336-4567
Fax – (626) 336-2345
Web Site – www.encore-usa.com
100
Loading...
