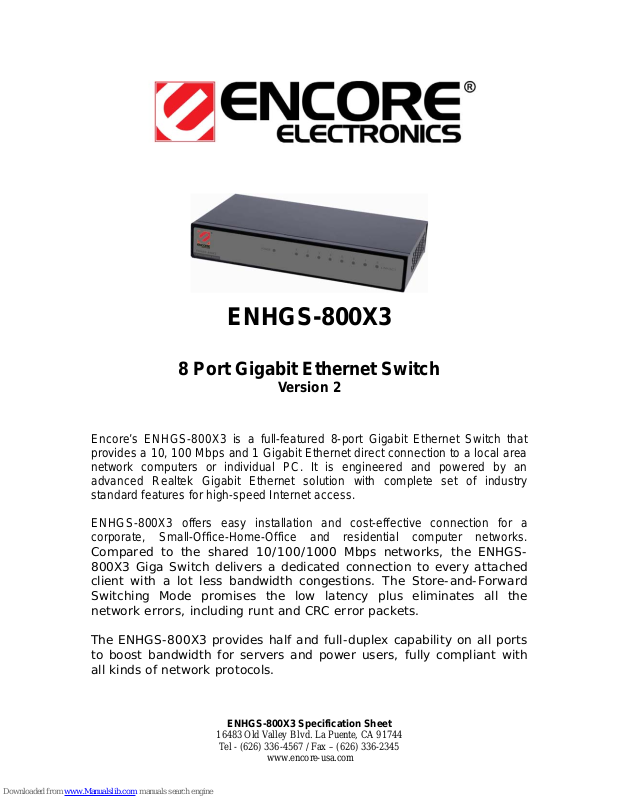

ENHGS-800X3
8 Port Gigabit Ethernet Switch
Version 2
Encore’s ENHGS-800X3 is a full-featured 8-port Gigabit Ethernet Switch that
provides a 10, 100 Mbps and 1 Gigabit Ethernet direct connection to a local area
network computers or individual PC. It is engineered and powered by an
advanced Realtek Gigabit Ethernet solution with complete set of industry
standard features for high-speed Internet access.
ENHGS-800X3 offers easy installation and cost-effective connection for a
corporate, Small-Office-Home-Office and residential computer networks.
Compared to the shared 10/100/1000 Mbps networks, the ENHGS800X3 Giga Switch delivers a dedicated connection to every attached
client with a lot less bandwidth congestions. The Store-and-Forward
Switching Mode promises the low latency plus eliminates all the
network errors, including runt and CRC error packets.
The ENHGS-800X3 provides half and full-duplex capability on all ports
to boost bandwidth for servers and power users, fully compliant with
all kinds of network protocols.
ENHGS-800X3 Specification Sheet
16483 Old Valley Blvd. La Puente, CA 91744
Tel - (626) 336-4567 / Fax – (626) 336-2345
www.encore-usa.com
FEATURES AND BENEFITS
• Data rate auto detection. Automatically detects and switches to the
connected network speed, from 10Mbps, 1000Mbps to 1000Mbps data
rate speed.
• Supports store-and-forward operation mode, promises low latency, plus
eliminates all the network errors, including runt and CRC error packets.
• Supports Full-duplex IEEE 802.3x flow control and Half-duplex back
pressure.
• Auto MDI-MDI-X ports could be used to connect to another switch or hub
with no specially made crossover cable needed. Auto detection for straight
thru or crossover cables.
• Pure plug-n-play. No software configuration or Operating System required.
Fully compliant with all type of network protocols.
• Comes with a full range auto-switching power supply adapter 100-240V
AC Input power (Selected Regions only. Would also comes with other
power supply ranges depending on the region or country’s requirements)
SPECIFICATIONS
Data Transfer Rate 10/100/1000 Mbps & Full/Half Duplex mode auto-
negotiation operation or NWAY (1000Mbps for Full
Duplex auto switching only)
Supported Protocols IEEE 802.3 (10BaseT), IEEE 802.3u (100BaseTX),
IEEE 802.3ab (1000BaseT), IEEE 802.3x (Full Duplex
Flow Control)
NWAY Protocol
Supported 10 Mbps: Full/Half Duplex
100 Mbps: Full/Half Duplex
1000 Mbps: Full Duplex
ENHGS-800X3 Specification Sheet
16483 Old Valley Blvd. La Puente, CA 91744
Tel - (626) 336-4567 / Fax – (626) 336-2345
www.encore-usa.com
