ENDSL-A2+WIG2

ADSL2+ Modem

With Four Port Ethernet and

802.11g Wireless Router

User’s Manual

August 2007

FCC Warning

ENDSL-A2+WIG2 has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which

- Consult the dealer or an experienced radio/TV technician for help. the receiver is

connected. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

IMPORTANT NOTE:

FCC Radiation Exposure S tatement: ENDSL-A2+WIG2 comply with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of about eight inches (20cm) between the radiator and your body. This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.

Notice

Changes or modifications to the equipment, which are not approved by the party respon sible for compliance could affect the user's authority to operate the equipment. Company has an on-g oing policy of upgrading its products and it may be possible that informat ion in this document is not up-to-date. Please check with your local distributors for the latest information.

Trademarks: All trade names and trademarks are the properties of their respective companies.

Revision History

V1.1 Second release

Contents

1. Introduction................................................................................. 6

1.1 Introduction ......................................................................................... 6

1.2 Product Features................................................................................. 6

2. Hardware Installation................................................................10

2.1 System Requirements....................................................................... 10

2.2 Package Contents............................................................................. 10

2.3 Front Panel Indicators and Description .......................................... 10

2.4 Back Panel......................................................................................... 11

2.5 Connect Related Devices ................................................................. 11

3. Connecting Wireless ENDLS-A2+WIG2 via Ethernet ............ 12

3.1 Setup Wireless ADSL2+ router via Ethernet Cable ........................ 12

3.2 Configure TCP/IP............................................................................... 12

4. Configure Wireless ENDLS-A2+WIG2 Router via HTML .......26

4.1 Login ..................................................................................................26

4.2 Navigating the Web Configurator ....................................................27

5. Quick Start Wizard....................................................................28

5.1 Setting a New Password................................................................... 30

5.2 Choose your Time Zone ...................................................................30

5.3 Set your Internet Connection........................................................... 31

5.3.1 Configuring Dynamic IP Address .......................................... 31

5.3.2 Configuring Static IP Address................................................ 32

5.3.3 Configuring PPPoE................................................................. 33

5.3.4 Configuring PPPoA................................................................. 33

5.3.5 Configuring Bridge Mode....................................................... 34

5.3.6 Multiplexing............................................................................. 35

5.3.7 VPI and VCI.............................................................................. 35

5.4 Finishing the Wizard......................................................................... 36

6. Interface Setup.......................................................................... 37

6.1 Internet............................................................................................... 37

6.1.1 ATM VC & QoS......................................................................... 38

6.1.2 Encapsulation.......................................................................... 39

6.2 LAN..................................................................................................... 43

6.2.1 Router Local IP........................................................................ 43

6.2.2 Explaining RIP Setup.............................................................. 44

6.2.3 DHCP Server............................................................................ 44

6.2.4 DHCP Relay .............................................................................45

6.2.5 DNS Relay................................................................................ 46

6.3 Wireless ............................................................................................. 47

6.3.1 Access Point Settings.............................................................47

6.3.2 Multiple SSIDs Settings.......................................................... 48

6.3.3 MAC Address Filter................................................................. 48

7 Advanced Setup......................................................................... 49

7.1 Firewall............................................................................................... 49

7.2 Routing............................................................................................... 49

7.3 NAT.....................................................................................................51

7.3.1 What NAT Does ....................................................................... 52

7.3.2 How NAT Works.......................................................................52

7.3.3 NAT Application.......................................................................53

7.3.4 NAT Mapping Types................................................................ 54

7.3.5 DMZ .......................................................................................... 55

7.3.6 Virtual Server........................................................................... 55

7.3.7 IP Address Mapping................................................................ 57

7.4 QoS..................................................................................................... 58

7.5 VLAN ..................................................................................................59

7.6 ADSL .................................................................................................. 61

8. Access Management ................................................................ 61

8.1 ACL..................................................................................................... 61

8.2 IP Filter............................................................................................... 63

8.3 SNMP.................................................................................................. 67

8.4 UPnP................................................................................................... 67

8.5 DDNS..................................................................................................68

8.6 CWMP................................................................................................. 69

9. Maintenance..............................................................................71

9.1 Administration...................................................................................71

9.2 Time Zone .......................................................................................... 71

9.3 Firmware............................................................................................ 73

9.4 System Restart.................................................................................. 73

9.5 Diagnostic.......................................................................................... 74

10. Status....................................................................................... 75

10.1 Device Info....................................................................................... 75

10.2 System Log...................................................................................... 77

10.3 Statistics .......................................................................................... 78

11. Troubleshooting...................................................................... 80

11.1 Using LEDs to Diagnose Problems................................................80

11.1.1 Power LED .............................................................................80

11.1.2 LAN LED................................................................................. 80

11.1.3 ADSL LED............................................................................... 80

11.2 Problems with the Web Interface................................................... 81

11.3 Problems with the Login Username and Password..................... 81

11.4 Problems with LAN Interface.......................................................... 82

11.5 Problems with WAN Interface......................................................... 82

11.6 Problems with the Internet Access................................................ 83

1. Introduction

1.1 Introduction

This full rate ENDLS-A2+WIG2 is an all-in-one gateway for Home and SOHO applications. This gateway are with full-featured ADSL router that provides high-speed Internet access, 4-port Ethernet switch direct connections to individual PCs or local area network with 10/100 Base-T Ethernet and a 54Mbps IEEE802.11g wireless connectivity. ENDLS-A2+WIG2 uses advanced ADSL chipset solution with complete set of industry standard features for high-speed Internet access. Also built-in 54Mbps IEEE802.11g wireless service can provide you easy and convenient way to connect the PCs and Internet. User can enjoy higher quality multimedia and real-time applications such as online gaming, Video-on-Demand, VoIP and other bandwidth consuming services. Also the feature-rich routing functions are seamlessly integrated to ADSL service for existing corporate or home users. This product is made in ISO9001 approved factory and complies with FCC part15 regulations and CE approval.

1.2 Product Features

 Application Diagram

 High Speed Internet Access

This ENDLS-A2+WIG2 complies with ADSL / ADSL2 / ADSL2+ standards. It can support downstream rates of up to 24Mbps and upstream rates of up to 1Mbps. The E NDLS-A2+WIG r is compliant with the following standards.

Wireless Router

IP Phone / Video Phone

IP Phone / PDA / NB

z ANSI T1.413 issue 2 z ITU-T G.992.1 (G.dmt) z ITU-T G.992.2 (G.lite) z G.994.1 (G.hs, Multimode) z ITU-T G.992.3 (ADSL2 G.dmt.bis) z ITU-T G.992.4 (ADSL2 G.lite.bis) z ITU-T G.992.5 (ADSL2+; Annex A, B, I, J, L & M) z Reach Extended ADSL (RE ADSL)

 Quick Setup Wizard

Support Quick Setup Wizard Web GUI to configure the ENDLS-A2+WIG2 easily and

quickly.

 Multi-connection protocol support

z Multi Protocol over AAL5 (RFC1483 / 2684) z Classical IP over ATM (RFC 1577) z VC and LLC Multiplexing z PPP over Ethernet (RFC 2516) z PPP over ATM (RFC 2364) z Supports OAM F4/F5 loop-back, AIS and RDI OAM cells. z ATM Forum UNI 3.1/4.0 PVC z Support up to 8PVCs. z Traffic Shaping (ATM QoS) UBR, CBR, VBR-rt, VBR-nrt

 Network Address Translation (NAT)

Network Address Translation (NAT) allows the translation of an Internet protocol address used within one network (for example a private IP address used in a local network) to a different IP address known within another network (for example a public IP address used on the Internet).

 Universal Plug and Play (UPnP)

Universal Plug and Play is a standard that uses Internet and Web protocols to enable devices such as PCs, peripherals, intelligent applian ces, and wi rele ss devi ces to b e plugged into a network and automatically know about each other.

This protocol is used to enable simple and

robust connectivity among stand-alone devices and PCs.

 Dynamic DNS Support

With Dynamic DNS support, you can have a static hostname alias for a dynamic IP

address, allowing the host to be more easily accessible from various locations on the Internet. You must register for this service with a Dynamic DNS client.

 DHCP Support

DHCP (Dynamic Host Configuration Protocol) allows individual clients to obtain TCP/IP configuration at start-up from a centralized DHCP server. The ADSL router has built-in DHCP server capability enabled by default. It can assign IP addresses, an IP default gateway and DNS servers to DHCP clients. It can also act as a surrogate DHCP server (DHCP Relay) where it relays IP address assignment from the actual real DHCP server to the clients.

 Device Management

z Web-based GUI Configuration / Management z Command-line Interpreter (CLI) z SNMP support (V.1 and V.2C) z Telnet Remote Management z Firmware upgrade via FTP / TFTP (Web-based GUI) z Built-in Diagnostic tool and IP Ping z TR-069 support (CPE WAN Management Protocol) (Optional)

 10/100M Auto-negotiation Fast Ethernet switch

This auto-negotiation feature allows the router to detect the speed of incoming transmissions and adjust appropriately without manual intervention. It allows data transfer of either 10 Mbps or 100 Mbps in either half-duplex or full-duplex mod e depending on your Ethernet network.

 Bridging / Routing support

z Ethernet to ADSL self-learning Transparent Bridging (IEEE 802.1D) z IP routing-RIPv2 (backward compatible with RIPv1) z Static IP routing z Routing (TCP/IP/UDP/ARP/ICMP) z IP Multicast IGMP v1/v2

 Wireless

z IEEE802.11g compli ance, backward compatible with 802.11b (at 11Mbps) z 64/128-bit WEP, WPA, WPA2 security z Dynamic date rate scaling at 54, 48, 36, 24, 18, 12, 9 and 6Mbps for IEEE802.11g

z Dynamic date rate scaling at 11, 5.5, 2 and 1Mbps for IEEE802.11b

z Supports Quality of Service (QoS), 802.11e, WMM z MAC Address Filtering

 Security

z PPP over PAP (Password Authentication Protocol; RFC1334) z PPP over CHAP (Challenge Authentication Protocol; RFC1994) z DoS Protection z Stateful Packet Inspection (SPI) z VPN (IPsec, PPTP, L2TP) pass through z Built-in NAT Firewall z IP-based Packet filtering z Password Protected System Management

2. Hardware Installation

2.1 System Requirements

z Pentium III 266 MHz processor or higher z 128 MB RAM minimum z 20 MB of free disk space minimum z RJ45 Ethernet Port

2.2 Package Contents

z ENDLS-A2+WIG2 modem z RJ-45 Ethernet cable z RJ-11 Phone cable z Power Adapter z Quick Installation Guide z One External Antenna (for detachable model)

2.3 Front Panel Indicators and Description

Front panel of the ENDLS-A2+WIG2 router has LED indicators to display router’s operating status.

Descriptions of LED status

PWR When an active power adapter is connected with this router, this LED will light up.

WLAN

When WLAN card installed properly, this LED will be flashing. When transferring data,

the LED will be steadily. LAN4 When port 4 connection with PC or Switch / Hub is established, this LED will light up. LAN3 When port 3 connection with PC or Switch / Hub is established, this LED will light up. LAN2 When port 2 connection with PC or Switch / Hub is established, this LED will light up. LAN1 When port 1 connection with PC or Switch / Hub is established, this LED will light up.

ADSL

When connection with Internet (ADSL Connected) is established, this LED will light up.

When this LED is flashing: NO ADSL physical connection

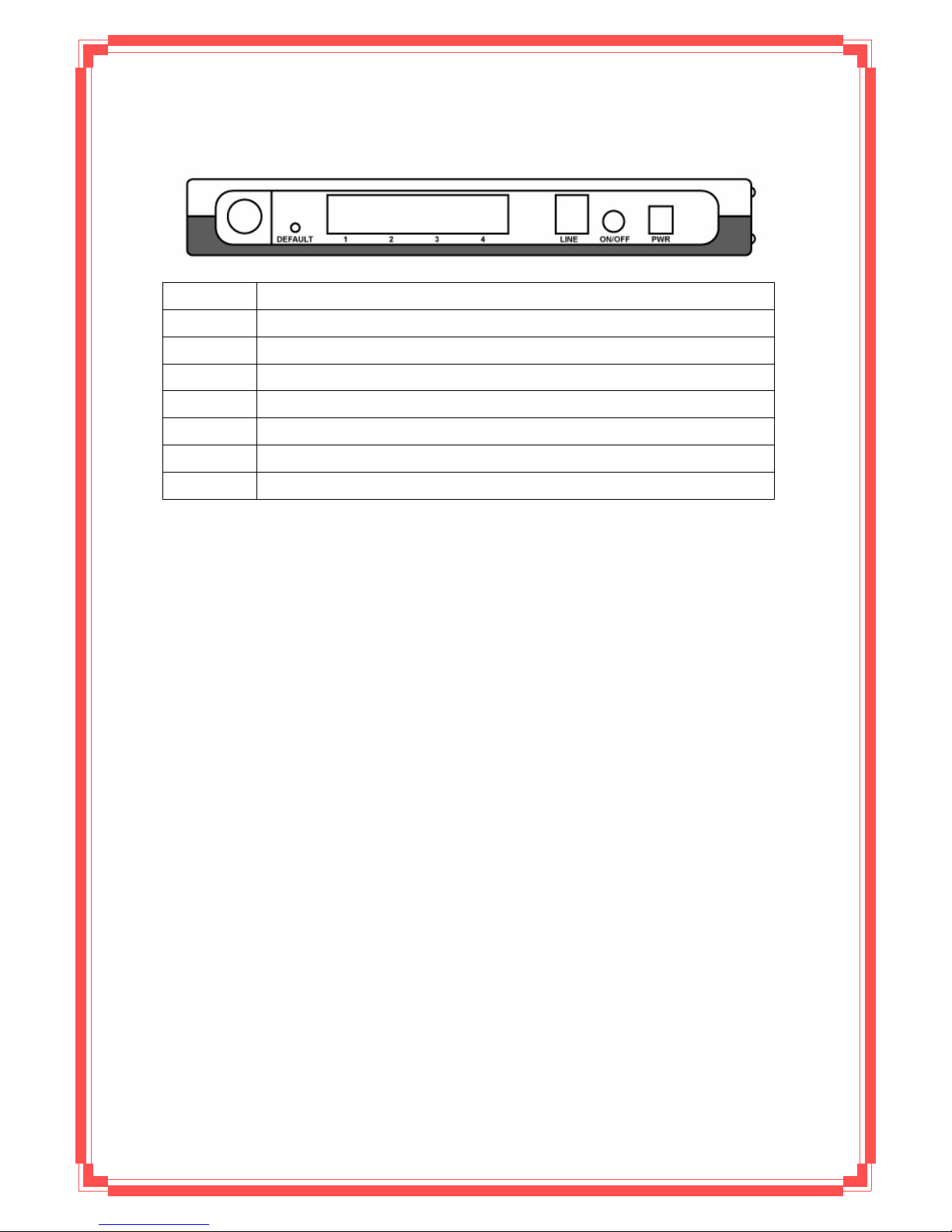

2.4 Back Panel

PWR Connect with power adapter

ON/OFF Power switch button

LINE Connect with phone cable

4 Connect with Ethernet Cable to Switch Hub or PC 3 Connect with Ethernet Cable to Switch Hub or PC 2 Connect with Ethernet Cable to Switch Hub or PC 1 Connect with Ethernet Cable to Switch Hub or PC

DEFAULT Reset button

2.5 Connect Related Devices

1) Connect Router to LINE Plug the provided RJ-11 phone cable into LINE port on the back panel of the router and insert the other end into splitter or wall phone jack.

2) Connect Router to LAN Plug RJ-45 Ethernet Cable into LAN port on the back panel of the router and insert the other end of the Ethernet cable on your PC’s Ethernet port or switch / hub.

3) Connect Router to Power Adapter Plug Power Adapter to PWR port on the back panel of the router and the other end to a power outlet.

4) Press ON/OFF button to start the router

Warning! Only use the power adapter provided in the package, otherwise it may cause

hardware damage.

3. Connecting ENDLS-A2+WIG2 via Ethernet

Your router can be managed from anywhere with the embedded Web configuration using a

Web browser, such as Microsoft Internet Explorer or Netscape Navigator. Internet Explorer 6.0 and later or Netscape Navigator 7.0 and later versions with JavaScript enabled should be used.

3.1 Setup ENDLS-A2+WIG2 via Ethernet Cable

If there is an available LAN card present on your PC, you just simply connect ADSL router and PC through the Ethernet cable. Once you establish Internet connection, you could browse the Web through the Ethernet cable.

3.2 Configure TCP/IP

For Windows 98SE and ME

Step 1: Click Start then Settings and choose Control Panel Step 2: Double click Network icon. Step 3: Select Configuration tab, then choose TCP/IP from the list of installed network

Components and click Properties button.

Step 4: You can setup the following configurations in two methods:

Option1: Get an IP from Router Automatically

Select the IP Address tab. In this page, click Obtain an IP address automatically radio button.

1) Select Gateway tab and click OK

2) Then, select DNS Configuration tab and select Disable DNS then click OK to

finish the configuration.

Option2: Configure IP Manually

1) At IP Address tab, select Specify an IP address, set default IP address for the Router is 192.168.1.1, so use 192.168.1.X (X is a number between 2 to 254) for

IP Address field and 255.255.255.0 for Subnet Mask field.

2) Select Gateway tab and add default Router IP Address “192.168.1.1” in the New

gateway field and click Add.

Under DNS Configuration tab, select Enable DNS and add DNS values (192.168.1.1) in DNS Server Search Order field then click Add.

For Windows 2000

Step 1: (a) Right-click My Network Places and select Properties in the main window screen

(b) Or, go to Start / Settings / Control Panel. In the Control Panel, double-click on Network and Dial-up Connections.

Step 2: Right click Local Area Connection (your local network hooked up with ADSL

router) and select Properties:

Step 3: Select Internet Protocol (TCP/IP) then click Properties:

Configure IP Automatically:

Step 4: Select Obtain an IP address automatically and Obtain DNS server address

automatically then click OK to complete IP configuring process.

Configure IP Manually:

Step 4: Select Use the following IP address and Use the following DNS server

addresses.

IP address: Fill in IP address 192.168.1.x (x is a number between 2 to 254). Subnet mask: Default value is 255.255.255.0. Default gateway: Default value is 192.168.1.1. Preferred DNS server: Fill in preferred DNS server IP address. Alternate DNS server: Fill in alternate DNS server IP address.

For Windows XP

Step 1: Click Start then select Control Panel.

Step 2: Double-click Network Connections icon.

Step 3: Right-click Local Area Connection (local network your ADSL hooked up with) a nd

select Properties:

Step 4: Select Internet Protocol (TCP/IP) then click Properties:

Configure IP address Automatically:

Step 5: Select Obtain an IP address automatically and Obtain DNS server address

automatically. Click OK to finish the configuration.

Configure IP Address Manually:

Step 5: Select Use the following IP address and Use the following DNS server

addresses.

You can use ping command under DOS prompt to check if you have setup TCP/IP

protocol correctly and if your computer has successfully conne cted to this router.

1) Type ping 192.168.1.1 under DOS prompt and the following messages will appear: Pinging 192.168.1.1 with 32 bytes of data:

Reply from 192.168.1.1: bytes=32 times<2ms TTL=64 Reply from 192.168.1.1: bytes=32 times<1ms TTL=64 Reply from 192.168.1.1: bytes=32 times<10ms TTL=64

2) If the communication link bet ween your computer and router is not setup correctly, after you type ping 192.168.1.1 under DOS prompt following messages will appear: Pinging 192.168.1.1 with 32 bytes of data: Request timed out. Request timed out. Request timed out. Cable issue or something wrong might cause this failure in configuration procedure.

For Windows Vista™

Step 1: Click Start then select Control Panel (in the Classic View).

Step 2: Double-click Network and Sharing Center icon.

Step 3: Select “Manage Network connections”.

Step 4: Right-click Local Area Connection (local network your ADSL hooked up with) a nd

select Properties:

Step 5: Select Internet Protocol (TCP/IP) then click Properties:

Configure IP address Automatically:

Step 6: Select Obtain an IP address automatically and Obtain DNS server address

automatically. Click OK to finish the configuration.

Configure IP Address Manually:

Step 7: Select Use the following IP address and Use the following DNS server

addresses.

You can use ping command under DOS prompt to check if you have setup TCP/IP

protocol correctly and if your computer has successfully connected to this router.

2) Type ping 192.168.1.1 under DOS prompt and the following messages will appear: Pinging 192.168.1.1 with 32 bytes of data:

Reply from 192.168.1.1: bytes=32 times<2ms TTL=64 Reply from 192.168.1.1: bytes=32 times<1ms TTL=64 Reply from 192.168.1.1: bytes=32 times<10ms TTL=64

If the communication link between your computer and router is not setup correctly, after you type ping 192.168.1.1 under DOS prompt following messages will appear: Pinging 192.168.1.1 with 32 bytes of data: Request timed out. Request timed out. Request timed out.

This failure might be caused by cable issue or something wrong in configuration procedure.

+ 58 hidden pages

Encore ENDSL-A2+WIG2 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
