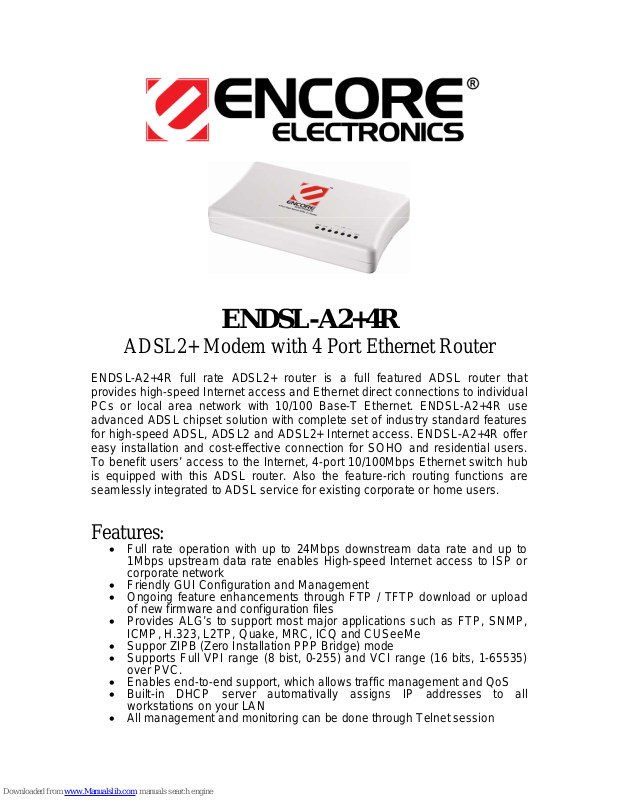

ENDSL-A2+4R
ADSL2+ Modem with 4 Port Ethernet Router
ENDSL-A2+4R full rate ADSL2+ router is a full featured ADSL router that
provides high-speed Internet access and Ethernet direct connections to individual
PCs or local area network with 10/100 Base-T Ethernet. ENDSL-A2+4R use
advanced ADSL chipset solution with complete set of industry standard features
for high-speed ADSL, ADSL2 and ADSL2+ Internet access. ENDSL-A2+4R offer
easy installation and cost-effective connection for SOHO and residential users.
To benefit users’ access to the Internet, 4-port 10/100Mbps Ethernet switch hub
is equipped with this ADSL router. Also the feature-rich routing functions are
seamlessly integrated to ADSL service for existing corporate or home users.
Features:
• Full rate operation with up to 24Mbps downstream data rate and up to
1Mbps upstream data rate enables High-speed Internet access to ISP or
corporate network
• Friendly GUI Configuration and Management
• Ongoing feature enhancements through FTP / TFTP download or upload
of new firmware and configuration files
• Provides ALG’s to support most major applications such as FTP, SNMP,
ICMP, H.323, L2TP, Quake, MRC, ICQ and CUSeeMe
• Suppor ZIPB (Zero Installation PPP Bridge) mode
• Supports Full VPI range (8 bist, 0-255) and VCI range (16 bits, 1-65535)
over PVC.
• Enables end-to-end support, which allows traffic management and QoS
• Built-in DHCP server automativally assigns IP addresses to all
workstations on your LAN
• All management and monitoring can be done through Telnet session
Page 2
• UPnP Support
• Auto Negotiation rate adaptation
Specifications:
ADSL Compliant:
‧ ANSI T1.413 issue 2
‧ ITU-T G.992.1 (G.dmt)
‧ ITU-T G.992.2 (G.lite)
‧ G.994.1 (G.hs, Multimode)
‧ ITU-T G.992.3 (ADSL2 G.dmt.bis)
‧ ITU-T G.992.4 (ADSL2 G.lite.bis)
‧ ITU-T G.992.5 (ADSL2+; Annex A, B, I, J, L & M)
‧ Reach Extended ADSL (RE ADSL)
ATM and PPP Protocols:
‧ Support up to 8PVCs
‧ ATM Forum UNI 3.1/4.0 PVC
‧ Traffic Shaping UBR, CBR, VBR, GFR
‧ Multi Protocol over AAL5 (RFC1483 / 2684)
‧ Classical IP Over ATM (RFC 1577)
‧ RFC2516 (PPP Over Ethernet)
‧ RFC2364 (PPP Over ATM)
‧ VC and LLC Multiplexing
‧ PPP over Ethernet (RFC 2516)
‧ PPP over ATM (RFC 2364)
‧ OAM F4 and F5 segment end-to-end loop-back
‧ VPI is 0-255 and VCI is 1-65535
Bridging and Routing:
‧ Ethernet to ADSL self-learning Transparent Bridging (IEEE 802.1d)
‧ IP routing-RIPv2 (backward compatible with RIPv1)
‧ Static IP routing
‧ Routing (TCP/IP/UDP/ARP/RARP/ICMP/IGMP)
‧ IP Multicast IGMP v1/v2
‧ Supports up to 128 MAC learning addresses
Page 3
IP Management
‧ NAT (Network Address Translation) up to 1024 NAT translation sessions
‧ NAPT (Network Address and Port Translation)
‧ DHCP Server / Relay / Client (WAN Port)
‧ DNS Proxy
‧ Dynamic DNS,
‧ UPnP support
WLAN Network
‧ Compatible with IEEE 802.11b/g
‧ 64/128 bits WEP Encryption
‧ WPA-PSK, TKIP / WPA2-AES, PSK
‧ Supports Quality of Service (QoS), 802.11e, WMM
‧ MAC Address Filtering
Security
‧ PPP over PAP (Password Authentication Protocol; RFC1334)
‧ PPP over CHAP (Challenge Authentication Protocol; RFC1994)
‧ Embedded Firewall and IP filtering
‧ Password Protected System Management
Web Based Management
‧ Web-based GUI Configuration / Management
‧ Command-line Interpreter (CLI) via serial interpreter or Telnet over Ethernet
‧ Telnet Remote Management
‧ Firmware upgrade via FTP / TFTP
‧ Support SNMP
‧ Built-in Diagnostic tool
Interface
‧ Four RJ45 ports compatible with IEEE 802.3/802.3u, 10/100Mbps auto
selection
‧ One USB port compliant with USB v1.1, full speed (12Mbps)
‧ One RJ11 port for ADSL connection
‧ One reset button for restoration of factory default setting
LED Indicators
‧ Power, WAN, ADSL, LANx4
Page 4
Power Requirement
‧ 110 ±10 VAC or 220 ± VAC Input - 9VAC 1A Output
Dimensions (app)
155 mm (Length) x 101 mm (Width) x 32 mm (Height)
Net Weight (app)
‧ 500 g
Operating Temperature
‧ 0°C ~ 70°C
Humidity
‧ 5% ~ 95% (Non condensing)
Storage Temperature
‧ -20°C ~ 70°C
Support Operating System
‧ Windows® 998SE, ME, 2000, XP, Windows Vista™, MAC OS X
Regulations
‧ FCC Part 15, CE
