Encore ENCA-MDHP DATASHEET

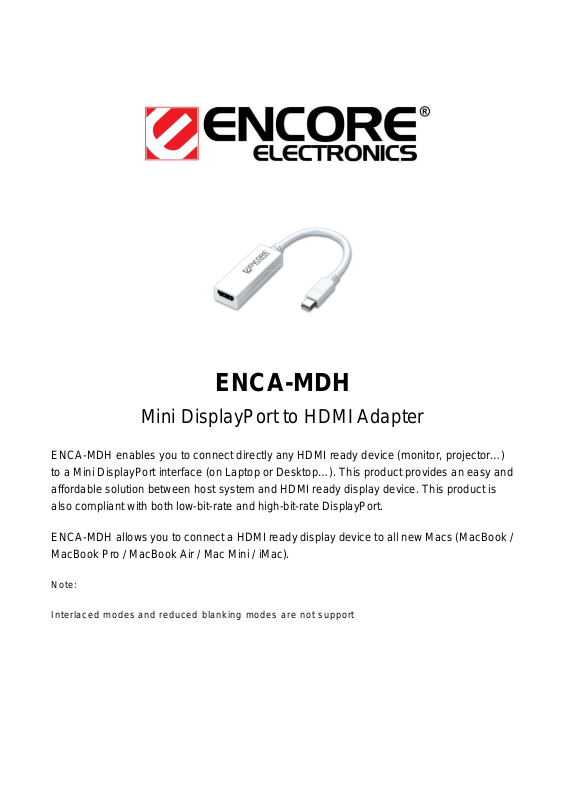

ENCA-MDH

Mini DisplayPort to HDMI Adapter

ENCA-MDH enables you to connect directly any HDMI ready device (monitor, projector…)
to a Mini DisplayPort interface (on Laptop or Desktop…). This product provides an easy and
affordable solution between host system and HDMI ready display device. This product is
also compliant with both low-bit-rate and high-bit-rate DisplayPort.

ENCA-MDH allows you to connect a HDMI ready display device to all new Macs (MacBook /
MacBook Pro / MacBook Air / Mac Mini / iMac).

Note:

Interlaced modes and reduced blanking modes are not support

Features and Benefits

 Easiest way to connect Mac and PC with Mini DisplayPort output to HDMI ready

devices, such as monitor and projector

 Compliance with DisplayPort Specification V1.1a
 Support up to 1920 x 1200 (WUXGA display) and 1080p HD Video
 Support 18/24/30 bitdepth per pixel color format
 Support DPCD Rev 1.1

Specification

Connector Mini DisplayPort Male to HDMI Female
Standard Compliant with DisplayPort Specification v1.1a

Resolution

Cable Length 125 mm (excluding the connectors at both ends)
Dimension 60 x 21 x 13 mm (L x W x H) (HDMI side)
Weight 60 g
Housing Plastic (ABS)
Operation temperature 10 ~ 40 ºC
Storage temperature -10 ~ 80 ºC
Certification FCC, CE, RoHS

Up to 1920X1200 (WUXGA Display) and 1080p @ 60Hz (Full HD
Video)
