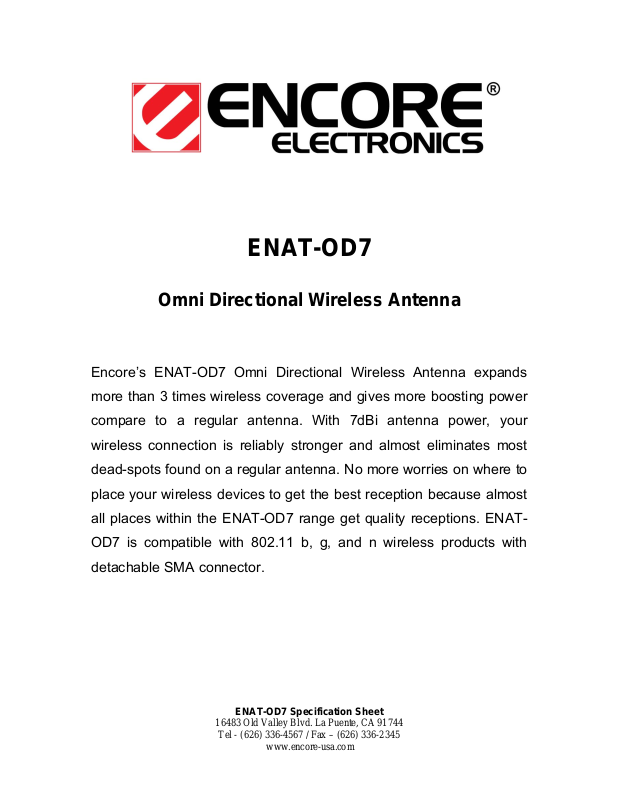

ENAT-OD7
Omni Directional Wireless Antenna
Encore’s ENAT-OD7 Omni Directional Wireless Antenna expands
more than 3 times wireless coverage and gives more boosting power
compare to a regular antenna. With 7dBi antenna power, your
wireless connection is reliably stronger and almost eliminates most
dead-spots found on a regular antenna. No more worries on where to
place your wireless devices to get the best reception because almost
all places within the ENAT-OD7 range get quality receptions. ENAT-
OD7 is compatible with 802.11 b, g, and n wireless products with
detachable SMA connector.
ENAT-OD7 Specification Sheet
16483 Old Valley Blvd. La Puente, CA 91744
Tel - (626) 336-4567 / Fax – (626) 336-2345
www.encore-usa.com
Electrical Specification:
Frequency Range: 2.4~2.5 GHz
Impedance 50 Ω
V.S.W.R. ≤ 2.0
Radiation Omni-Directional
Gain 7 dBi
Polarization Vertical
Supported Wireless 802.11 b/g/n units
Mechanical Specification:
Connector Type SMA Plug (Reverse
Polarity)
Metal Connector Brass
Bushing Type Swivel 0º, 45º, 90º
Material Cover PU
Material Base PU
Weight 41 g
Dimension
(Length & Diameter) 265.5 X 14.5mm
Color Black
Environmental Specification:
Operating Temperature -20 ~ 65 ºC
Storage Temperature -30 ~ 70 ºC
Weather Resistance No (Indoor Only)
Approvals:
CE, RoHS
