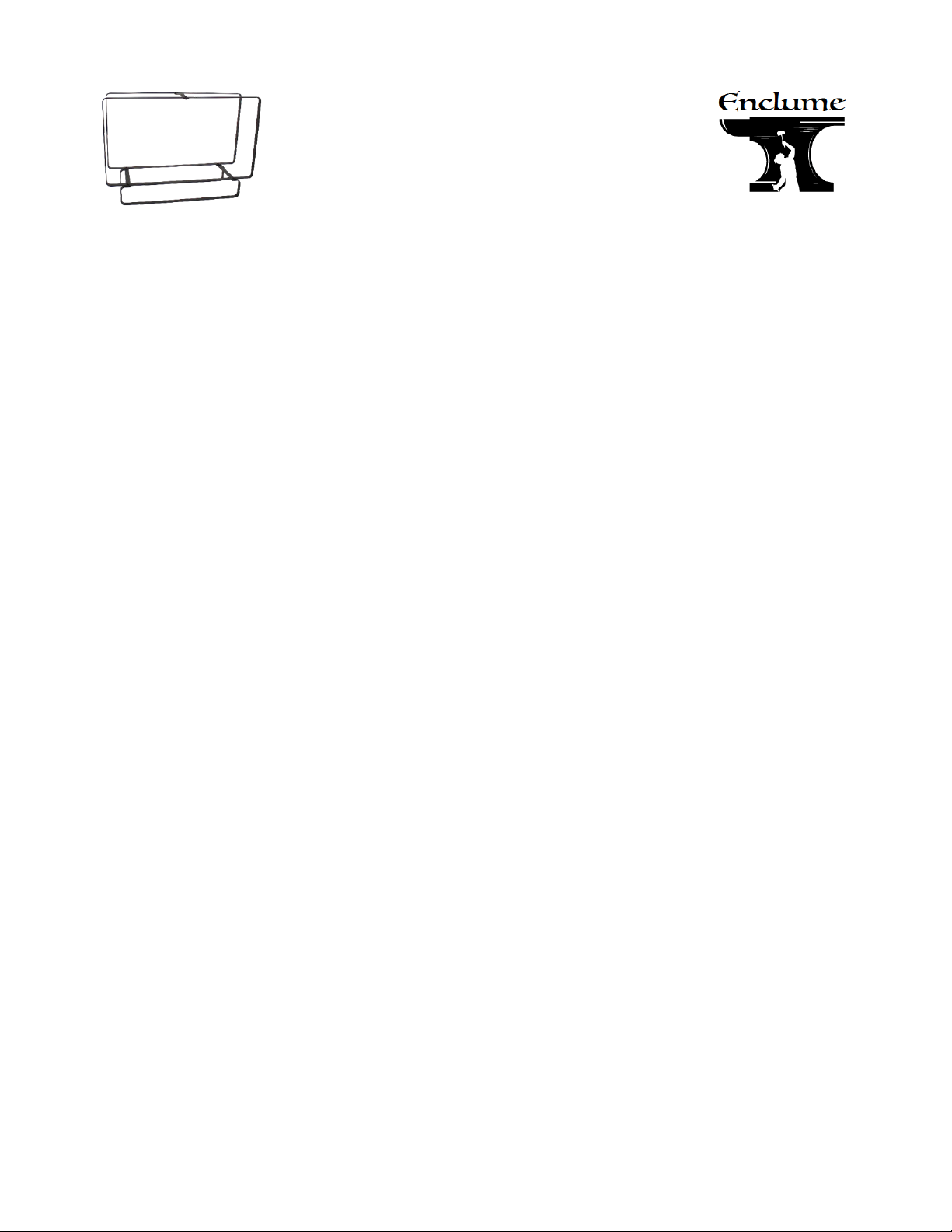

Rectangular Log Rack
LR36, LR37
If you need assistance, please call 1-877-ENCLUME
Enclume Design Products
24 Colwell Street, Port Hadlock, WA 98339
Enclosed you will find everything needed for the assembly and use of your log rack. Two people make assembly
easier. The parts and hardware included are:
Hardware included:
2 – 5/16"X ½” Button head screws used only with Handle
4 – 5/16 X 5/8”" Button head screws
1 – 3/16" Allen wrench
Components included:
2 – Rectangle Body Pieces
2 – Legs
2 – Lower Support Bars
1 – Upper Handle Bar
ASSEMBLY INSTRUCTIONS
Rack Assembly:
1) Align one of the two rectangle body pieces with one of the legs. Place one of the lower support bars on top
of the rectangle body. Thread one 5/16"X5/8” button head through the support bar and through the
rectangle body screwing into the threaded leg hole. Tighten only finger tight.
2) Repeat with the other support bar and then the other body for the other side.
3) Join the top of the two rectangle body pieces with the upper Handle bar. Place the handle bar under the
top of the rectangle body pieces and using 5/16" X ½” button head screws from the top of the body through
the rectangle body pieces.
4) Square up your new log rack and tighten all the screws firmly.
WARNING: It is important that your log rack is assembled correctly. If the unit is assembled or used incorrectly, it could become
unstable and collapse, possibly causing injury.
LIMITED WARRANTY: This product is warranted to be free of material defects, other than that from normal use, for a period of five
years from the date of purchase. Customer's exclusive remedy shall be the repair or replacement of the defective product and shall be
subject to the following conditions: (1) notice of any defect is received by Enclume within the warranty period and (2) customer
returns the defective product to Enclume Design Products, 24 Colwell St., Port Hadlock, WA 98339, postage prepaid within 20 days
following a return authorization number (which may be obtained by telephoning the number at the top of this instructions) being
provided to the customer by Enclume. There are no other warranties, expressed or implied. THERE ARE NO WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. ENCLUME SPECIFICALLY DISCLAIMS ANY AND ALL INCIDENTAL OR
CONSEQUENTIAL DAMAGES ARISING OUT OF THE PURCHASE OR USE OF ENCLUME'S PRODUCTS
.
