Enclave audio EA-100-CTR-US User Manual

OWNER’S

MANUAL

5.1 WIRE-FREE HD AUDIO

HOME THEATER SYSTEM

Register your product on at www.enclaveaudio.com

• Protect your new investment

The details of your purchase will be on file for reference in the event
of an insurance claim such as loss or theft.

• Receive free tips, updates and service bulletins on your new product

• Improve product development

Your input helps us continue to design products that meet your needs.

• Receive a free Enclave Audio newsletter

Registered customers can opt in to receive a monthly newsletter

Congratulations!

Thank you for purchasing the Enclave Audio CineHome HD Wireless Home
Theater System. Welcome to the experience of HD quality wire-free audio
home theater!

This guide will walk you through the simple setup steps to get your favorite
movie, video game, sporting event, tv show or music wirelessly delivered to
the powered speakers placed throughout your room. The Enclave system
setup is quite simple, but this guide will help answer questions and assist
with speaker placement, settings, and various options made available to you
to insure the optimum quality experience your Enclave Audio system can
provide. The Enclave Audio CineHome HD system was designed specifically
to deliver high quality multi-channel audio from Blu-ray players, cable or
satellite TV boxes, game consoles, streaming appliances, and other input
compliant devices through an uncompressed, uninterrupted digital signal,
straight to your powered speakers.

Simply provide power with the included adapters, connect your source,
follow the simple on screen instructions to insure all speakers are connected
and your Enclave Audio speakers are ready to go.

We hope you enjoy the new and wonderful world of wire-free HD audio
home theater! If you have any questions at all, don’t hesitate to give us a
call at 844-436-2528 or email: [e-mail] and an Enclave
Audio support representative will be happy to assist.

Watch the setup on YouTube!
http://www.enclaveaudio.com/setup

Scan the QR code to the right with your smartphone,
or go to: www.enclaveaudio.com/setup

CONTENTS

1. What’s in the Box ................................................. p3

2. Enclave Audio CineHome HD Overview ............................ p3

3. Enclave Audio Smart Center Indicators and Connections ........... p3

a. Front Panel LED/Illuminated Indicator ........................ p3

b. Subwoofer & Satellite Speaker Rear LED/Illuminated Indicator p4

c. Enclave Smart Center Rear Panel Connections ................. p4

4. Connecting Your Sources .......................................... p4

a. Example 1: HDMI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p4

b. Example 2: Non-HDMI Video Source ........................... p4

c. Enclave Audio CineHome HD Power Connection ................ p4

d. Enclave Audio Mobile App .................................... p5

5. Installation and Setup ............................................ p5

a. Placing Your Speakers ........................................ p5

b. Connecting Power and Sources to the Enclave Smart Center ... p5

c. Power Up .................................................... p5

6. General Speaker Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . p6

Speaker Placement Tips and Hints

7. Basic System Features............................................. p7

a. Powering On and O ......................................... p7

b. On Screen Display ........................................... p7

c. Changing Volume ............................................ p7

d. Selecting a Source ........................................... p7

e. Menu ........................................................ p8

8. Using the Remote Control / Smart Center Control Pad ............. p8

9. Troubleshooting .................................................. p9

10. Regulatory Statement ............................................ p11

11. Important Safety Information ..................................... p11

12. Warranty ......................................................... p12

1. WHAT’S IN THE BOX

Make sure you have all the items listed below. Inspect each piece to make sure nothing
was damaged during shipping. If you think any item is damaged or missing, please call an
Enclave Audio Home Support at 1-844-436-2528 so that we may provide assistance.

(1) Enclave Audio Smart Center Channel Speaker
(1) Enclave Audio Right Front Channel Speaker
(1) Enclave Audio Left Front Channel Speaker
(1) Enclave Audio Right Rear Surround Speaker
(1) Enclave Audio Left Rear Surround Speaker
(1) Enclave Audio Subwoofer
(1) HDMI cable

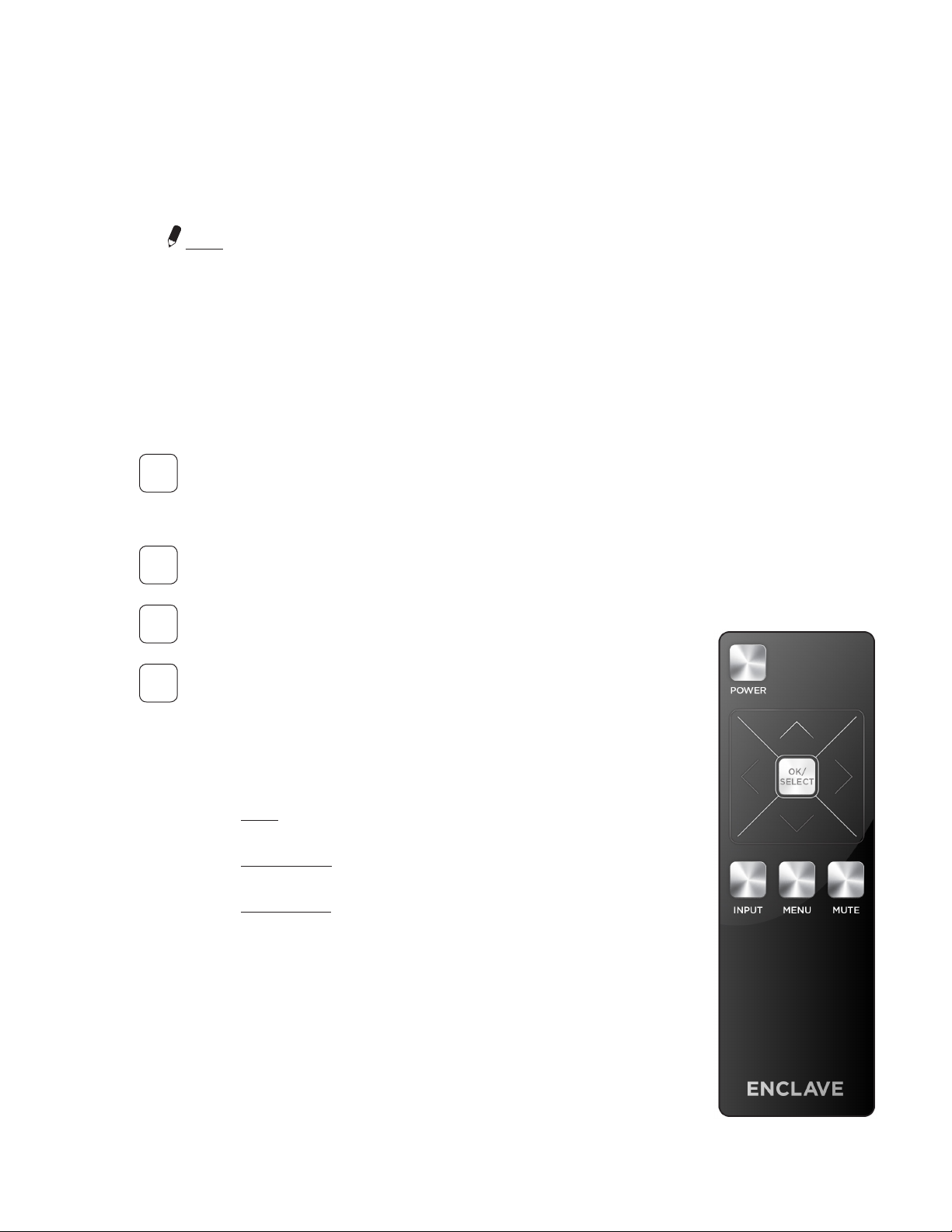

(1) Enclave Remote control (with battery)
(6) AC power supplies (for all system speakers)

2. ENCLAVE AUDIO CINEHOME HD SMART CENTER OVERVIEW

CONNECTIONS:

(1) HDMI Output
(3) HDMI Inputs
(1) Optical Digital Input
(1) Stereo Analog Audio Input

SCREEN DISPLAY:

• Configure and control your system direct on your TV screen

• Accessible from Remote Control or Smart Center Top Panel

• Easy to follow

SUPPORTED PROCESSING:

• HDMI 3D, ARC, 4K

• DTS Digital Surround 5.1

• Dolby Digital/Dolby Digital Plus

• Dolby Pro Logic II

3. ENCLAVE AUDIO CINEHOME HD SMART CENTER
INDICATORS AND CONNECTIONS

These sections can help you identify the connections and indicators for the Enclave Audio
CineHome HD Smart Center, remote control, and wireless speakers.

3a. Front Panel LED/Illuminated Indicator

The Smart Center front panel blue indicator LED will illuminate bright when the system
is o and will illuminate dim when the system is turned on. The reason for this is so the
LED is not be noticeable when watching TV or video in a dimly lit environment.

p.

3

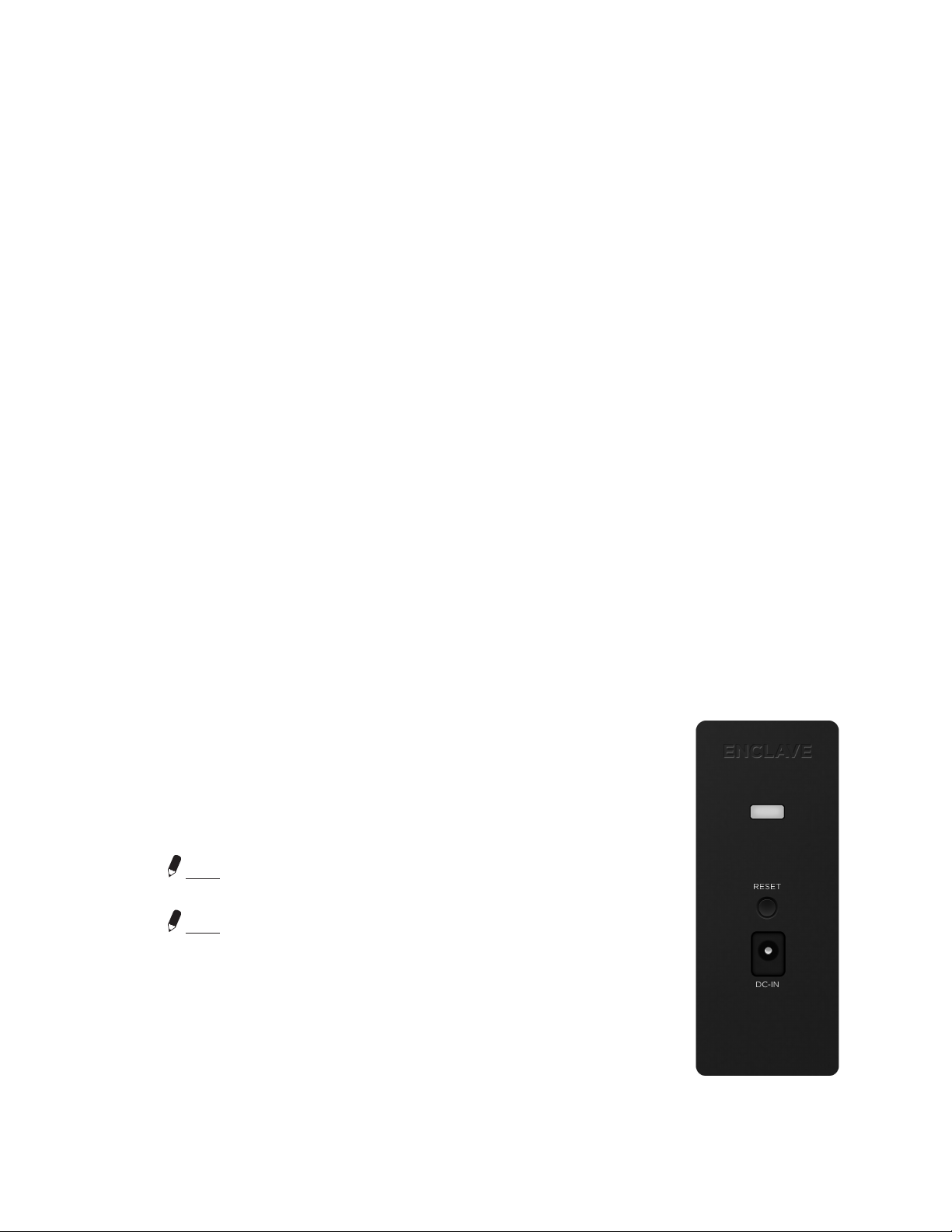

3b. Subwoofer & Satellite Speaker Rear LED/Illuminated Indicator

The Subwoofer, Front and Rear satellite speakers have a rear LED that will flash prior to
network connection. If either the subwoofer or a satellite speaker LED’s is flashing, they
are NOT connected to the network. When the LED’s are illuminated in a constant state,
they are successfully connected and paired to the network. When the Enclave Smart
Center is powered o all speaker LED’s will turn o.

If you believe the satellites should be connected to the network, but remain flashing,
refer to the troubleshooting section for possible solutions. If you find a speaker that
remains flashing after pairing then please refer to the troubleshooting section for
possible solutions.

3c. Enclave Smart Center Rear Panel Connections

LED light One HDMI output

1 5

LED light switch Three HDMI inputs

2 6

Stereo analog audio input DC Power Input

3

Optical digital input

4

7

1 2 3 4 5 6 7

4. CONNECTING YOUR SOURCES

Connect your input sources to the Enclave Audio CineHome HD Smart Center inputs that fit
them best. See the examples below:

4a. Example 1: HDMI

When connecting a source with an HDMI output, it is recommended that the HDMI
connection is used for both audio and video. This ensures the highest quality audio and
video is used. Also, use the supplied HDMI cable for output to the tv.

4b. Example 2: Non-HDMI Video Source

For connections that don’t use HDMI, the Enclave Smart Center can accommodate
Optical, Analog 3.5mm, or Bluetooth from your mobile device or tablet.

4c. Enclave Audio CineHome HD Power Connection

• Enclave Smart Center: DC 18V 2.0A • Enclave Right Rear: DC 18V 1.0A

• Enclave Right Front : DC 18V 1.5A • Enclave Left Rear: DC 18V 1.0A

• Enclave Left Front: DC 18V 1.5A • Enclave Subwoofer: DC 18V 3.0A

p.

4
