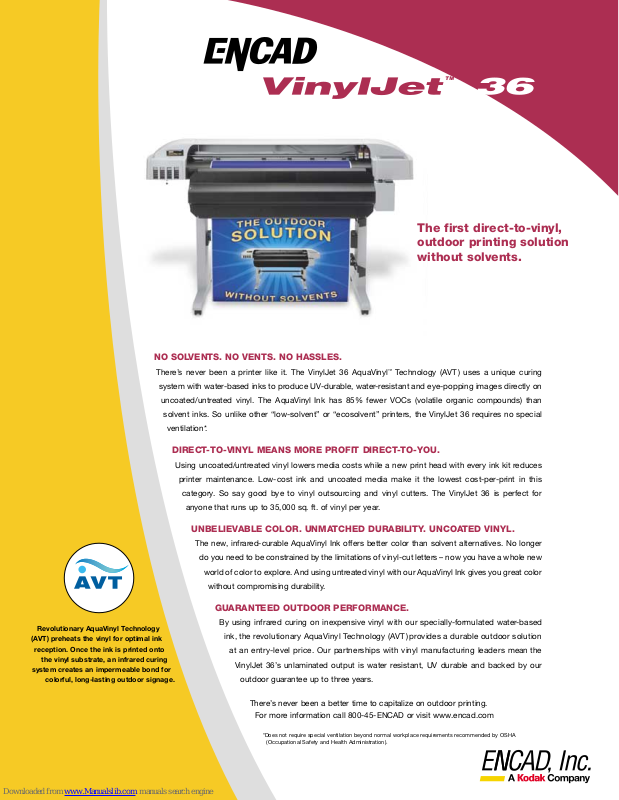

Page 1
NO SOLVENTS. NO VENTS. NO HASSLES.
There’s never been a printer like it. The VinylJet 36 AquaVinyl™Technology (AVT) uses a unique curing
system with water-based inks to produce UV-durable, water-resistant and eye-popping images directly on
uncoated/untreated vinyl. The AquaVinyl Ink has 85% fewer VOCs (volatile organic compounds) than
solvent inks. So unlike other “low-solvent” or “ecosolvent” printers, the VinylJet 36 requires no special
ventilation*.
DIRECT-TO-VINYL MEANS MORE PROFIT DIRECT-TO-YOU.
Using uncoated/untreated vinyl lowers media costs while a new print head with every ink kit reduces
printer maintenance. Low-cost ink and uncoated media make it the lowest cost-per-print in this
category. So say good bye to vinyl outsourcing and vinyl cutters. The VinylJet 36 is perfect for
anyone that runs up to 35,000 sq. ft. of vinyl per year.
UNBELIEVABLE COLOR. UNMATCHED DURABILITY. UNCOATED VINYL.
The new, infrared-curable AquaVinyl Ink offers better color than solvent alternatives. No longer
do you need to be constrained by the limitations of vinyl-cut letters – now you have a whole new
world of color to explore. And using untreated vinyl with our AquaVinyl Ink gives you great color
without compromising durability.
GUARANTEED OUTDOOR PERFORMANCE.
By using infrared curing on inexpensive vinyl with our specially-formulated water-based
ink, the revolutionary AquaVinyl Technology (AVT) provides a durable outdoor solution
at an entry-level price. Our partnerships with vinyl manufacturing leaders mean the
VinylJet 36’s unlaminated output is water resistant, UV durable and backed by our
outdoor guarantee up to three years.
There’s never been a better time to capitalize on outdoor printing.
For more information call 800-45-ENCAD or visit www.encad.com
*Does not require special ventilation beyond normal workplace requirements recommended by OSHA
(Occupational Safety and Health Administration).
Revolutionary AquaVinyl Technology
(AVT) preheats the vinyl for optimal ink
reception. Once the ink is printed onto
the vinyl substrate, an infrared curing
system creates an impermeable bond for
colorful, long-lasting outdoor signage.
TM
The first direct-to-vinyl,
outdoor printing solution
without solvents.
Page 2
Standard Print Speeds
1
Draft Mode 55 sfph (5.11 smph)
Photo Mode 37 sfph (3.44 smph)
Enhanced Mode 27 sfph (2.51 smph)
Best Mode 23 sfph (2.14 smph)
Dimensions Packed (printer only) Unpacked (printer and stand)
Height 27" (68.58 cm) 44" (111.76 cm)
Width 78" (198.12 cm) 71" (180.34 cm)
Depth 22" (55.88 cm) 28" (71.12 cm)
Weight Packed (printer only) Unpacked (printer and stand)
127 lbs. (57.61 kg) 140 lbs. (63.50 kg)
Media Specifications
Max Roll Width 36.00" (91.44 cm)
Min Roll Width 24.00" (60.96 cm)
Max Roll Size Diameter 6" (15.24 cm)
Core Diameter 2" (5.08 cm), 3" (7.62 cm) with adapter
Max Thickness .003" (.08 mm) minimum, .024" (.6 mm) maximum
Max Weight 35 lbs. (16 kg)
Printable Area
Print Width 34.8" (88.39 cm)
Margin 0.59" (15 mm) on all sides
Language Options English, French, German, Spanish, Italian, Portuguese,
Chinese, Korean, Japanese
Options 100BaseT Print Server
Warranty One year on-site. Extended plan available.
Standard Accessories Four ink cartridges: cyan, magenta, yellow, black; Four
200 ml bottles: one each cyan, magenta, yellow, black;
One set of four ink reservoirs; Sample roll of media;
Priming kit; Quick Start Guide (manual), Reference
Guide (CD), Software drivers (CD)
Ordering Information Part Number
VinylJet 36, W/Stand/Take-Up, AquaVinyl Ink (AV) 219362-00
AquaVinyl Accessory Kit (one cartridge, 400 ml ink)
Cyan Accessory Kit 218865-00
Magenta Accessory Kit 218866-00
Yellow Accessory Kit 218867-00
Black Accessory Kit 218868-00
AquaVinyl Refill Kit (400 ml ink)
Cyan Refill Kit 218869-00
Magenta Refill Kit 218870-00
Yellow Refill Kit 218871-00
Black Refill Kit 218872-00
AquaVinyl Replacement Cartridge
Cyan Replacement Cartridge 218873-00
Magenta Replacement Cartridge 218874-00
Yellow Replacement Cartridge 218875-00
Black Replacement Cartridge 218876-00
100BaseT Print Server 218239-00
1
Output speeds may vary slightly based upon image/file size
Print Technology On-demand thermal inkjet • MicroBurst technology
Ink Delivery System Continuous ink system with 500 ml refillable reservoirs
Ink Compatibility ENCAD AquaVinyl (AV) aqueous-based, infrared-
curable ink for indoor and outdoor applications
Cartridge Warranty Cartridges are warranted for 300 ml of ink throughput
using Encad ink
Ink Shelf Life One year
Cartridge Management Assures the highest quality and reliable productivity
through the useful life of the cartridge, which may
extend beyond the cartridge warranty period. In order
to ensure the quality of output, the cartridges will
shutoff after 700 ml of ink throughput.
Media Compatibility Accommodates a variety of uncoated vinyl media for
indoor and outdoor applications from leading
manufacturers worldwide
Media Handling Standard automated media take-up and feeder system
with media cutter
Print Resolution 600 x 600 dpi
Interfaces IEEE 1284 Bi-tronics ECP (Extended Capability Port)
Parallel (standard)
100BaseT Ethernet (optional) - Recommended for
Windows NT/XP/2000
Emulation
Raster EN-RTL, HP-RTL, HP/GL-2 Raster Merge
Vector HP-GL/2
Processor Power PC
Buffer 32 MB standard, expandable to 128 MB (2 SIMM slots)
Power Requirement 220V, 15 amp
Power Supply 180 min to 264 max VAC, 47 to 63 Hz
Power Consumption 220 W idle, 1100 W typical, 1450 W maximum
Noise Standby: < 50 dBA; Operational: < 72 dBA
Environment
Operating 59° F to 85° F (15° C to 30° C)
20 to 70% RH non-condensing
Shipping 5° F to 140° F (-15° C to 60° C)
5 to 80% RH non-condensing
Storage 40° F to 95° F (4° C to 35° C)
5 to 80% RH non-condensing
Ink Storage 65° F to 85° F (18° C to 30° C)
5 to 70% RH non-condensing
Drivers Windows 95/98/ME, NT/2000/XP
ENCAD File Print Utility (Windows 95/98/NT/2000/XP)
FlexiBanner RIP Software, 60-Day Trial Version
Certification UL, FCC Class A, Canadian Class A, CSA, TUV, GS,
CE Mark, International Safe Transit Association
PN 220287-01
Specifications are subject to change without notice.
Please contact your local authorized Encad reseller, or Encad, Inc.
Encad, Inc. USA
6059 Cornerstone Ct., West
San Diego, CA 92121-3734
Tel: 1-800-45-ENCAD
Tel: 1-858-452-0882
Fax: 1-858-452-0891
Encad, Inc. Europe
A13P Kodak House
Station Road
Hemel Hempstead, Hertfordshire
HP1 1JU, United Kingdom
Tel: +44-0-1442-844-463
Fax: +44-0-1442-844-818
Encad, Inc. Asia
305 Alexandra Road
Singapore 159942
Tel: +65-6476-9688
Fax: +65-6474-6757
www.encad.com
©Eastman Kodak Company, 2003
KODAK, ENCAD, VinylJet, AquaVinyl and MicroBurst are trademarks of Eastman Kodak Company.
All other trademarks are the property of their respective owners.
Authorized Encad Partner
SPECIFICATIONS
