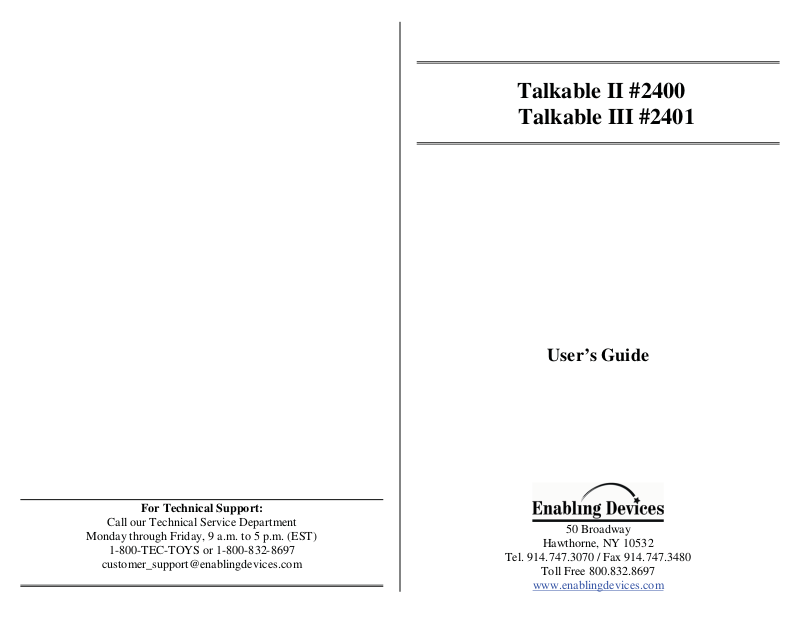

Page 1
Talkable II #2400
Talkable III #2401
User’s Guide
Page 2
These compact dual and triple message communicators allow for simple
communication. The Talkable II allows the user to record two messages.
Choose between two activities such as answering and asking questions (e.g. yes,
no). It has 10 seconds of recording time on each side and two output jacks to
activate two devices. The Talkable III allows for three 5-second messages.
Three jacks allow you to simultaneously activate a toy or device for immediate
reinforcement. Both Talkables come with clear covers for your icons. Size for
II: 7½" x 4½" x 3". Requires 4 AAA Batteries Size for III: 10½" x 5" x 2¾".
Requires 4 AA Batteries.
Operation:
1. Carefully turn unit over and remove the small screw from the battery
compartment. Slide the battery compartment cover off (Talkable 3 only).
Observing polarity, install four AA size batteries (Not included) into the
holder. Replace cover and screw. For Talkable 2 you must remove the screw
and slide the cover to one side. Next install 4 AAA batteries. Alkaline
batteries must be used only (e.g. Duracell or Energizer brand). Do not use
rechargeable batteries or any other type of batteries because they supply
lower voltage and the unit will not perform properly.
2. Never mix brands, types or old and new batteries together. Replace the
battery compartment cover and replace the screw.
3. Turn the unit on by turning the ON/OFF/VOLUME knob located on the
bottom panel of the unit. To record, first press and hold the red “RECORD”
button press down one of the colored plates. While continuing to hold the
plate down, speak your message. Release both when you finish recording.
Record on the other plate in the same manner.
4. To play back your message, press lightly on the plate of your choice. It is
not necessary to continue holding the plate down when listening to the
message. The unit will continue to playback the entire message, even if
pressure on the plate is released.
5. The unit will retain recorded information indefinitely, even if the batteries
are disconnected. Previously stored information will be erased only when a
new recording is performed.
6. Playback volume can be adjusted using the “ON/OFF/VOLUME” control
knob located on the bottom panel of the unit.
7. This unit can also be used to activate switch adapted toys or devices.
Simply attach the toy or device to the corresponding 1/8 inch female jack
using the cords provided. Ther e is an output jack for each or the switch
plates. When the plate is pressed, the message will play and the toy or
device will be activated. Make sure all connections are tight with no gaps
between cords.
Important Notes:
The memory of this unit is capable of holding up to a total of 5seconds of speech
information.
Troubleshooting:
Problem: The unit fails to operate, or operates incorrectly.
Action #1: Make sure there is no dirt or obstacles between the plates and the
housing of the unit.
Action #2: Disconnect the power by removing one of the batteries for 20
seconds in order to reset the unit. Re-install the batteries. If the unit does not
work correctly, replace all the batteries.
Problem: My toy/device connected to the Talkable II does not work.
Action #1: Make sure there are no gaps between your cord connections.
Action#2: Try your toy/device with another switch you know works to rule it
out as the source of the problem.
Care of the Unit:
The Talkable ll can be wiped clean with any mild household multi-purpose, nonabrasive cleaner and disinfectant. We recommend Simple Green, which is a non
toxic biodegradable all-purpose cleaner.
Do not use abrasive cleaners, as they will scratch the surface of the unit.
Do not submerge the unit, as it will damage the electrical components.
8-28-06
